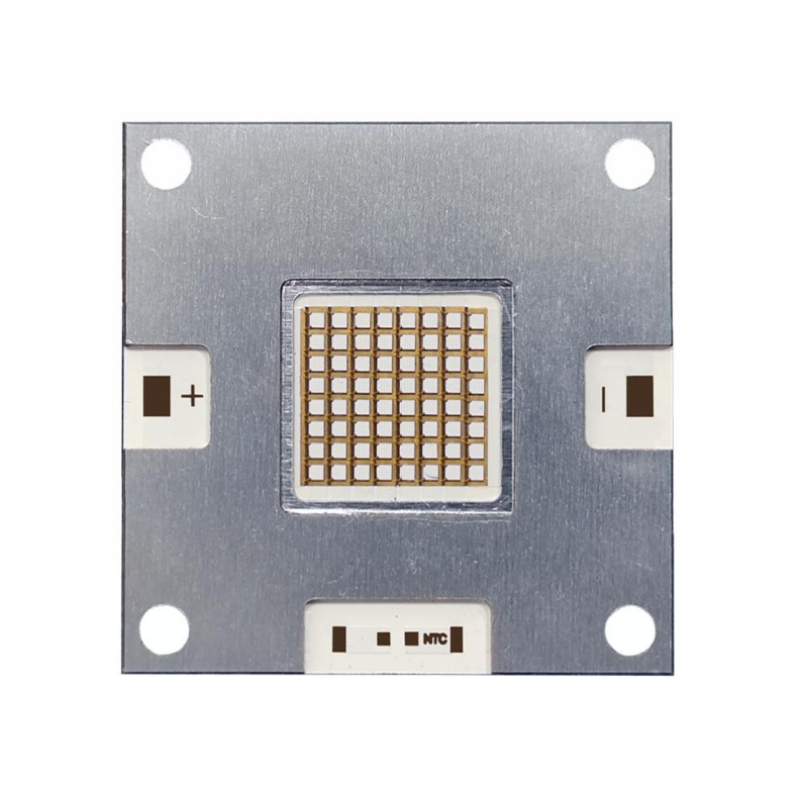

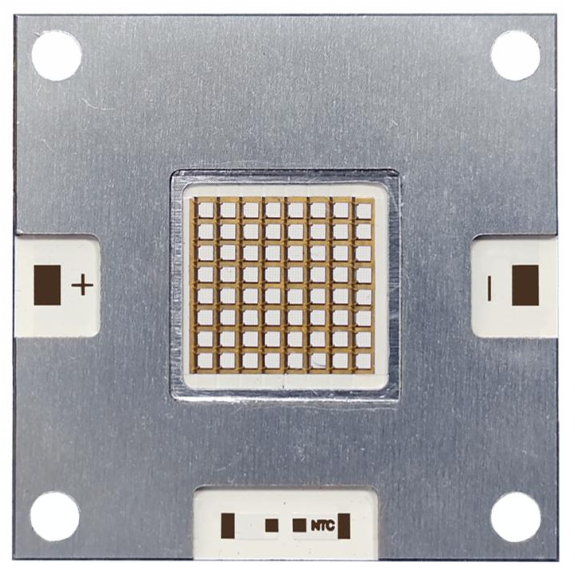

LumiCure Light
1 / 1
| Peak wavelength | 385/395/405nm |

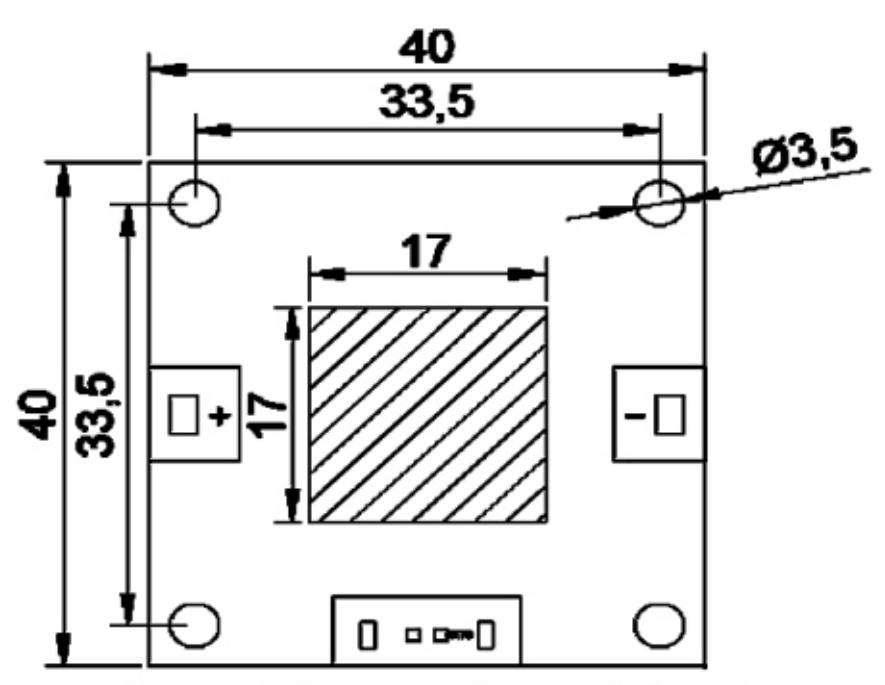

| Size | 40x(L)x40(W)x2.4(T)mm |
| Power Consumption | 240W |
| Central Radiation Intensity | (H=1cm)If=5A:14-16W/cm², If=8A:18-20W/cm² |
| Forward Voltage | 26-30V |
| Peak Forward Current | 8000mA |
| View Angle | 120 deg |
| Picture | Model | Peak wavelength | Size | Forward Voltage | Peak Forward Current | Beam Angle | Power Consumption |
|---|---|---|---|---|---|---|---|
|
DM-4040UV-0808-J45 | 365nm | 40x(L)x40(W)x2.4(T)mm | 27-31v | 6000mA | 120deg | 186W |
When ultraviolet (UV) chip with electricity, it would emit ultraviolet light, which may cause serious damage to exposed skin or eyes. When using these products, protective clothing must be used to protect exposed skin. Protective UV glasses must be worn to prevent damage to the eyes.

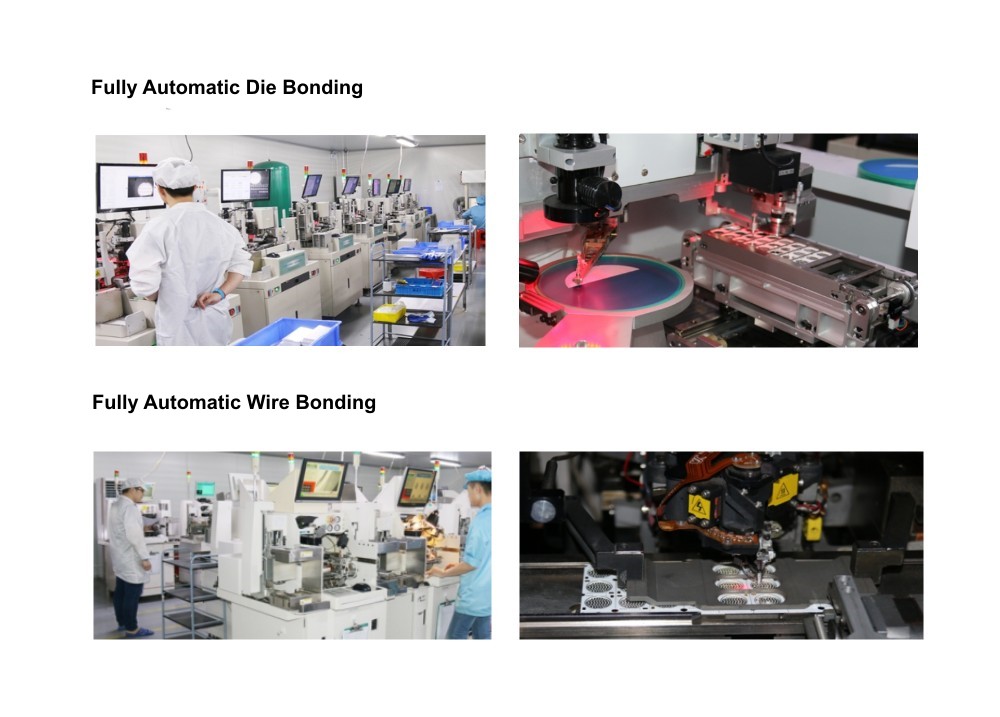

A high-tech enterprise specializing in the packaging of LEDs and related lighting products. Products cover UVA/UVB/UVC full band UV LED, widely used in printing curing, glue curing, printing, 3D printing, UV exposure, fluorescence detection, phototherapy instruments, sterilization and disinfection, air purification, water sterilization, plant growth, chemical testing, and other industries. With 10+ years of experience in the LED field, a full range of LEDs and optical engines is supplied.

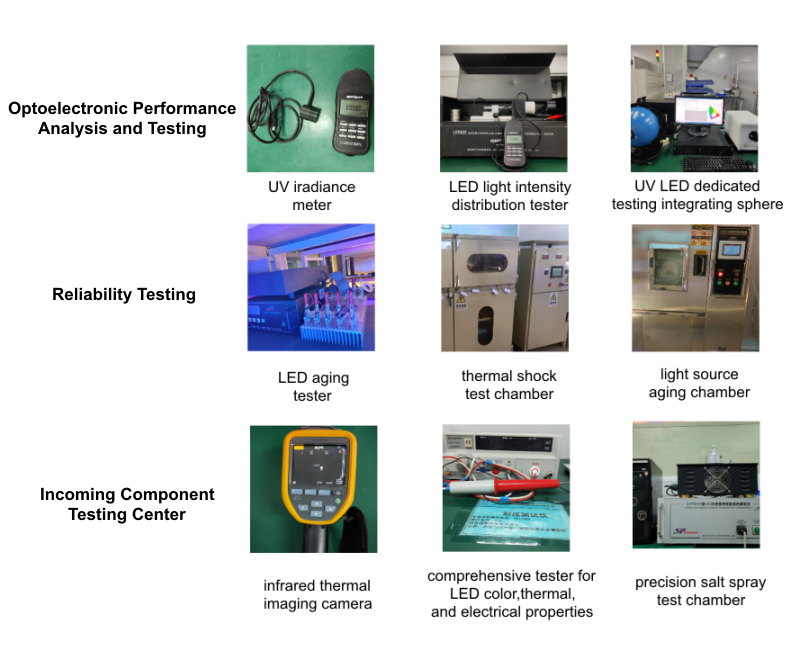

Supported by a strong technical team, a high reputation has been built in the LED products market domestically and abroad. Based on the current rapid development in the LED industry, the main direction of development targets the field of intelligent manufacturing to secure a leading position in the industry.
