Explore our leading industrial UV LED units engineered to optimize curing efficiency and speeds across various flexographic platforms.
The flexographic printing sector is undergoing a profound paradigm shift. For decades, medium-pressure mercury vapor lamps dominated web curing lines, exposing operators to ozone emissions, excessive IR radiation, and substantial power bills. Today, global package converters and label manufacturers are converting their web presses to solid-state UV LED systems. By leveraging precise wavelengths—principally 385nm and 395nm—industrial printing platforms are unlocking unprecedented production efficiency.
Unlike mercury lamps that project a broad spectrum including unwanted infrared and UVC waves, UV LED curing systems deliver a monochromatic output targeted directly at the activation spectra of modern photoinitiators. This eliminates thermal degradation of sensitive, thin-film substrates like shrink sleeves and thin-gauge clear films. At the macro-industrial scale, this transition means less waste, faster make-ready times, and a drastically reduced carbon footprint.
Information Gain Concept: Traditional broad-spectrum mercury systems lose up to 70% of energy as thermal heat, demanding high-capacity HVAC and chilled rollers. Direct LED curing transfers energy cleanly to the photopolymer layers, allowing higher curing speeds at lower physical temperatures.
Across North America, Europe, and Asia-Pacific, regulatory bodies are tightening environmental constraints. The Restriction of Hazardous Substances (RoHS) and the Minamata Convention on Mercury continue to accelerate the obsolescence of mercury-laden lamps. Flexographic printing plants are forced to adapt or face punitive operational costs.
Commercially, high-volume operations demand modular UV LED retrofitting options. A typical packaging manufacturer cannot afford lengthy downtime. Thus, system builders who offer plug-and-play water-cooled or air-cooled assemblies are gaining substantial market share. High-intensity narrow web and wide-web curing units are no longer custom novelty items but standard requirements in competitive bidding processes.
Full adherence to global regulations banning mercury-based hardware, paving the way for sustainable long-term factory operations.
Eliminate bulb replacements, warm-up delays, and high electrical loads, resulting in immediate savings and fast return on investment.
Integrate directly with modern press PLCs to adjust curing width and power dynamically relative to press speeds.
In localized manufacturing centers (such as food packaging and pharmaceutical labeling lines), curing integrity is linked directly to product safety. Low-migration inks require absolute, verified cure levels to avoid volatile organic compound (VOC) transfer onto food items.

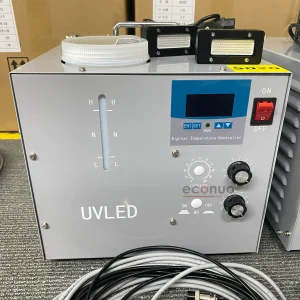

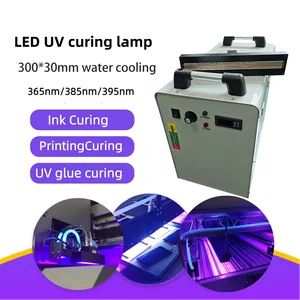

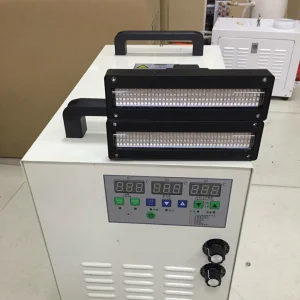

Here, regional print operations deploy specialized systems, such as water-cooled UV LED heads with integrated chill plates. These systems manage the extreme optical irradiance—often exceeding $16\text{ W/cm}^2$—without introducing heat to the press frame. In localized high-volume shipping carton plants, wider web processes utilize staggered LED modules that allow variable curing zones, shutting down outer segments for narrower runs to preserve energy.
The progression of industrial curing technology relies heavily on micro-optics and semiconductor developments. Modern LED chips (UV LED dies) are mounted on Metal Core PCBs (MCPCBs) using direct copper eutectic bonding. This ensures the minimal thermal resistance path necessary to preserve diode life.
The roadmap points toward multi-wavelength array integration. By blending 365nm (for surface cure and scratch resistance) with 395nm (for deep through-cure of heavy black and white inks), systems produce high-quality finishes at line speeds exceeding $300\text{ m/min}$. In addition, built-in optical sensors monitor degradation in real-time, feeding telemetry to factory automation software for predictive maintenance.
| Performance Metric | Conventional Mercury Systems | LumiCure Advanced UV LED Systems |
|---|---|---|
| Spectral Output | Broadband (200nm - 450nm + IR) | Monochromatic (385nm / 395nm ± 5nm) |
| Operational Lifespan | 1,000 - 2,000 Hours | Over 20,000 Hours |
| Substrate Heat Transfer | High (requires active chill rolls) | Minimal (cold cure technology) |
| Warm-up/Cool-down | 10 - 15 Minutes required | Instantaneous On/Off |
| Power Consumption | 100% (Continuous baseline load) | 35% - 50% (Power matched to line speed) |
Dongguan LumiCure Light Co., Ltd. is a professional China UV LED curing lamp manufacturer specializing in the research, development, production, and supply of industrial UV curing systems and customized UV LED solutions. With a strong focus on innovation, quality, and customer satisfaction, LumiCure has become a trusted partner for manufacturers worldwide seeking efficient and reliable curing technologies.
Our comprehensive product range includes UV LED curing lamps, UV LED spot curing systems, flood curing lamps, conveyor UV curing machines, UV LED modules, printing curing systems, adhesive curing equipment, and customized industrial UV solutions. These products are widely applied in printing, electronics assembly, semiconductor packaging, optical bonding, automotive manufacturing, medical devices, 3D printing, and various precision industrial processes.
Backed by an experienced engineering team and advanced manufacturing facilities, LumiCure is committed to developing energy-saving and environmentally friendly UV curing technologies. Our products feature high curing efficiency, precise wavelength output, long service life, low maintenance requirements, and intelligent control capabilities, helping customers improve productivity while reducing operating costs.
Quality remains the foundation of our business. Every product undergoes rigorous testing and strict quality control procedures throughout the manufacturing process to ensure consistent performance and reliability. We also provide comprehensive OEM and ODM services, enabling customers to customize products according to their specific technical and application requirements.
Serving clients across Europe, North America, Asia, the Middle East, and other global markets, Dongguan LumiCure Light Co., Ltd. continues to deliver innovative UV LED curing solutions that support sustainable and efficient industrial manufacturing.
A transparent look at our precision assembly, diode calibration benches, and quality control systems in Dongguan.
At LumiCure, we operate class-10,000 cleanrooms for sensitive optical die assemblies. To guarantee long-term durability, each LED module undergoes 72 hours of continuous high-power testing. Our specialized spectrometers and radiometers calibrate optical uniformity across every millimeter of the curing window.
Our production capabilities scale seamlessly from narrow-web label integrations to wide-format packaging lines. Through precise optical modeling and thermal simulation, we design customized water jackets and heatsinks that prevent thermal drift, keeping the emitting diodes within safe operating temperature boundaries.
Addressing the critical engineering queries of press operators and system integrators during UV LED procurement.
Explore our targeted solutions for food packaging, electronics exposure, and variable width printing machinery.
Talk to our engineering team at Dongguan LumiCure Light Co., Ltd. We provide OEM/ODM designs tailored to your line speed, web width, and ink system.
Contact Engineering Department
