LumiCure Light
1 / 5
The UVLED spot type light source designed and developed by our team provides outstanding performance for high-precision curing operations. Key advantages include:
| Product Name | UV LED spot type curing system |
|---|---|
| Irradiation heads | 1-4 heads |
| Wavelength | 365nm (customized wavelengths available) |
| Controller Model | UVSP81 |
| Cooling mode | Air cooled |
| Lens Diameter | 1.5-20mm |
| Install method | Vertical 90° / Horizontal |

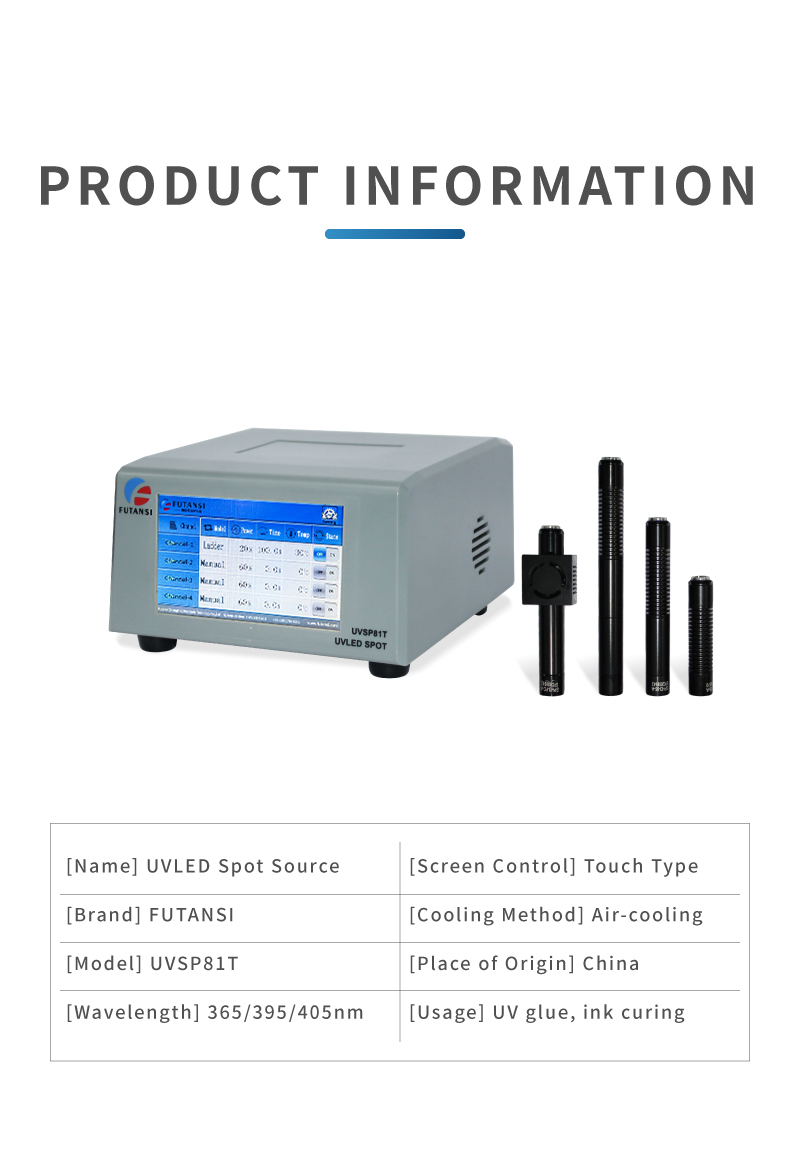

Product model: UVSP81

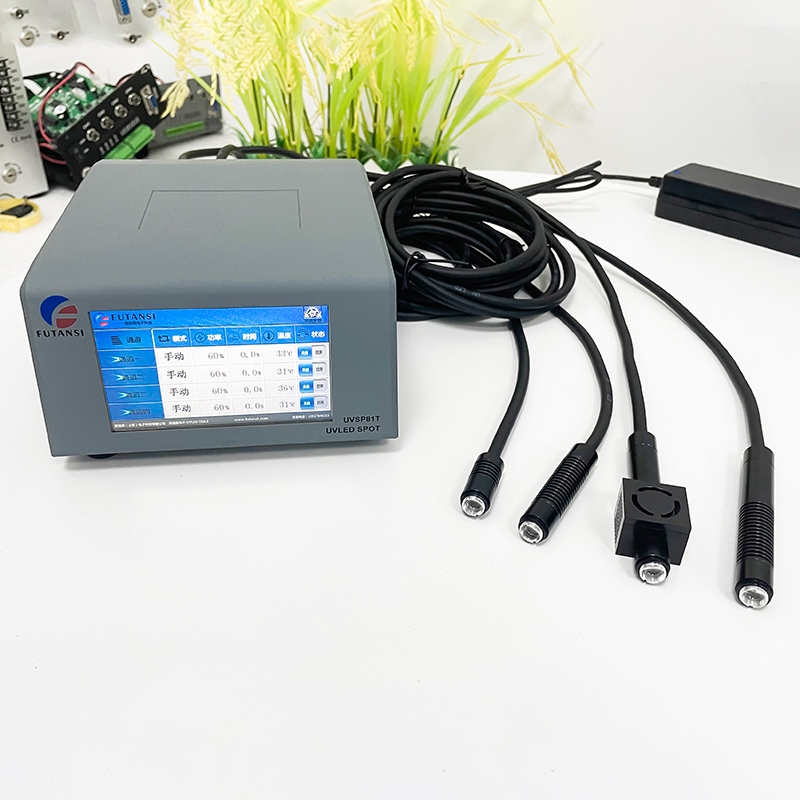

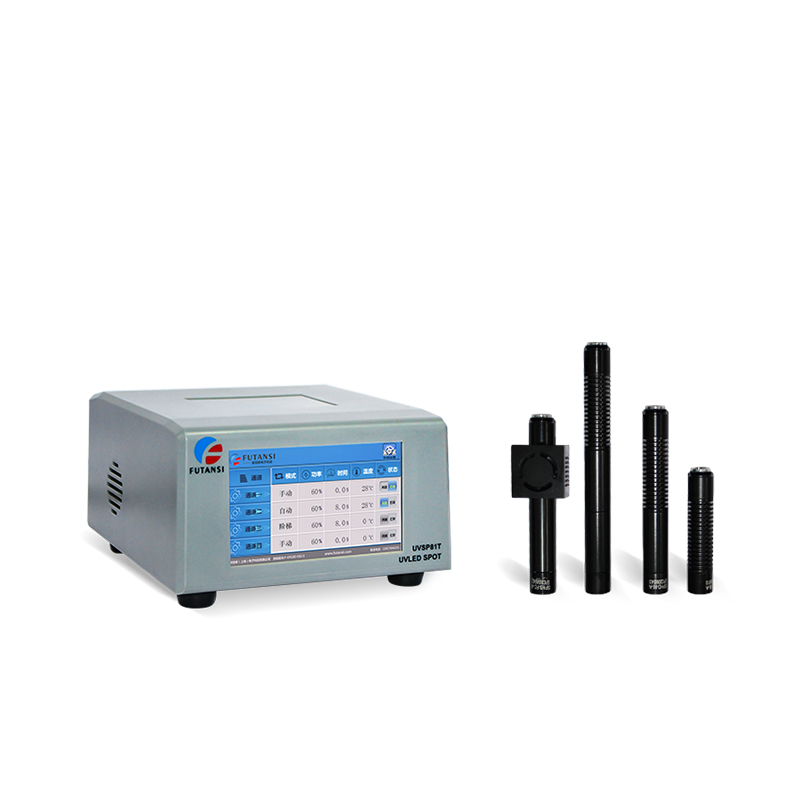

Scope of delivery: Controller + irradiation head (1-4 irradiation heads) + power supply + connect cable
Product specifications: UV LED spot curing light source (customized configurations available)
Wavelength range: 365nm
The production facility holds CE and ISO9001:2015 management system certifications. Product designs are backed by more than 12 Design patents, 3 invention patents, 5 utility model patents, and 7 software development certifications.
Established in 2010, the high-tech manufacturing center is managed by top professional experts. We dedicate ourselves to delivering high quality, safe, and stable performance curing equipment for global clients. The products are utilized in almost all optoelectronic processes, including optical communications, electronic manufacturing, semiconductor optics, and research laboratories.
From scientific research to industrial production, we manufacture a wide range of curing systems, such as UV LED curing spot sources, UVLED curing ovens, and tunnel conveyor drying machinery, earning a global reputation for reliability.
A: This system is widely used in optoelectronic industries, optical communication systems, electronic device manufacturing, semiconductor packaging, and various research institutions requiring high-precision UV curing.

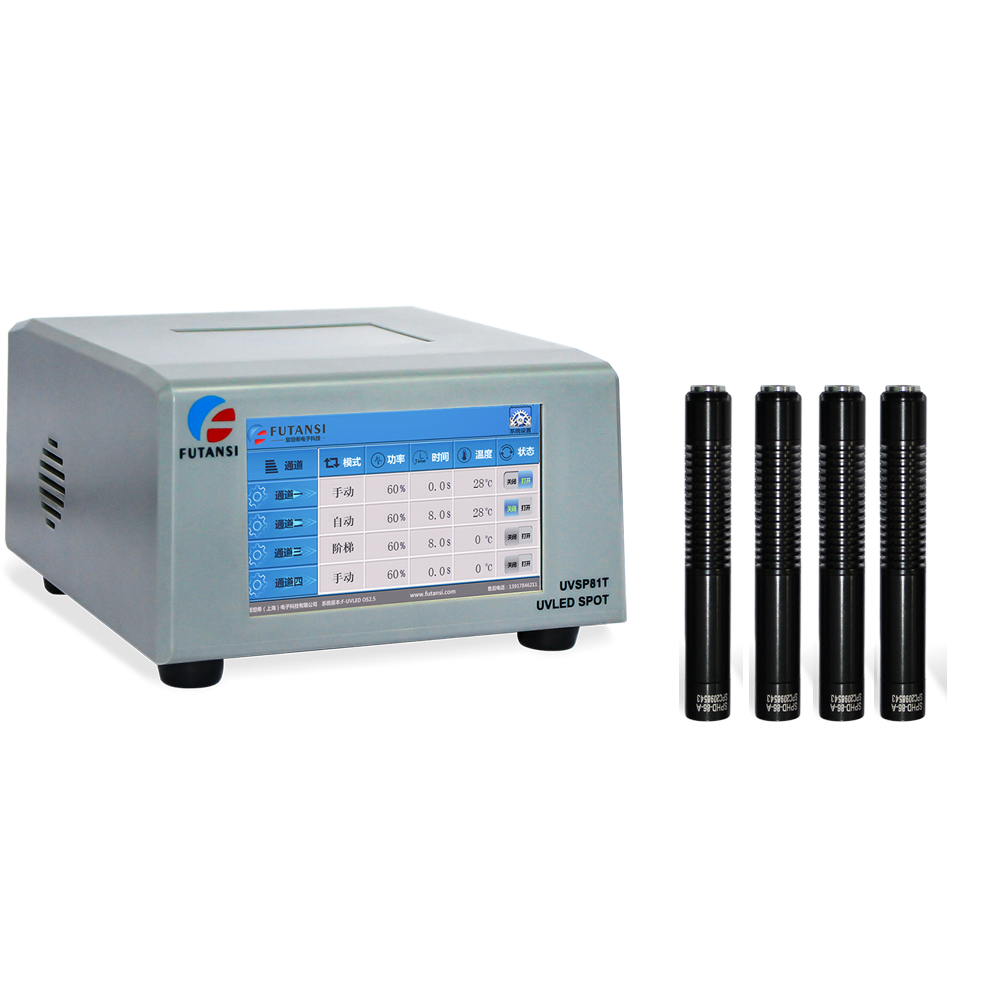

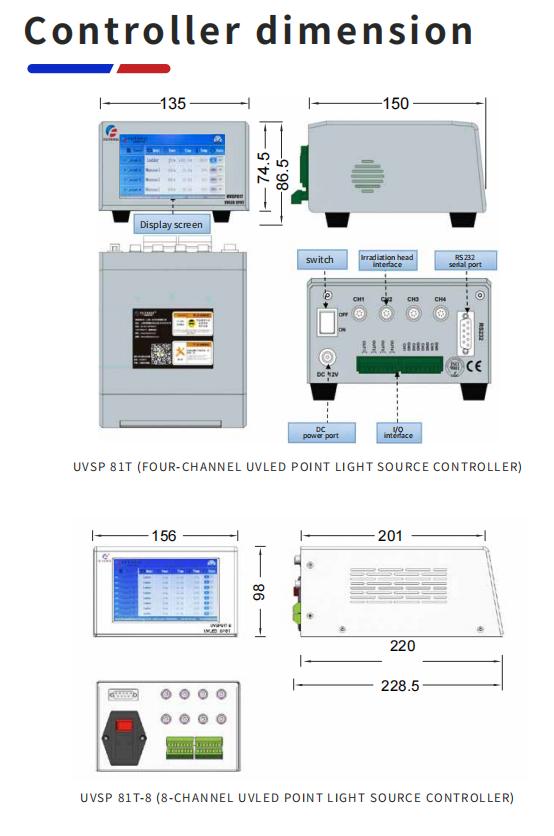

A: The system supports multiple configurations. Depending on your needs, you can choose between controller options that accommodate 1 to 4 or 1 to 8 irradiation heads, which can be configured individually.
A: The standard wavelength is 365nm. However, customized wavelengths are available upon request to match your specific adhesive or coating formulation needs.
A: The UV LED light source features an average service life exceeding 25,000 hours under standard operating conditions, drastically reducing maintenance downtime compared to mercury lamps.
A: Yes. The system has a touch screen controller that enables users to adjust the power output linearly from 0% to 100% and program specific curing cycle durations.
A: The system features an efficient air-cooling design, which ensures reliable temperature management and stability during prolonged operations without complex liquid cooling hardware.
