160x20mm High Power UV Ink Curing Fan Cooling Uv Led Curing Lamp For Industrial Printing Machine

Send Inquiry

Product Description

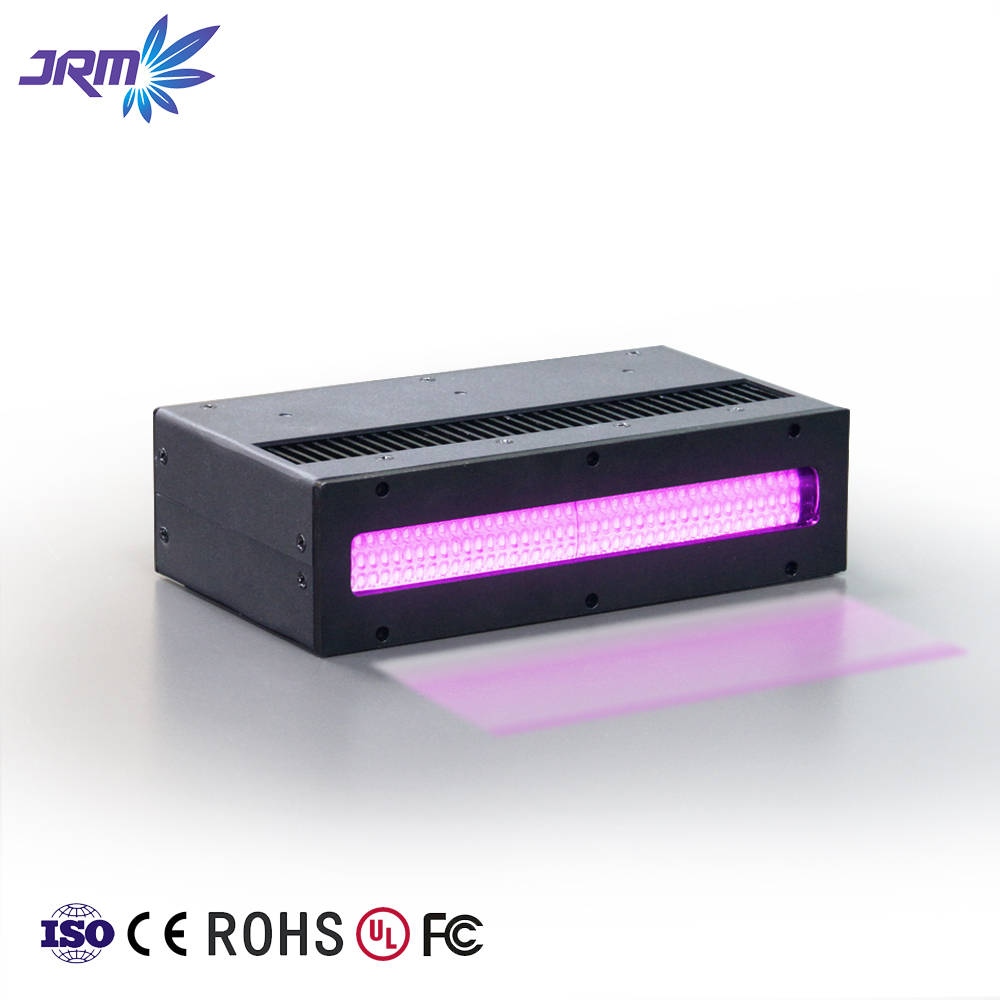

160x20mm High Power UV Ink Curing Fan Cooling Uv Led Curing Lamp for Industrial Printing Machine

Main Products

Get a Deal & Custom Solutions

Looking for a reliable UV LED Curing System for printing, bonding or coating?

100% Customizable Size | Wavelength | Power – Direct from Manufacturer

Click "Send inquiry" or "Chat now" – Get instant quote & free technical advice!

Product name	Fan Cooling Uv Led Curing Lamp
Model	JRM-F16020A02-C7

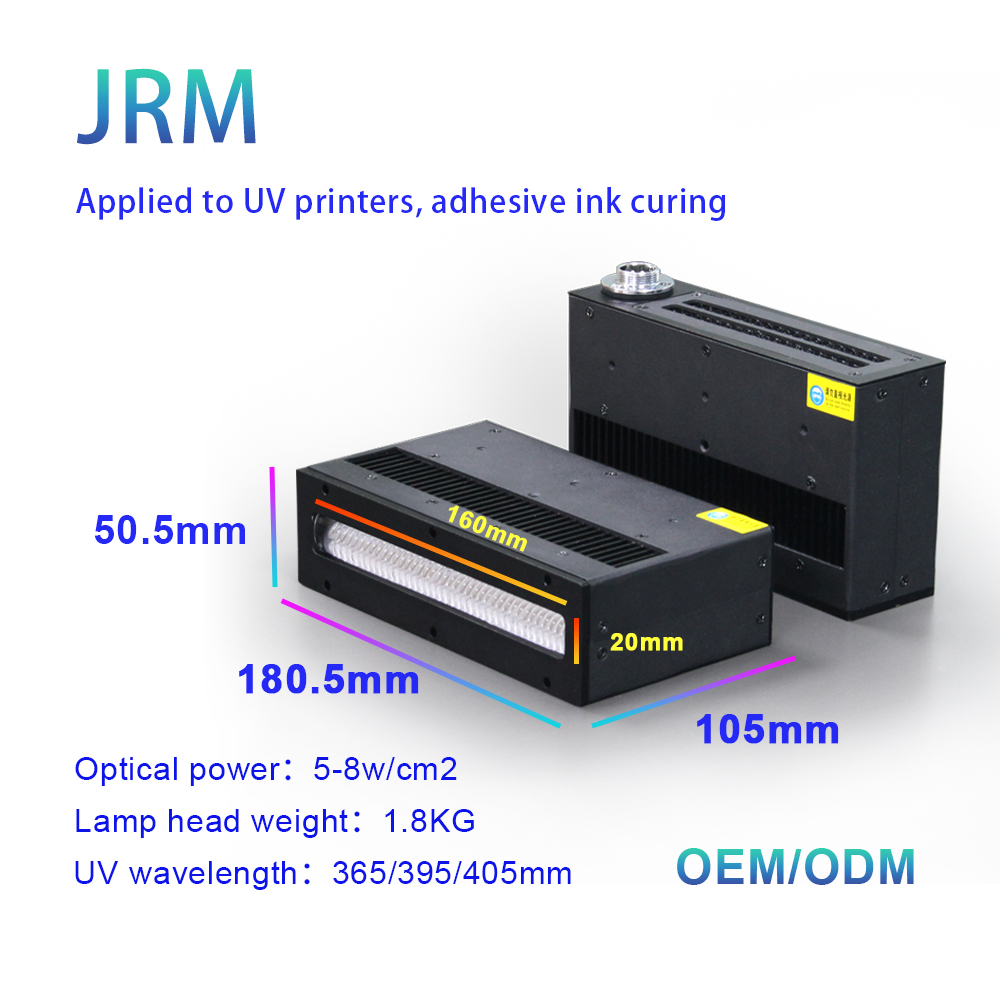

Irradiation head size	180.5x50.5x105mm
Irradiation window area	160X20mm
Input voltage	AC 220V
Wavelength	365/395/405nm
Total system power	900W
Optical power	5-7W/CM²
Lamp head weight	1.8KG
Irradiation head electrical power	800W

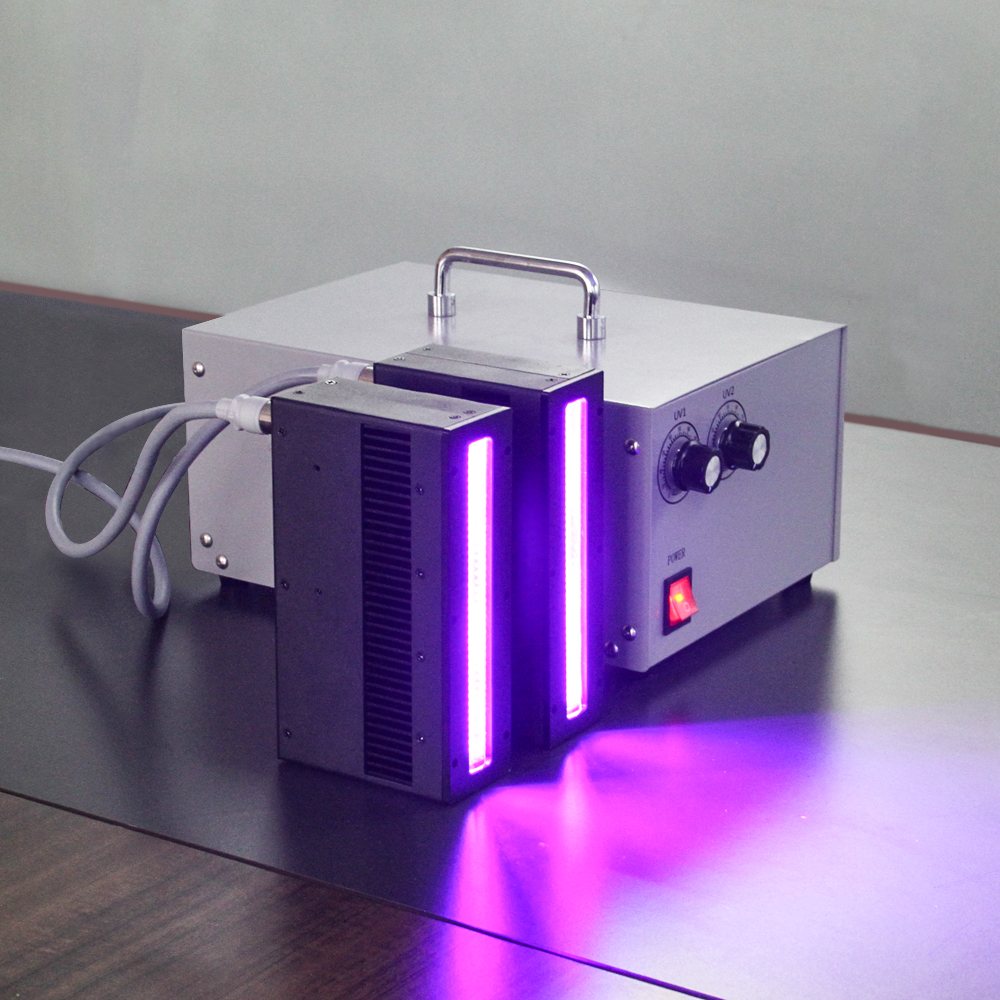

Power canister size	300x190x110mm
Startup control mode	3-32v DC signal control
Weight(Power supply and lamp)	10.5KG
Brightness adjustment method	Potentiometer knob adjustment
The working height of the irradiation head	3-7mm
Application	Fan Cooling Uv Led Curing Lamp, UV Label Printing, Flatbed printers, UV Glue Ink Curing, Industrial Applications to Cure or Dry Inks, Coatings, Adhesives and Polymers

Application

Factory & Production Showcase

Frequently Asked Questions

1. Are you a factory?

Yes! We are a professional factory. We have been producing UV LED products for 15 years.

2. Can we customize the product?

Yes! We can produce the products according to your requirements.

3. Do you have any MOQ limit for led light order?

No! One piece is also acceptable.

4. How to choose the size of Fan Cooling Uv Led Curing Lamp?

Please contact us and we will give you professional advice!

5. What is the brand of UV LED LAMP chip?

We use high-quality chips from brands like LG, Epileds, Seoul, and Epistar.

6. How long is the life of UV LED LAMP?

LED chips have a life span of 20,000 hours, and even longer if proper care is taken during use.
