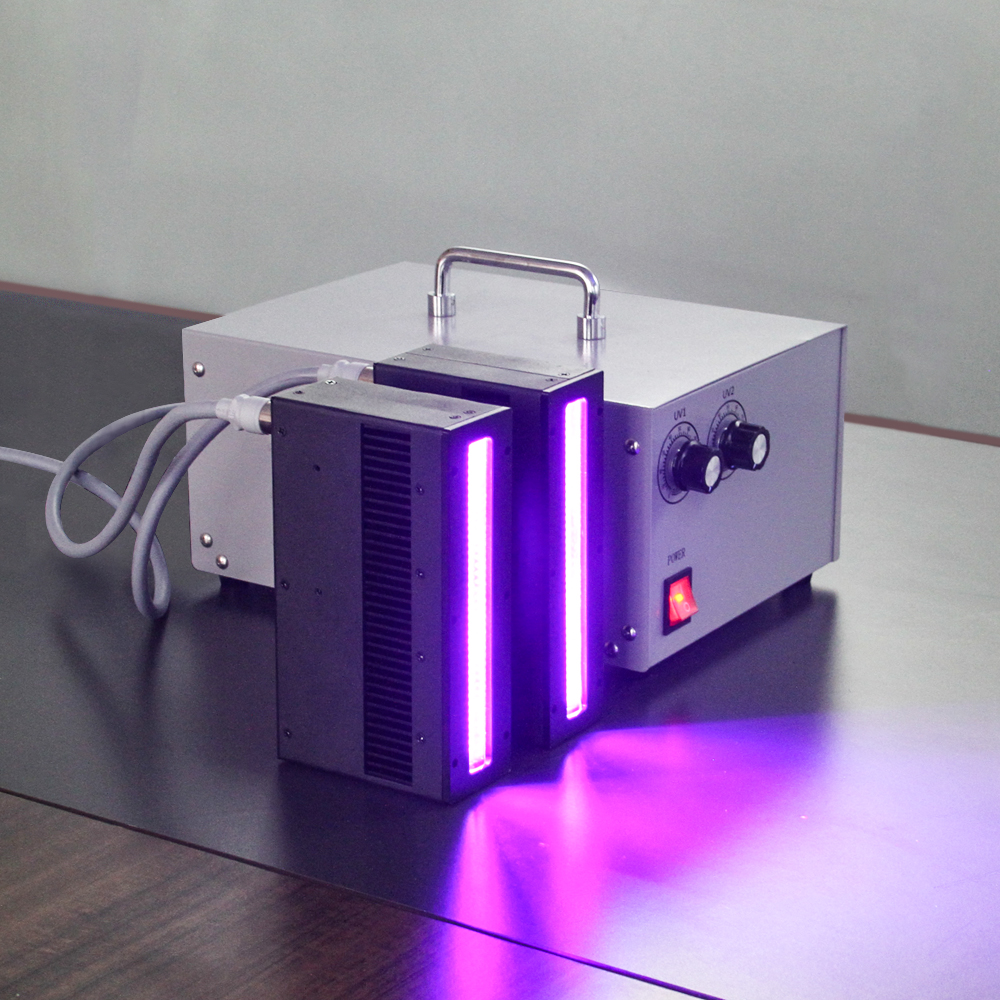

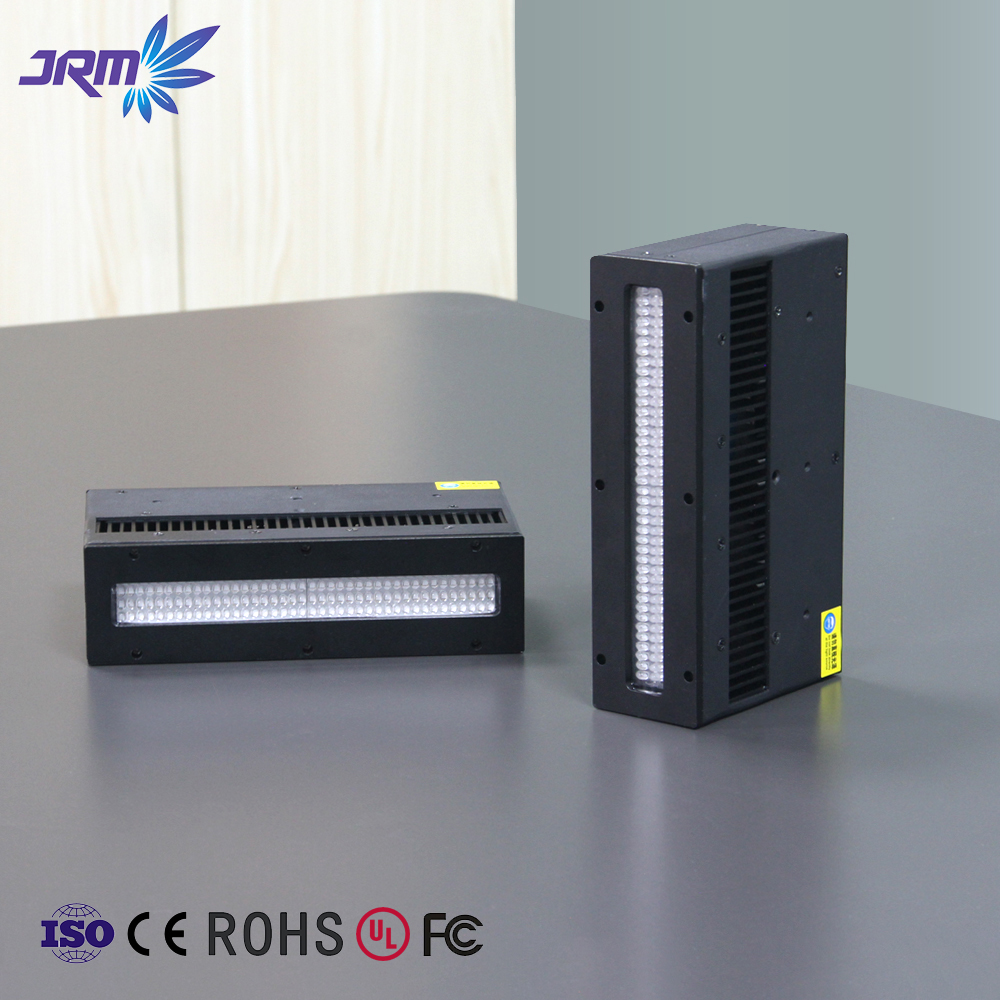

Industrial-Grade 160x20mm UV LED Lamp Curing System 365/395/405nm Air-Cooled High-Power Adjustable Output

Main Products

Custom UV LED Curing Solutions

Looking for a reliable UV LED Curing System for printing, bonding or coating?

100% Customizable Size | Wavelength | Power – Direct from Manufacturer

Send inquiry or Chat now – Get instant quote & free technical advice!

Technical Specifications

Product name	UV LED Lamp Curing System
Model	JRM-F16020A02-C3

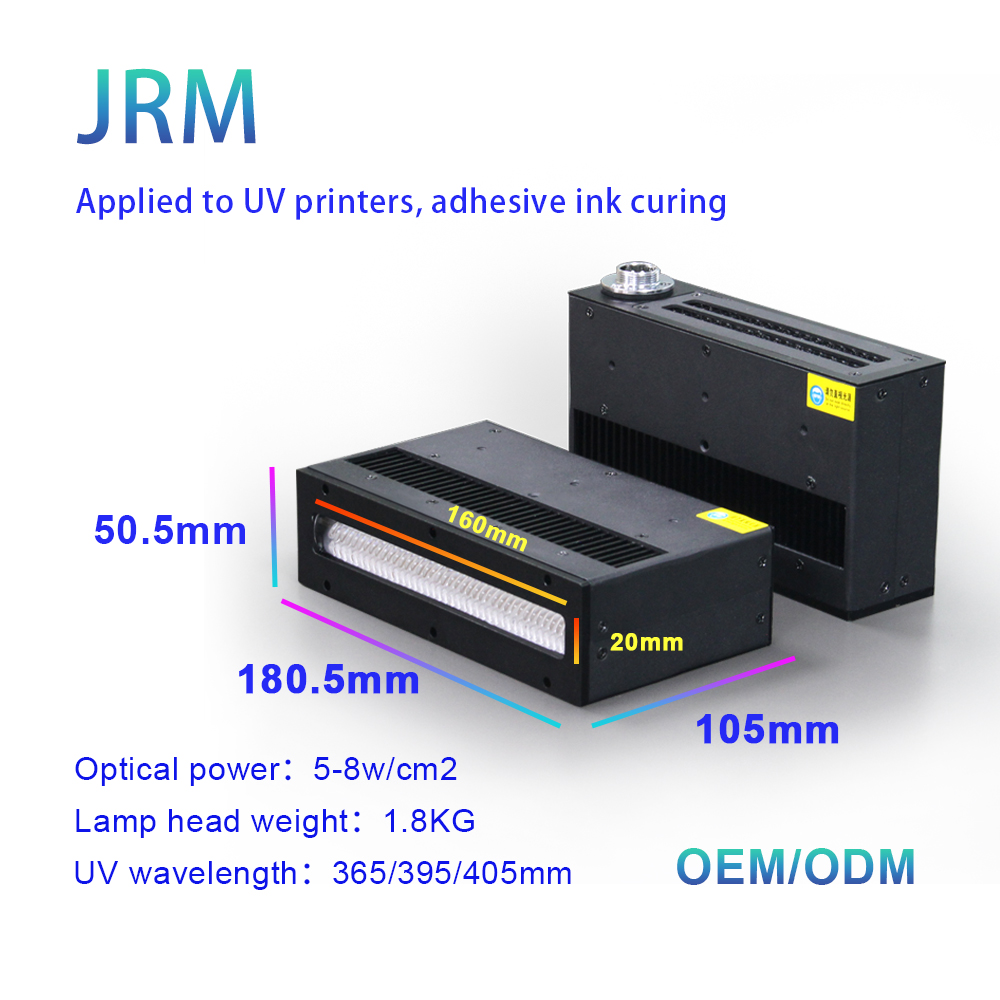

Irradiation head size	180.5mmX50.5mmX105mm
Irradiation window area	160X20mm
Input voltage	AC 220V
Wavelength	365/395/405nm
Total system power	900W
Optical power	5-7W/CM²
Lamp head weight	1.8KG
Irradiation head electrical power	800W
Power canister size	300mm190mm110mm
Startup control mode	3-32v DC signal control
Weight (Power supply and lamp)	10.5KG
Brightness adjustment method	Potentiometer knob adjustment
Working height of irradiation head	3-7mm
Application	UV Label Printing, Flatbed printers, UV Glue Ink Curing, Industrial Applications to Cure or Dry Inks, Coatings, Adhesives and Polymers

Applications

Factory & Production

Frequently Asked Questions

Q1 Are you a factory?

Yes! We are a professional factory. We have been producing UV LED products for 15 years.

Q2 Can we customize the product?

Yes! We can manufacture the products according to your specific requirements.

Q3 Do you have any MOQ limit for LED light orders?

No, a single unit order is also highly acceptable.

Q4 How to choose the size of the UV LED LAMP?

Please contact our support team and we will provide professional technical advice!

Q5 What brand of UV LED chips do you use?

We use high-quality chips from industry-leading brands including LG, Epileds, Seoul, and Epistar.

Q6 What is the lifespan of the UV LED LAMP?

Our LED chips have a standard lifespan of 20,000 hours, which can be extended even further with proper care during operation.
