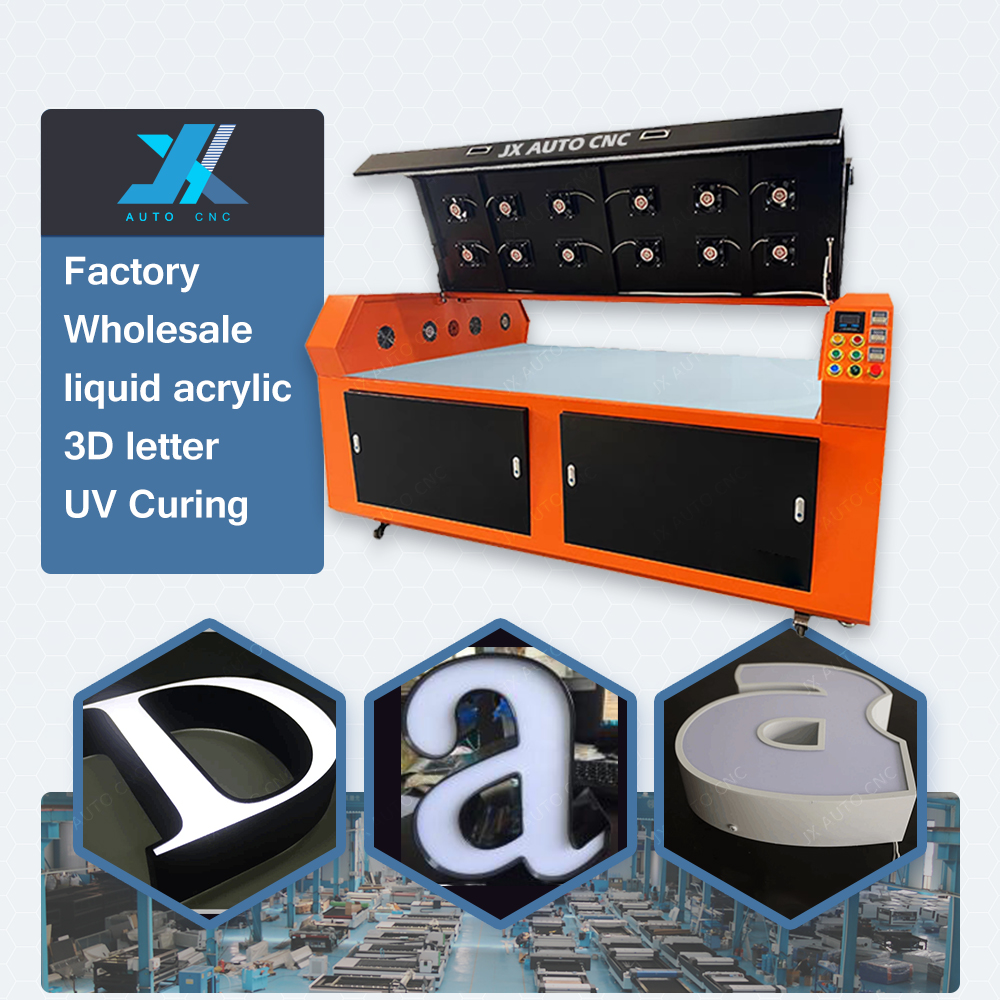

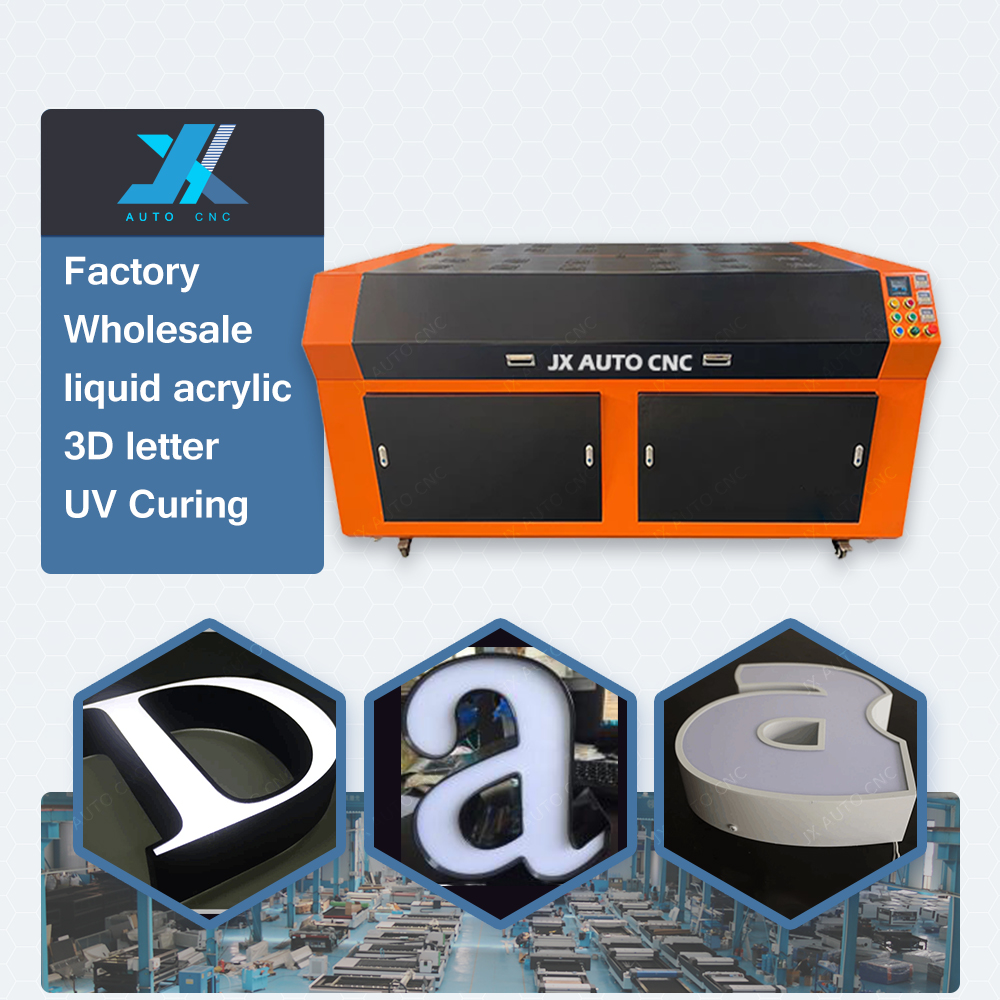

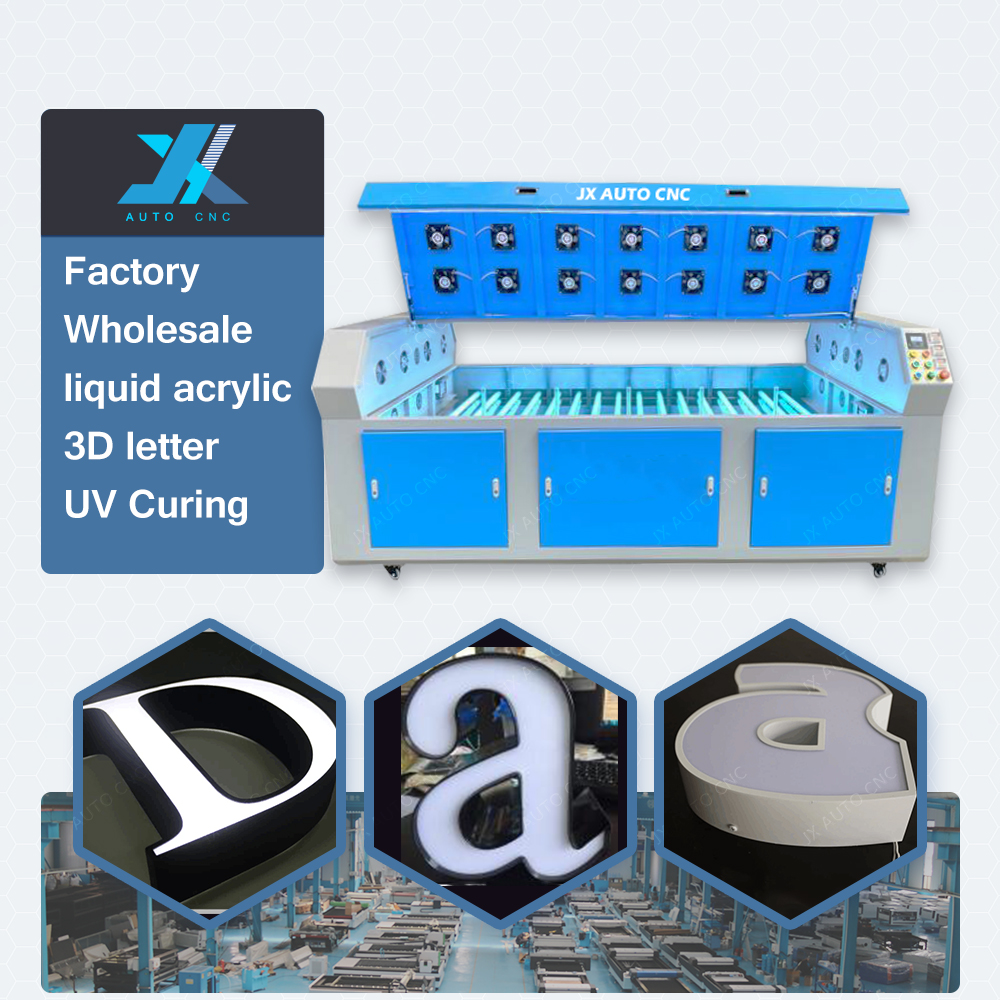

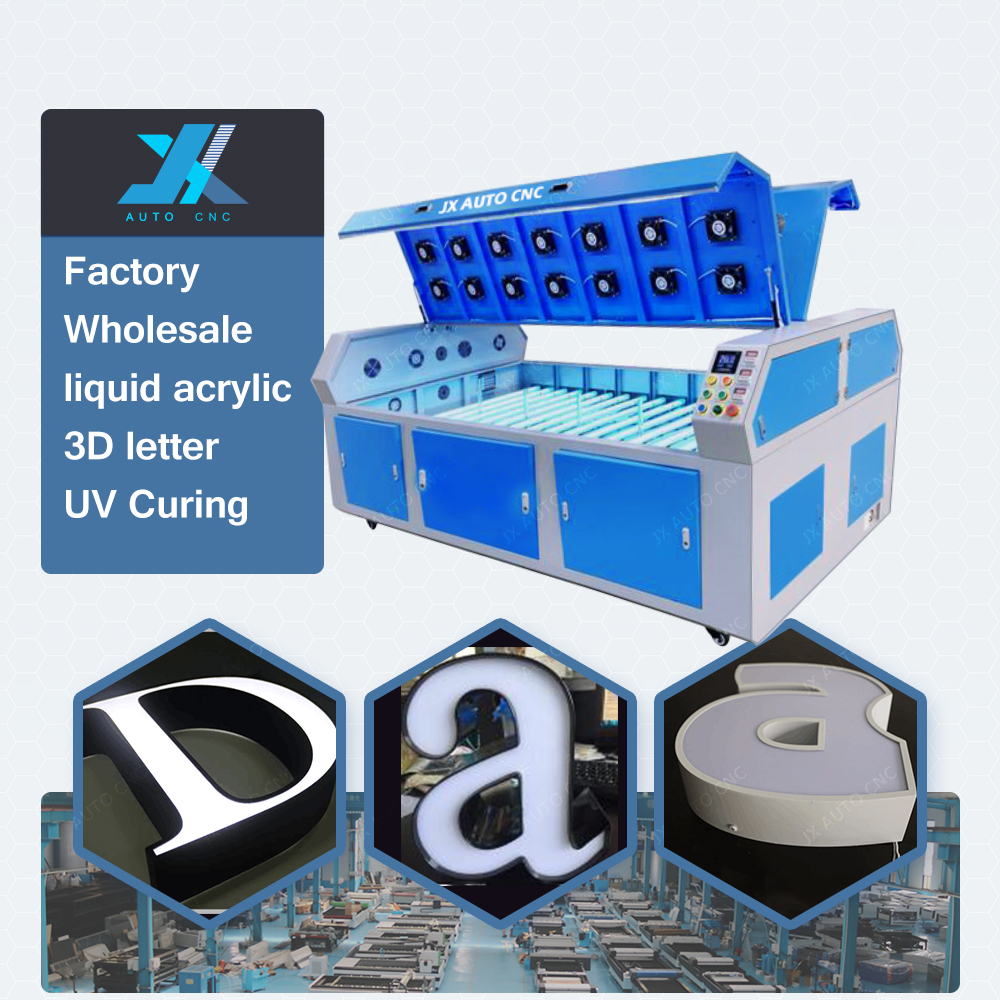

JX Sale Curing Machine Uv Shoes Glue Led Curing Light for Liquid Acrylic Letters Industrial Coatings

Products Description

Features

Button start operation, easy and practicable.
Clamshell design, use more safety.
No need assembly, only plug in can working.
With reset function, after sudden power off can continue to work.
Lower energy consumption, maintenance cost and failure rate.

Product Parameters

Temperature Control Model
Model	JX-3016D	JX-3016	JX-2516
Working size	2530*1405mm	2530*1405mm	2020*1405mm
Solidify time	30-90 minutes
Temp Control	Automatic
Total Power	2.8kw
Voltage	220V
Machine size	300016602000mm	300016601280mm	250016601280mm
Multiple Function Model
Model	JX-1714	JX-1710	JX-1006
Working size	1500*1280mm	1500*850mm	960*580mm
UP solidify time	4 minutes
Down solidify time	30--90 minutes
Total Power	2.0KW	1.8KW	1.6KW
Voltage	220V
Machine Size	170014001750mm	170010001750mm	10006501750mm

Details Images

01

Using 1.5-2.5mm galvanized iron plate as machine shell, which avoid the machine deformation and curing glass broken.

02

Machine in advanced in automatically control and keep constant temperature. One-button power on and one-button start curing.

03

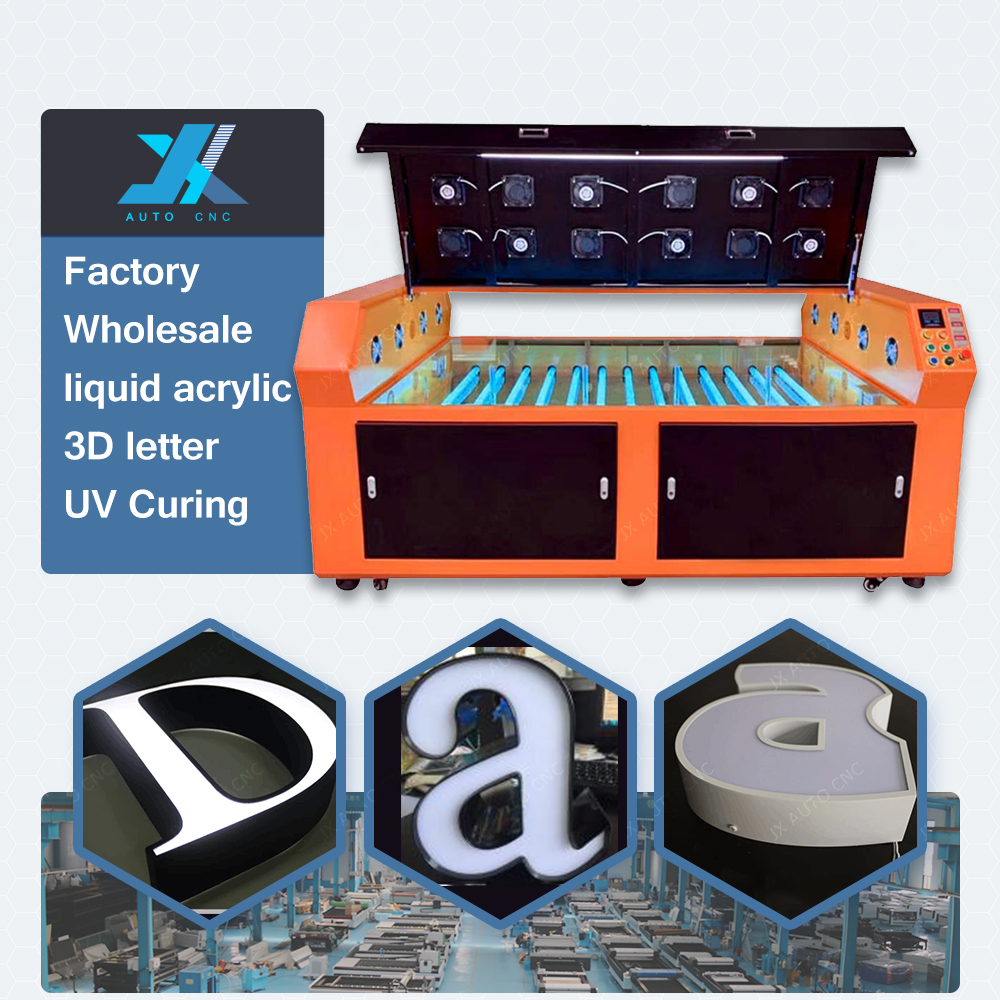

Original Phillip UV light curing. Plug and play. Curing glass table prepared, no need to prepare by yourself.

Customer & Feedback

Function Introduction

Liquid Acrylic Curing Machine can make epoxy resin sign letters and liquid acrylic letters. Epoxy resin making as the letter face, it only take 4 minutes to drying completely. Suitable with no-edge letters, resin letters, mini-letter, etc. It always created a clear and smooth surface and better 3D effect. For Liquid Acrylic, the advantage is short time, high speed, better flatness. Liquid acrylic can be mix with various different colors.

After service

Company Profile

Our Advantages

Certifications

Client Feedback

FAQ Diagram

Frequently Asked Questions

What materials can this curing machine process?

This machine is designed for curing liquid acrylic and epoxy resin used in sign letters, including no-edge letters, resin letters, and mini-letters.

How long does the curing process take?

For epoxy resin, it takes approximately 4 minutes to dry completely. For liquid acrylic, it typically takes 30 to 90 minutes depending on the model and material thickness.

Is the machine easy to install and operate?

Yes, it features a plug-and-play design with no assembly required. The machine uses a simple button-start operation and includes an automatic temperature control system.

What are the power and voltage requirements?

The machine operates on a standard 220V voltage. The total power ranges from 1.6KW to 2.8KW, depending on the specific model.

Does the machine have a memory or reset function?

Yes, it features a reset function that allows the machine to resume operations seamlessly from where it left off after a sudden power interruption.

How does the constant temperature control benefit the process?

The advanced automatic temperature control ensures a stable environment, which prevents deformation of the machine shell and ensures a smooth, bubble-free 3D surface on the cured letters.
