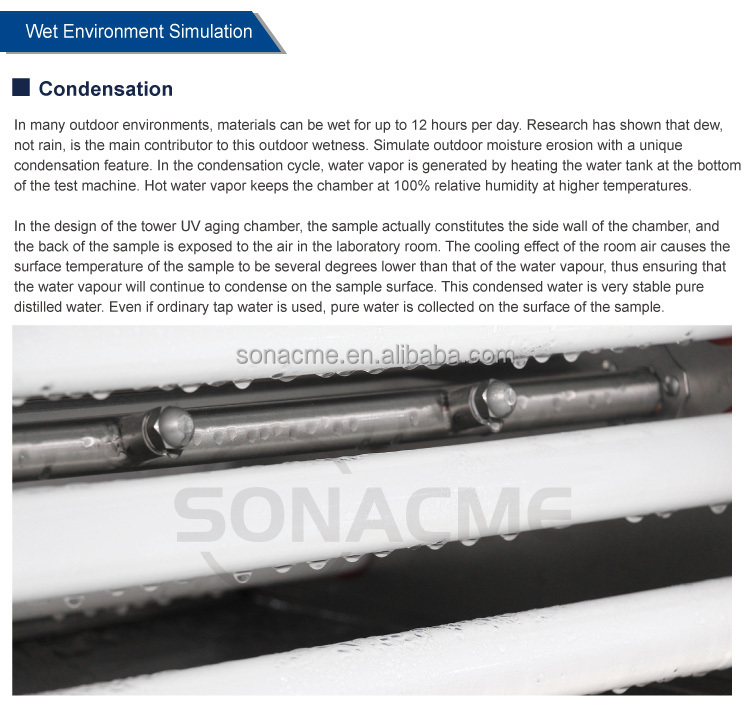

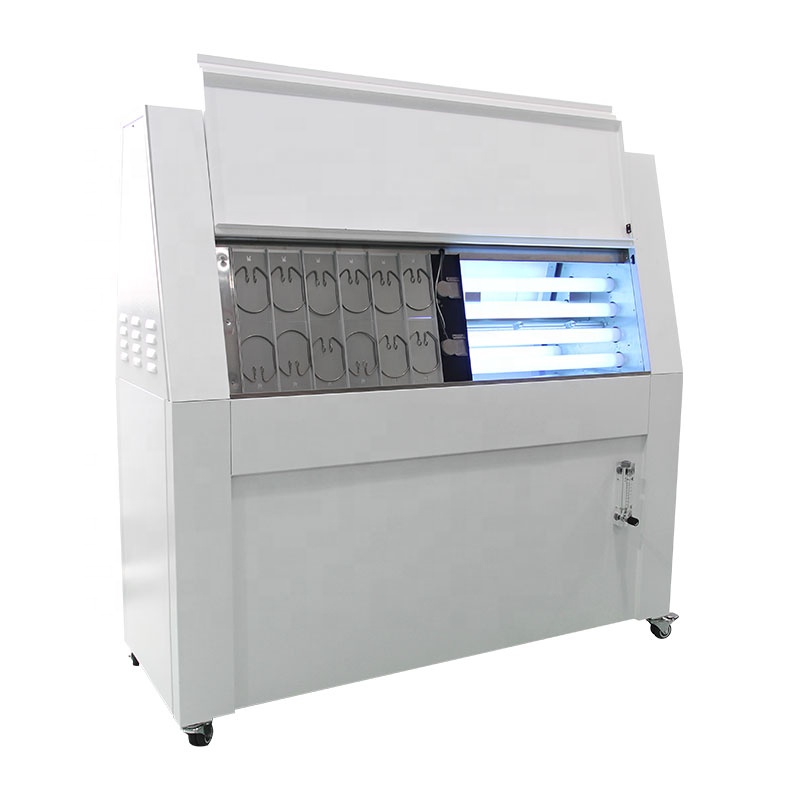

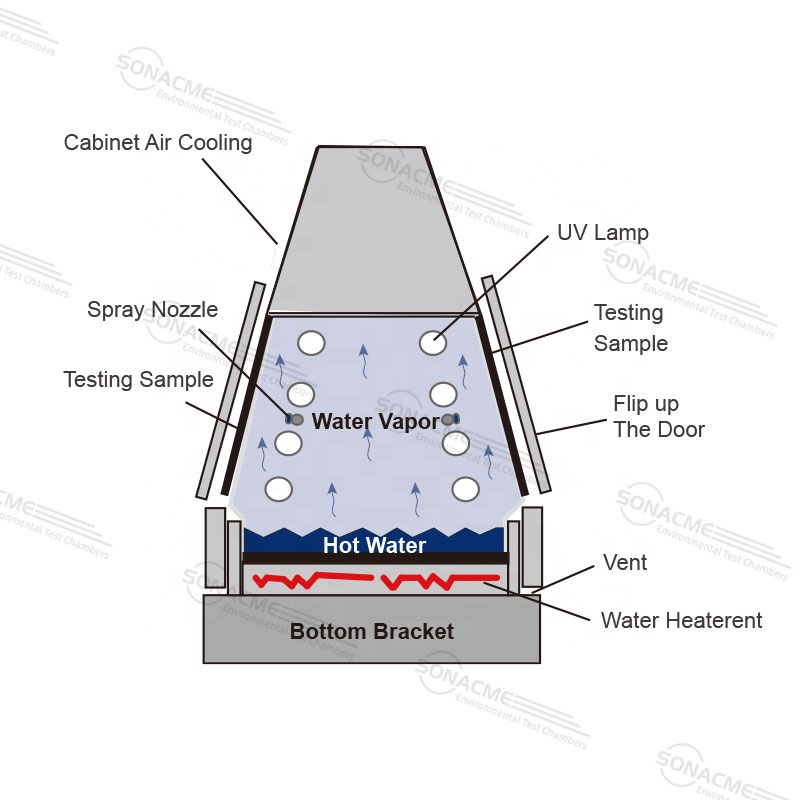

The UV lamp weathering test chamber uses fluorescent ultraviolet lamps as the light source, and appropriately controls the temperature and humidity to periodically produce condensation on the samples to fully obtain the results of the damage of sunlight, humidity and temperature on polymer materials (material aging) Including fading, loss of gloss, strength reduction, cracking, peeling, chalking and oxidation, etc.

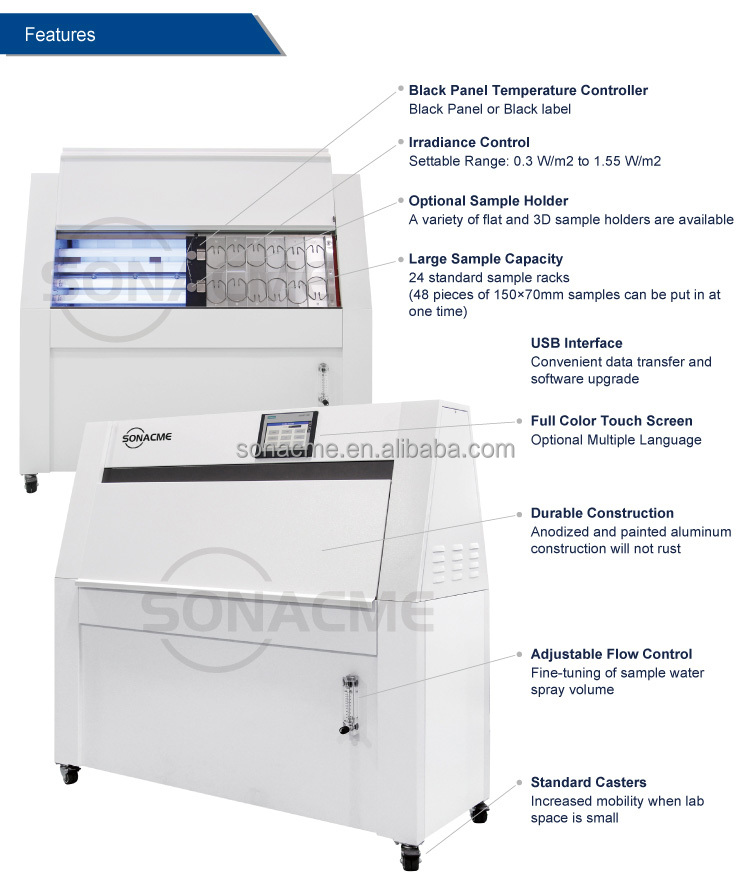

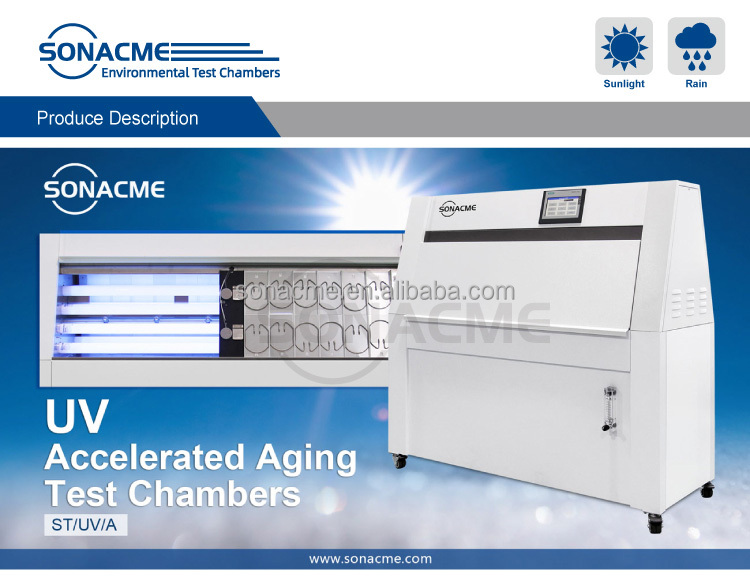

| Model | ST/UV/A |

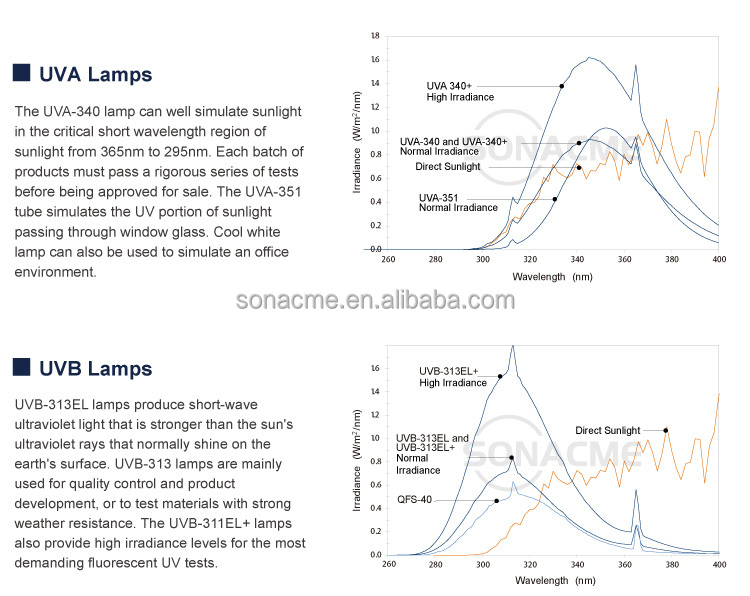

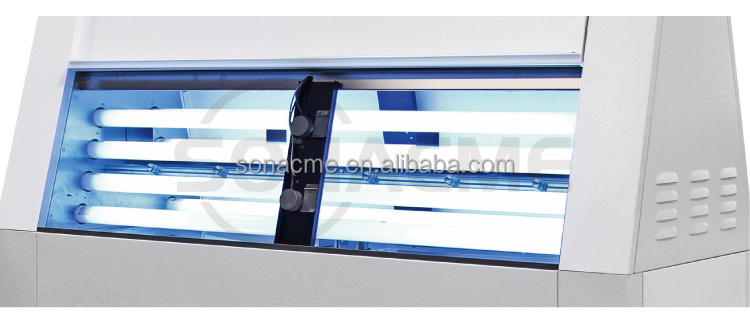

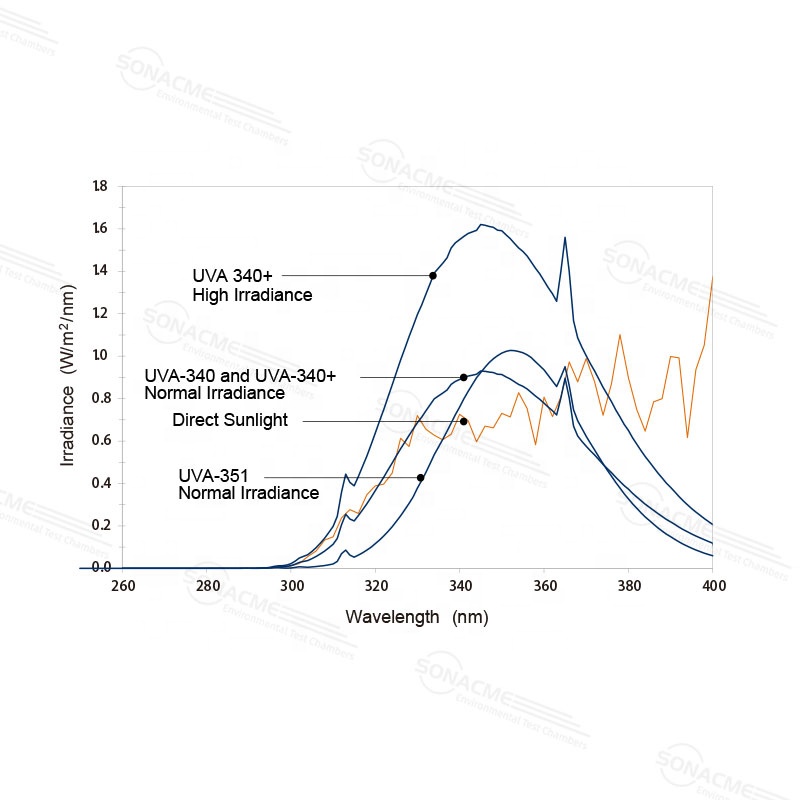

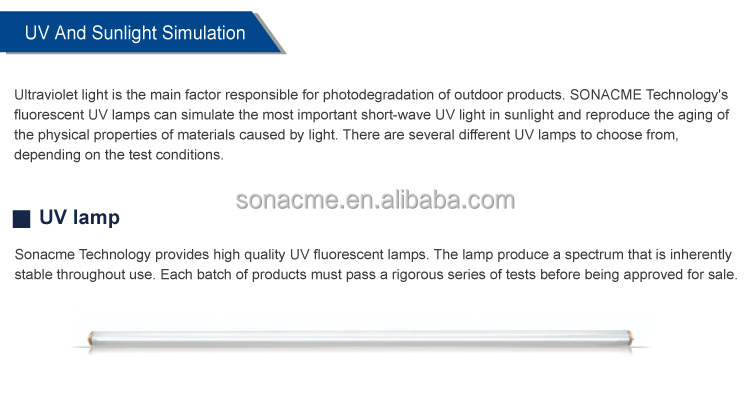

| Light Source | UV-A (wavelength 340nm) or UV-B (wavelength 313nm), 40W × 8 |
| Lamp Rated Life | Normal Service Life 6000 hours |
| Irradiance Setting Range | 0.3 W/m² ~ 1.55 W/m² |
| Black Panel Temperature Setting Range | Chamber Temperature +10°C ~ 80°C |
| Maximum Rated Power | 2 KW |
| Internal/External Shell Material | All stainless steel plate 304 / all stainless steel material surface spray, never rust |
| Exposure Area | 5175cm² / 828in² |
| Standard Template | 24 standard sample racks (48 pieces of 150×70mm templates can be put in at one time) |
| Water Supply Adjustment Range | 0-4 LPM |

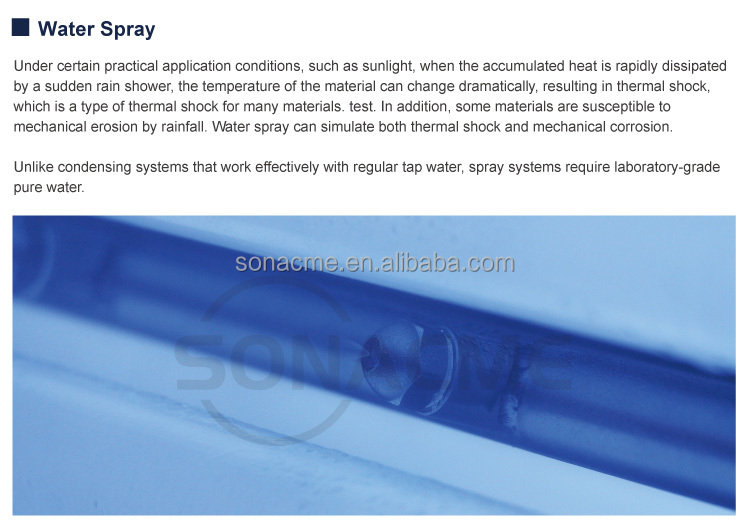

| Water Consumption | 7L/ day (Water for condensation), 3L/minute (Spray Water) |
| Power Supply | 220V, 50Hz (60Hz can be customized), Maximum current 10A |
| External Dimensions | 1360mm × 560mm × 1290mm (length x width x height) |

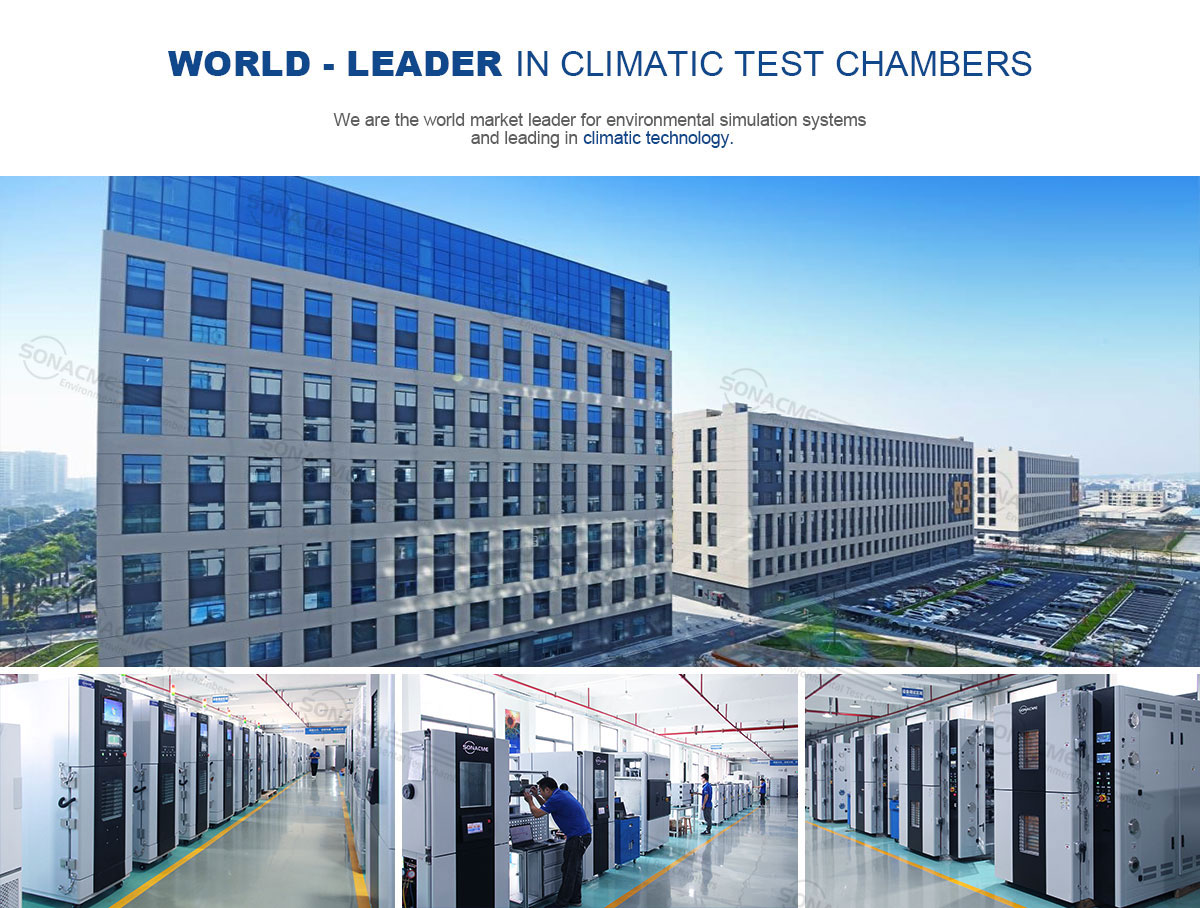

Established in 1995 with European technologies, our manufacturing facility spans 12,000 square meters. Two decades of dedication in this industry allow us to provide customers with one-stop product development and services, ranging from R&D, sheet metal processing, and mass production to testing, logistics, rental, and export operations.
