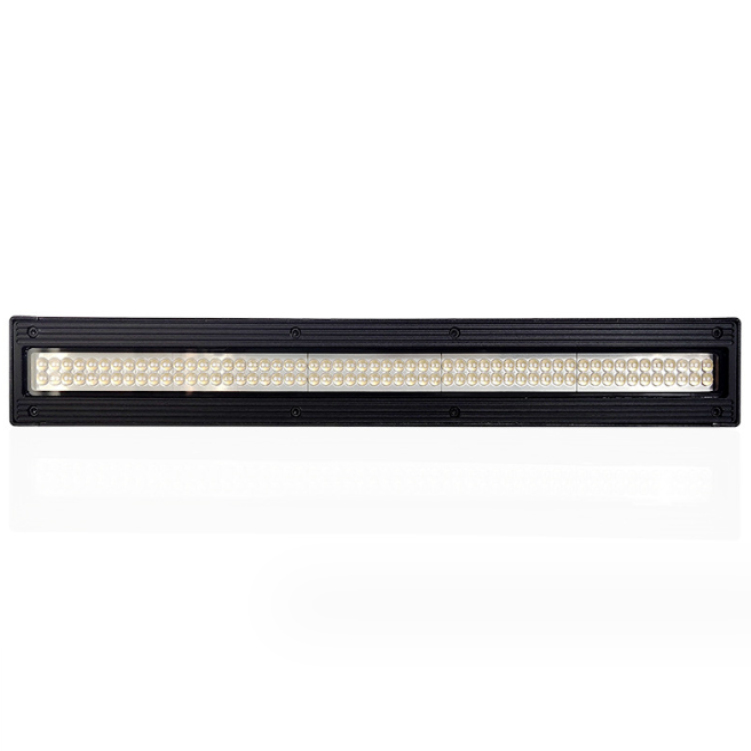

LumiCure Light
1 / 5
| Parameter Item | Specification Details |
|---|---|
| Total light source power (W) | 1296 |
| Overall size of the light source head (length * width * height; unit: mm) | 670 * 103 * 200 |
| Effective light output size (length * width: mm) | 430 * 33 |
| Effective curing size (length * width: mm) | 450 * 35 |
| Number of beads (pieces) | 432 |
| Wavelength (nm) | 390 ~ 395 |
Provides extremely high UV radiation intensity, easily replacing traditional mercury lamps with many times higher power.
Energy saving design with zero ozone and mercury emissions, ensuring a safe and clean working environment without harm to operators.
Can be instantly switched on and off as needed without requiring any preheating time, maximizing production efficiency.
Features a simple structure that minimizes maintenance costs while offering an exceptionally long service life.
The light source head is designed with a modular configuration for easy setup and integration.
Equipped with a military-grade constant current power supply featuring short circuit, leakage, overcurrent, overvoltage, and undervoltage protection.
Supports stepless dimming adjustments to accommodate diverse curing intensity requirements.
Includes line disconnection alerts and LED dead point detection alarms for complete equipment security.
Features sound and light alarm feedback corresponding directly to the light source module for fast troubleshooting.
Offers ≥ 98% UV energy uniformity. Fully compatible with dry film, wet film, wiring, and solder masks.
