LumiCure Light
1 / 5
This series of products is suitable for all kinds of coating printing machines, intaglio printing machines and others, it can replace the ordinary lamp.
|

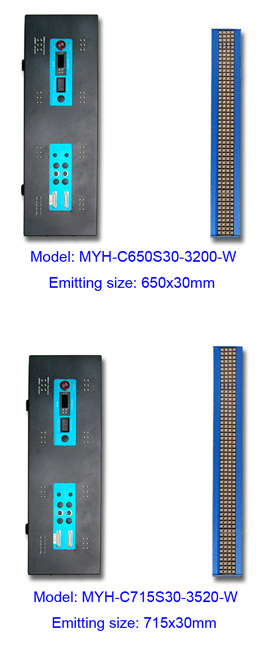

MODEL#: MYH-C650S30-3200-W
* Size of LED lamp head (mm): L660 * W50 * H55
* Size of emitting window / area(mm): Le650 * We30 * Electric power of set (W): 3200W * Radiation intensity (FYR): 0-22W/cm² * Wavelength(nm): 365 / 385 / 395 / 405nm ± 2.5nm, single or mix * Curing time or speed: 0.1-2s (depending on UV chemical) * Water cooling MODEL#: MYH-C715S30-3520-W
* Size of LED lamp head (mm): L725 * W50 * H55
* Size of emitting window / area(mm): Le715 * We30 * Electric power of set (W): 3520W * Radiation intensity (FYR): 0-22W/cm² * Wavelength(nm): 365 / 385 / 395 / 405nm ± 2.5nm, single or mix * Curing time or speed: 0.1-2s (depending on UV chemical) * Water cooling |
|

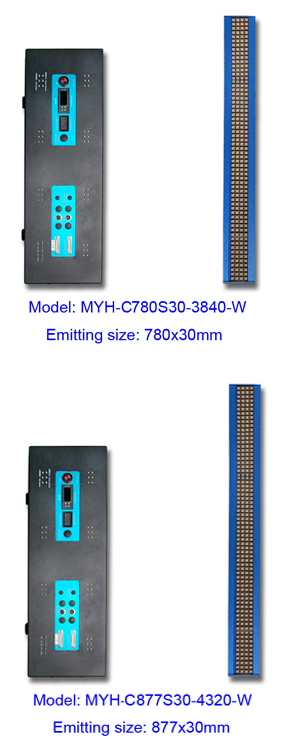

MODEL#: MYH-C780S30-3840-W
* Size of LED lamp head (mm): L790 * W50 * H55
* Size of emitting window / area(mm): Le780 * We30 * Electric power of set (W): 3840W * Radiation intensity (FYR): 0-22W/cm² * Wavelength(nm): 365 / 385 / 395 / 405nm ± 2.5nm, single or mix * Curing time or speed: 0.1-2s (depending on UV chemical) * Water cooling MODEL#: MYH-C877S30-4320-W
* Size of LED lamp head (mm): L887 * W50 * H55
* Size of emitting window / area(mm): Le877 * We30 * Electric power of set (W): 4320W * Radiation intensity (FYR): 0-22W/cm² * Wavelength(nm): 365 / 385 / 395 / 405nm ± 2.5nm, single or mix * Curing time or speed: 0.1-2s (depending on UV chemical) * Water cooling |
|

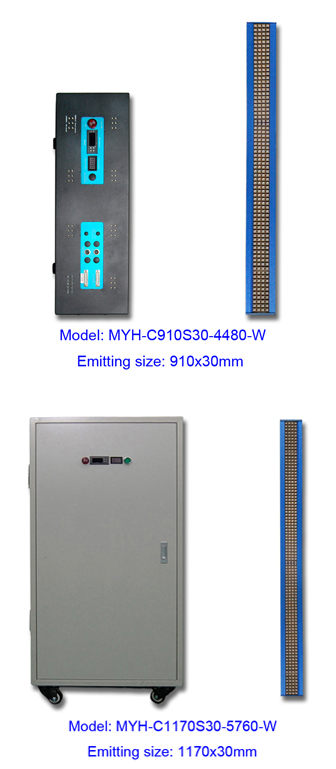

MODEL#: MYH-C910S30-4480-W
* Size of LED lamp head (mm): L920 * W50 * H55
* Size of emitting window / area(mm): Le910 * We30 * Electric power of set (W): 4480W * Radiation intensity (FYR): 0-22W/cm² * Wavelength(nm): 365 / 385 / 395 / 405nm ± 2.5nm, single or mix * Curing time or speed: 0.1-2s (depending on UV chemical) * Water cooling MODEL#: MYH-C1170S30-5760-W
* Size of LED lamp head (mm): L1180 * W50 * H55
* Size of emitting window / area(mm): Le1170 * We30 * Electric power of set (W): 5760W * Radiation intensity (FYR): 0-22W/cm² * Wavelength(nm): 365 / 385 / 395 / 405nm ± 2.5nm, single or mix * Curing time or speed: 0.1-2s (depending on UV chemical) * Water cooling |
|

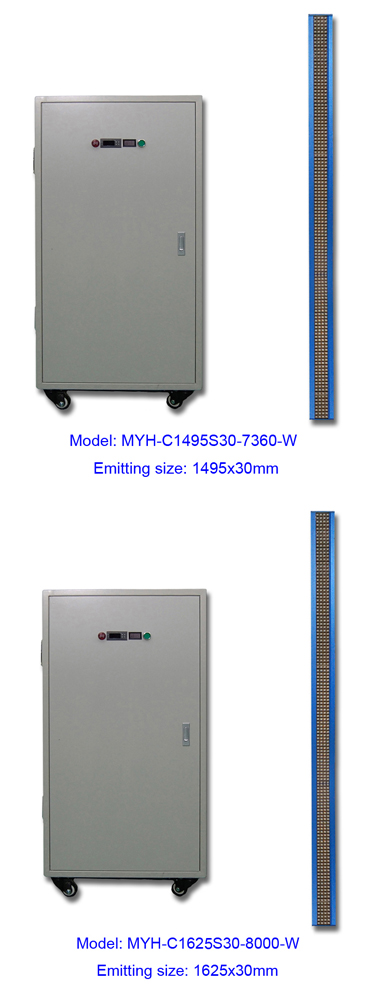

MODEL#: MYH-C1495S30-7360-W
* Size of LED lamp head (mm): L1505 * W50 * H55
* Size of emitting window / area(mm): Le1490 * We30 * Electric power of set (W): 7360W * Radiation intensity (FYR): 0-22W/cm² * Wavelength(nm): 365 / 385 / 395 / 405nm ± 2.5nm, single or mix * Curing time or speed: 0.1-2s (depending on UV chemical) * Water cooling MODEL#: MYH-C1625S30-8000-W
* Size of LED lamp head (mm): L1635 * W50 * H55
* Size of emitting window / area(mm): Le1625 * We30 * Electric power of set (W): 8000W * Radiation intensity (FYR): 0-22W/cm² * Wavelength(nm): 365 / 385 / 395 / 405nm ± 2.5nm, single or mix * Curing time or speed: 0.1-2s (depending on UV chemical) * Water cooling |
|

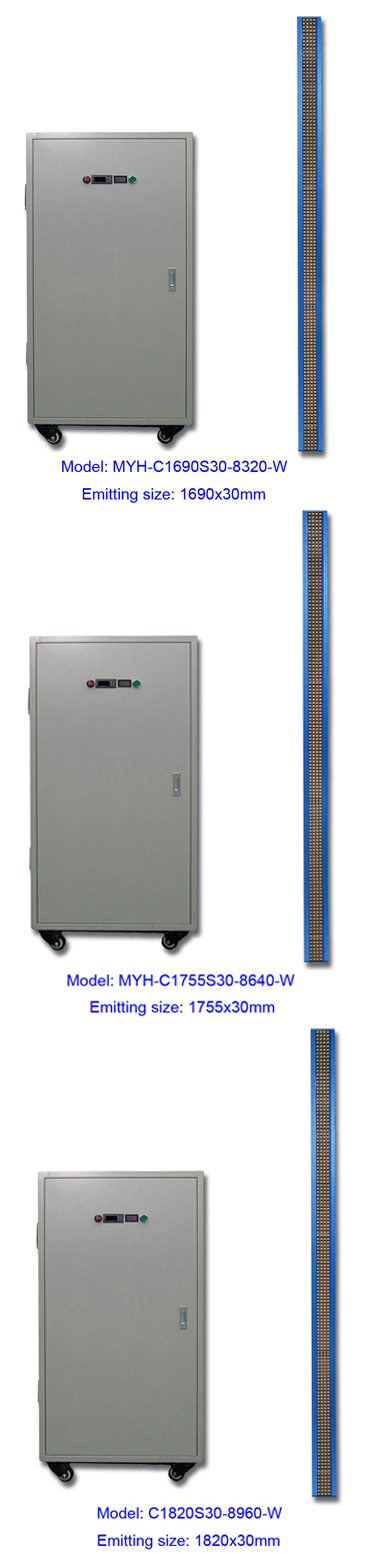

MODEL#: MYH-C1690S30-8320-W
* Size of LED lamp head (mm): L1700 * W50 * H55
* Size of emitting window / area(mm): Le1690 * We30 * Electric power of set (W): 8320W * Radiation intensity (FYR): 0-22W/cm² * Wavelength(nm): 365 / 385 / 395 / 405nm ± 2.5nm, single or mix * Curing time or speed: 0.1-2s (depending on UV chemical) * Water cooling MODEL#: MYH-C1755S30-8640-W
* Size of LED lamp head (mm): L1765 * W50 * H55
* Size of emitting window / area(mm): Le1755 * We30 * Electric power of set (W): 8640W * Radiation intensity (FYR): 0-22W/cm² * Wavelength(nm): 365 / 385 / 395 / 405nm ± 2.5nm, single or mix * Curing time or speed: 0.1-2s (depending on UV chemical) * Water cooling MODEL#: MYH-C1820S30-8960-W
* Size of LED lamp head (mm): L1830 * W50 * H55
* Size of emitting window / area(mm): Le1820 * We30 * Electric power of set (W): 8960W * Radiation intensity (FYR): 0-22W/cm² * Wavelength(nm): 365 / 385 / 395 / 405nm ± 2.5nm, single or mix * Curing time or speed: 0.1-2s (depending on UV chemical) * Water cooling |
|

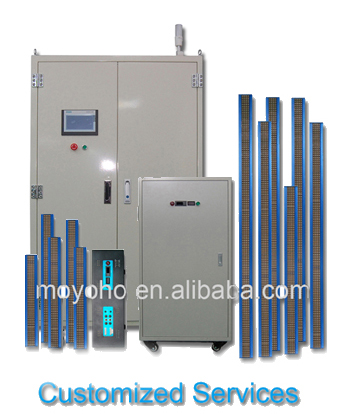

Customized available
|
|
We have a lot of items for you to choose from. As a one stop solution for the UV LED industry, we provide curing and drying for most UV chemicals that include UV ink, UV adhesive, UV coating, UV varnish, and so on. We believe you can choose some items you are really interested in.
