UV LED Point Light Source - One to Ten Control Host
Air Cooled Design
Cold Light Source
High Energy
Suitable for pre curing and full curing of medical catheters, cameras, electronic components, university laboratories, etc.
Core Strengths
✦
Design of Low Temperature Rise and Low Cooling Light Source
✦
Adjustable Power
✦
Touch Screen Human-Machine Interface
✦
Low Power Consumption, Energy-Saving and Environmentally Friendly
✦
Multi Functional and Customizable
✦
The Fan Dissipates Heat Quickly
Specification
| LED Lamp Model |
| Cable Length |
Standard 2 meters, 3 meters and 5 meters can be set |
| Spot Diameter |
Best Distance |
Maximum Radiation Intensity |
Regular Wavelength |
Unconventional Wavelength |
| Φ1.5mm |
7mm |
9000mW |
365nm |
395/405nm |
| Φ3mm |
9mm |
6700mW |
365nm |
395/405nm |
| Φ4mm |
14mm |
5000mW |
365nm |
395/405nm |
| Φ5mm |
16mm |
4100mW |
365nm |
395/405nm |
| Φ6mm |
17mm |
3600mW |
365nm |
395/405nm |
| Φ8mm |
27mm |
1800mW |
365nm |
395/405nm |
| Φ10mm |
25mm |
1300mW |
365nm |
395/405nm |
| Φ12mm |
25mm |
1000mW |
365nm |
395/405nm |
| Φ16mm |
38mm |
750mW |
365nm |
395/405nm |
| Φ20mm |
20mm |
600mW |
365nm |
395/405nm |

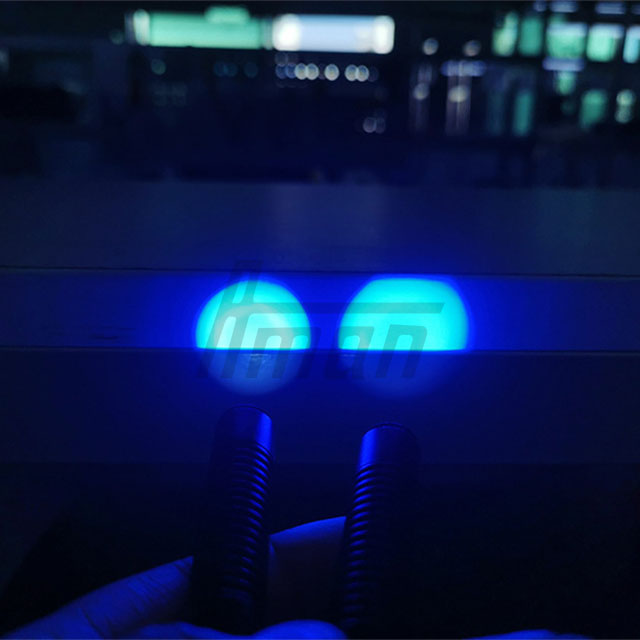

Product Description
Function
1. Operation mode: linkage mode, level and pulse.
2. Status output: over temperature alarm, LED lamp fault alarm
3. Communication: RS232

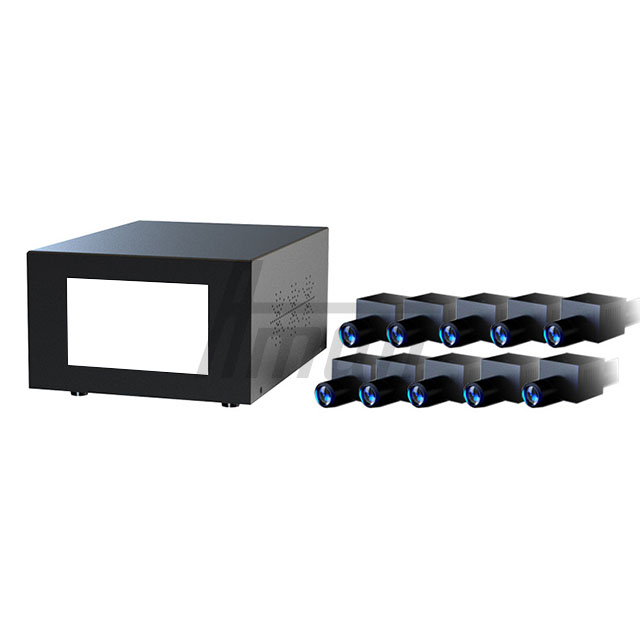

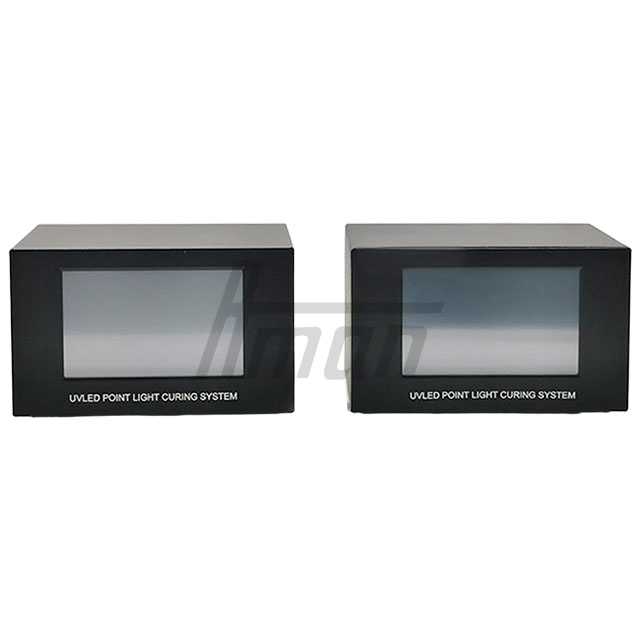

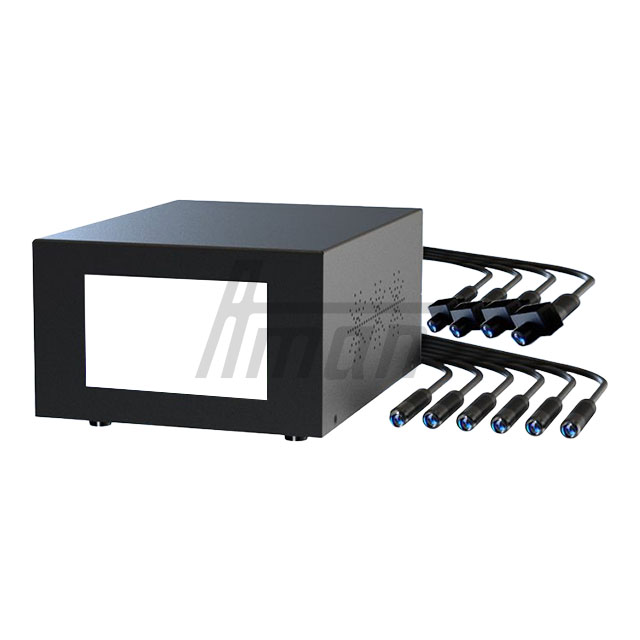

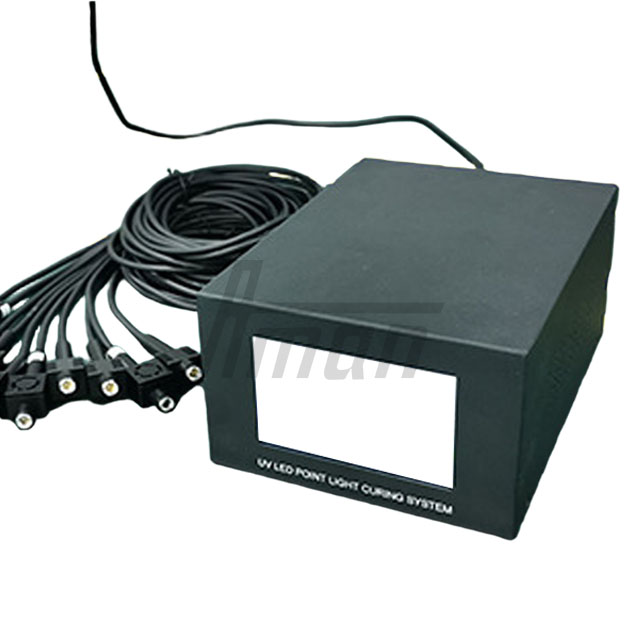

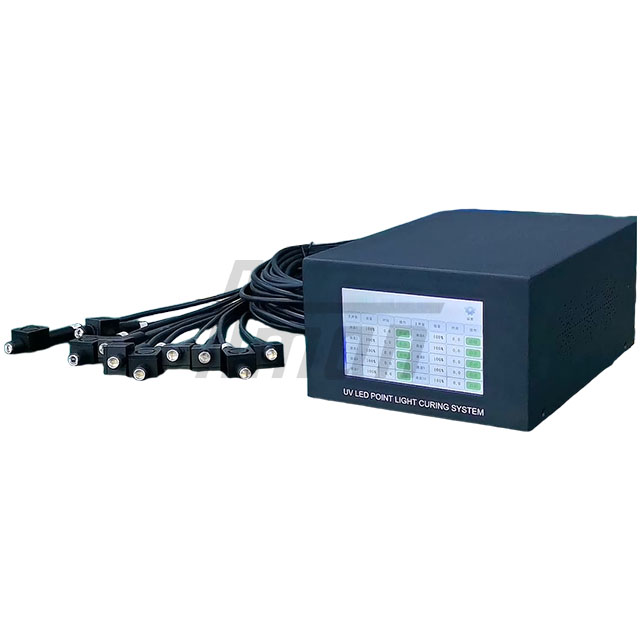

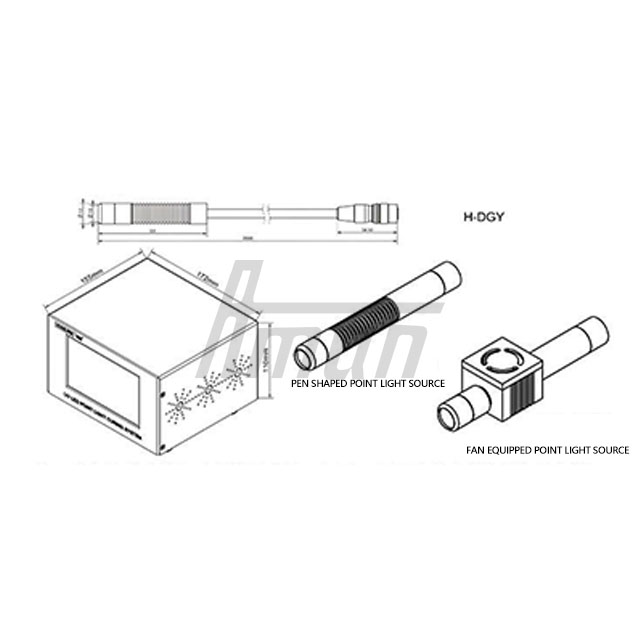

Touch Screen Controller & Two Lamp Heads to Choose From

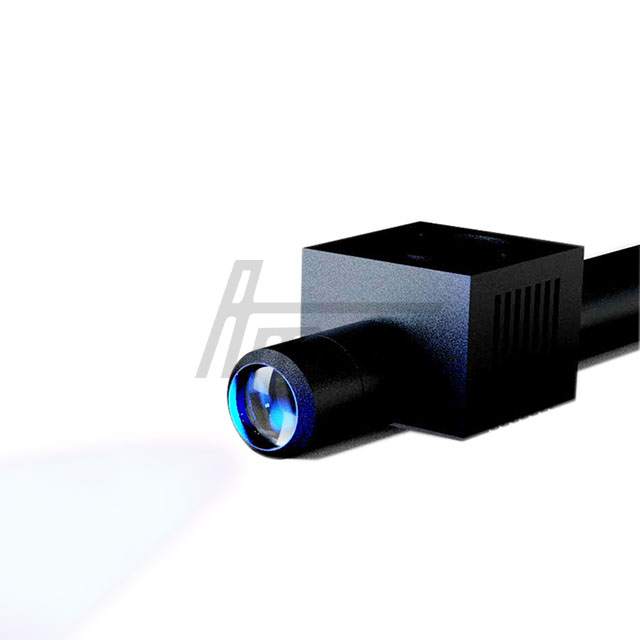

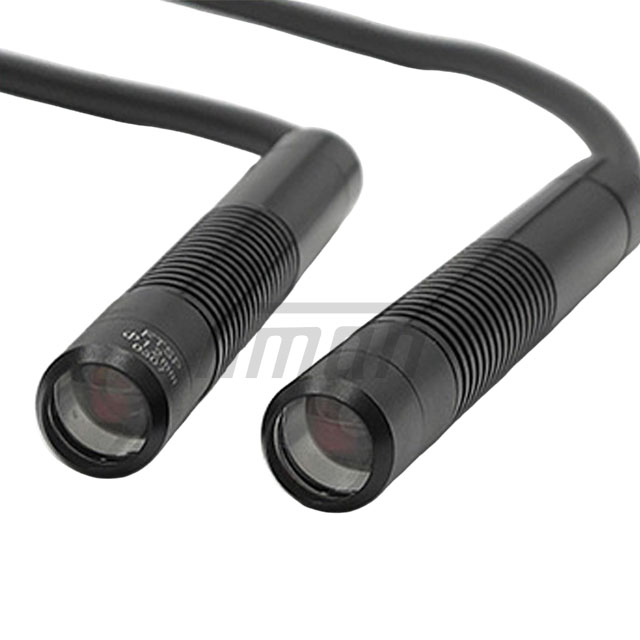

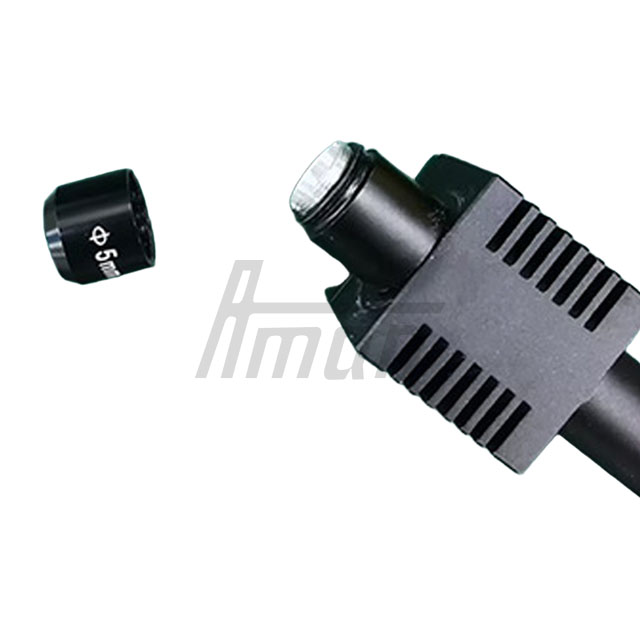

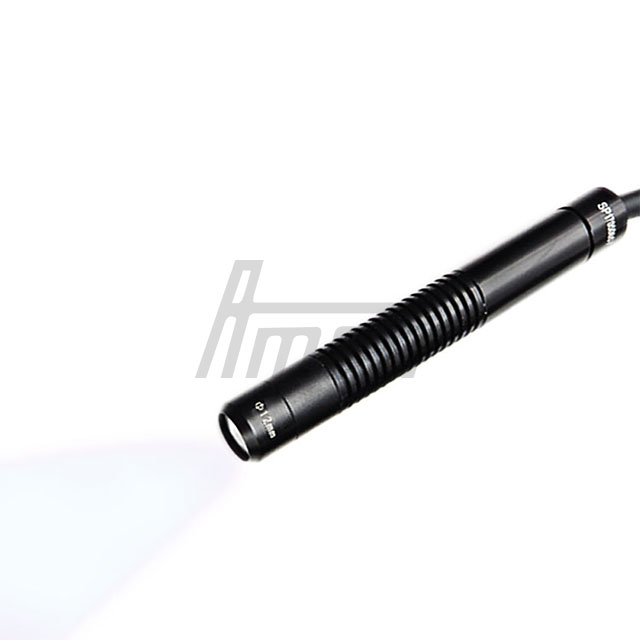

Built in Fan Lamp Head

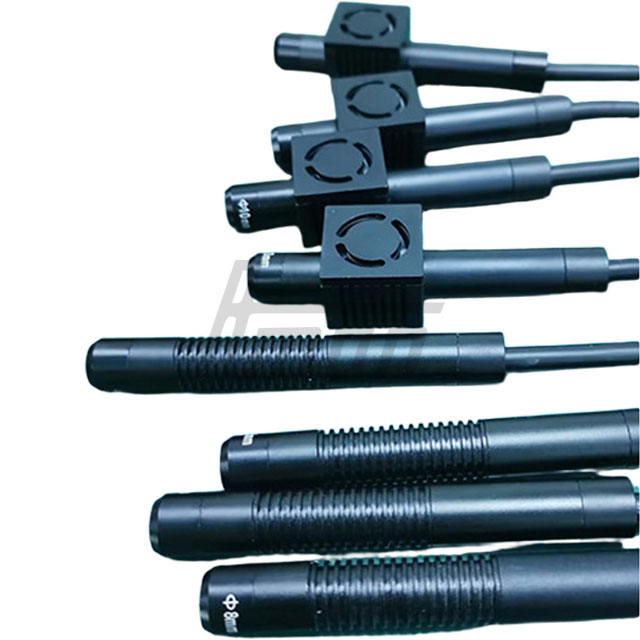

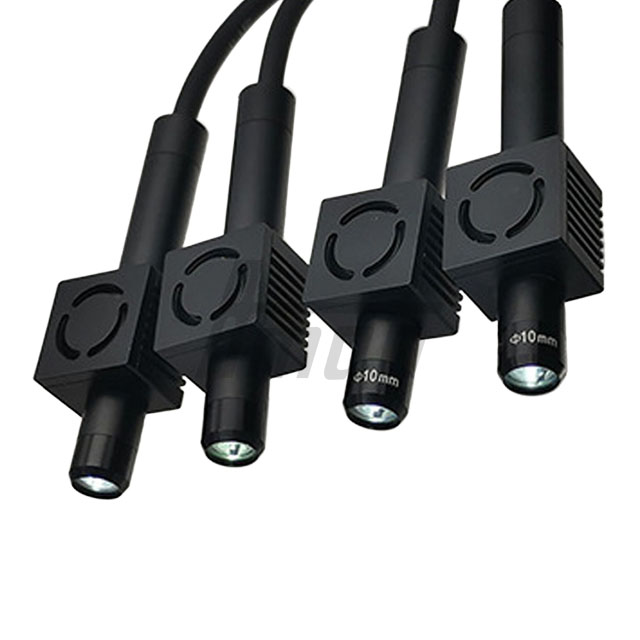

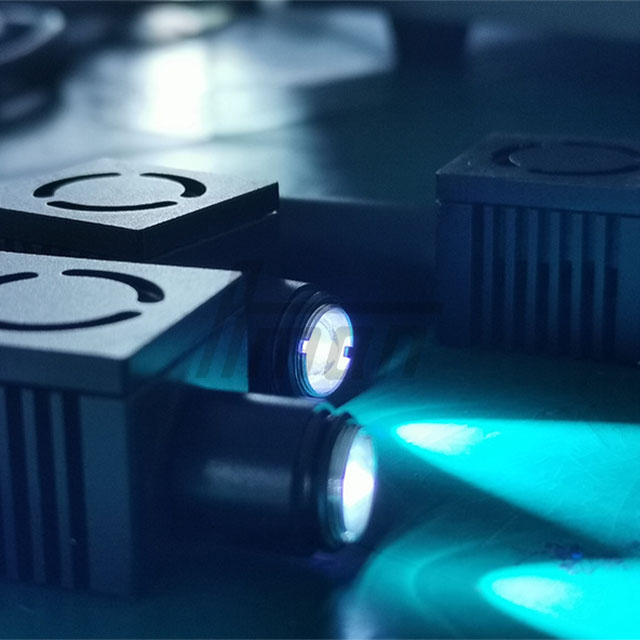

External Fan Lamp Head
UV LED VS Mercury Wavelength
UV LED Advantages
1
Stable work and long service life, more than 20,000 hours.
2
Low operating costs, no consumables, low power consumption, and simple maintenance.
3
Pure ultraviolet wavelength, no infrared output, cold light source.
4
No need to preheat, that is, open and close, the intensity reaches the highest instantaneous, production efficiency is fast.
5
LED chip light source, no mercury, zero pollution, green, safe and environmentally friendly.
6
Optical lens focusing, high optical power, good uniformity.
7
Multi-channel independent control, work independently.
8
Under the volume, light weight, easy to install and use.
Product Application
Widely used in UV glue, UV ink, UV green oil, new energy vehicles, screen printing, electronic component fixing, mobile phone connectors, batteries, motors PCB, Medical devices, optics industry, optical communication, semiconductors, polymer chemistry, and scientific research.
UV LED Curing Light Selection Method
1. Select Wavelength: 365nm, 395nm, 405nm
If you don't know how to choose, you can ask the UV glue or ink supplier. According to the industry experience: UV glue is generally 365nm or 405nm, and UV ink is 395nm.
2. Luminous Windows
Length and width of the product to be irradiated in mm. If the above is flow irradiation, normally only the length needs to be provided.
3. Choose energy: Energy required to cure the glue or ink in mJ or MW
mJ and other UV lamps MW*time S, for example: 1000MW/cm2, 3 seconds is 3000mj, the mW value is directly related to the irradiation distance.
4. Controller: Touchscreen version and rotary knob
The touch screen version has stronger functions, and the price is different from that of the knob type. You can choose according to your needs. For specific functions, please check the controller page.
5. Control Method: Passive short-circuit and active 24V input
Select the control method as needed, UV printers generally use 24V input, and the rest use passive short-circuit lighting signals (dry contacts).
6. LED Lamp Cable: Standard Length: 2 meters, 3 meters
The standard is 2 meters, and the other types are standard 2 meters and 3 meters. Choose the length of the wire according to the actual requirements. When using on a glue dispenser, it is recommended to choose the side outlet for the lamp head line.
Packaging
Frequently Asked Questions (FAQ)
Q1: How do I select the right wavelength for my application?
A1: Generally, UV glue curing requires 365nm or 405nm wavelengths, while UV ink printing processes typically require 395nm. We recommend consulting with your UV glue or ink supplier to confirm the specific curing requirement.
Q2: What cable lengths are available for the UV LED point light source?
A2: The standard cable length is 2 meters. We also support standard 3-meter configurations, and cables can be custom set to 5 meters depending on your machine integration requirements.
Q3: How long is the service life of this UV LED curing system?
A3: The LED chip light source provides a stable working life of more than 20,000 hours, featuring zero consumables, low power consumption, and very low overall operating costs compared to mercury systems.
Q4: Can I control the channels independently?
A4: Yes. The system supports multi-channel independent control, allowing different channels and point light heads to work independently based on your process setup.
Q5: What control signals are supported for external linkage?
A5: The system supports multiple operations including linkage mode, level, and pulse. It offers passive short-circuit lighting signals (dry contacts) and active 24V inputs, which are standard for most UV printers and automation systems.
Q6: What are the main alarm indicators of the controller?
A6: The controller features standard status output parameters including over-temperature alarm monitoring and LED lamp fault alarm triggers to ensure safe system operation.
