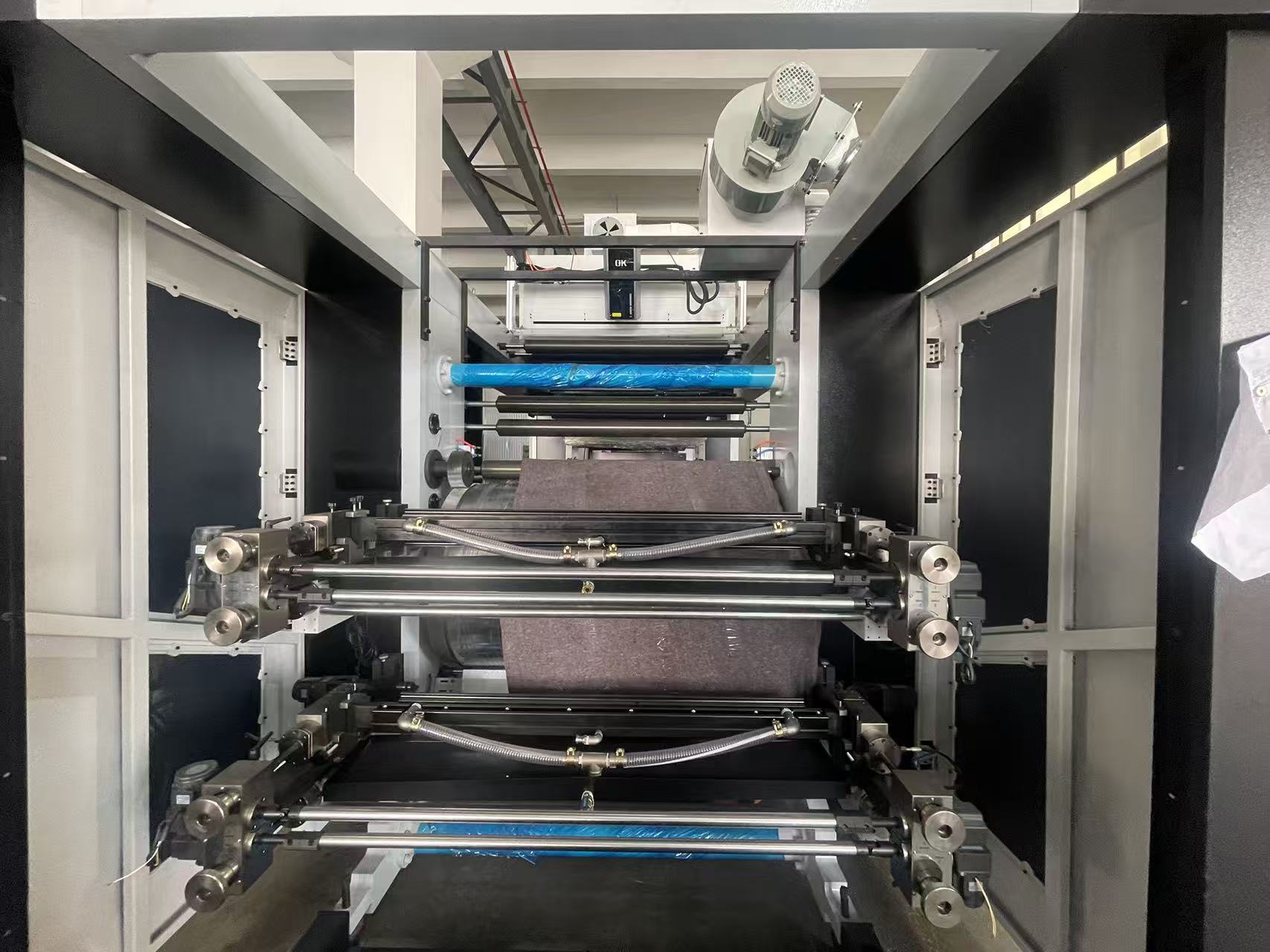

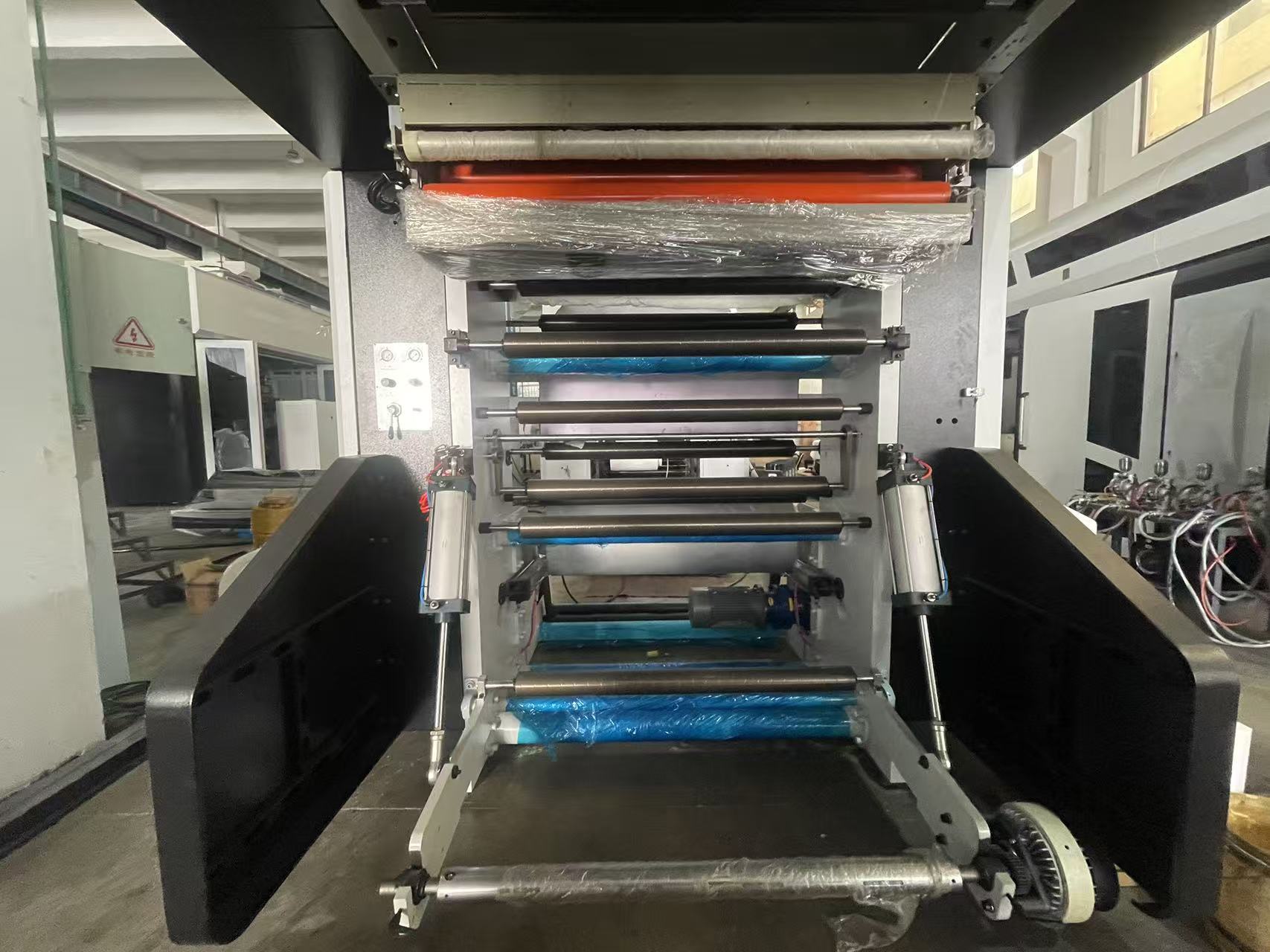

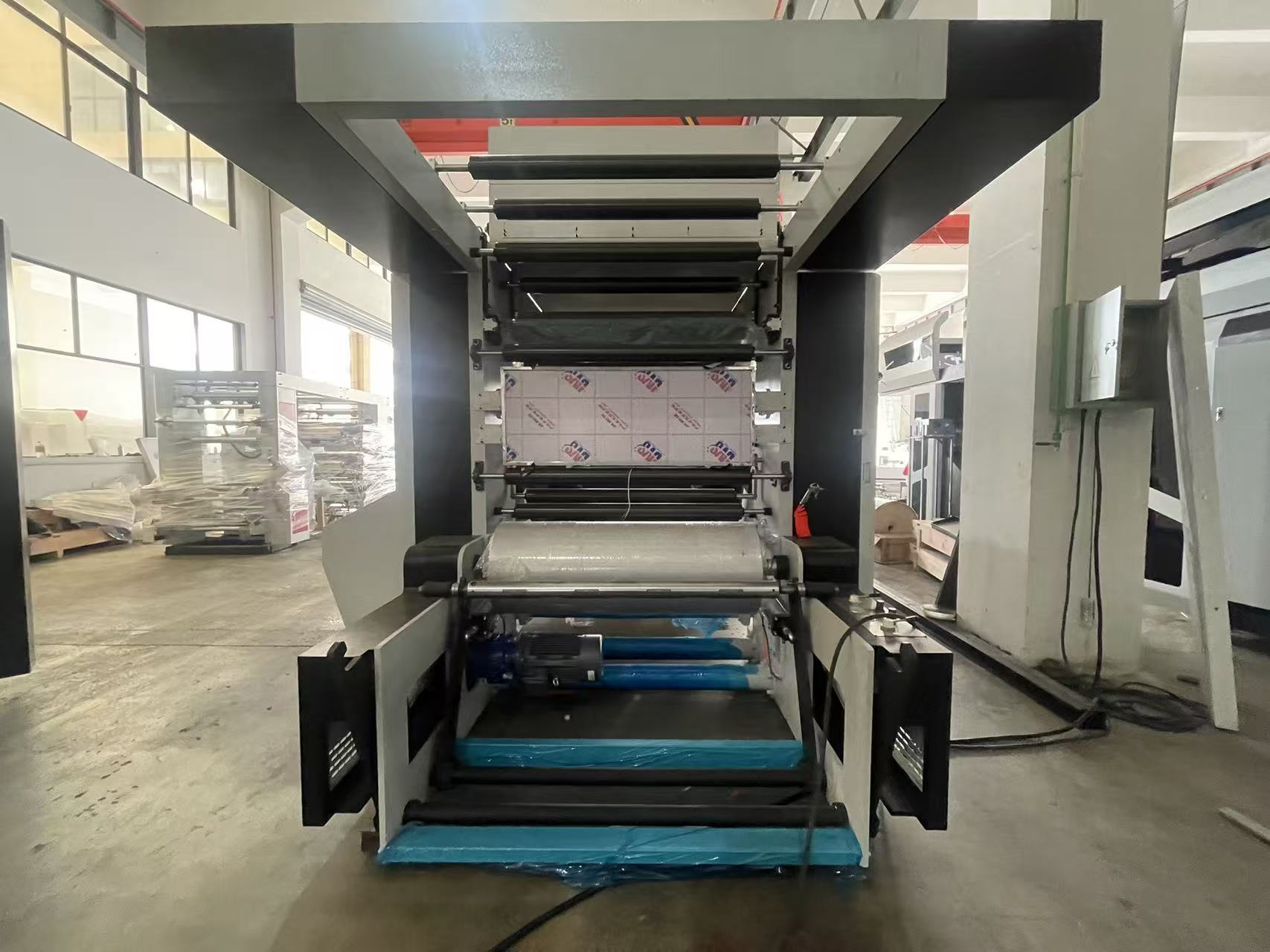

Bestseller UV LED Curing System Guangzhou Flexographic Printing Machine for Paper Cups
Bestseller UV LED Curing System Guangzhou Flexographic Printing Machine for Paper Cups
Bestseller UV LED Curing System Guangzhou Flexographic Printing Machine for Paper Cups
Bestseller UV LED Curing System Guangzhou Flexographic Printing Machine for Paper Cups
Bestseller UV LED Curing System Guangzhou Flexographic Printing Machine for Paper Cups
1 / 5
Bestseller UV LED Curing System Guangzhou Flexographic Printing Machine for Paper Cups
Bestseller UV LED Curing System Guangzhou Flexographic Printing Machine for Paper Cups
Bestseller UV LED Curing System Guangzhou Flexographic Printing Machine for Paper Cups
Bestseller UV LED Curing System Guangzhou Flexographic Printing Machine for Paper Cups
Bestseller UV LED Curing System Guangzhou Flexographic Printing Machine for Paper Cups

Bestseller UV LED Curing System Guangzhou Flexographic Printing Machine for Paper Cups

Send Inquiry

Product Description

Printing Machine Overview

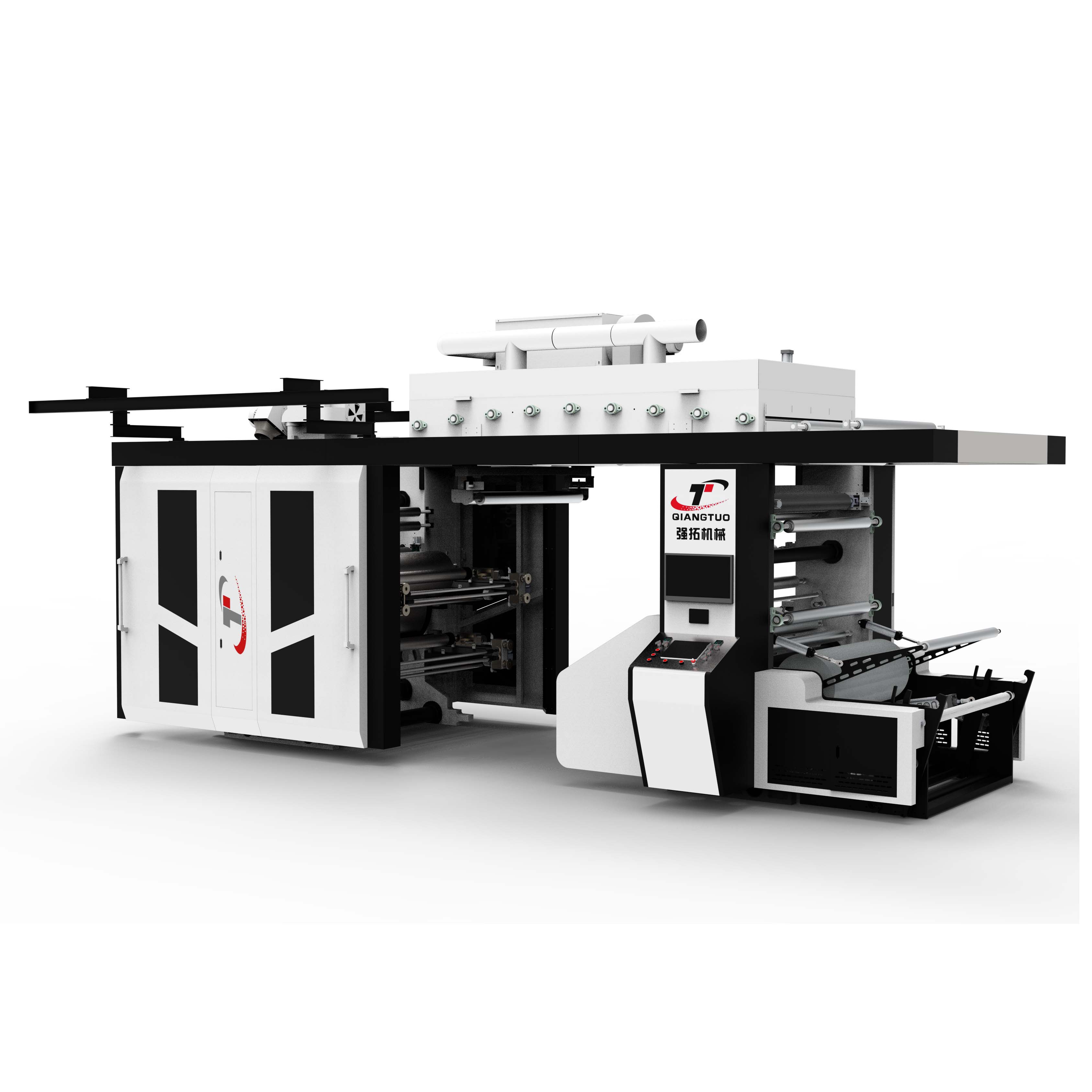

Printing Machine Detail
Printing Machine Angle
Machine Model QTH-CI4600 QTH-CI 4800 QTH-CI 41000 QTH-CI 41200
Max. material width 600mm 800mm 1000mm 1200mm
Max. printing width 550mm 750mm 950mm 1150mm
Suitable for material PAPER: 15~300g/m² NONWOVEN: 15-120G PVC: 10~120μm OPP: 10~100μm BOPP: 10~100μm PE: 15~150μm NY: 10~120μm PET: 10~100μm CPP: 10~100μm
Colors 4 colors (4+0, 3+1, 2+2)
Printing repeat length 380-1000mm
Central drum dia. 800mm
Machine speed 200m/min
Printing speed 10-180m/min
Printing precision ±0.1mm
Adjusting of register Electric motor control (vertical and horizontal)
Camera 1 pc
Plate thickness 1.7mm (if different thickness, please note us)
Component Details
Structure Close Up
Unwinding & Rewinding Section
Central Drum Roller Unit
Control Panel View
Drying System Details
Internal Drive Shafts
Tension Control Unit
Finished Roll Output

📋 Frequently Asked Questions (FAQ)

What materials can this flexo printing machine process?
This machine is highly versatile and suitable for printing on Paper (15~300g/m²), Nonwoven fabric (15-120G), PVC (10~120μm), OPP (10~100μm), BOPP (10~100μm), PE (15~150μm), NY (10~120μm), PET (10~100μm), and CPP (10~100μm).
What are the available machine models and width specifications?
We offer four different models depending on your production requirements:
  • QTH-CI4600: Max material width of 600mm, max printing width of 550mm.
  • QTH-CI 4800: Max material width of 800mm, max printing width of 750mm.
  • QTH-CI 41000: Max material width of 1000mm, max printing width of 950mm.
  • QTH-CI 41200: Max material width of 1200mm, max printing width of 1150mm.
What are the maximum speeds of operation?
The mechanical speed of the machine can reach up to 200 meters per minute, with a high-performance running printing speed ranging between 10 and 180 meters per minute.
How is the registration adjusted for precise printing?
The adjustment of the printing register is completely handled via electric motor control. This allows for both precise vertical and horizontal alignment adjustments while maintaining a high printing precision of ±0.1mm.
What is the standard plate thickness supported by the machine?
The machine is designed to work with a standard plate thickness of 1.7mm. If your production setup requires a different thickness, please notify us during the specifications stage so we can customize it accordingly.
Does the system feature visual monitoring?
Yes, the system is equipped with one set of camera control systems for real-time monitoring and verification of the printing quality.
