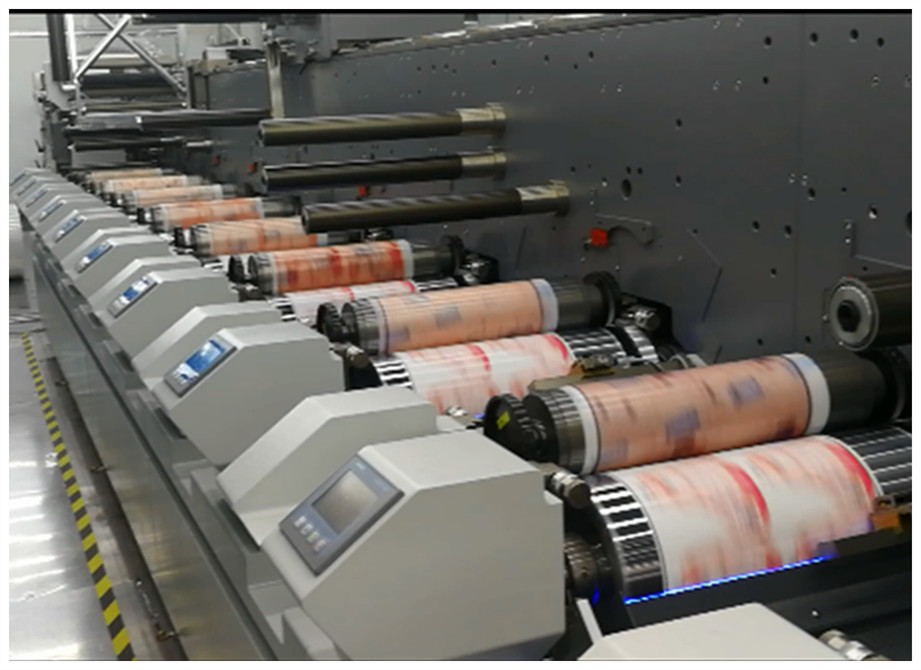

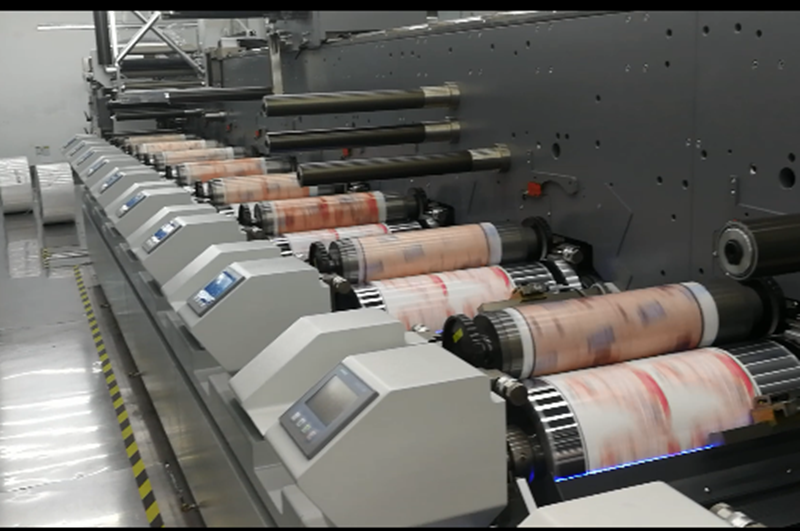

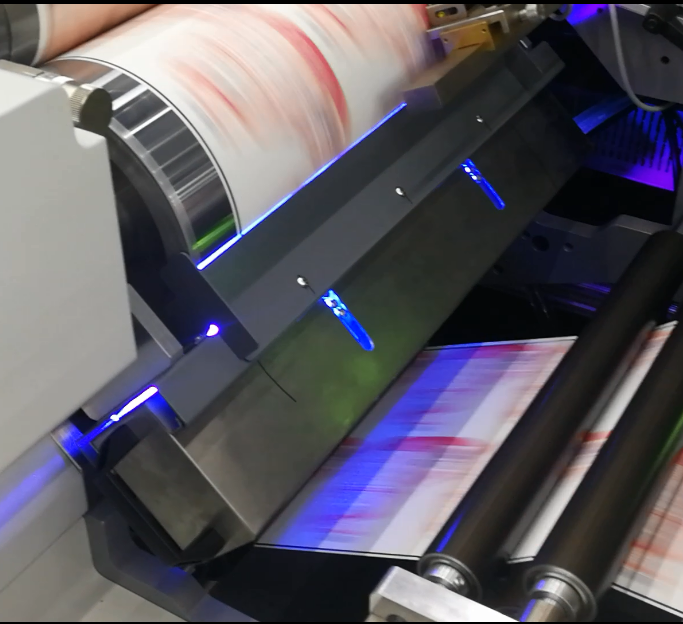

LED-UV Dryer Lamp Uv Led Curing System for Flexographic Printing

Product Description

Features

  • Low energy consumption, about 30%-50% of the traditional type.
  • Long life time, Low operating costs.
  • Eco-friendly: Single purple wavelength, No lead and Hg(mercury) element.
  • Easy to install and operate, High performing, Cost-effective.
  • Smaller size.
  • Cold light, no thermal radiation, no infrared radiation, no heating-up on the illuminated surface.

Technical Data

Technical Data of the uv led light head (for flexography printing curing)
Wavelength (±2.5nm) 365nm / 385nm / 395nm / 405nm single or mix wavelength
Curing area (light area) 450mm / 500mm / 600mm / other sizes available
Electronic power 1000-4000W (Other Customized)
Input voltage IN: AC110/220V, 50/60HZ
Output voltage DC36/48/54
Cooling method Water or Air cooling
Life >30000 H
Conveyor speed (curing time) 500-2000mm/min adjustable
Irradiation distance 10-100mm adjustable
Radiation intensity 18-20w/cm2 (10mm irradiation distance)
Recommend irradiation distance 10-30mm
Controling method ON/OFF, PWM, 0-10V, R232
Warranty period Light source more than two years, control and power supply more than five years

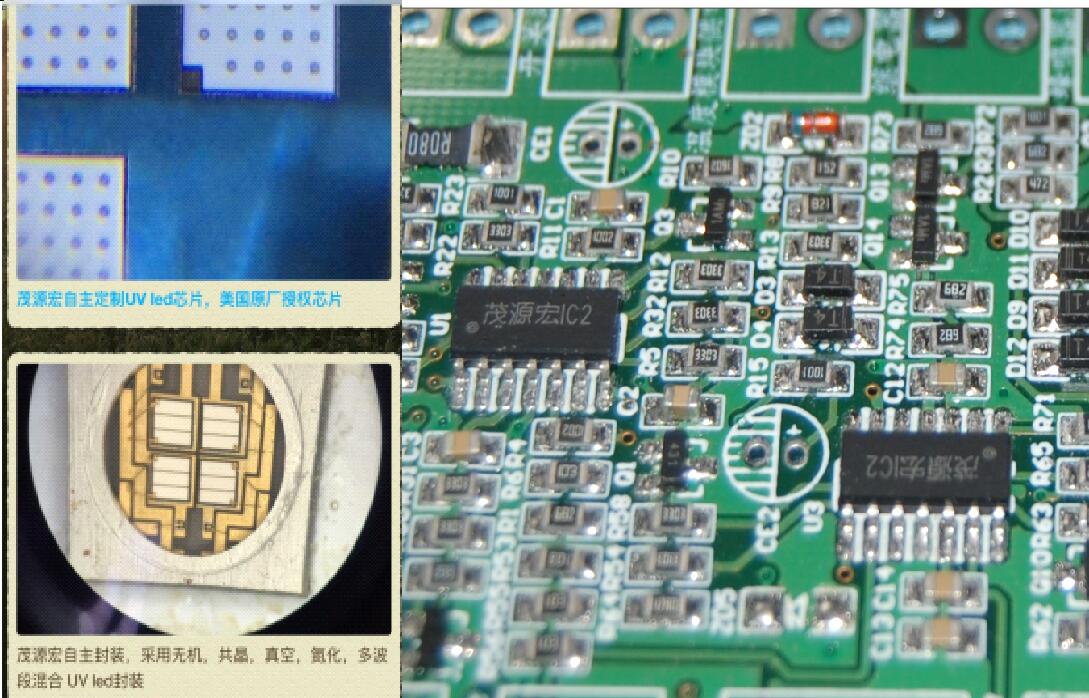

LED CHIP LG/SEOUL
POWER meanwell

Advantages

  • Low energy consumption, about 55%-80% of the traditional type. It can reduce the cost.
  • Long life expectancy can reach over 25000h hours.
  • Eco-friendly: No lead and Hg(mercury) element, friendly to environment.
  • No warm-up time.
  • Low temperature.
  • Easy to install and operate.

Our Services

  • Reply your inquiry in 24 working hours.
  • Well-trained and experienced staffs to answer all your inquiries in fluent English.
  • Strict quality control procedures before shipment.
  • Customized design is available. OEM and ODM are welcomed.
  • Delivery the goods to our customer all over the world with speed and precision.

Frequently Asked Questions

What is UV LED curing system’s major advantages than other UV curing system?

Safer use, high quality, extra-long life, energy saving, environment friendly.

May I use UV LED curing system in our production?

Yes, our UV curing system can be used for curing UV ink, UV adhesive, UV paint, UV varnish and other UV sensitive materials.

Which model or the emitting size do I need?

It depends on your UV sensitive materials and your production.

How much the Peak Irradiance do I need?

It depends on your UV sensitive materials and your production efficiency.

The common emitting window and Peak Irradiance cannot meet my requirements?

Any size of emitting window and Peak Irradiance can be customized.
