LumiCure Light
1 / 5

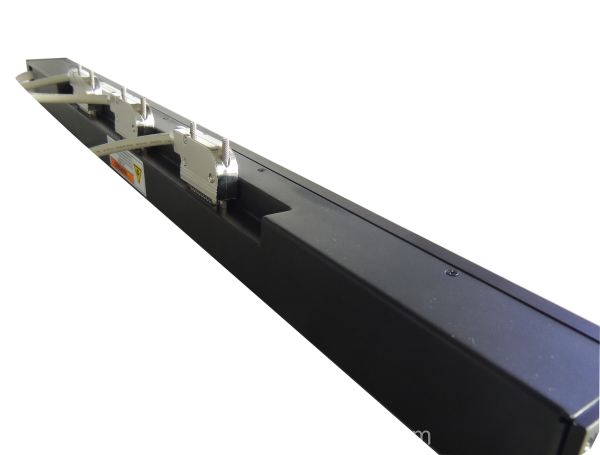

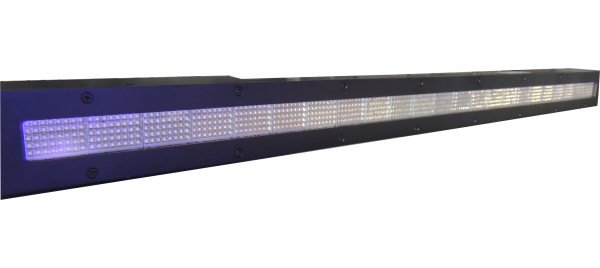

The UV LED curing system features a seamless splice design, allowing for the customization of different sizes using standard UV lamps. This configuration simplifies maintenance, repair, and replacement operations. The system delivers high light output, achieving a maximum intensity of 20W/cm² at close range and 6.5W/cm² at a distance of 7mm.
| Model | Light Area (mm) | Wavelength (nm) | Work Distance (mm) | Light Intensity (W/cm²) | Cooling Method | Electric Power |
|---|---|---|---|---|---|---|
| LW790*20 | 790*20 | 385 / 395NM | 10MM | 20 | Air / Water cooling | 4000W |
| 30MM | 14 | |||||
| 50MM | 9.7 | |||||
| 70MM | 6.5 | |||||
| LW1050*20 | 1050*20 | 10MM | 20 | 5600W | ||
| 30MM | 14 | |||||
| 50MM | 9.7 | |||||
| 70MM | 6.5 |
Meets the operational demands of high-speed offset printers. The system ensures thorough curing performance under production speeds up to 10,000 sheets per hour.

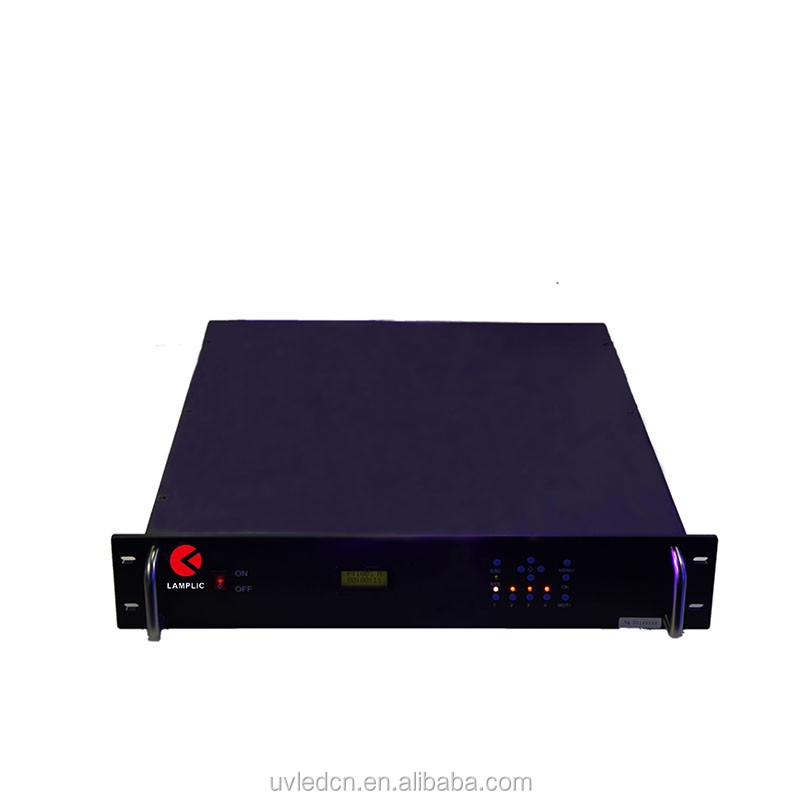

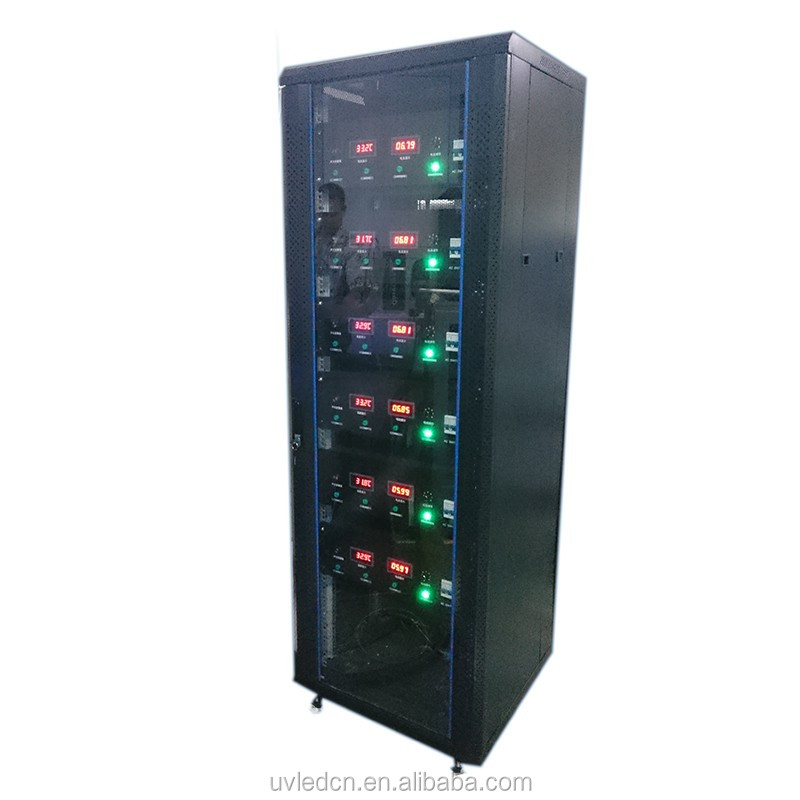

Equipped with a high-quality controller designed for easy installation and seamless integration across various offset press setups.
The UV LED curing system has been successfully implemented in various models of offset printers, including but not limited to:
Q:What is the maximum light intensity of the UV LED curing system?
The system delivers a peak light intensity of 20W/cm² at close proximity, and maintains an intensity of 6.5W/cm² at a distance of 7mm.
Q:Can the curing system support high-speed offset printing?
Yes, the high light intensity allows the system to achieve complete and reliable curing at speeds up to 10,000 sheets per hour.
Q:Which offset printer brands are compatible with this system?

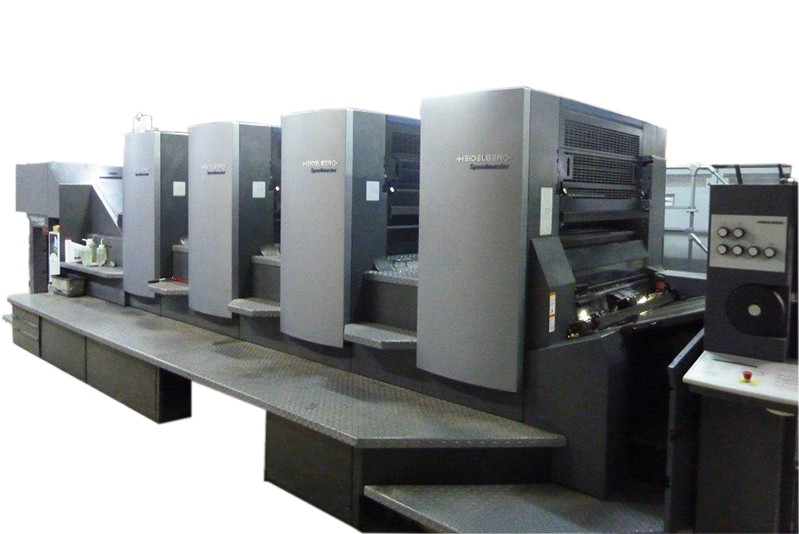

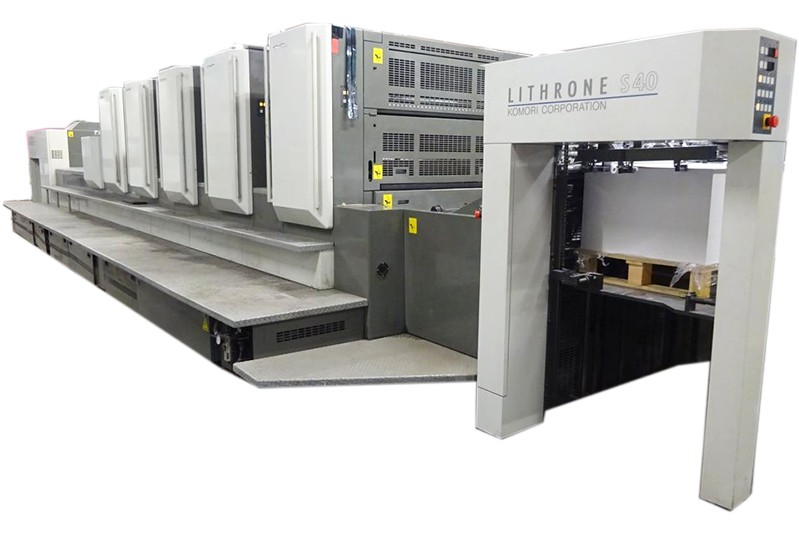

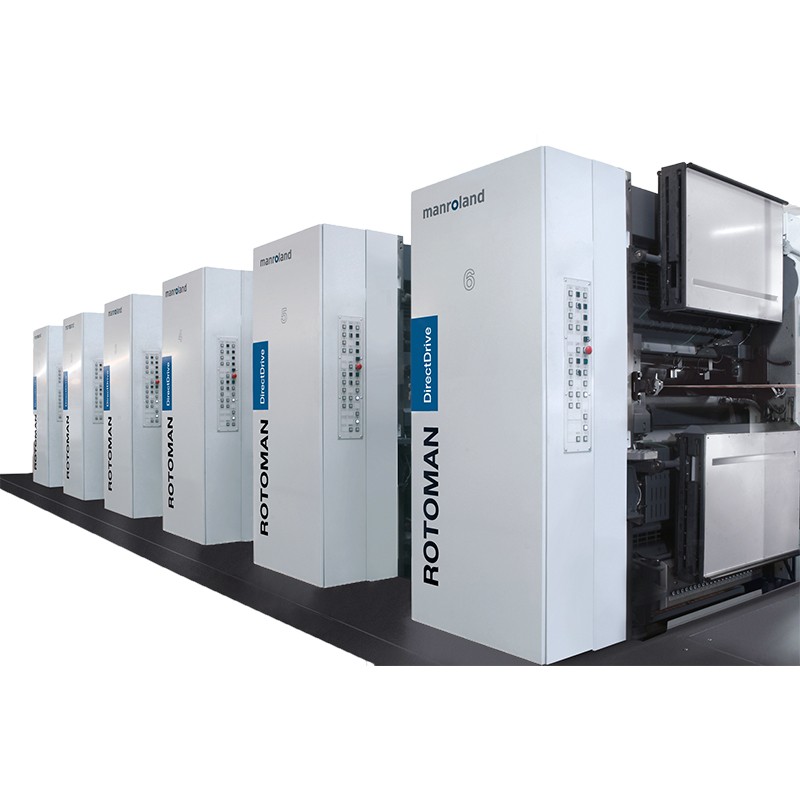

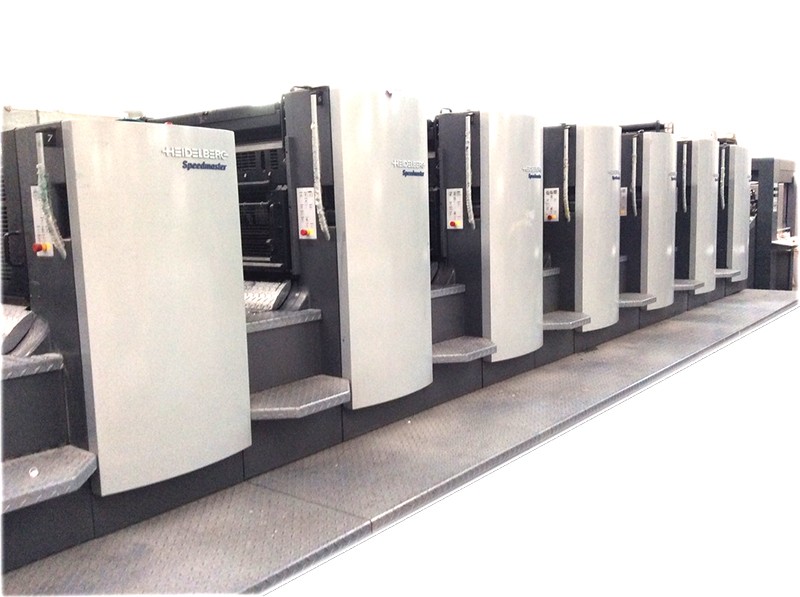

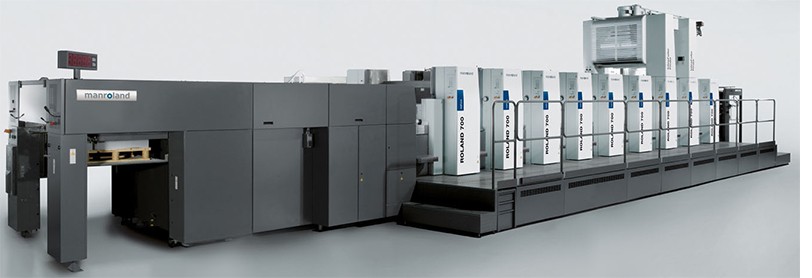

The curing system is compatible with various major models, including the Man Roland (Roland 500/700), Heidelberg (CD102/CD105/CD740/MO650), and Komori (L440/L428/L429) series.
Q:Are custom sizes available for different equipment specifications?
Yes, thanks to the seamless splice design, customized lamp sizes can be fabricated to match specific installation dimensions and customer requirements.
Q:What cooling methods are utilized for thermal management?
The system supports both air and water cooling methods depending on the integration environment and model configuration.
Q:What wavelengths are available for these UV LED lamps?
The standard wavelength specifications provided are 385nm and 395nm.
