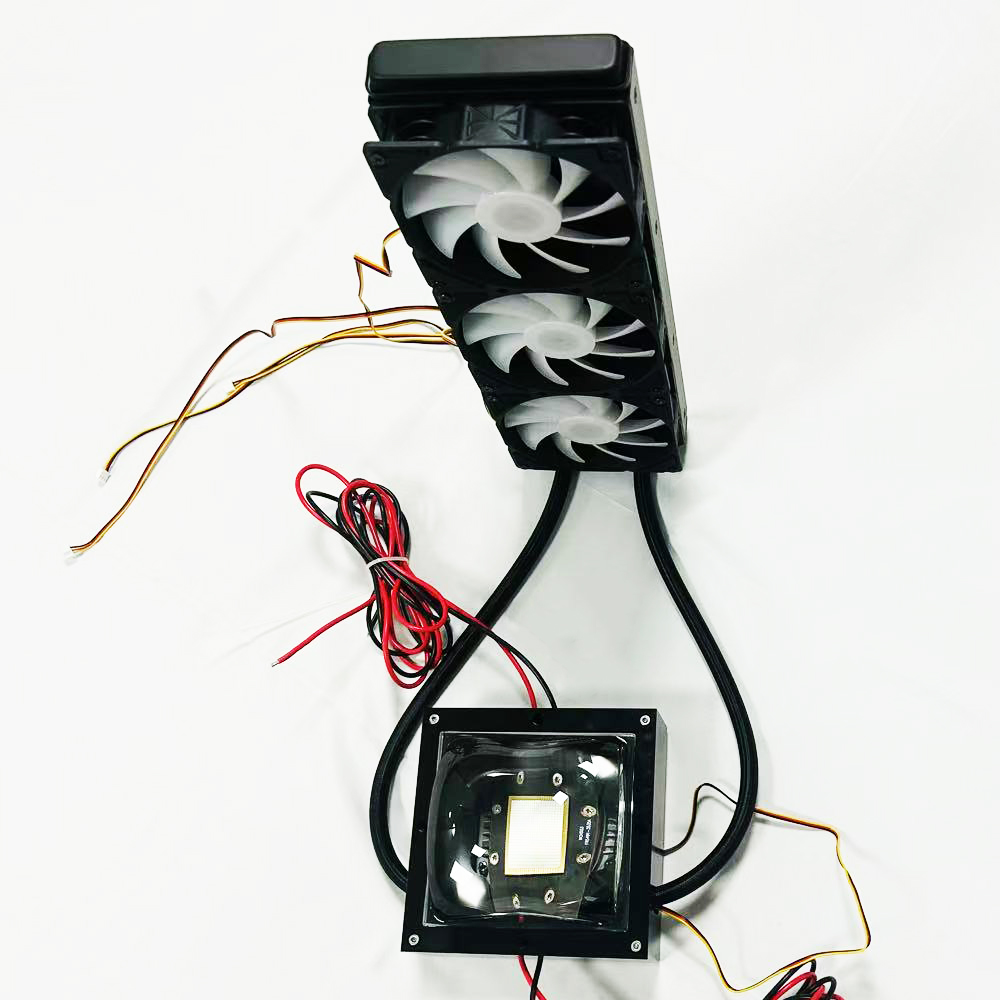

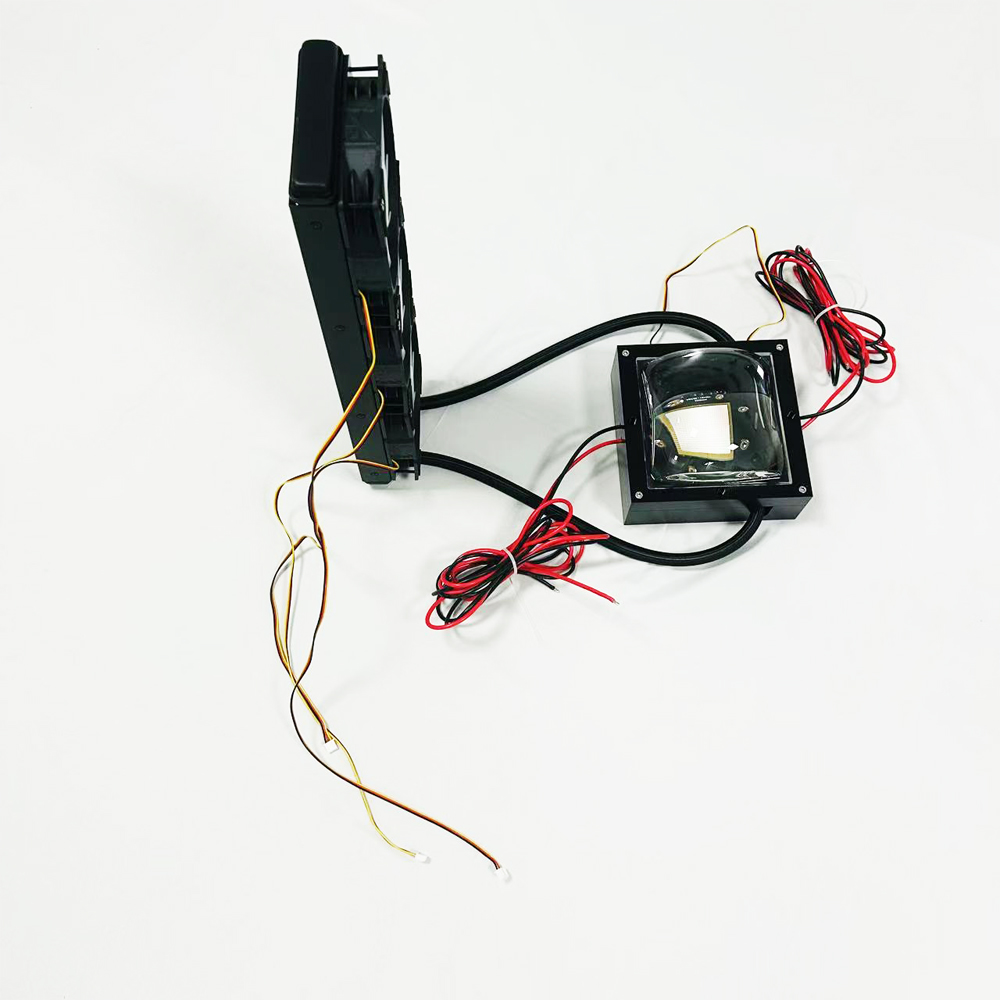

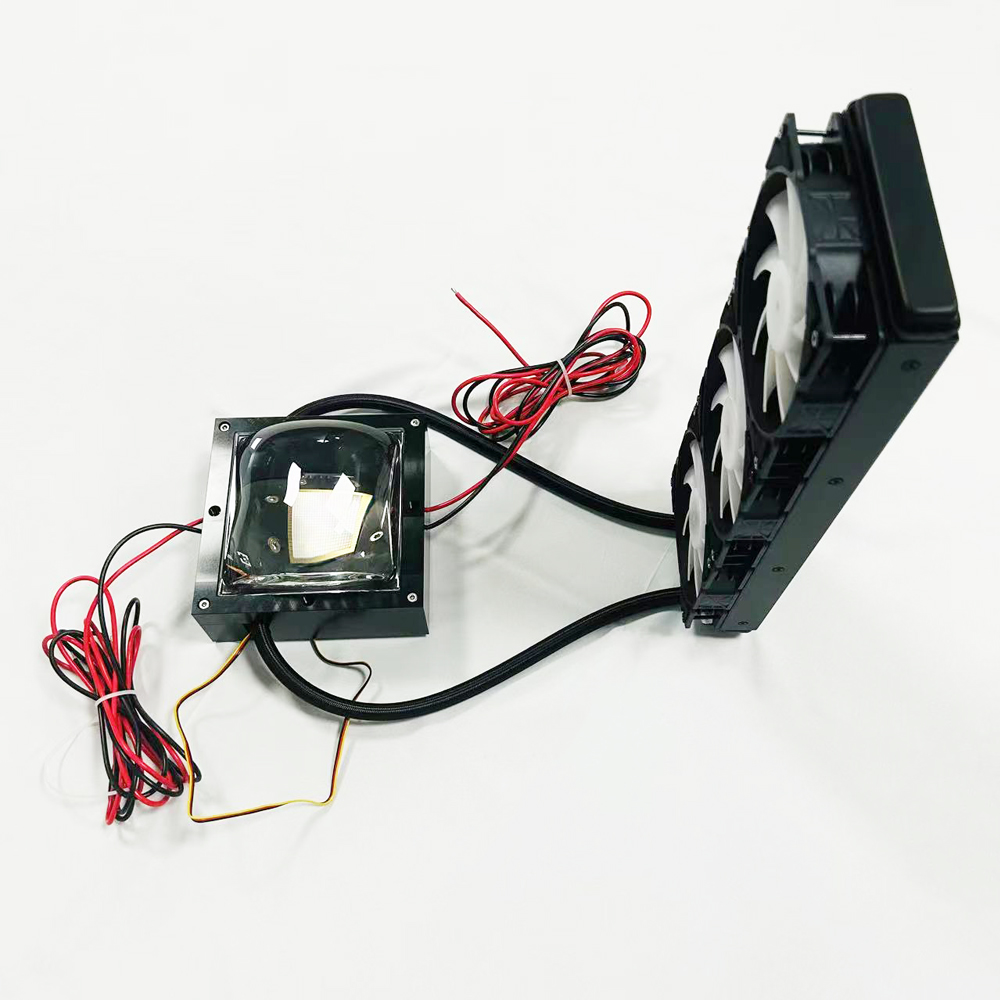

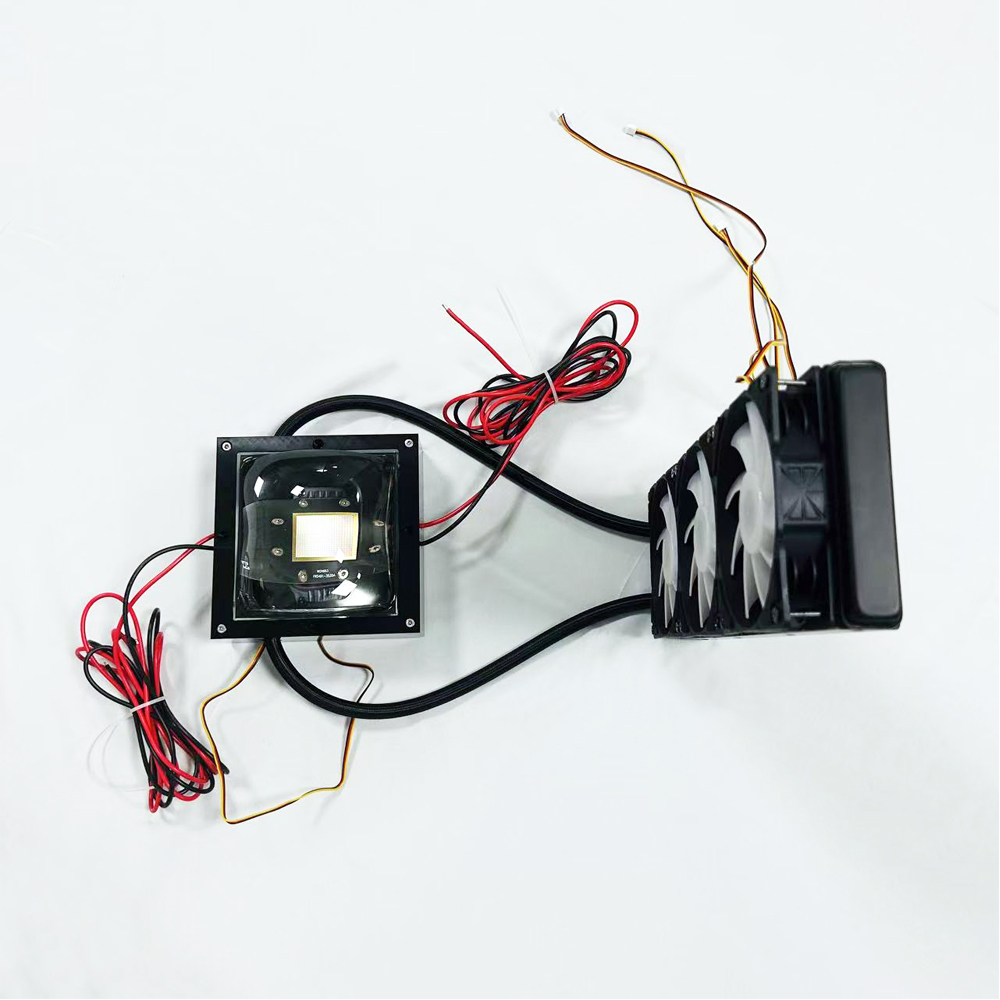

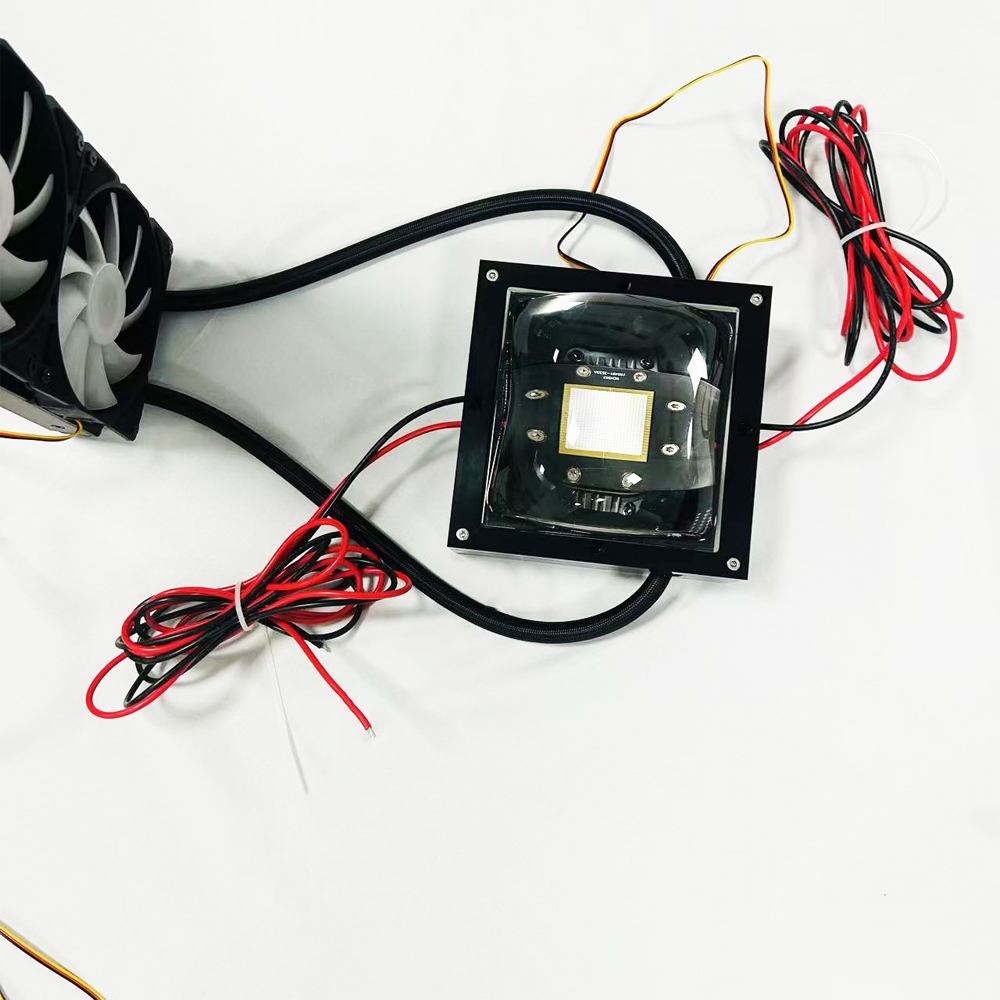

High-precision 16-inch Water-cooled UV Light Curing Systems 405nm Parallel Uniformity ≥85% UV Light Source
High-precision 16-inch Water-cooled UV Light Curing Systems 405nm Parallel Uniformity ≥85% UV Light Source
High-precision 16-inch Water-cooled UV Light Curing Systems 405nm Parallel Uniformity ≥85% UV Light Source
High-precision 16-inch Water-cooled UV Light Curing Systems 405nm Parallel Uniformity ≥85% UV Light Source
High-precision 16-inch Water-cooled UV Light Curing Systems 405nm Parallel Uniformity ≥85% UV Light Source
1 / 5
High-precision 16-inch Water-cooled UV Light Curing Systems 405nm Parallel Uniformity ≥85% UV Light Source
High-precision 16-inch Water-cooled UV Light Curing Systems 405nm Parallel Uniformity ≥85% UV Light Source
High-precision 16-inch Water-cooled UV Light Curing Systems 405nm Parallel Uniformity ≥85% UV Light Source
High-precision 16-inch Water-cooled UV Light Curing Systems 405nm Parallel Uniformity ≥85% UV Light Source
High-precision 16-inch Water-cooled UV Light Curing Systems 405nm Parallel Uniformity ≥85% UV Light Source

High-precision 16-inch Water-cooled UV Light Curing Systems 405nm Parallel Uniformity ≥85% UV Light Source

Send Inquiry

Product Description

Products Description
introduce：

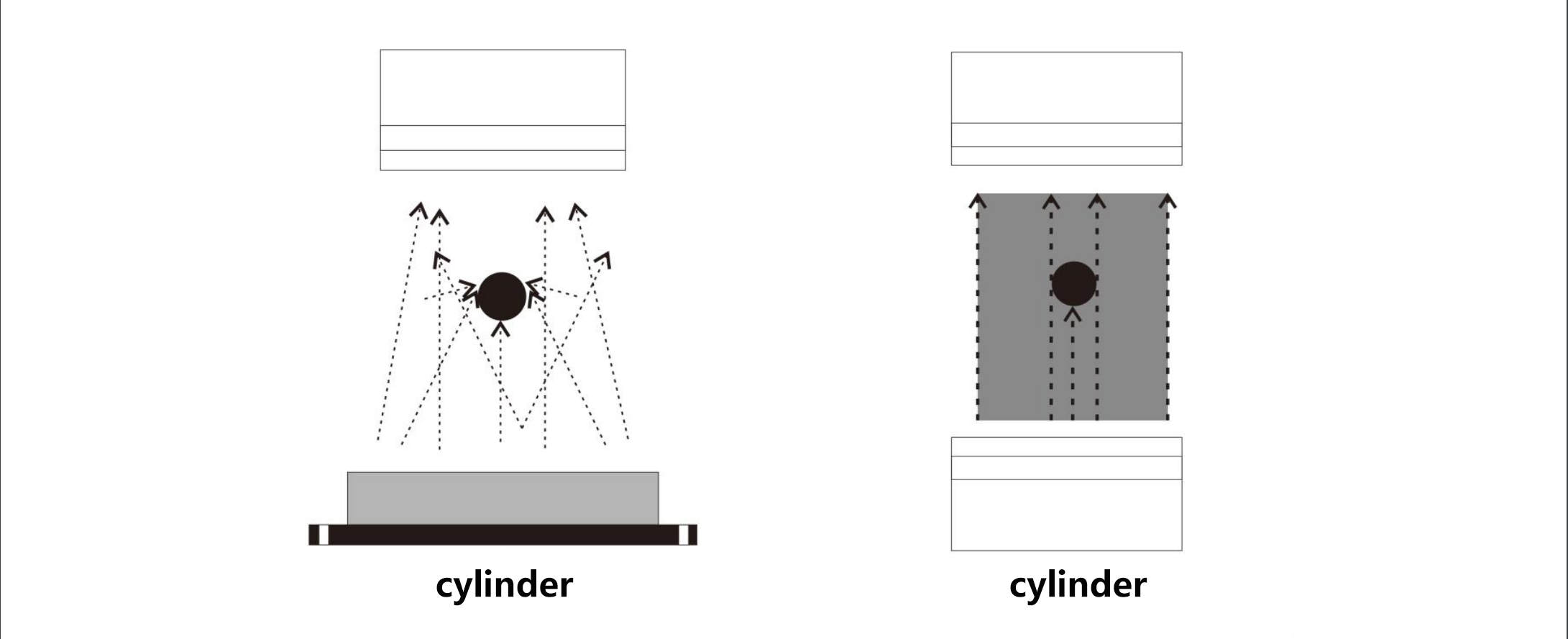

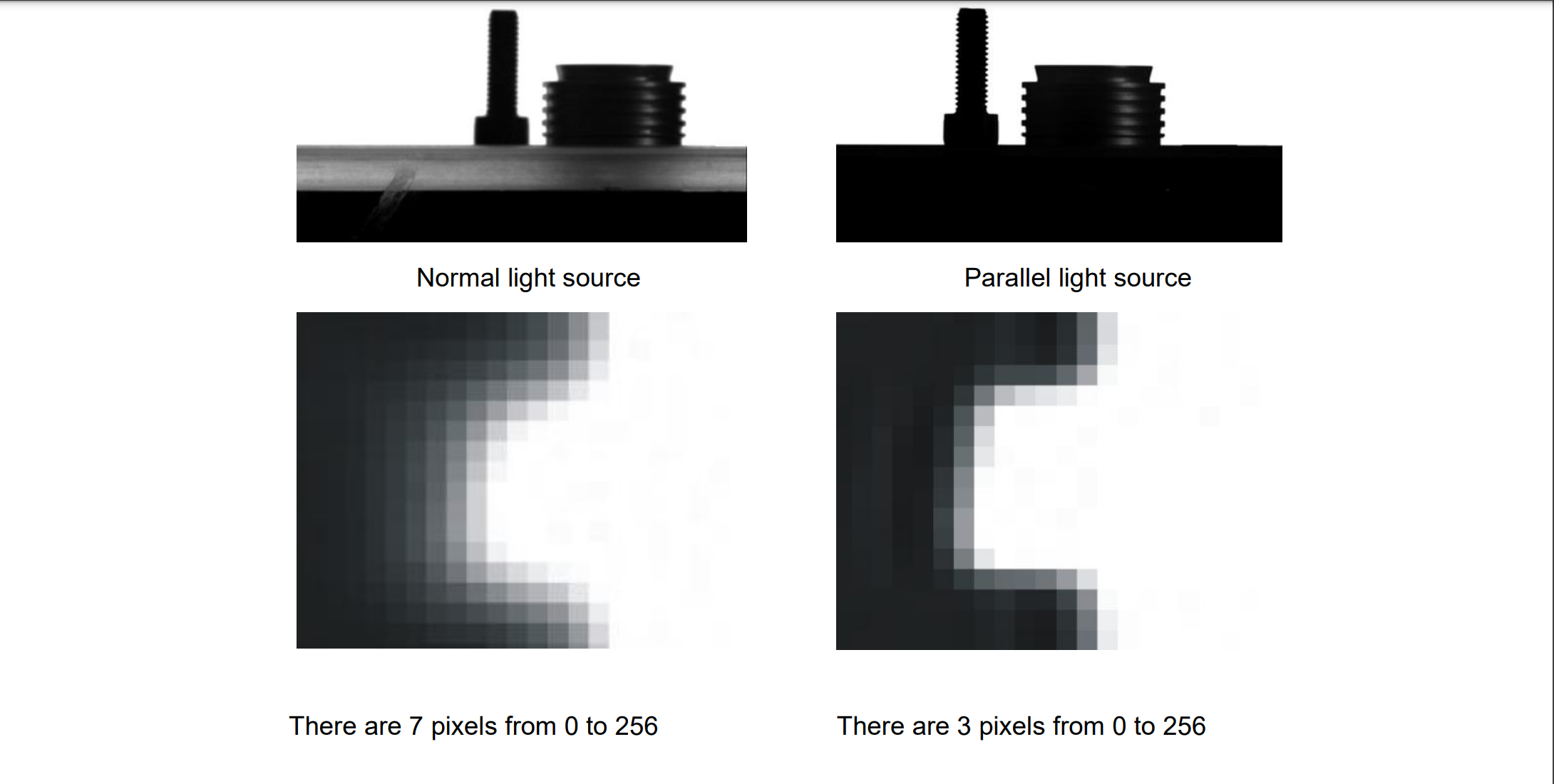

A Parallel light source is usually used for high-precision measurements, and its contrast at the edges is very high, which reduces diffuse reflection, which is suitable for the identification of image boundaries.
Parallel Light Source Intro
Product Image
Product name UVA-S576
Voltage 36-46V
Current 12.5A
Type 405nm UV LED
Technical Specifications Diagram

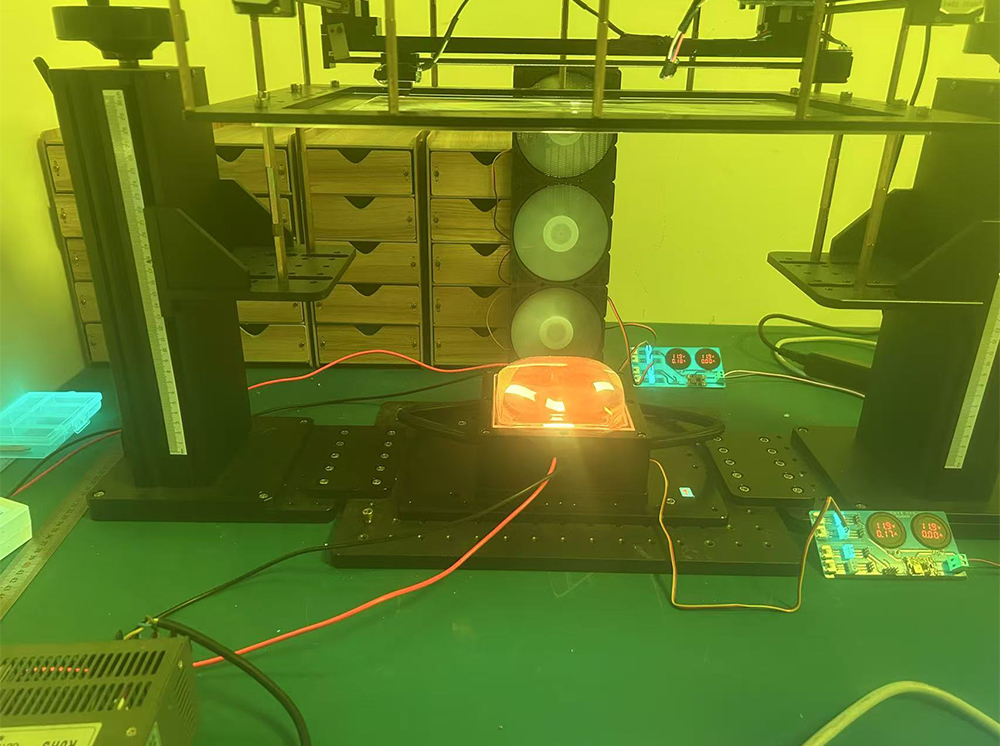

Distance Measurement
Distance between lens top to LCD:
The distance between the bottom of the Fresnel lens and the plane of the light source bracket is the key installation dimension (the light surface of the Fresnel lens faces downward, and the surface of the surface faces the LED). The recommended installation distance for a 16-inch light source is 267-269mm. Customers need to adjust according to the actual measured results.
Size of parallel UV light source:

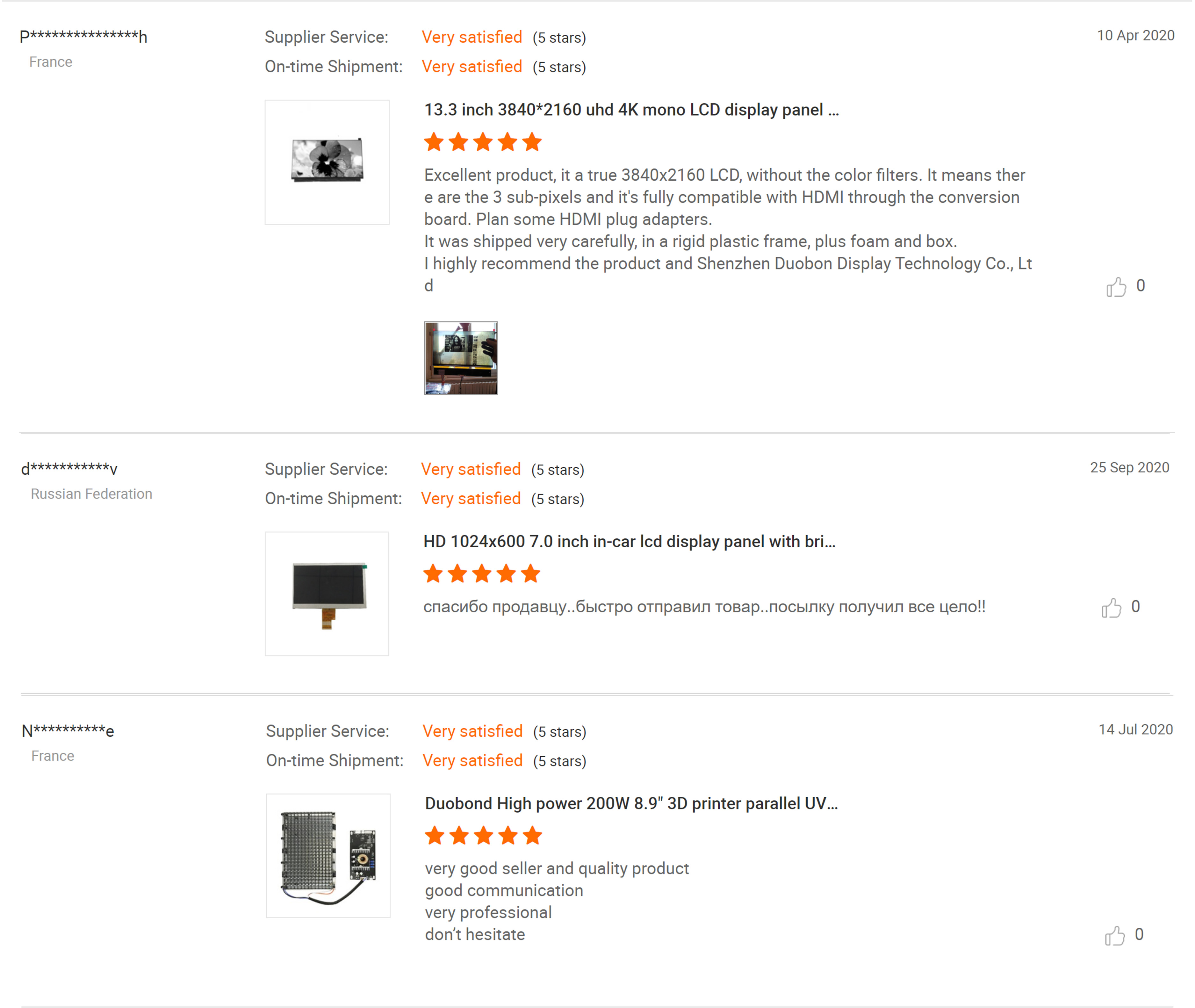

Customer Reviews
Customer Reviews Graphic
Related Products
3D printer LCD screen:
Size and Feature Model No Resolution Active area Outline Dimensional
5.9" 2K MONO LCD RV059FBB-N80 1620*2560 81*128 84.6*135.85
6.2'' 4K MONOLCD DBM062M4K01 3840*2400 134.40*84.00 138.56*92.82*1.16
6.8'' 9K MONO LCD DBM068M9K01 8520*4320 153.36*77.76 161.36*86.31
7.1" 9K MONO LCD DBM070M9K01 9072*5120 154.224*87.04 159.224*96.04*1.04
10.1" 8K MONO LCD DBM101E8K01 7680*4320 218.88*123.12 227.43*139.50
10.1'' 12K MONO LCD DBM101M12K01 11520*5120 218.88*122.88 227.43*139.50
10.1'' 14K MONO LCD DBM101M14K01 13320*5120 223.78*126.98 230*142*1.06
10.1'' 16K MONO LCD DBM101M16K01 15120*6230 211.68*118.37 227.43*139.50*1.25
10.3'' 8K MONO LCD DBM103M8K01 7680*4320 228.096*128.304 232.096*138.402*1.24
13.6" 7K MONO LCD DBM136E7K01 6480*3600 298.08*165.60 302.36 *76.94 *1.16
14" 16K MONO LCD DBM140M16K01 15120*6230 302.4*161.98 311.4*184.66
14.1" 12K MONO LCD DBM141M12K01 11520*8640 285.696*214.272 291.696*223.072*1.04
16" 8K MONO LCD DBM160M8K01 7680*4320 353.28*198.72 358.28*207.42*1.16
Click the product "Model name" in the list to enter the corresponding product interface for details!
Wavelength: 405nm
Module name Compatible 3D printer size Lamp Power Voltage Current Brightness uniformity
UVA-S25 5.9",6.2",6.8" 85W 17-17.5V 4.5-5A (5A recommended) >=88%
UVA-S64 10.1",10.3" 196W 53-56V 3.2-3.8A (3.5A recommended) >=85%
UVA-S100 13.6" 280W 33-35V 7.5-8.5A (8A recommended) >=85%
About Us

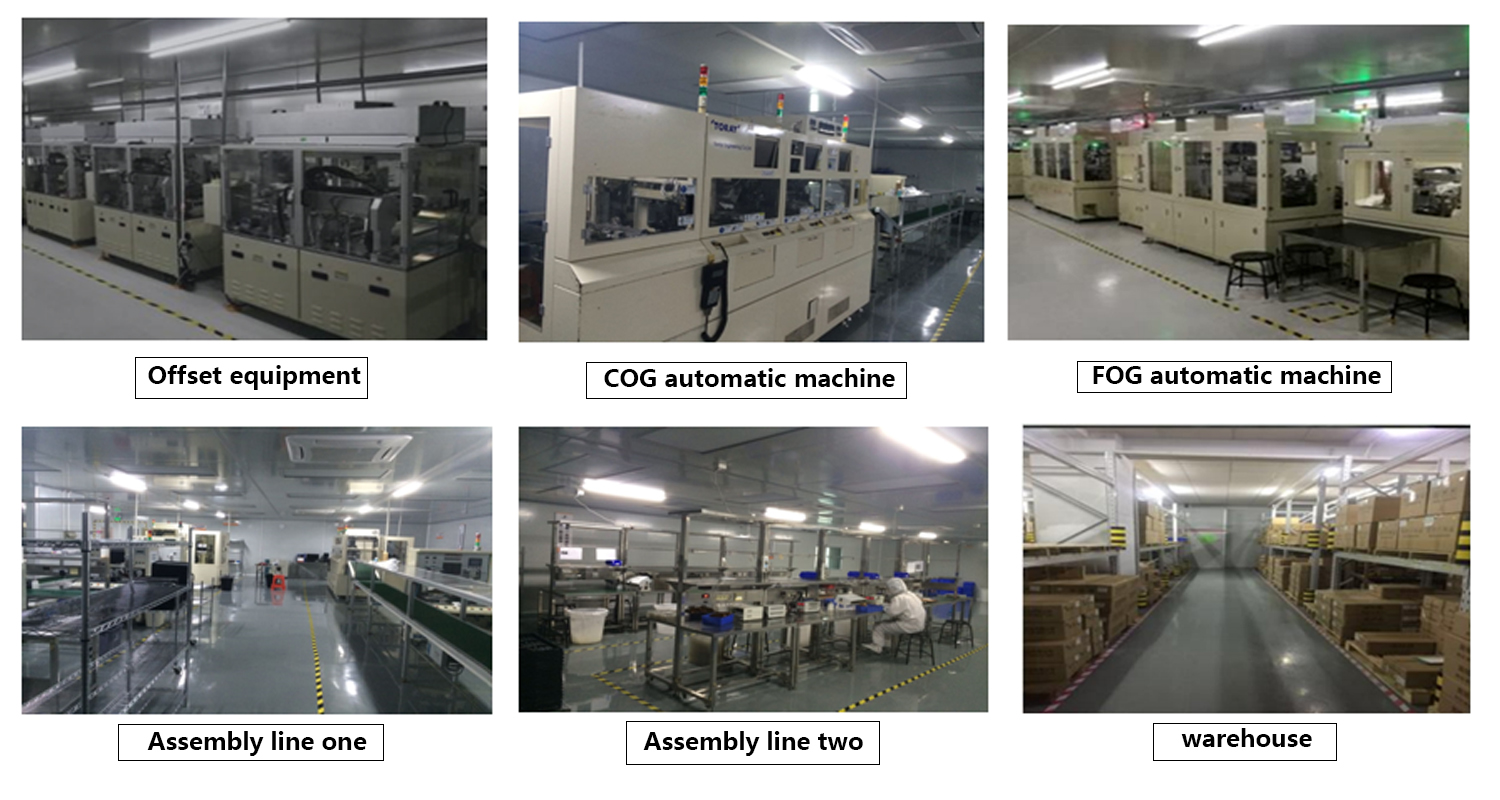

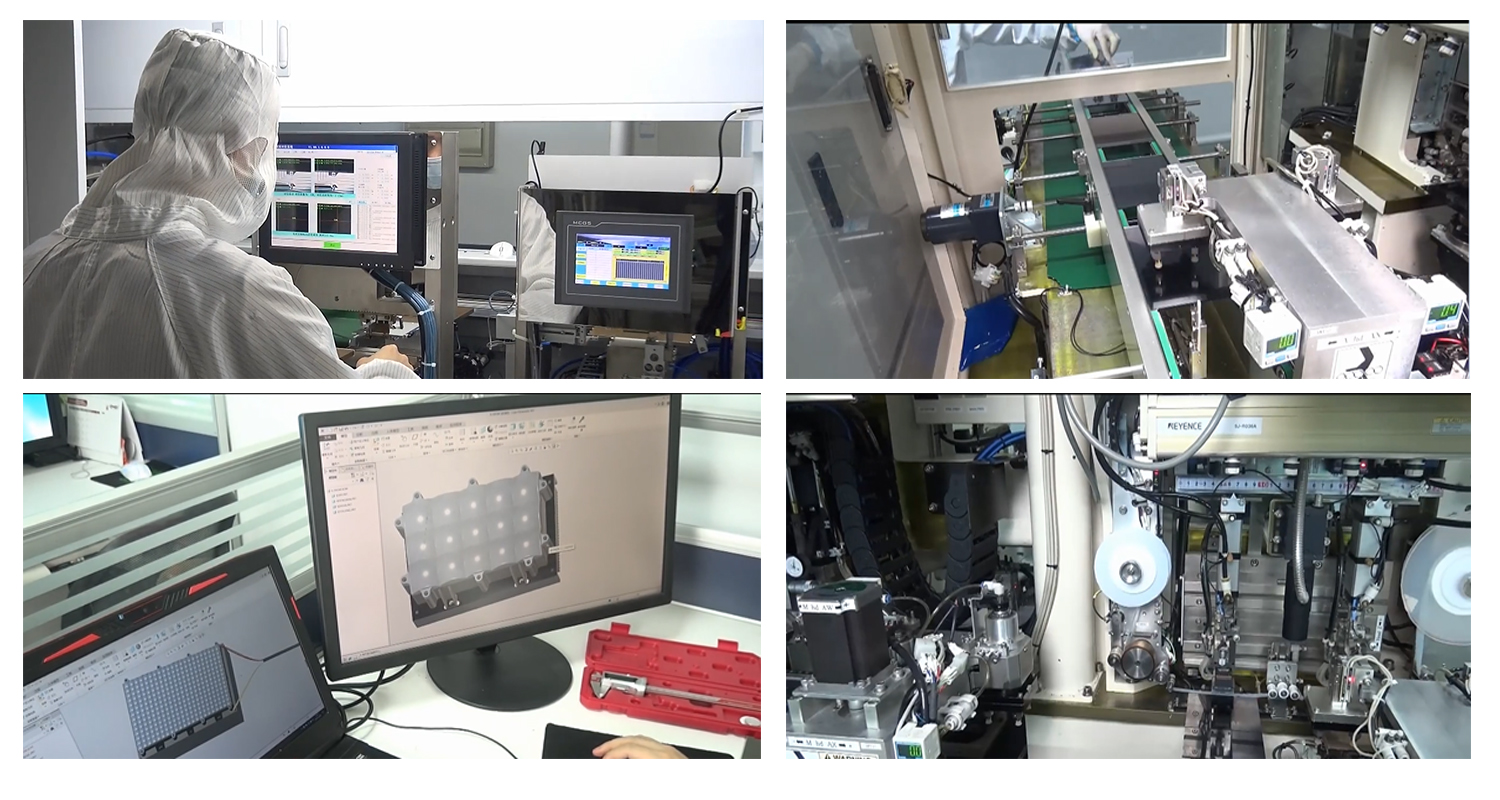

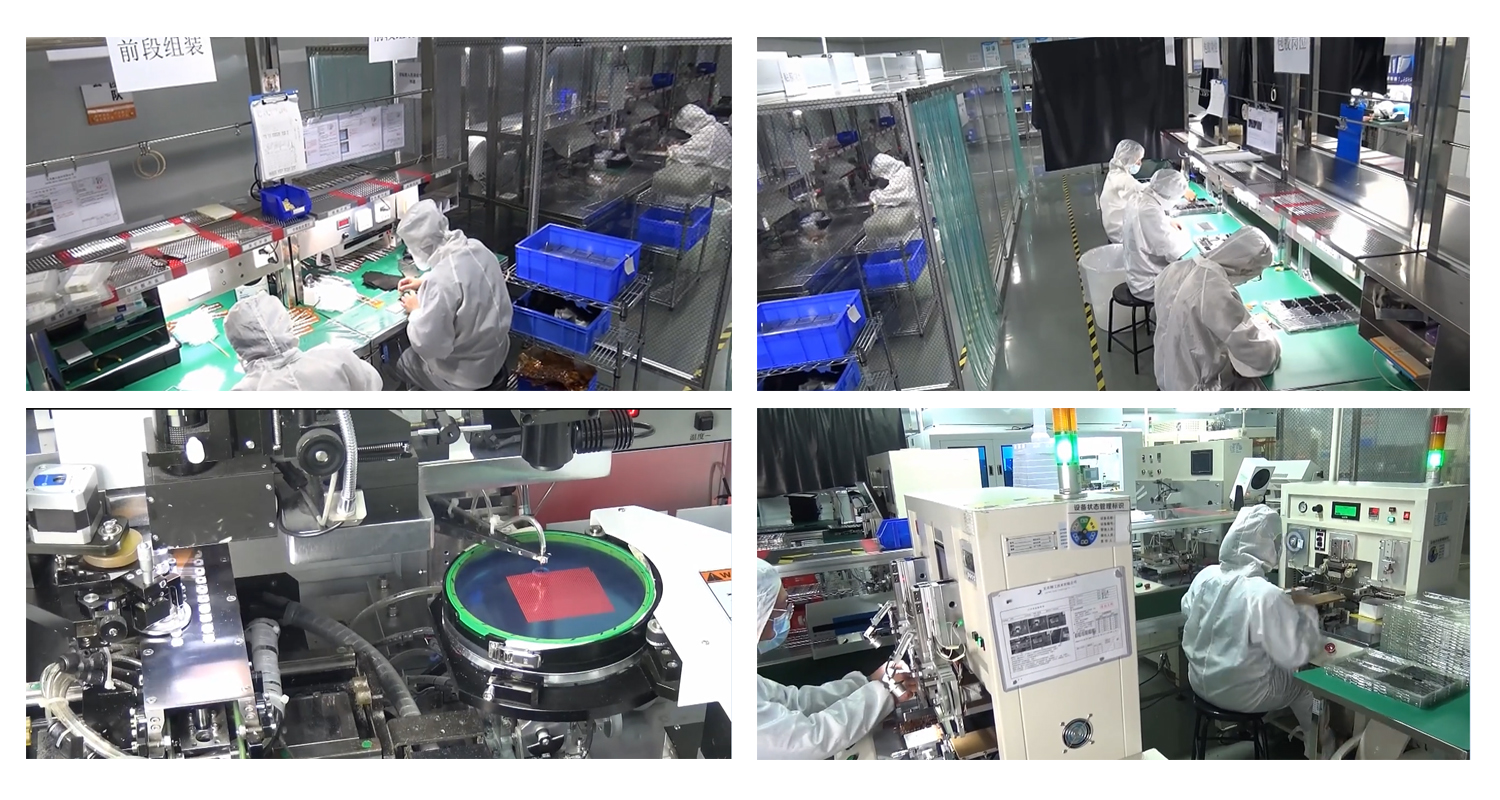

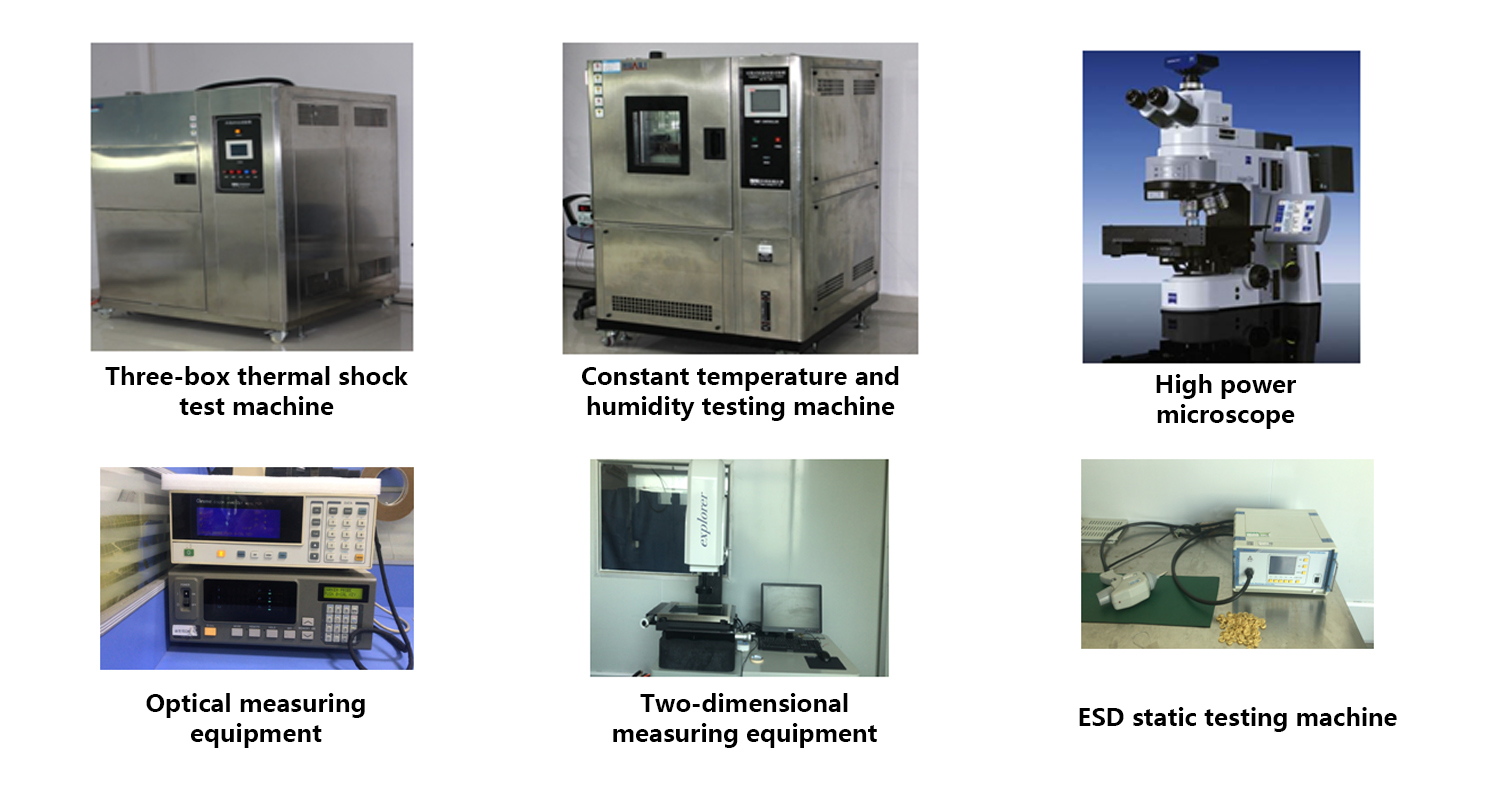

Facility Image 1 Facility Image 2 Facility Image 3 Facility Image 4 Facility Image 5
Certifications
We are professional display solution company for 3D printer. We provide LCD, control kit, parallel UV light source.
We obtained patent certificate in January 2019:
  • Patent number: ZL 2019 3 0018260.5
  • Patent number: ZL 2019 2 0120538.4
  • Patent number: ZL 2019 3 0018797.1
Professional UV LED designer and manufacture. Provide excellent UV LED curing solution. Can customize different sizes of UV LED curing lights as required.
Patent Certificates
FAQ
FAQ Header Banner
Q: What is the MOQ?
A: MOQ is 1 pcs. We can provide support during the test process.
Q: What about the delivery time?
A: We have products in stock and can ship them within 3 working days.
Q: Does your product have any warranty?
A: It is well known that UV damages LCDs, and the heat generated by resin curing damages LCDs. Different users cause different damages to LCDs. We guarantee that when you receive the LCD, it will work properly. We do not provide warranties for damage caused during use.
Q: What's your payment method?
A: We usually accept payment methods including T/T, Alibaba order, and Paypal.
Q: What's your shipping method?
A: We provide comprehensive shipping methods.

For small quantity orders, we ship by UPS Air-Express, or DHL/FEDEX/TNT/EMS Express service, which is safe and fast.
For large quantity orders, we ship by buyer's cargo agent in China; we can also ship by Air transportation or Sea transportation.
Q: Do you offer custom solutions?
A: Yes, we can offer custom solutions if standard products cannot meet buyers' requirements.
