LumiCure Light
1 / 5

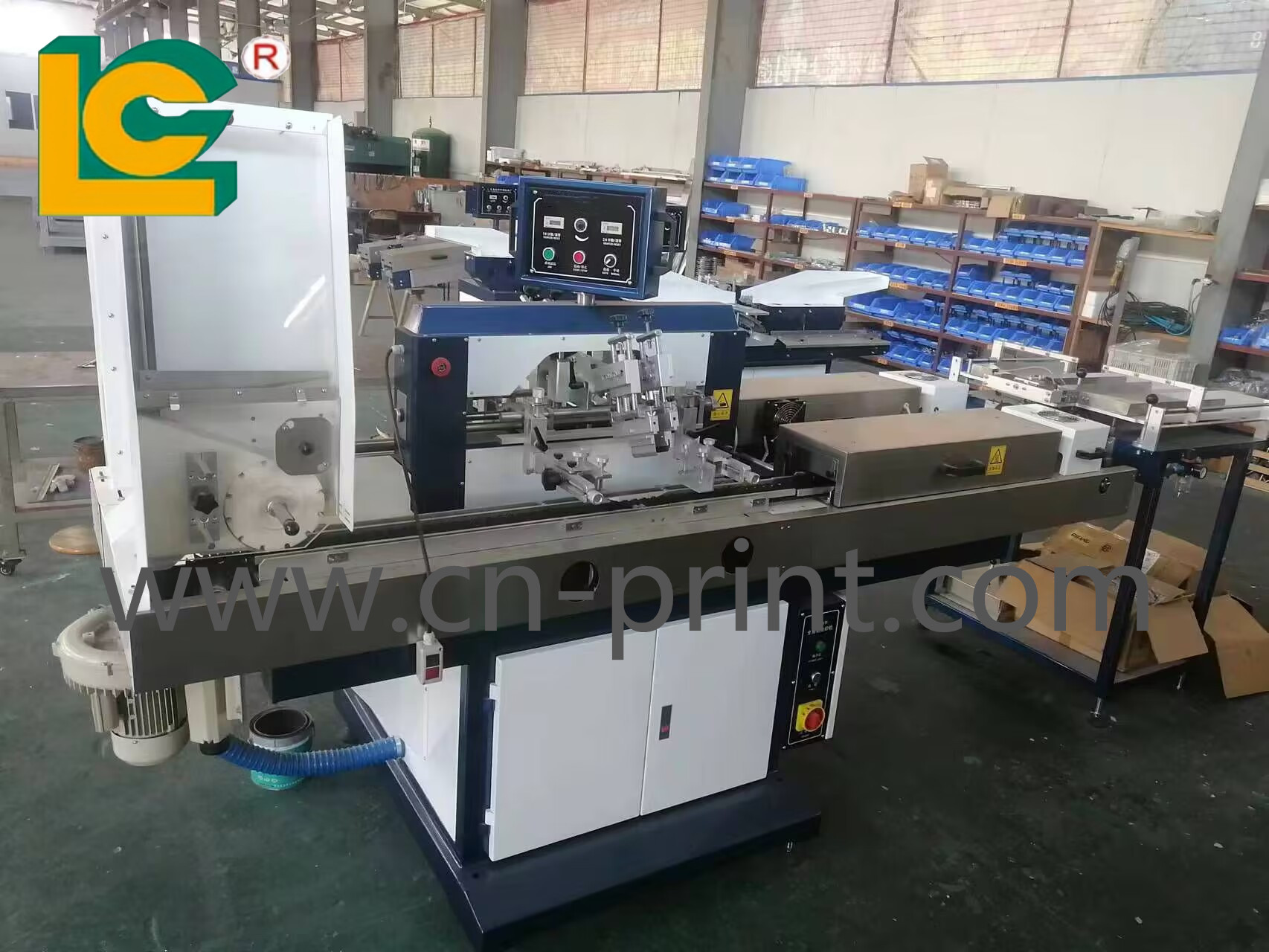

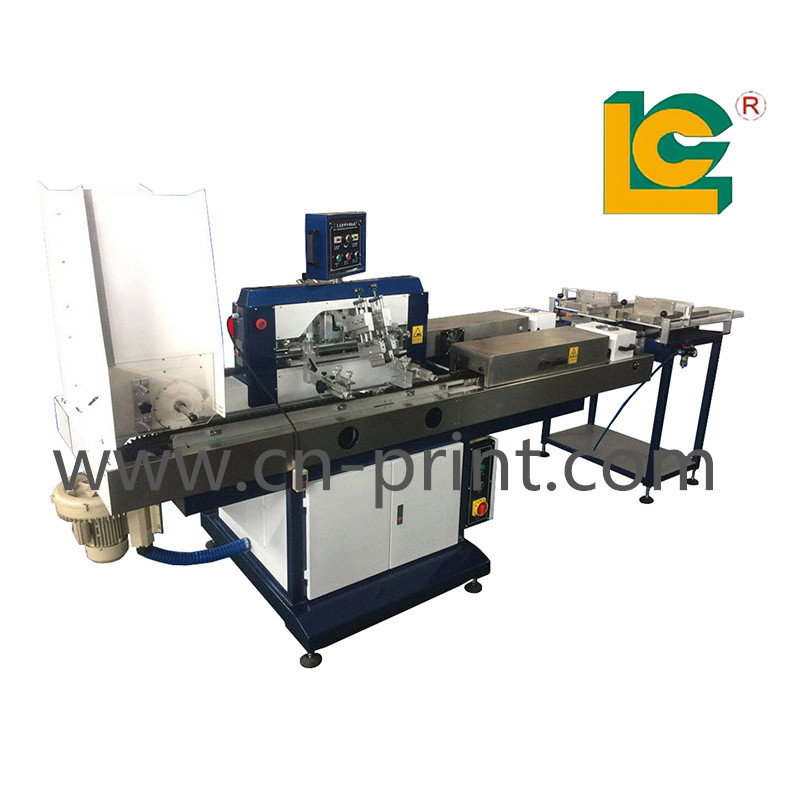

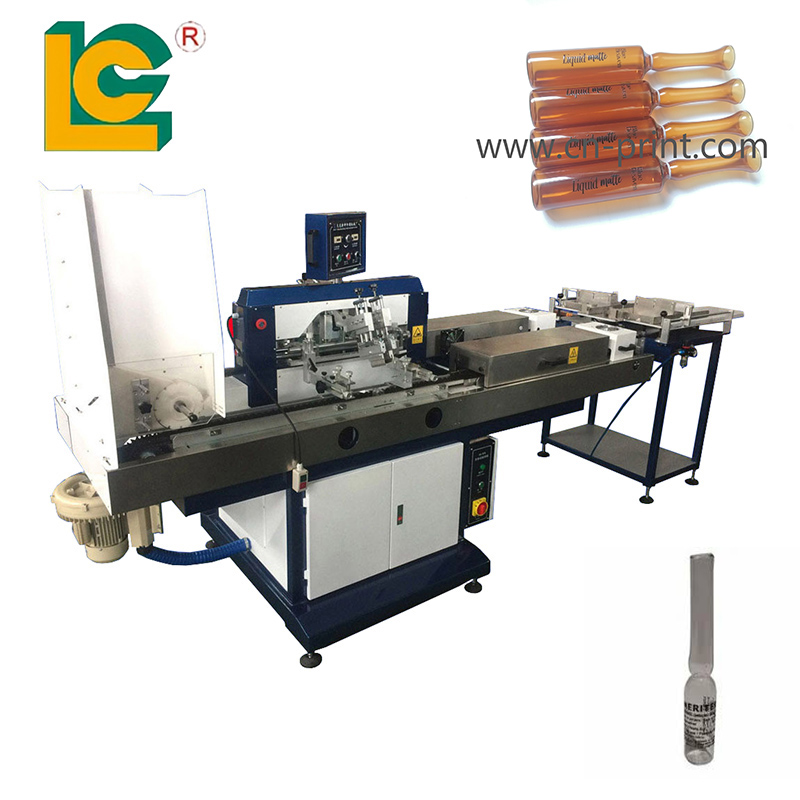

| Model Name | LC-AP-100S |
| Printing Speed | 7000 pcs/hr |
| Diameter of printing objects | φ5 - φ20 mm |
| Length of printing objects | 60 - 160 mm |
| Width of printing route | 20 - 80 mm |
| UV Lamp Power | 6 KW |
| Machine size | 3730 * 1120 * 1520 mm |
| Machine weight | 830 kg |
| Power source | 220 V, 50 HZ |
| Air supply | 5 - 7 Bar |
A: The machine offers a high printing throughput, capable of printing up to 7,000 pieces per hour.

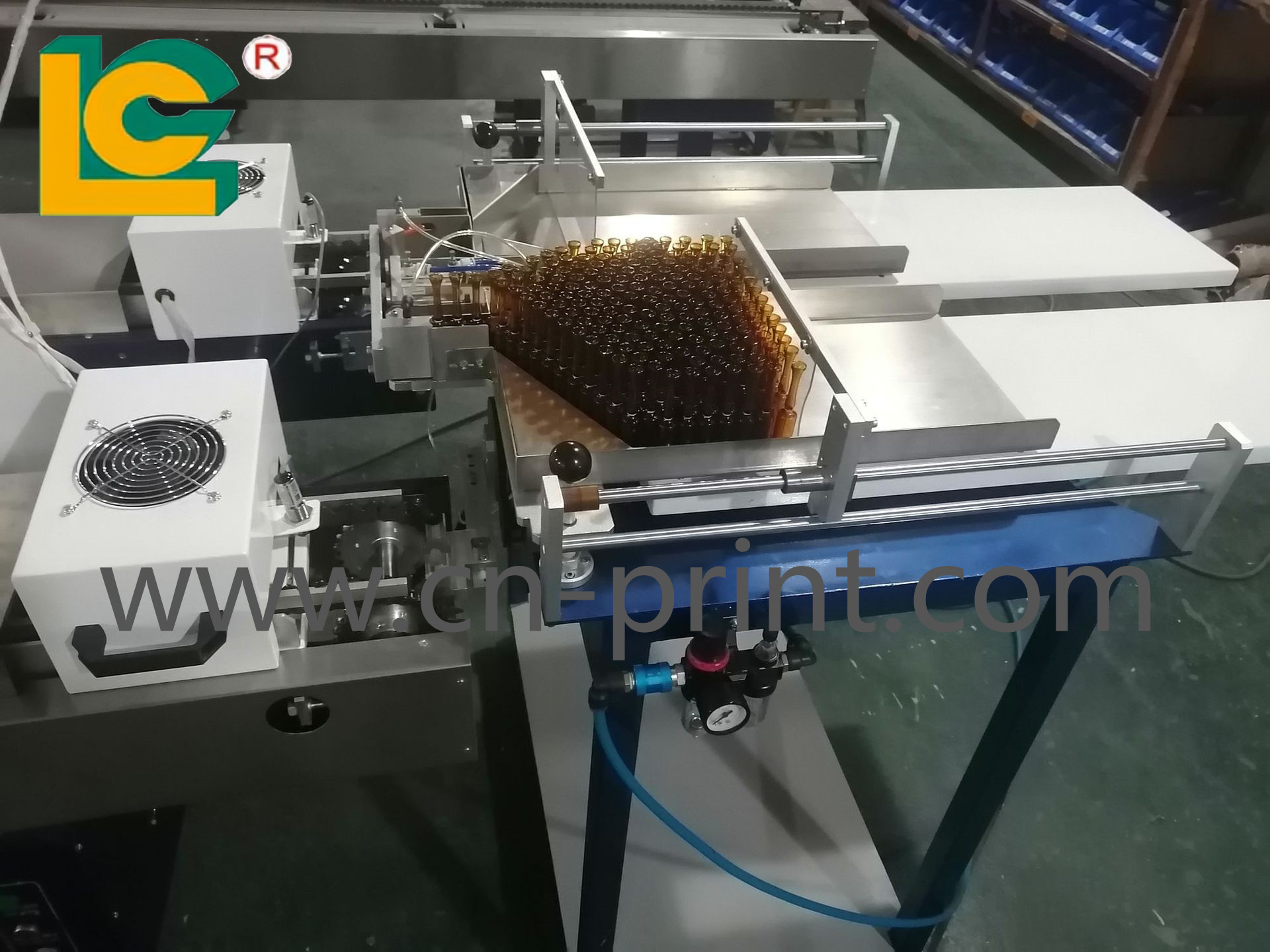

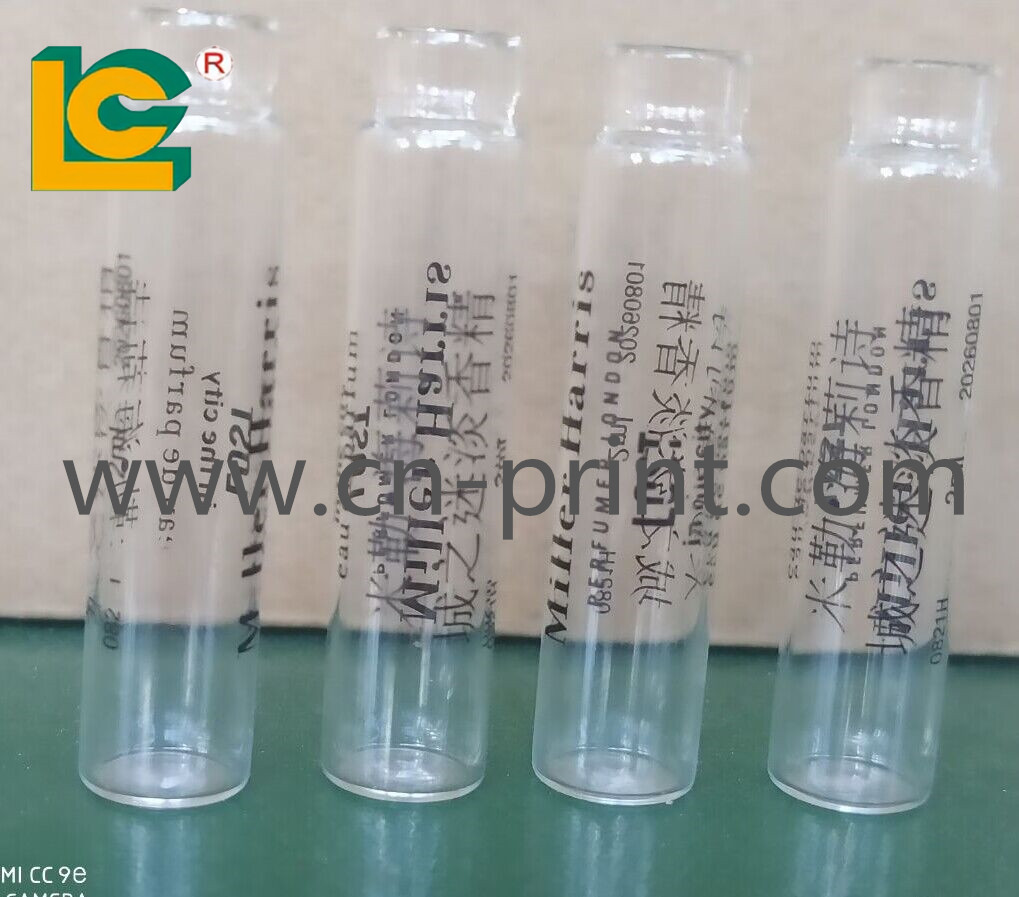

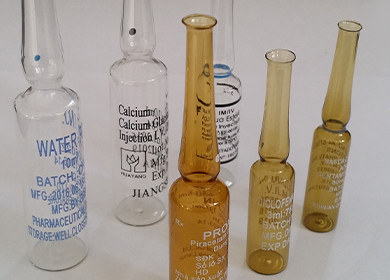

A: It can print standard ampoule sizes ranging from 1ml to 10ml. Special customized fixtures are available to securely fit these variations.
A: No, it is designed for highly efficient single-worker operation. A single operator can manage the line while two work stations perform printing tasks simultaneously.
A: The machine dimensions are 3730*1120*1520 mm with a weight of 830 kg. It requires a power supply of 220V (50HZ) and an air supply pressure of 5-7 Bar.
A: It features an integrated compressed air dust-abatement device that cleans the printing objects before the ink is applied, along with double scrapers to maintain consistent, reliable ink flooding.

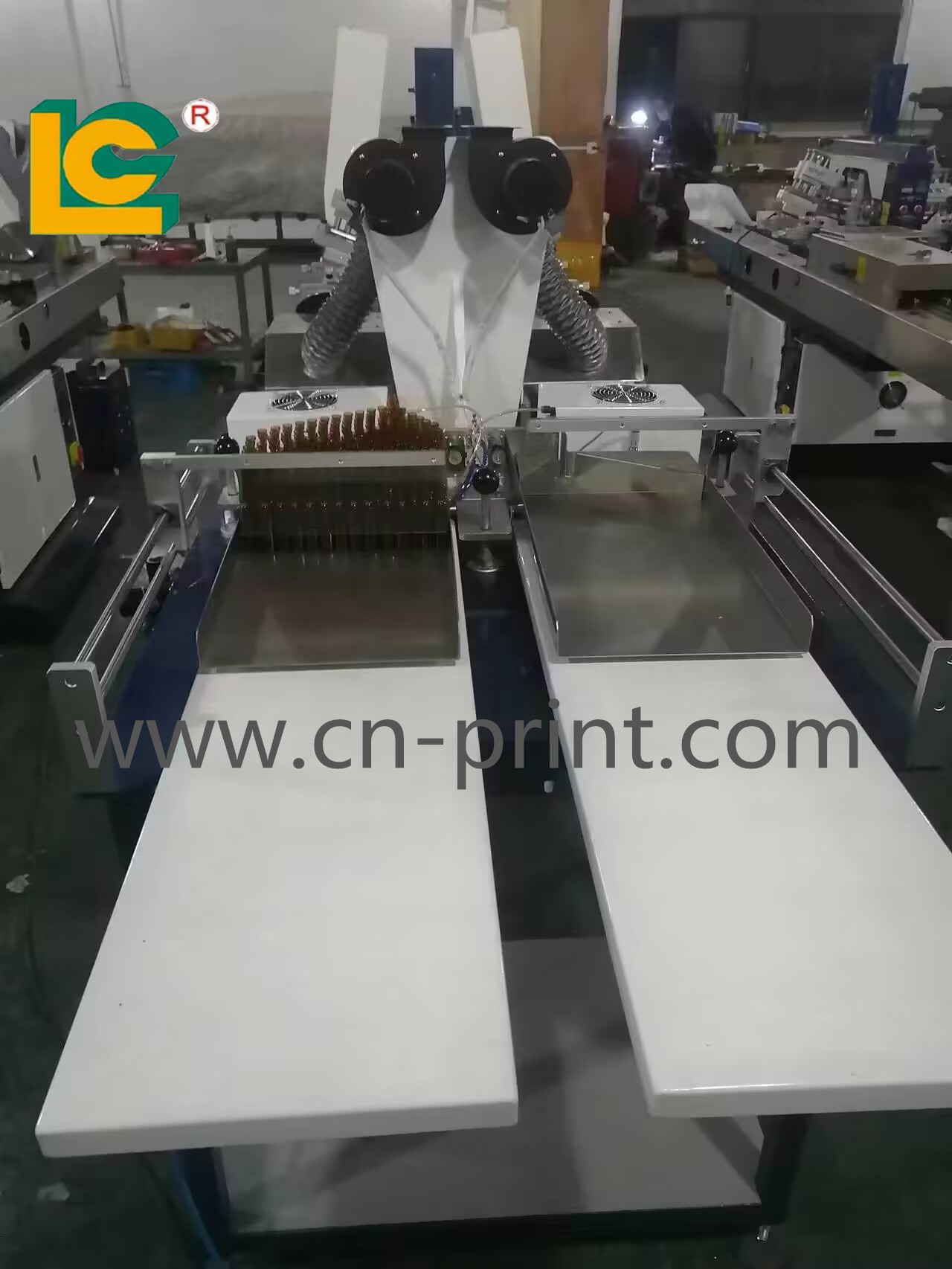

A: Yes, the dual work-station design enables the machine to handle and print two different kinds of printing objects at the same time.
