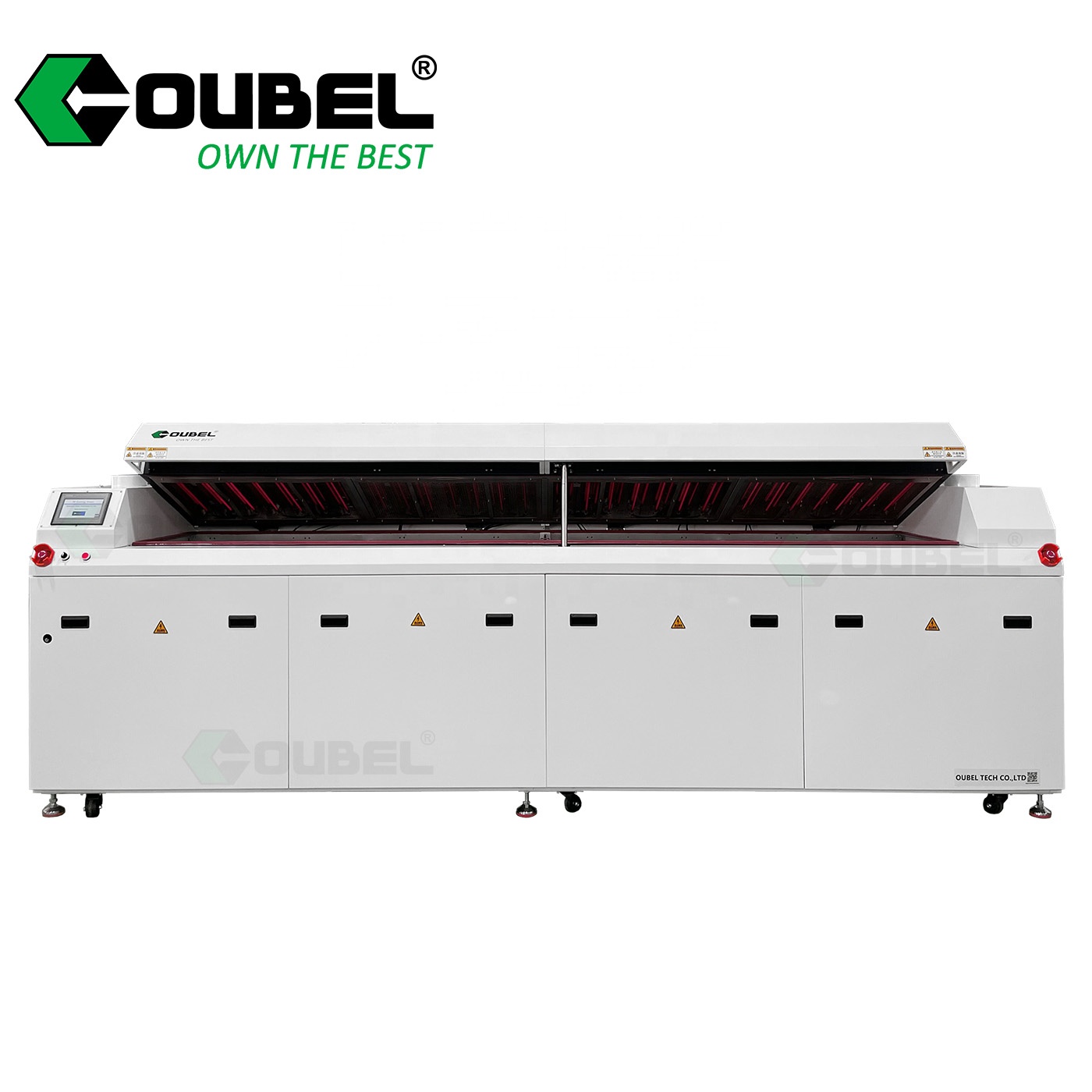

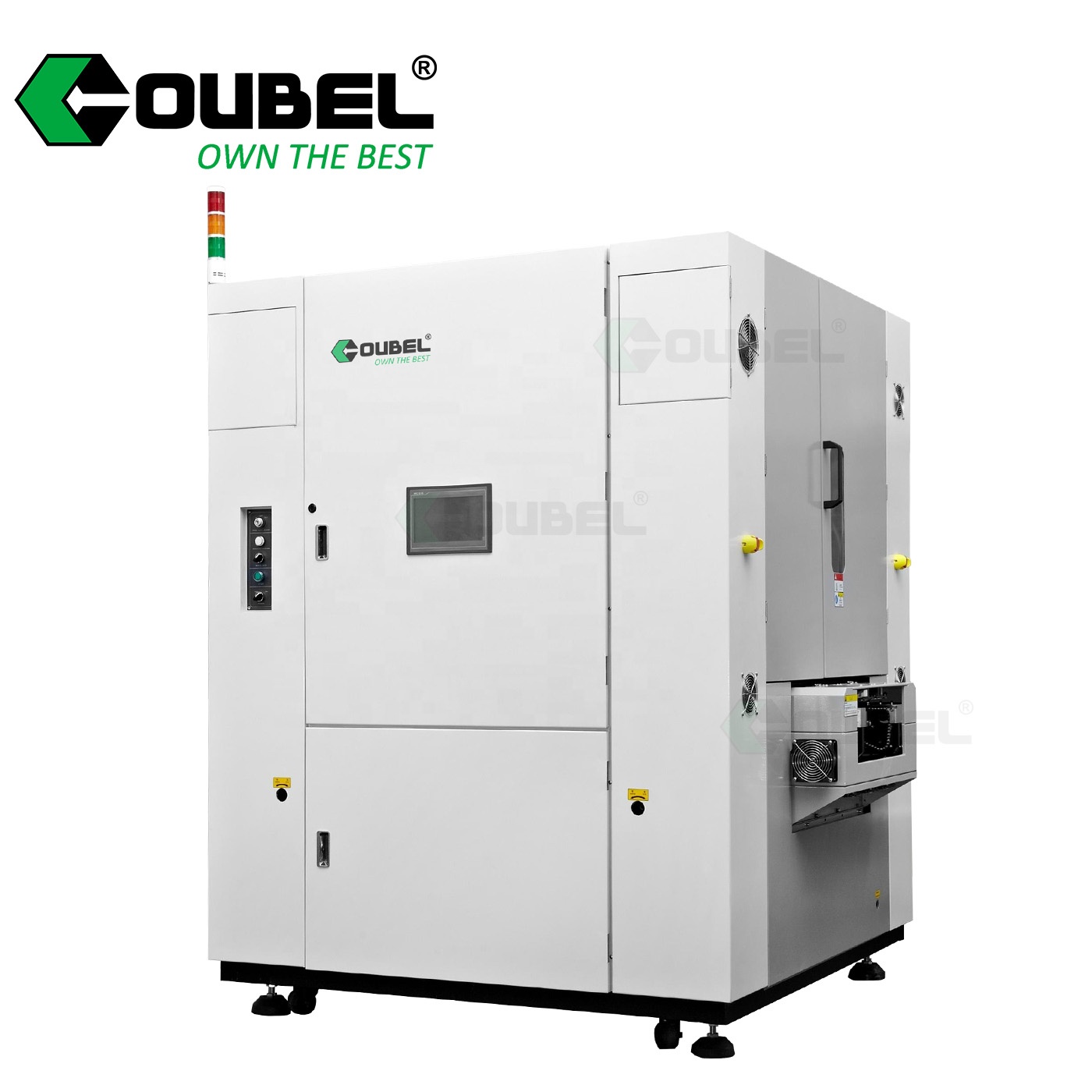

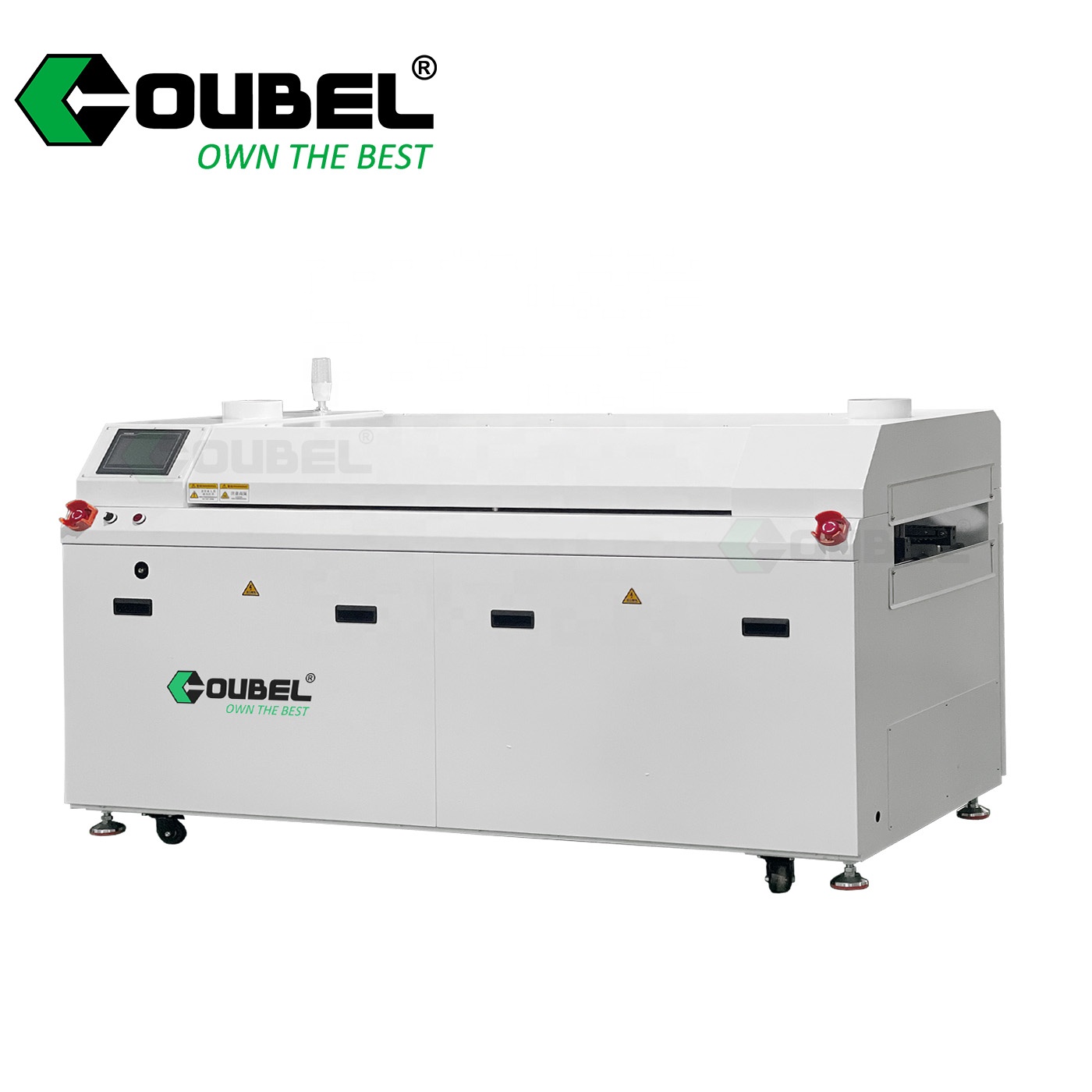

High Temperature LED Curing Oven Machine PCB UV Resin Curing Oven With PLC Control

Product Description

High Temperature LED Curing Oven Machine PCB UV Resin Curing Oven With PLC Control
High Temperature LED Curing Oven Machine
Features
  • Very good thermal efficiency. Can be fully qualified for the product heating and curing of various specifications, to ensure the perfect curing quality.
  • In-line automated production, save labor cost.
  • Cycle time is adjustable. Suitable for various curing processes.
  • Reinforce thermal insulation structure, the surface temperature is higher about 10℃ than the room temp, to reduce the influence of the working environment.
  • Six-zone heating, flexible for setting.
  • Vertical lifting structure, save space greatly, improve the utilization rate of factory.
  • Optional nitrogen system.

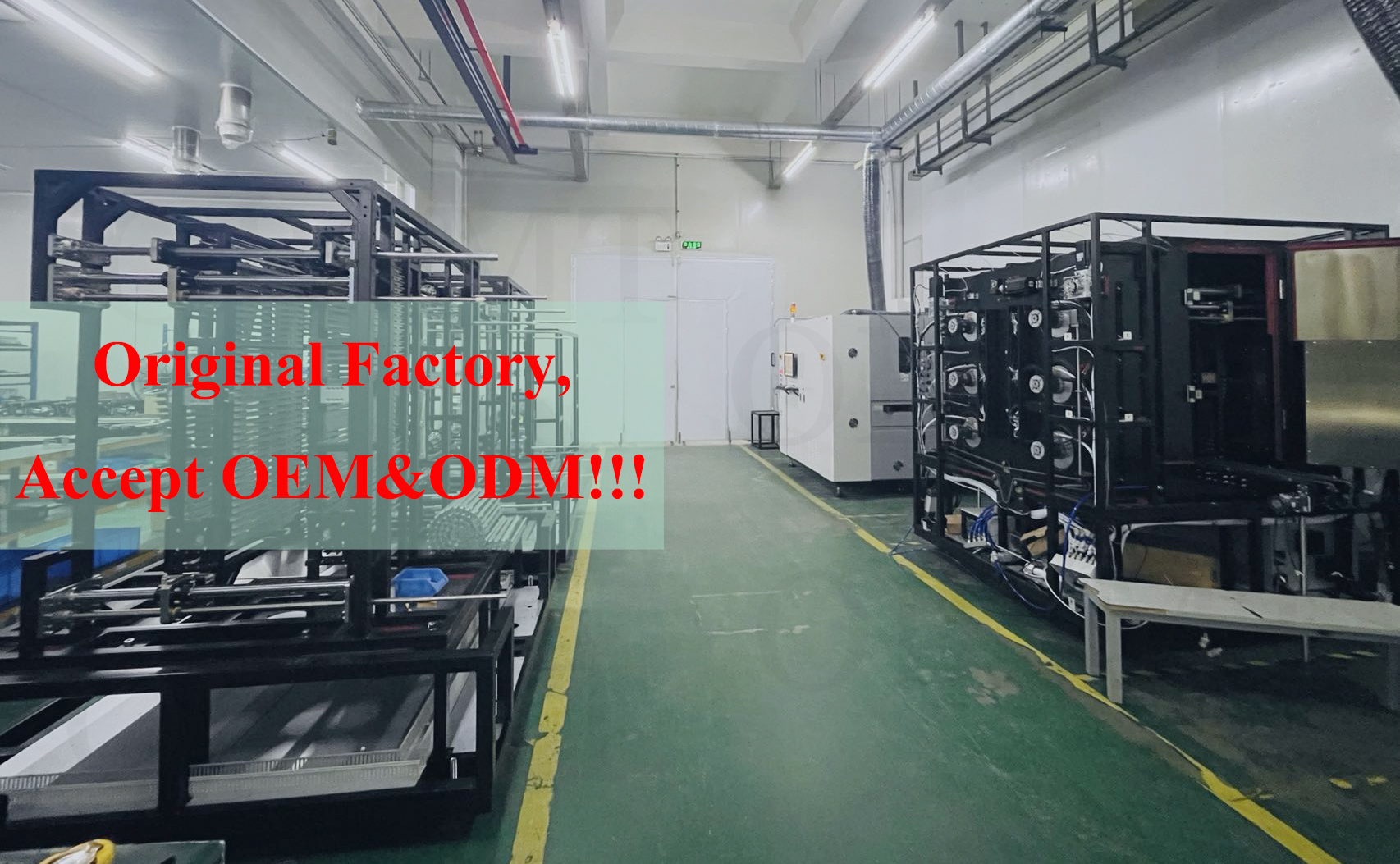

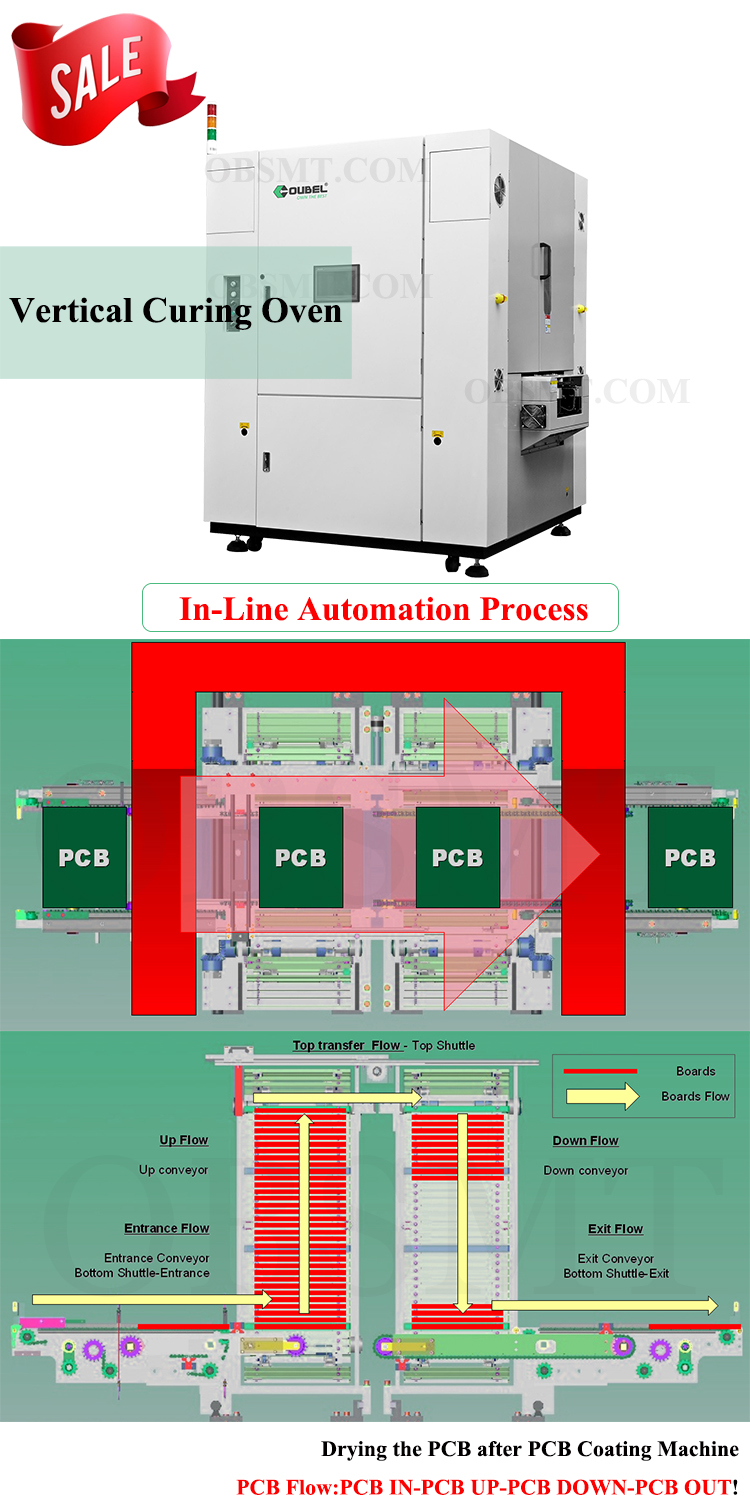

Curing Oven Process
Curing Oven Control Panel
Specifications
Product Name High Temperature LED Curing Oven Machine PCB UV Resin Curing Oven With PLC Control
Model OB-LS300
Dimensions 1980*1750*2250mm(L*W*H)
PCB size 90*90mm-300*350mm
PCB stacking spacing 25.4mm
PCB capacity 70pcs
Conveyor height 900±20mm
Cycle time 10s
Direction L-R or R-L
Guide rail parallelism <±0.8mm
Guide rail adjustment Electric/Manual
Temperature range Room temperature~200℃
Temperature control mode PID closed-loop control + SSR drive
Temperature accuracy ±1℃
Heating zone number 6
Heating up time <30Min
Blower speed Variable speed control
Power 3P AC 380V, 50/60HZ
Total power 60KW
Normal working consumption 4~6KW
SMEMA port In/Out
Products Show

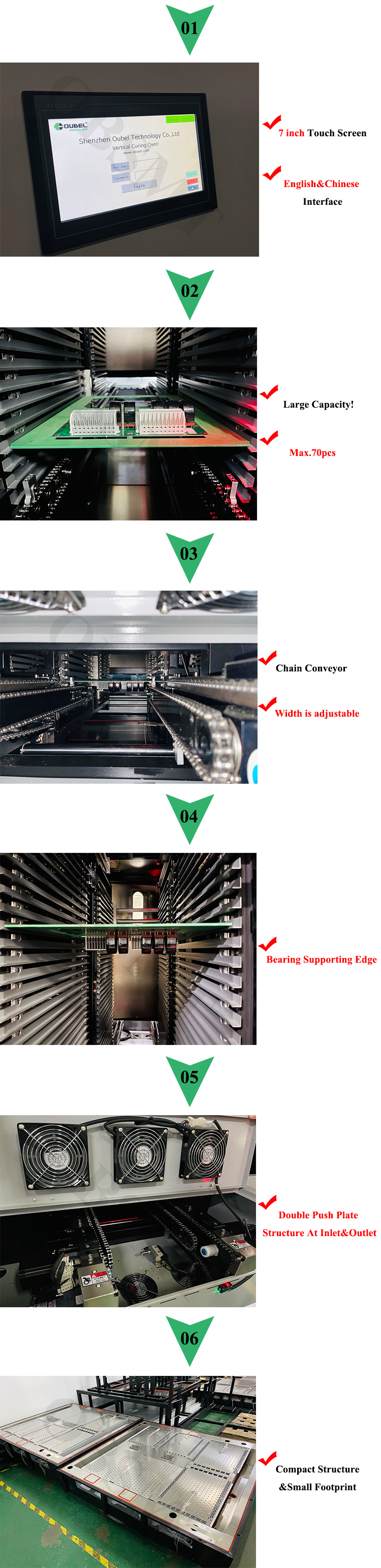

Product Exhibition
Hot Sell Products

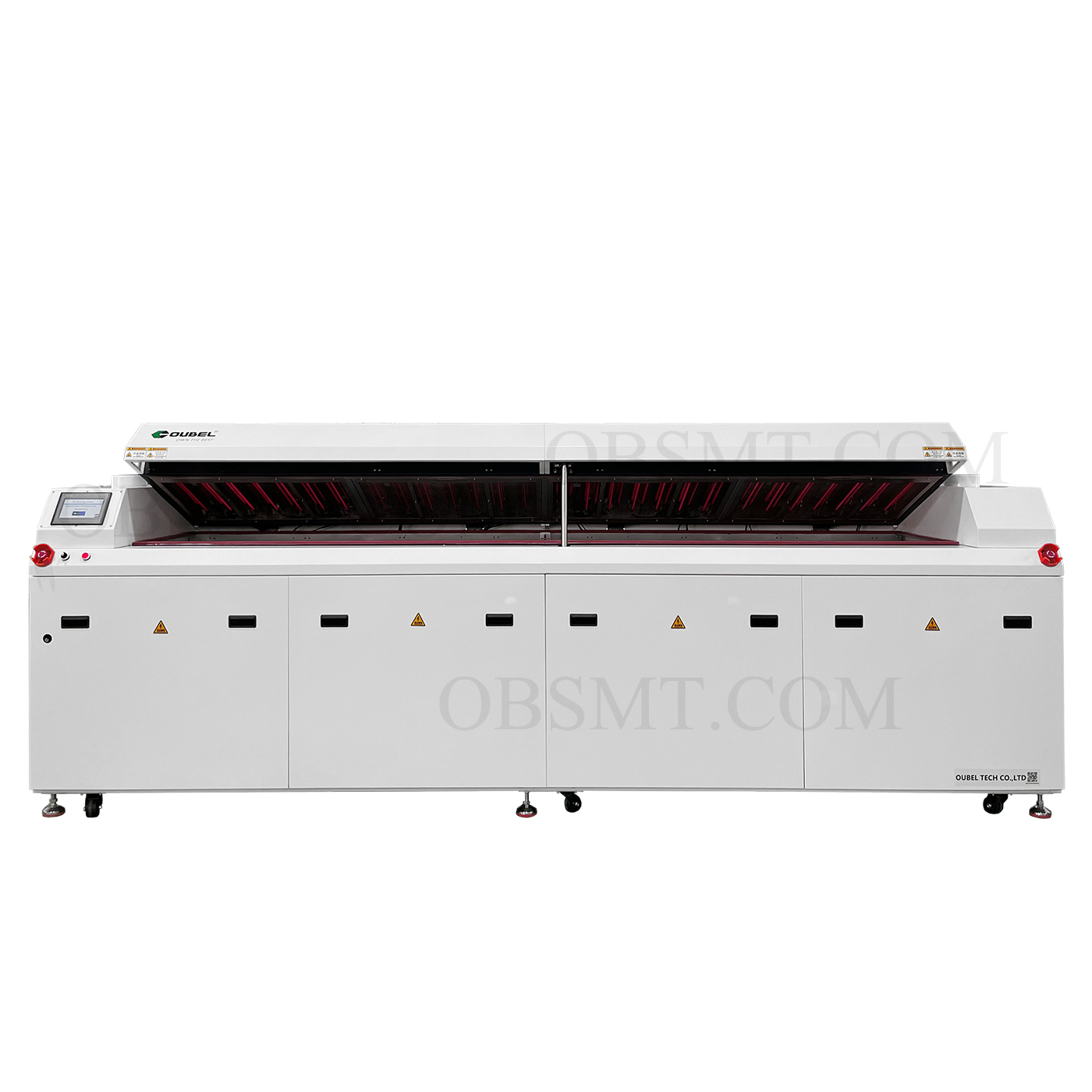

4m IR Curing Oven
4m IR Curing Oven

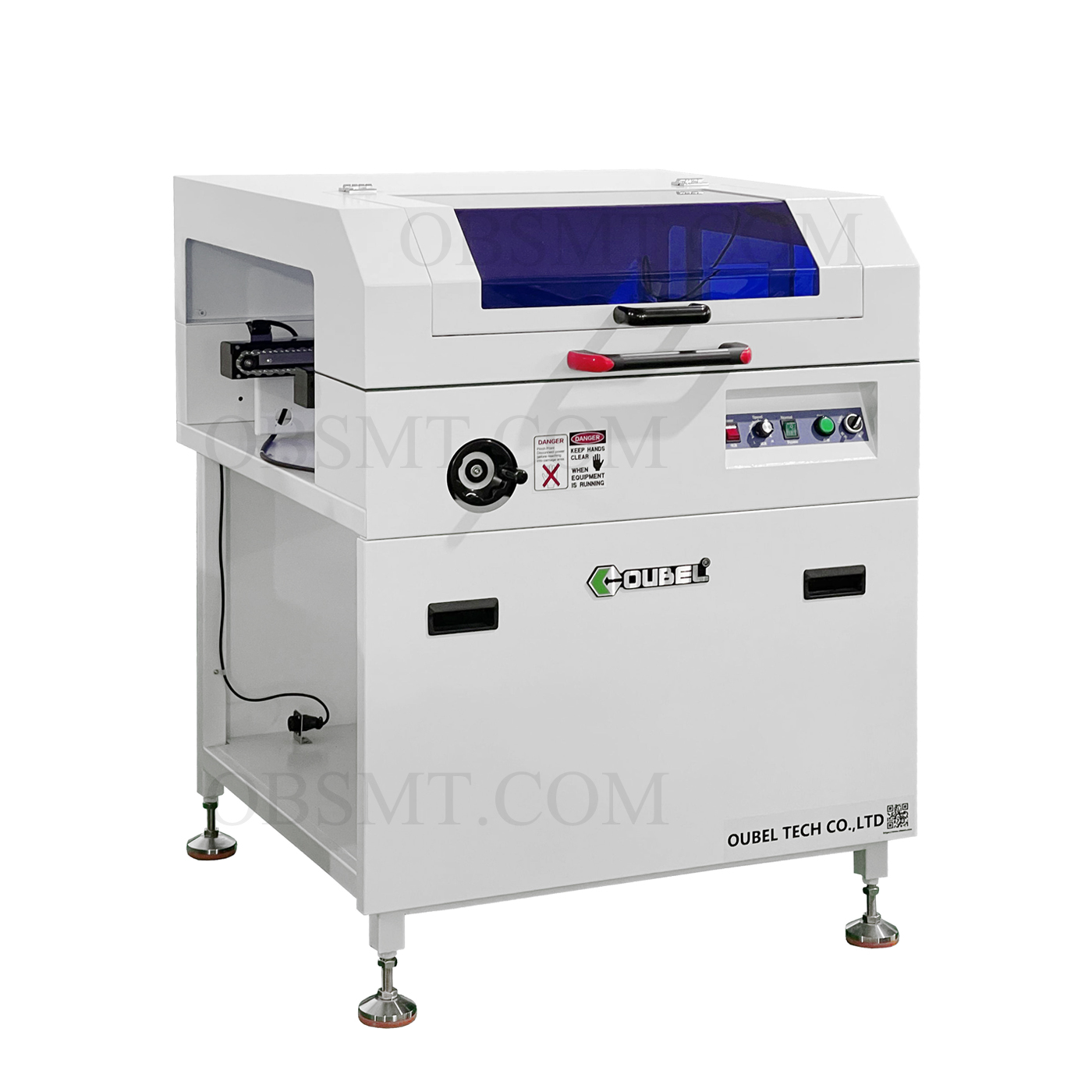

UV Conveyor
UV Conveyor

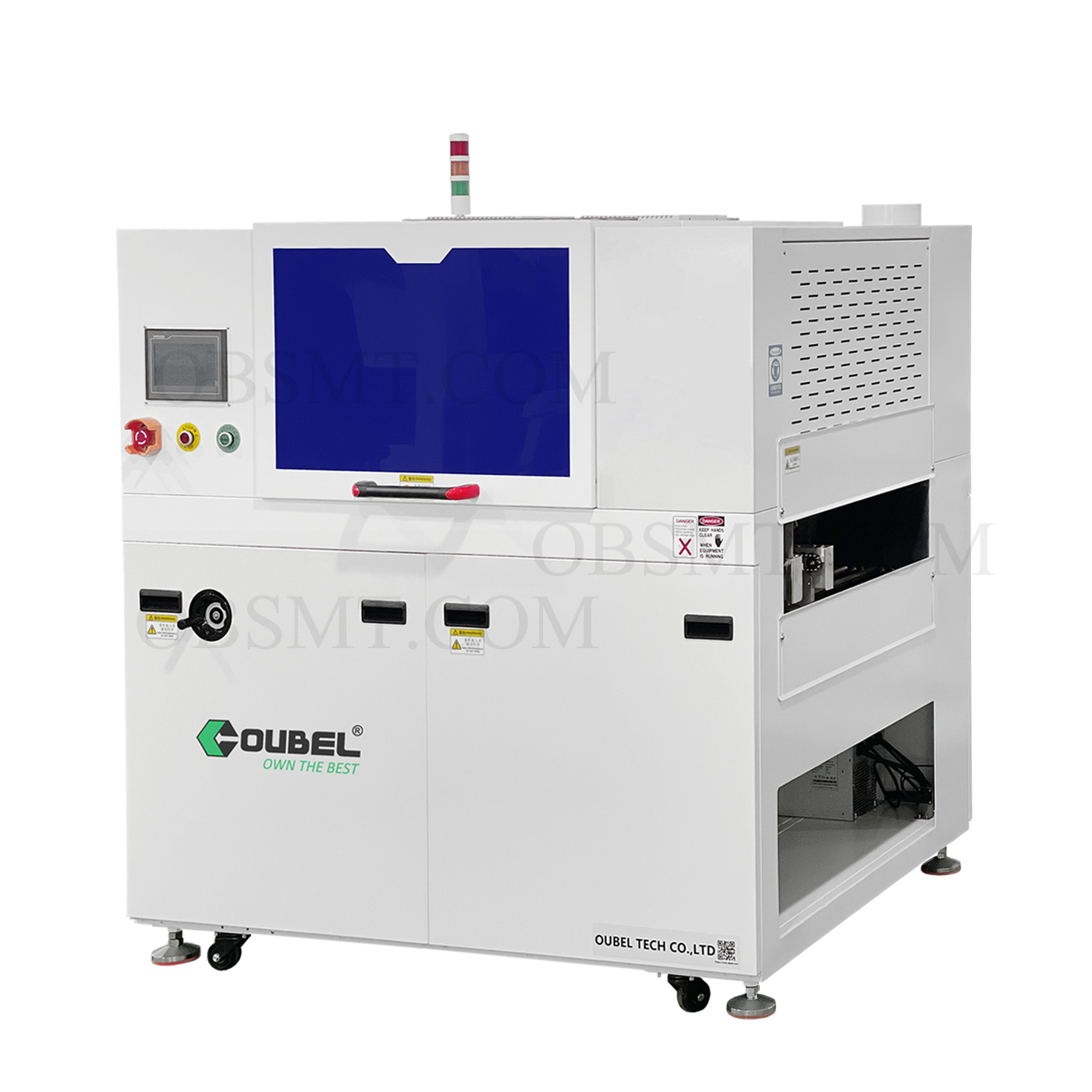

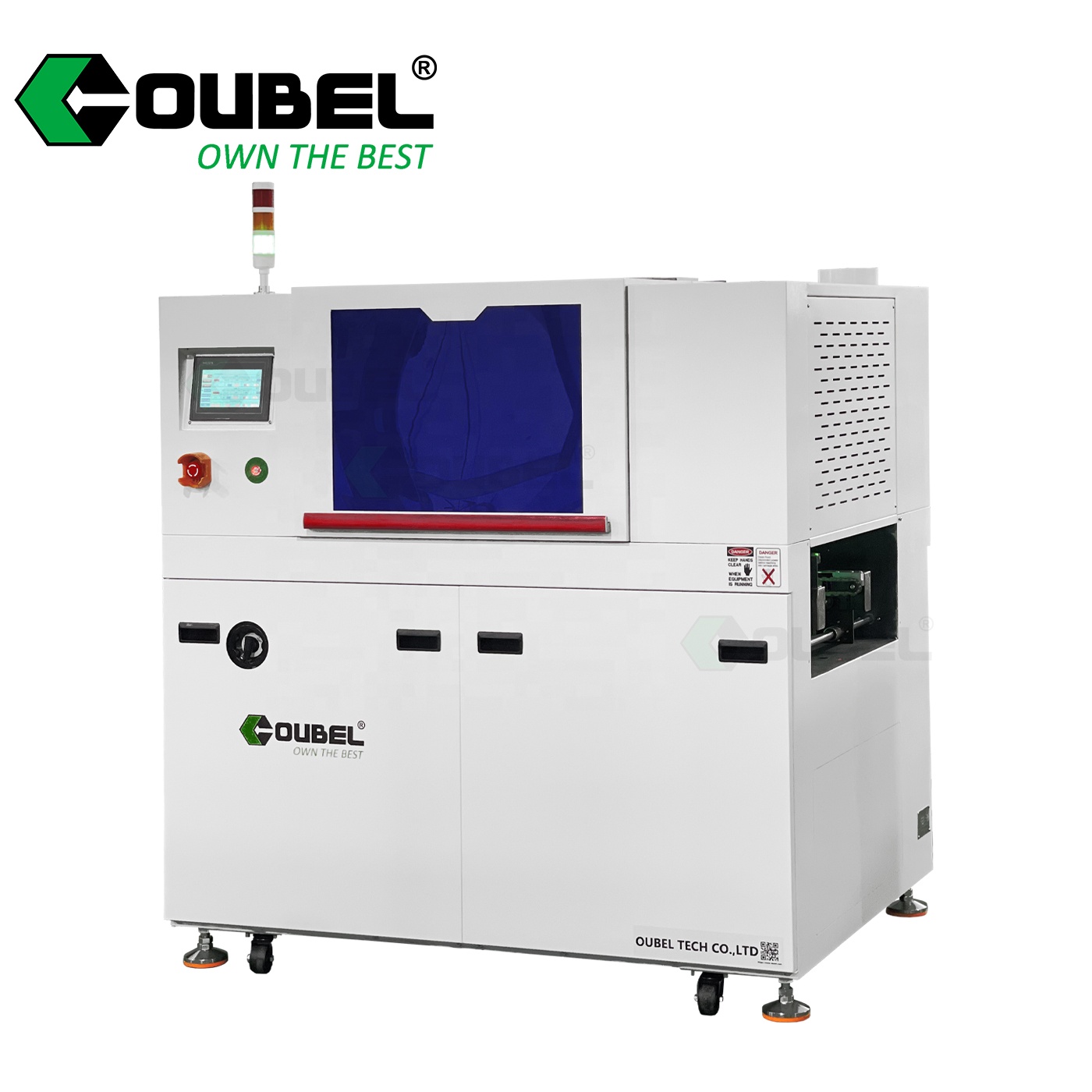

UV Curing Oven
UV Curing Oven

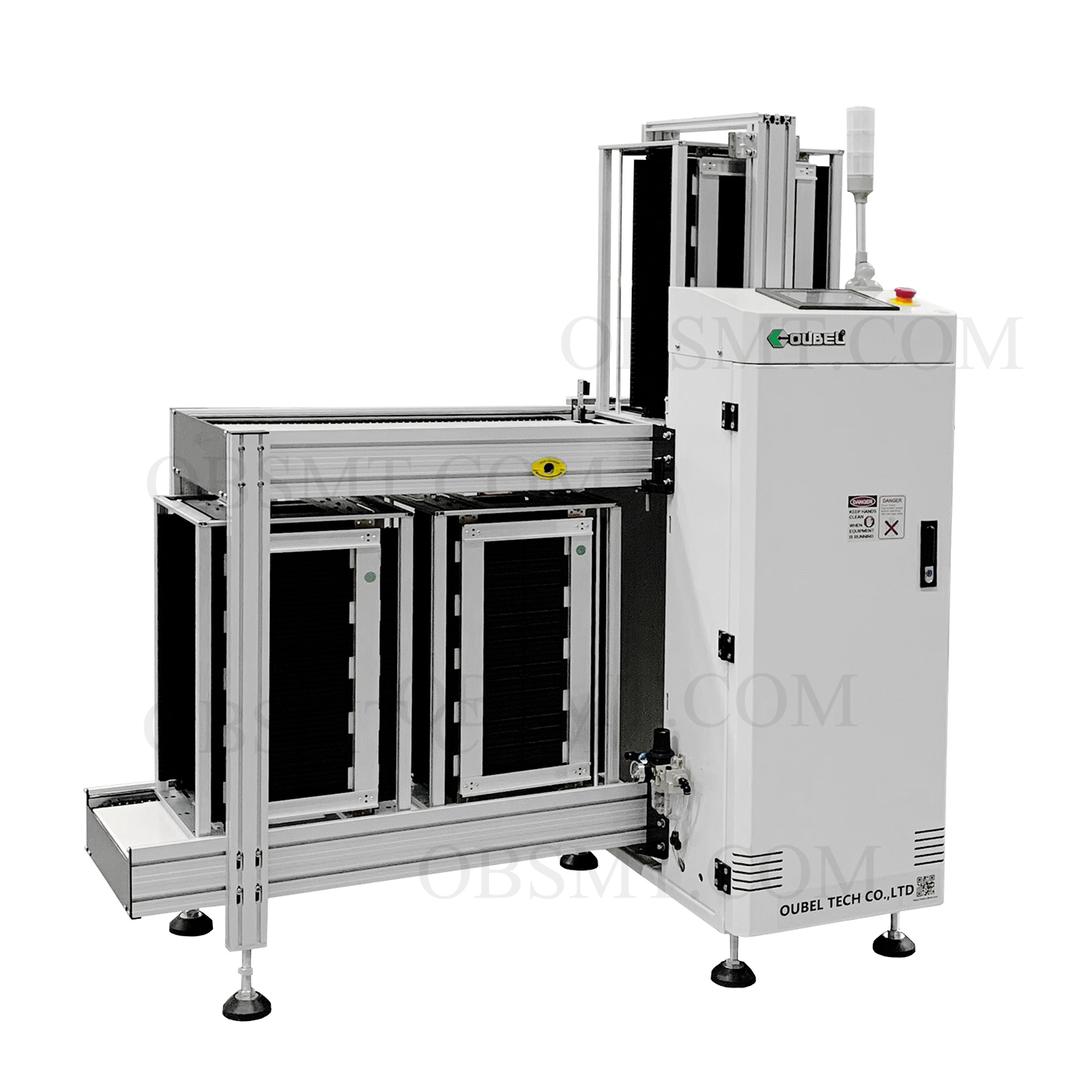

PCB Magazine Loader
PCB Magazine Loader

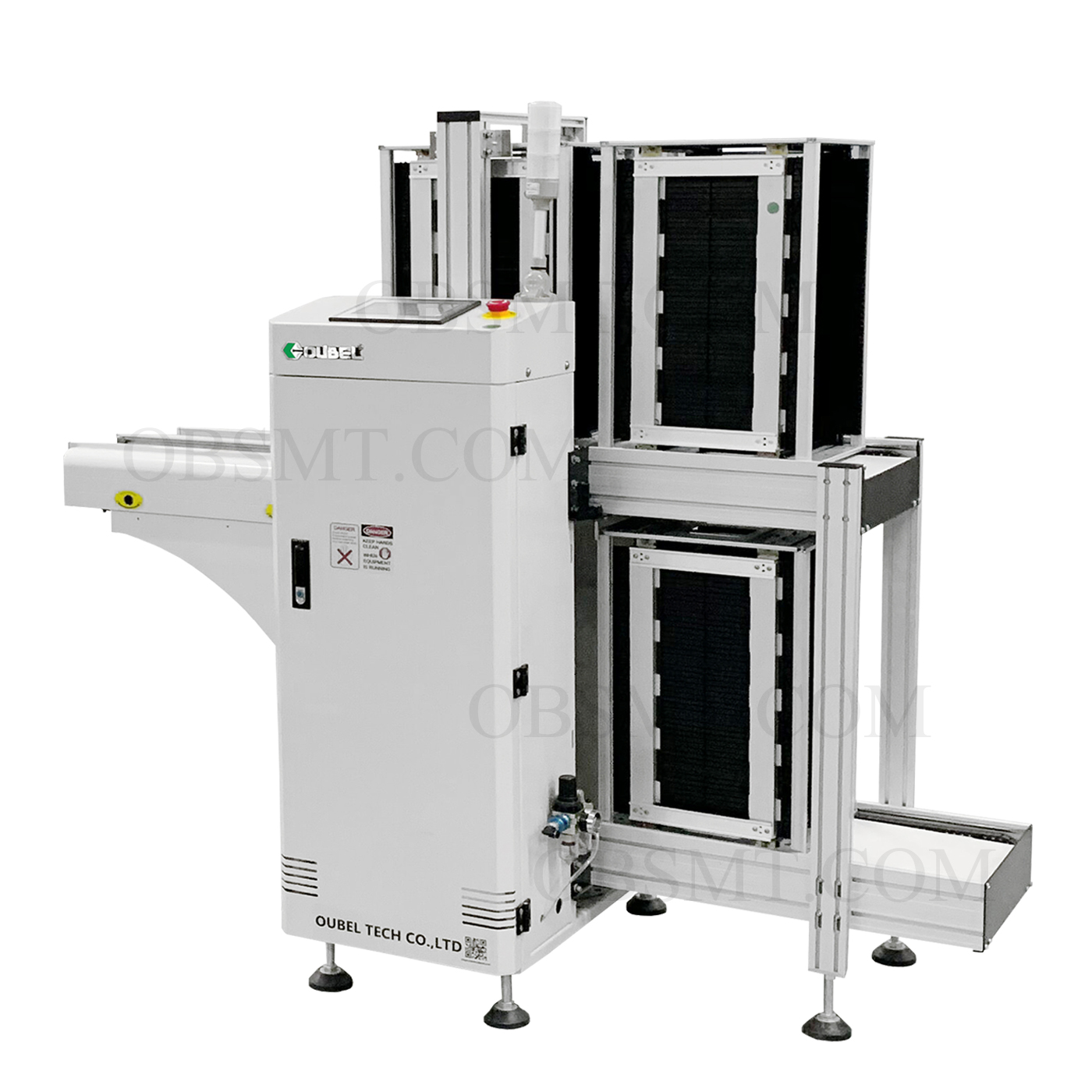

PCB Magazine Unloader
PCB Magazine Unloader

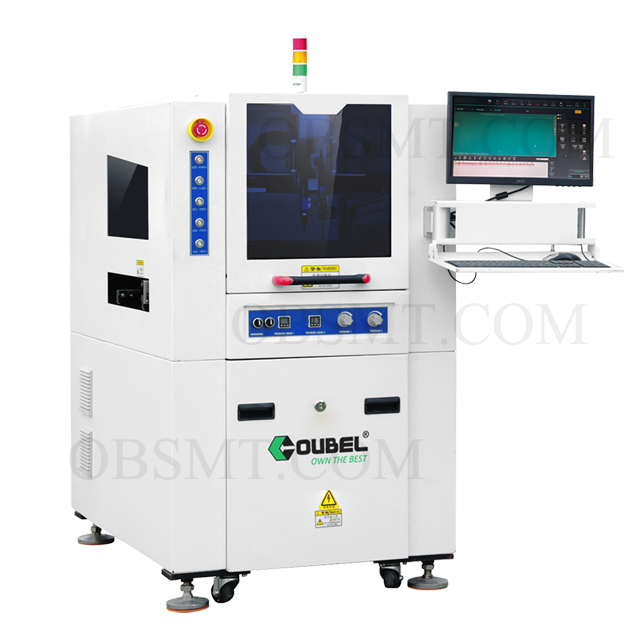

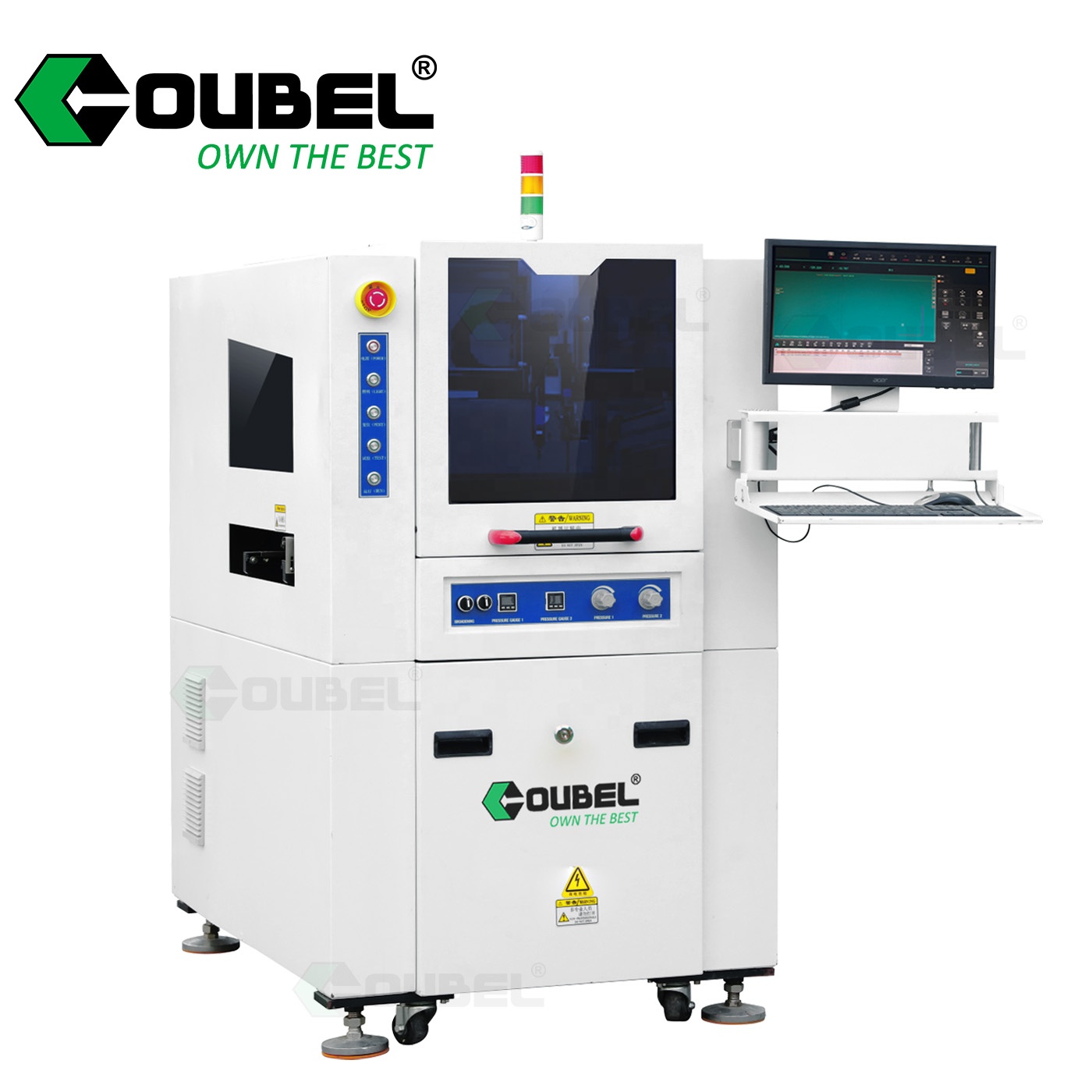

PCB Coating Machine
PCB Coating Machine

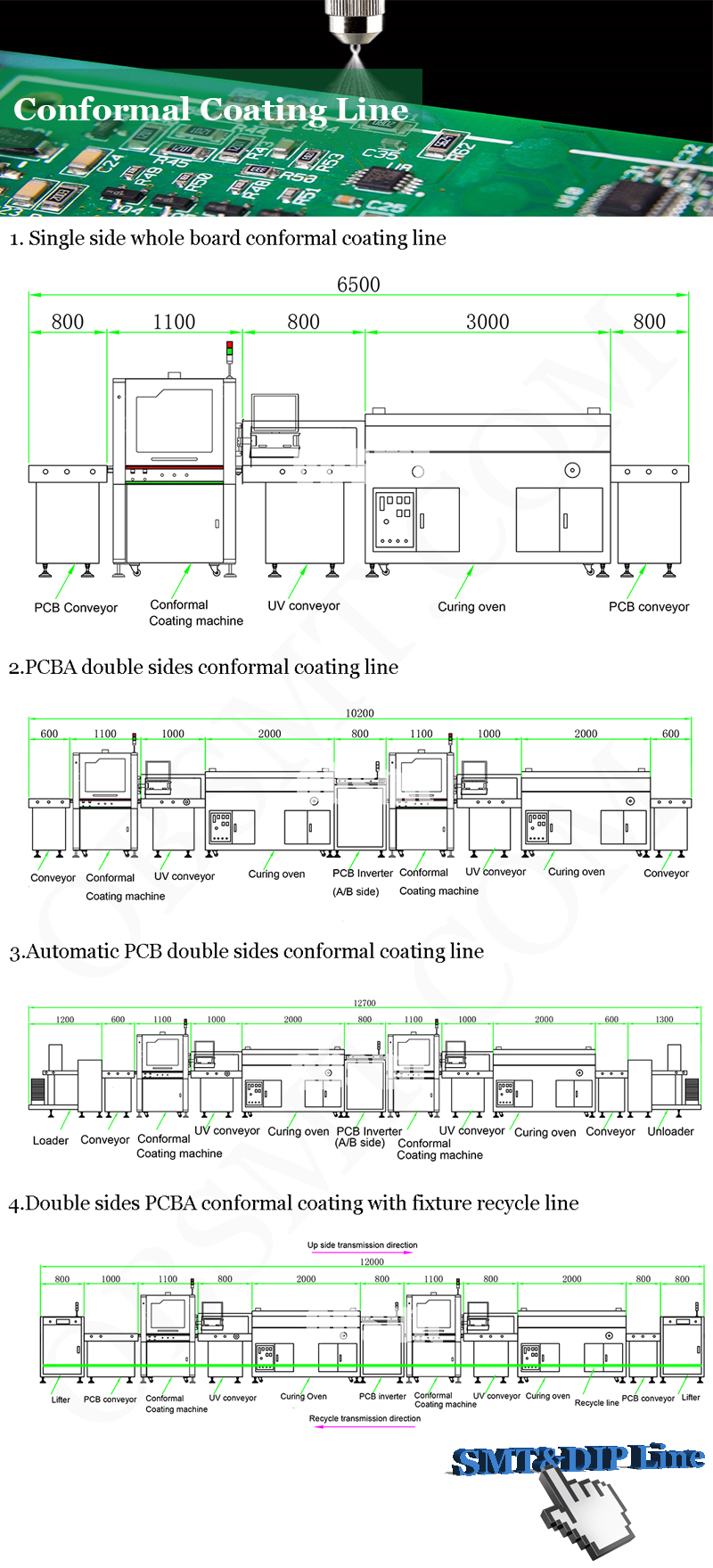

Production Line Layout
Packing & Delivery
Packing Details: Plywood case, for export!
Delivery Details: 10-15 days

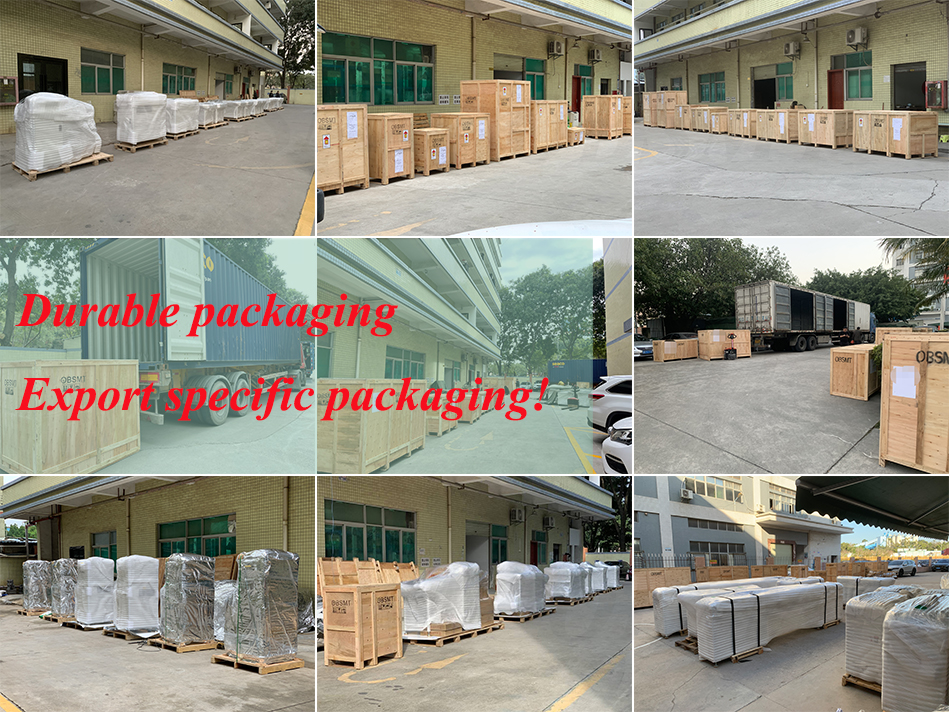

Packaging Setup
Oven Packing Process
Export Dispatch
Our products from the production to packaging to transportation, have strict quality control, use high-quality materials, make the best products, so that every customer satisfaction.
Overview

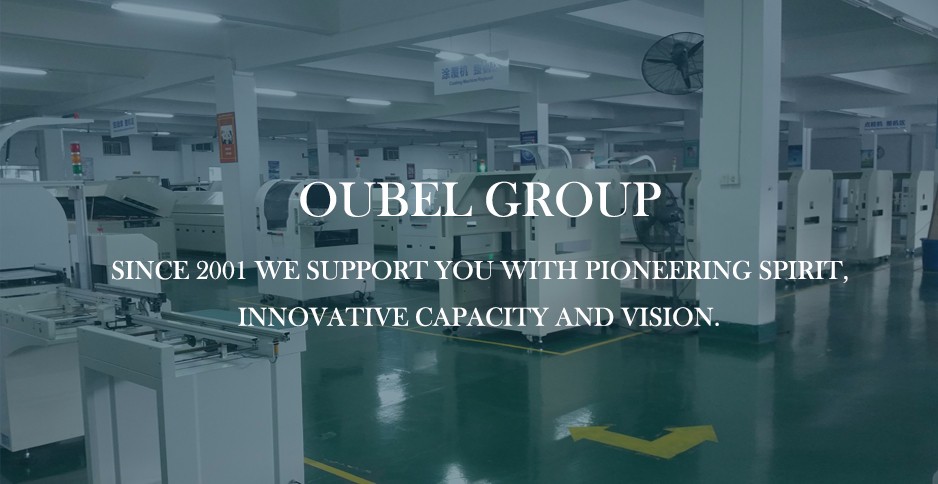

Factory Overview
We supply dispensing and PCB conformal coating machines, SMT & DIP machines supported by a global service network. We offer customer-inspired solutions in a range of industries, dedicated to making quality products that help our clients operate more efficiently and effectively. We are guided by the principles of fairness to our suppliers, associates, clients, and employees, helping them achieve the best of their potential.

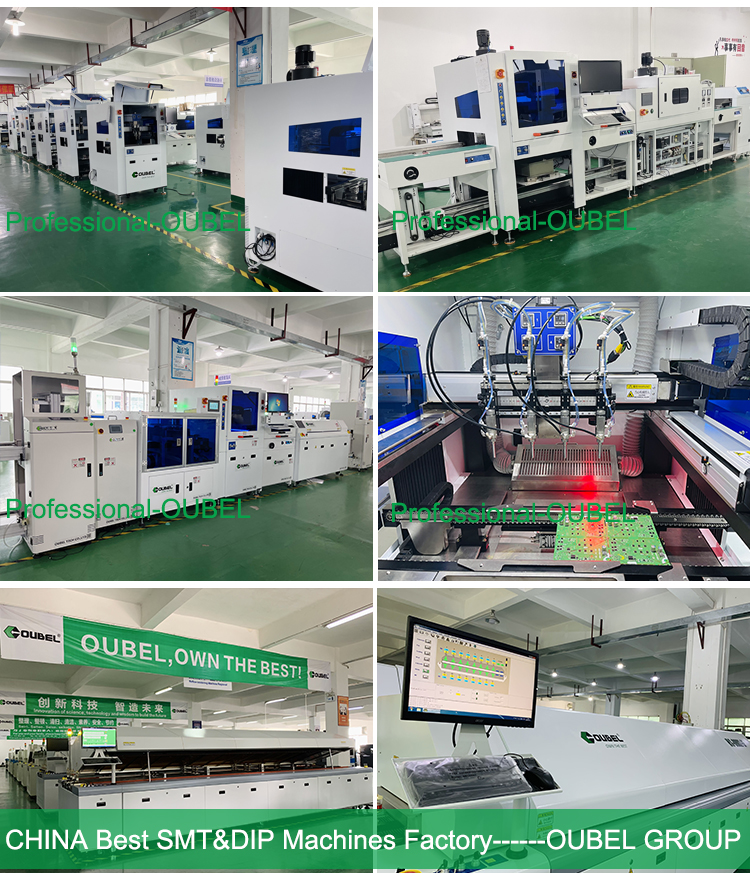

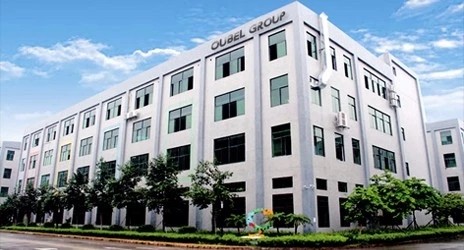

Production Facility
Production Facility
Studio
Studio
Over the years, we have developed core competencies that warrant us to be the leader in the industry: Customization, Short lead time, Flexibility, Customer Satisfaction, Premium Quality Products, Value For Money, International Distribution Network, Extensive Service Support. To maintain customer satisfaction through timely delivery of reliable products and services. To maintain an efficient and quality driven work environment with an emphasis on constant Research and Development to provide technologically superior products. To attract and retain quality personnel through an equitable reward system, constant training and upgrading of skills as well as career enhancement opportunities.

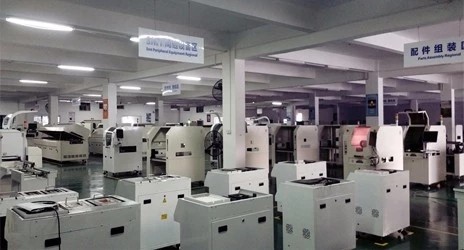

Core Competencies
Core Competencies
Corporate Objectives
Corporate Objectives

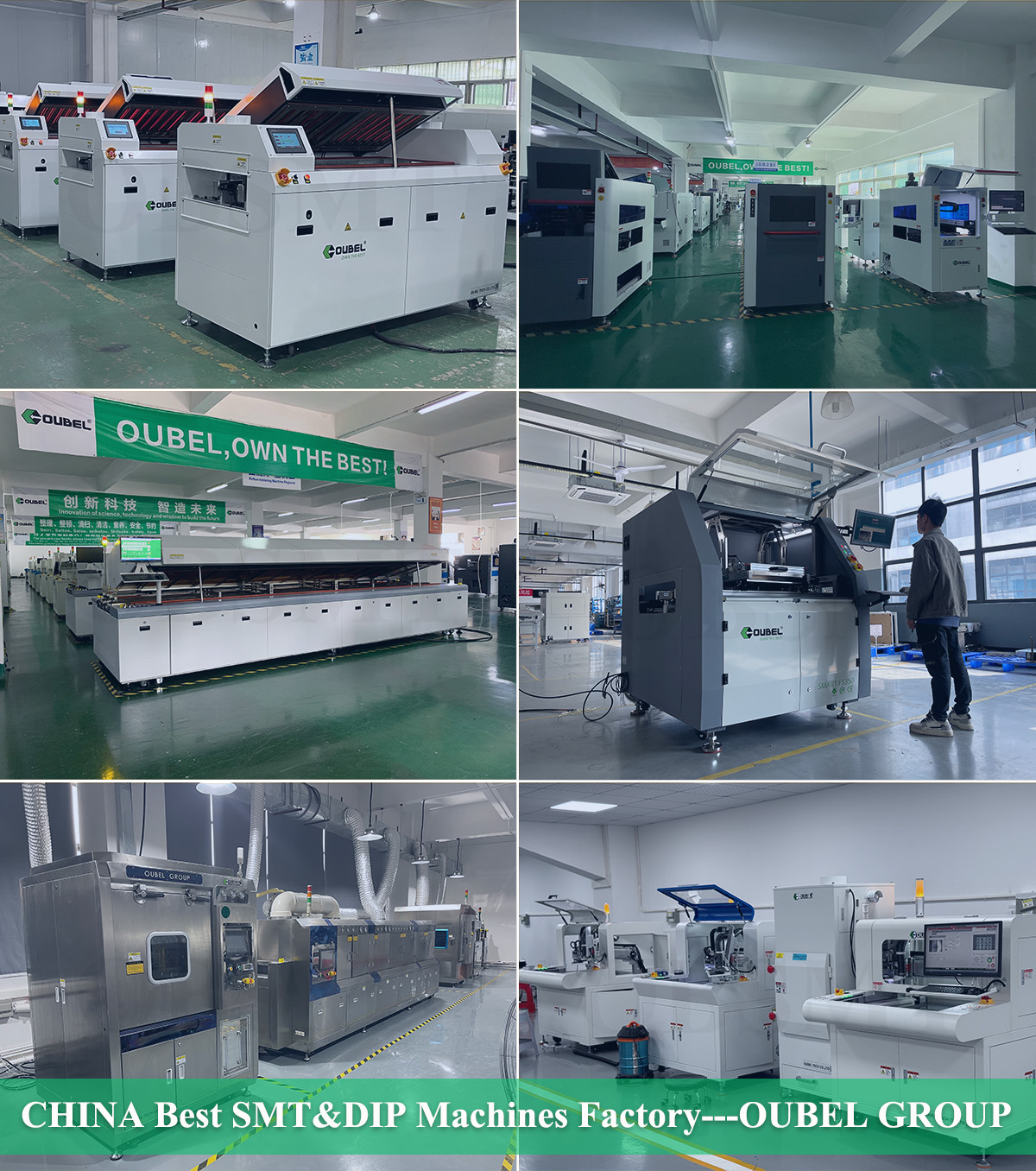

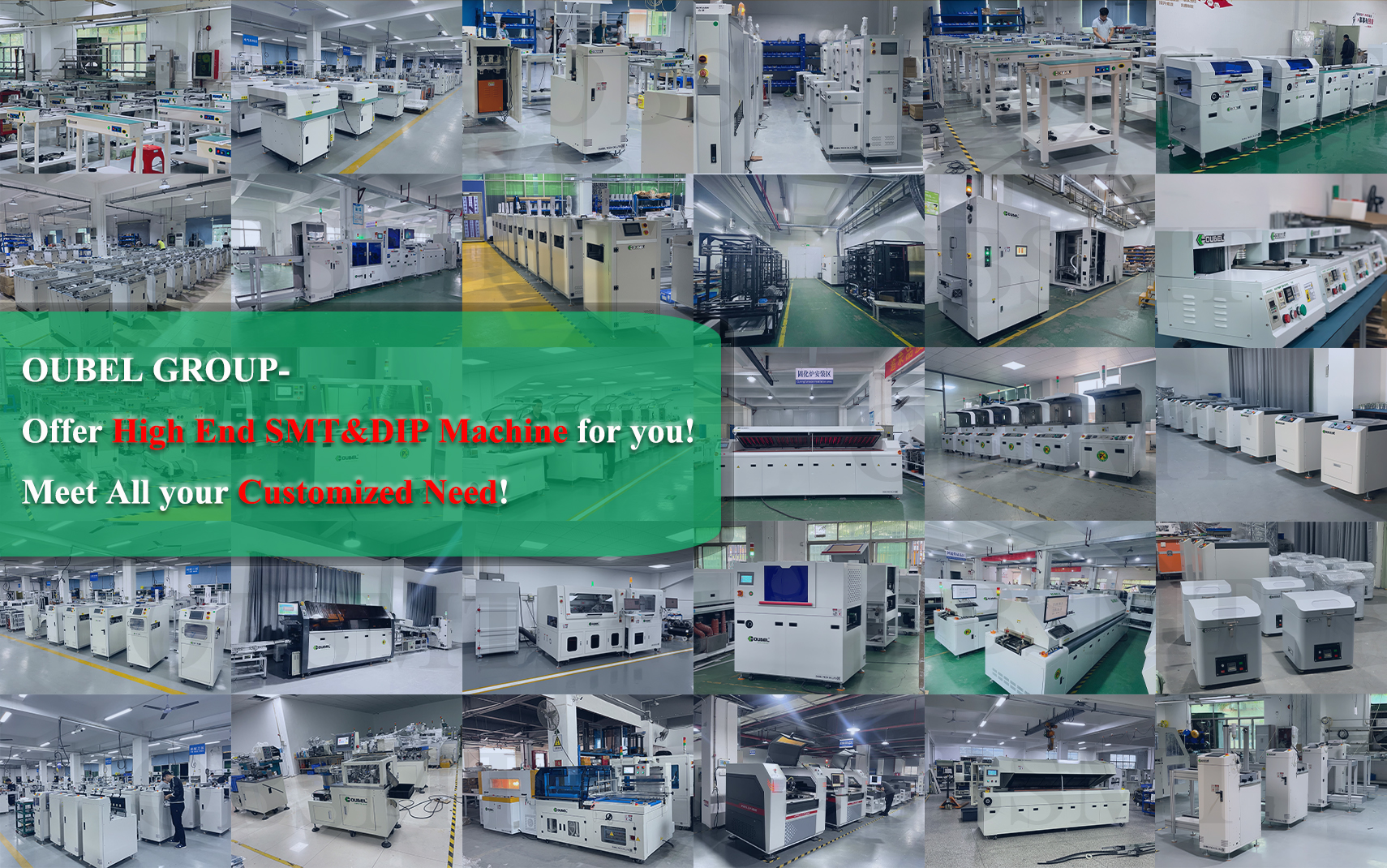

Facility Image 1

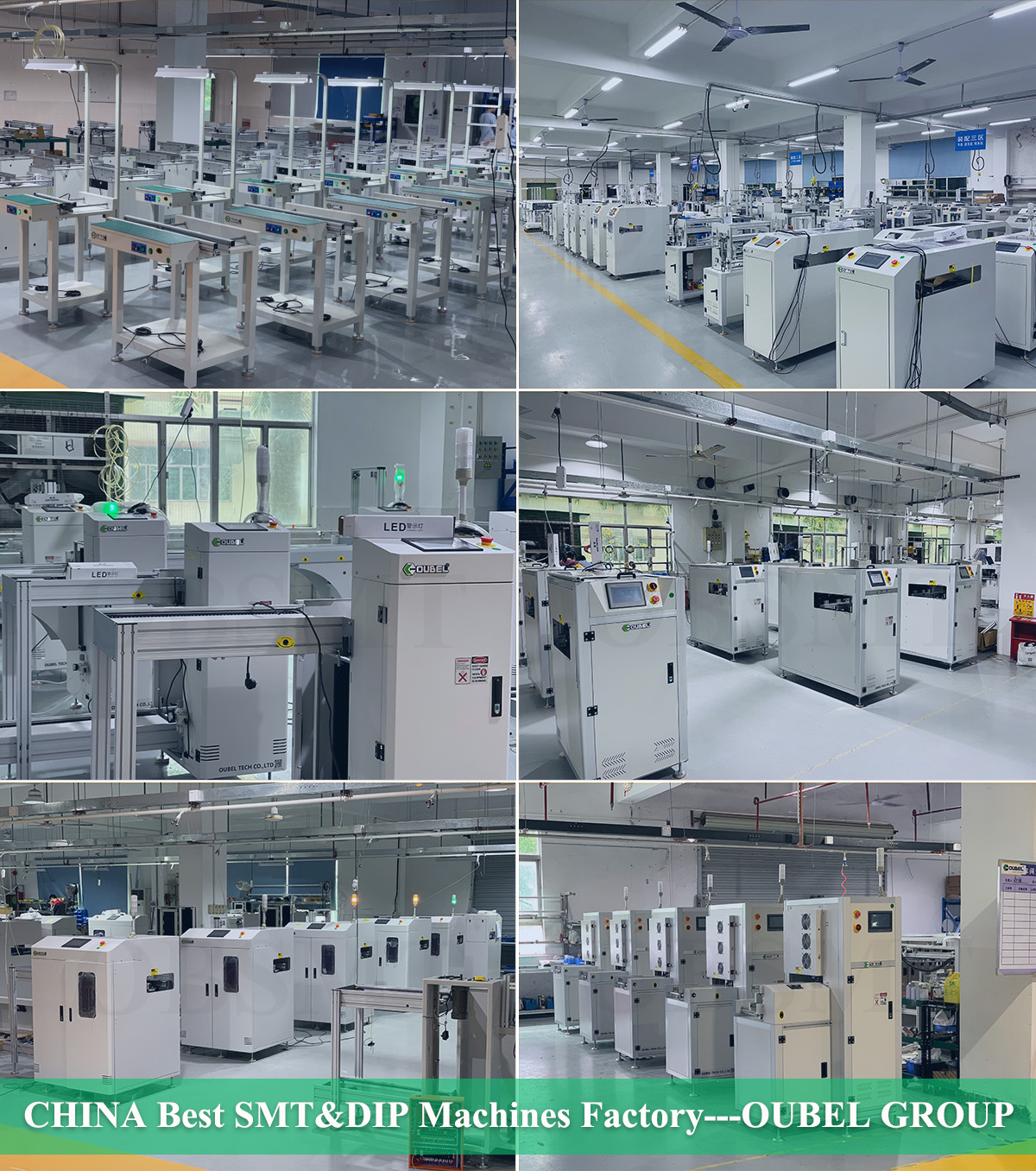

Facility Image 2
Facility Image 3
Our Certifications
Quality Certifications
Customer Photo
Since our establishment, we have established good business relations with traders from all over the world and won the favor of many customers with our high-quality products and services.
Customer Visit 1
Customer Visit 2
Customer Visit 3
When the customer comes to the factory to watch the production and operation of the machine, our team carefully explains the operation process of the machine for him, so that the customer has some understanding of our production process and can rest assured of our products.
Our Service
Respond in time
Your inquiry about our products and price will be replied within 24 hours.
Cheap and fine
We provide you with high quality materials and competitive prices.
Good communication
Well-trained and experienced staffs to answer your enquires in fluent English.
High efficiency
Complete the production shipment in the shortest time.
High quality
Strict QC before shipping the products. Responsible for the quality of all products.
Wide range of services
OEM & ODM services offered, meeting all your production needs.
Service Flow
Frequently Asked Questions
Q: What solutions can you provide for our factory?
A: We provide SMT & DIP machines, and we can also provide complete production line schemes such as whole coating lines, SMT lines, DIP lines, and professional technical support.
Q: What is the delivery date for the curing oven?
A: The delivery date is approximately 10-15 working days after receiving the payment.
Q: What are the payment terms you accept?
A: We accept TT 100% payment in advance. We accept terms such as T/T, Western Union, MoneyGram, and PayPal.
Q: Is this curing machine easy to operate for beginners?
A: Yes, our machine is designed for easy operation. Normally, it takes only 1 day to learn how to operate it, and much faster for experienced technicians.
Q: Do you provide user manuals and operating videos?
A: Yes, we provide the English user manual for free, and operational videos are available. The interface software is fully in English.
Q: What technical support is available during operation?
A: We provide remote technical guidance. If required, we can also coordinate engineers for on-site setup and guidance under mutual agreement.
