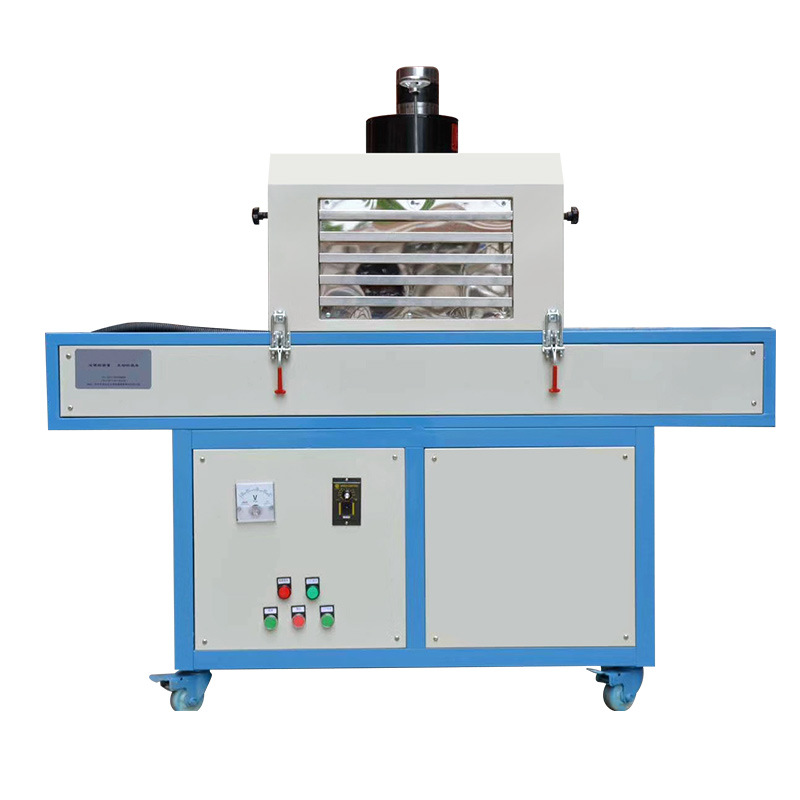

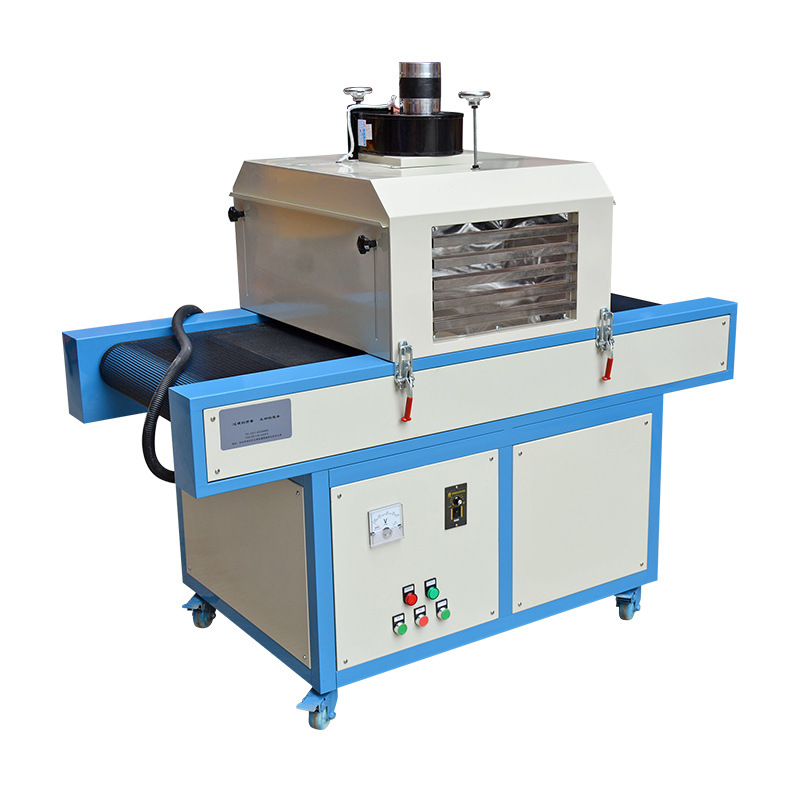

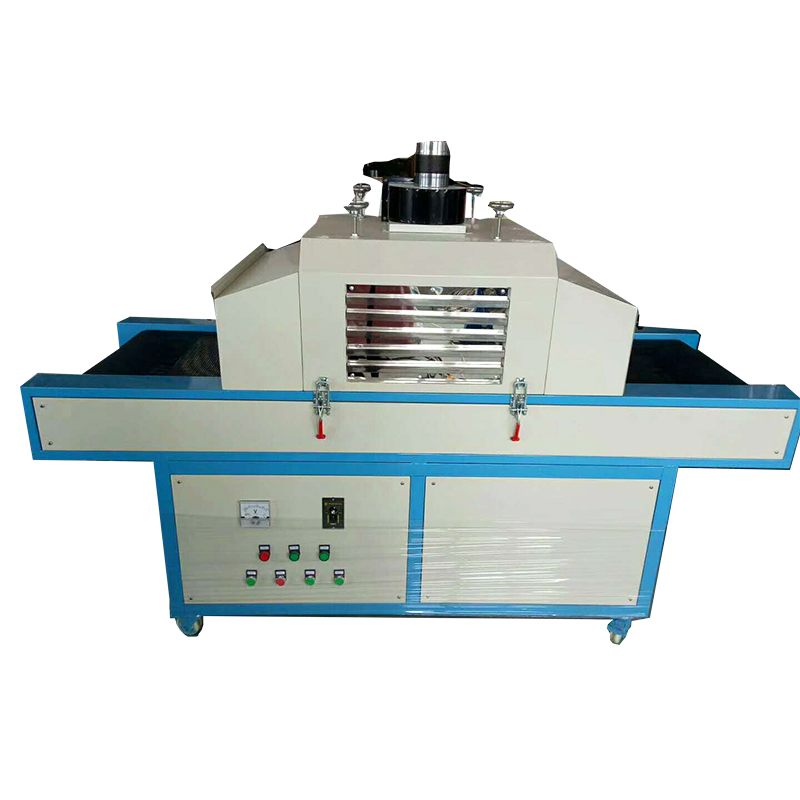

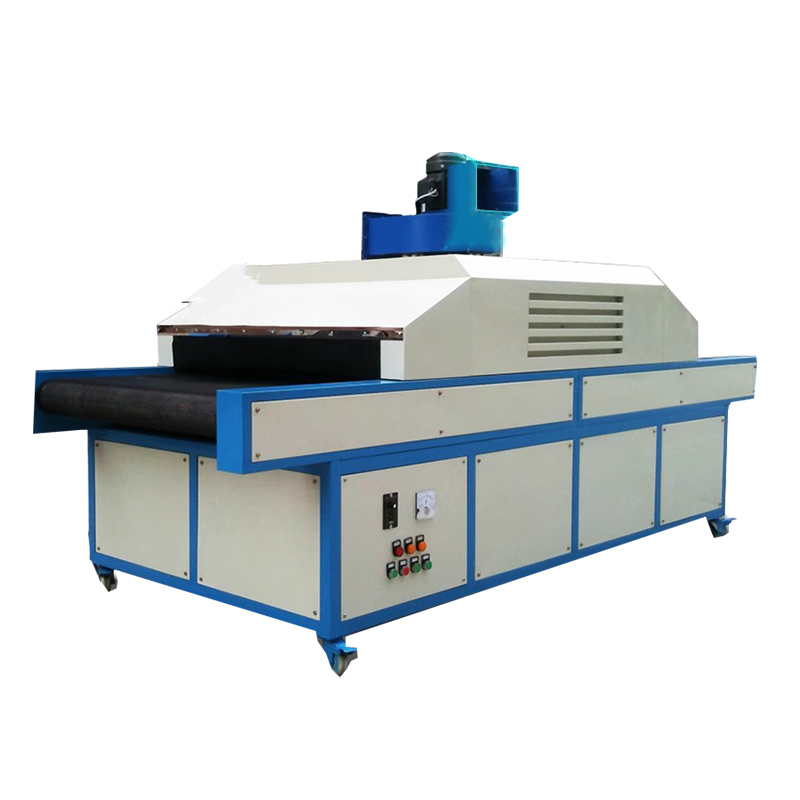

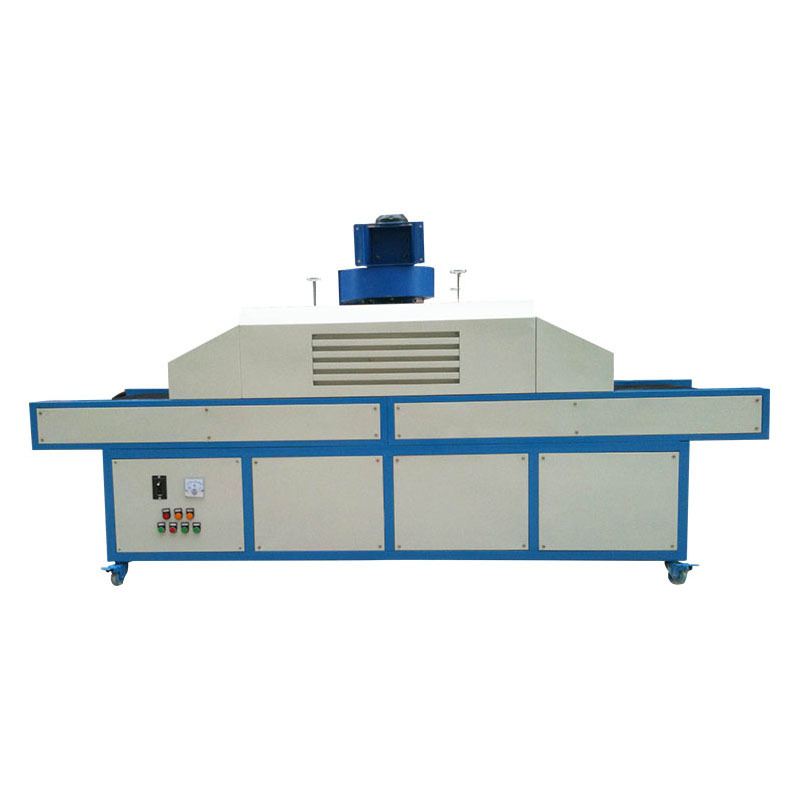

Industrial Fast Curing UV Drying Machine UV Led Dryer Machine UV Drying Tunnel System for Screen Printing

1 / 5

Industrial Fast Curing UV Drying Machine UV Led Dryer Machine UV Drying Tunnel System for Screen Printing

Send Inquiry

Product Description

Products Description

Product Application of UV Curing Machine

Scope of Application: VU coating, hardware, screen printing, glass, plastic, surface finishing, UV inks, coating experiments, etc. With higher UV energy, the coating has stronger penetration capability. Our UV LAMP features high UV frequency. It fits almost all UV INK and UV glue. Our UV Lamp guaranteed useful lifetime is 1000-1200 hours. Featuring stepless speed change, the belt running speed is 0-10M/min.

Product Parameters

Due to product upgrades or customization needs, the final appearance and parameters of the machine may change slightly.

Model	NT-1500A
Belt size	1500*500mm
Power	3.5KW
Voltage	220V/380V
Working area	700mm
Height of entrance	100-200mm
Height of lamp	100-200mm (adjustable)
Feeding area	400mm

Product Features

Main Features of UV Curing Machine

Concentrating design, imported high-concentration reflectors, instantaneous drying, speed express.
Specially designed ventilation system inside the light box.
Each lamp can be adjusted up and down height.
Conveyor belt stepless speed, smooth and adjustable conveying speed.
Transmission belt adjustment device to effectively prevent deviation.
Lamp abnormal protection device.

Solid Light Source Curing Machine

UV radiation dry solid light source to ensure dry solid effect.
UV light source effective radiation: Lamp length 460, LED length 420mm. Lamp power adjustable range (2KW-3KW adjustable height).
UV light source wavelength of 350μm to ensure the curing effect.
2 UV lamp, 3KW UV lamp installed inside the cavity (to achieve dry and solid perfect effect).
Over-voltage and over-current protection, fault alarm prompts, equipment overload protection.

Lamp

Lamp adjustable height 100-200mm. Manual adjust themselves.

Voltmeter

Used for measuring AC voltage.

Conveyor Belt

High quality belt built for durability and continuous operations.

Fan

Forced wind combination exhauster a set of (take out harmful gases).

Product Photos

Packing & Delivery

Packing and Shipping Policy

All goods shipped by express require the buyer to pay import taxes.
When goods arrive, the buyer must inspect if the package or machine is broken. If so, the buyer should not sign for the goods and should file a complaint with the local express carrier.
Buyers must notify us of the damage within 24 hours so we can assist in solving the issue. Otherwise, we bear no responsibility for damage caused by transport.

Production & Facility

Frequently Asked Questions

What are the primary applications for this UV curing machine?

The machine is widely used for VU coatings, hardware curing, screen printing processes, glass, plastics, surface finishing, curing UV inks, and conducting coating experiments.

Can the height of the UV lamp and the conveyor speed be adjusted?

Yes. The height of the lamp can be manually adjusted from 100mm to 200mm. The conveyor belt speed can also be adjusted steplessly between 0 to 10 meters per minute.

What is the lifespan of the UV lamp in this machine?

The built-in UV lamp features a reliable working life expectancy of 1000 to 1200 hours.

What voltage options and power specifications are supported?

This curing machine runs on 3.5KW total power and is compatible with both 220V and 380V power systems, depending on your custom configuration needs.

What built-in safety protection features are included?

The equipment integrates lamp abnormality protection, over-voltage and over-current protection, fault alarm indicators, and machine overload protection systems to ensure safe operations.

What is the policy for receiving damaged packages?

Please inspect the packaging carefully upon delivery. If the packaging or machine is visibly damaged, do not sign for it and file a formal complaint with the local courier immediately. Report the damage to us within 24 hours so we can assist in resolving the issue.
