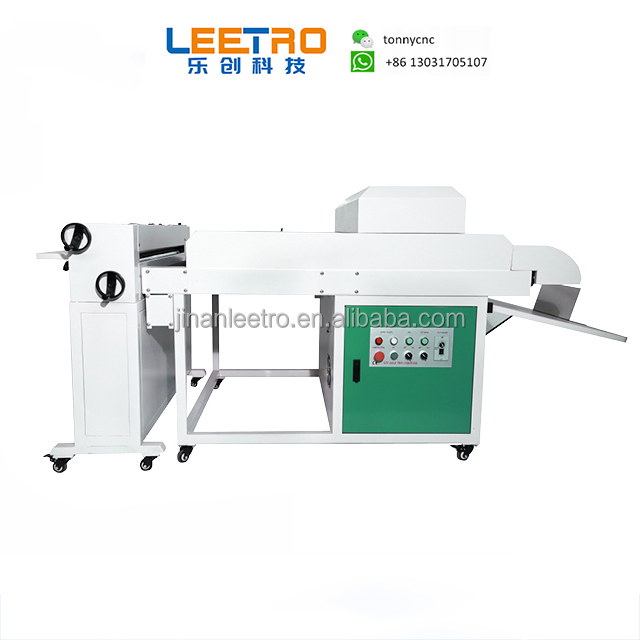

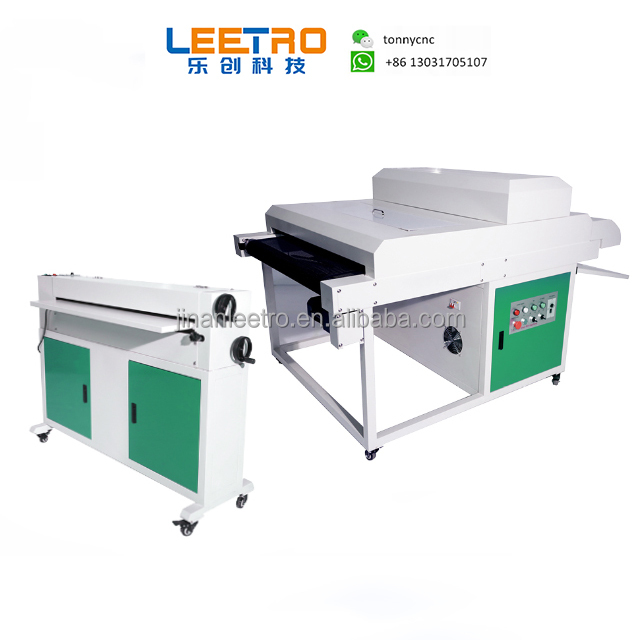

The UV coating machine is designed to apply a smooth and even layer of curing on photos, making them more transparent, scratchproof, and waterproof.
It effectively replaces traditional cold laminating techniques, significantly reducing production costs while improving output speed.

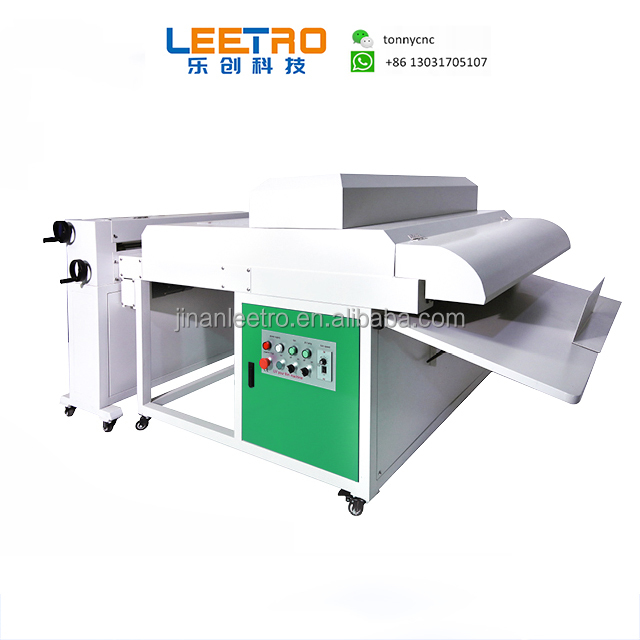

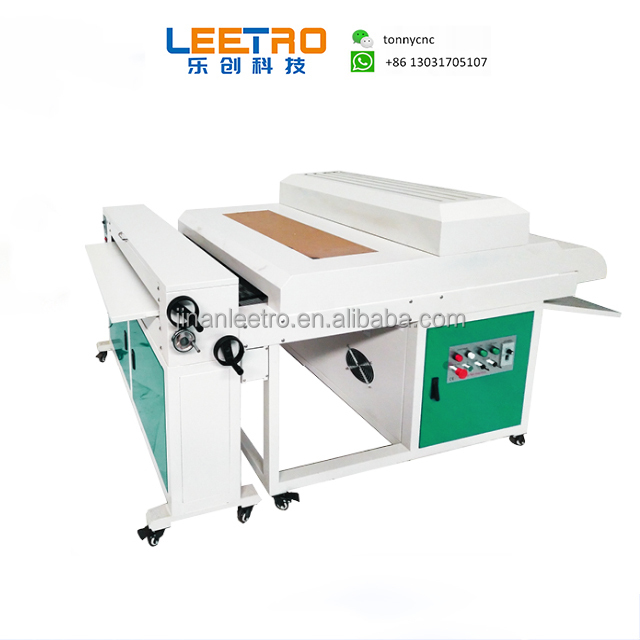

| Product Name | GS-650 UV COATING MACHINE |
| Max. laminating width (mm) | 630 |
| Max. laminating speed (m2/hr) | 150-300 |
| Max. laminating thickness(mm) | 0.2-3 |
| Max. coating thickness (mm) | 0.1-0.3 |
| Drying way | Ultraviolet - curable |
| Power rating(KW) | 4 |
| Machine noise(db) | <60 |

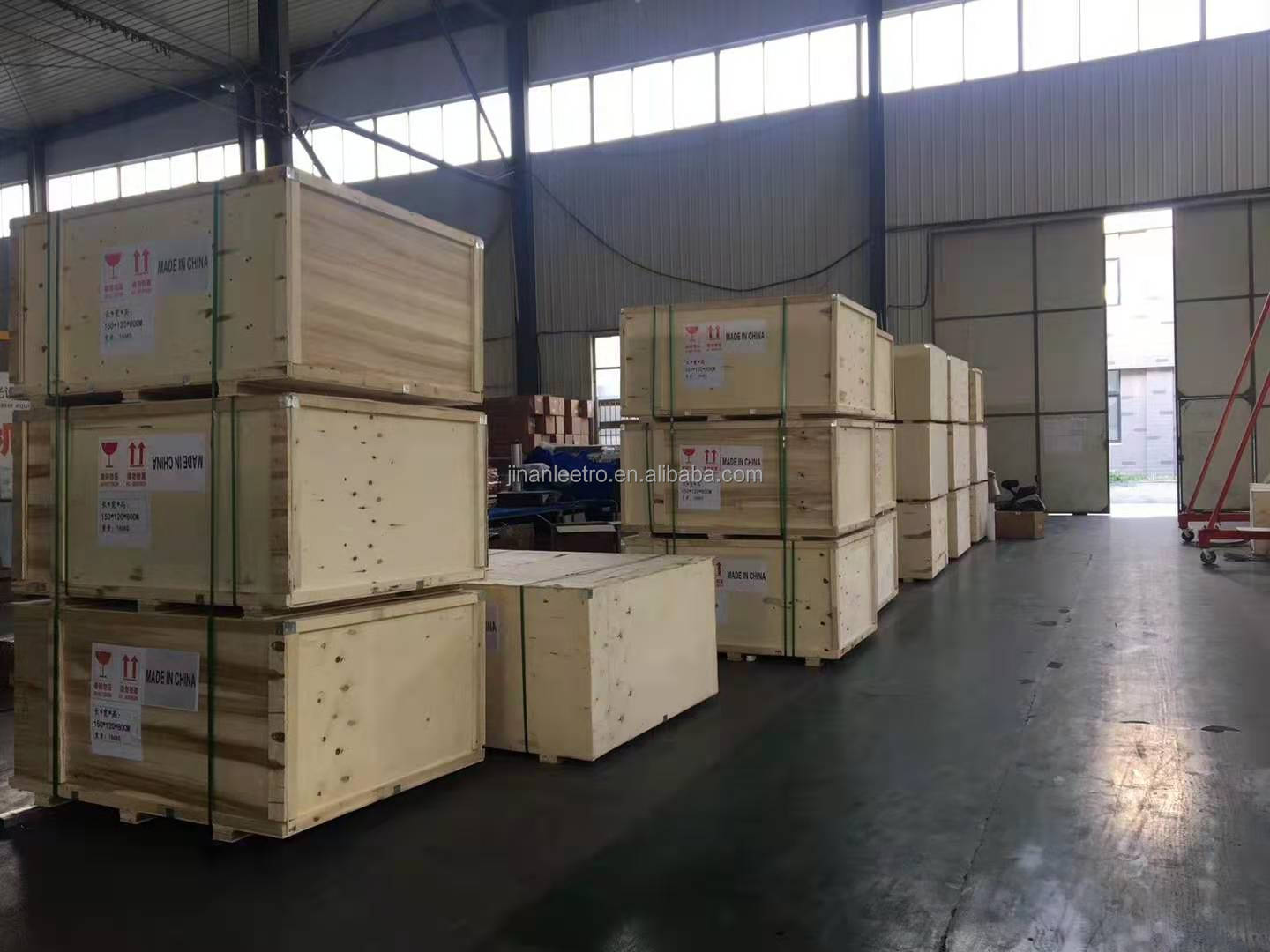

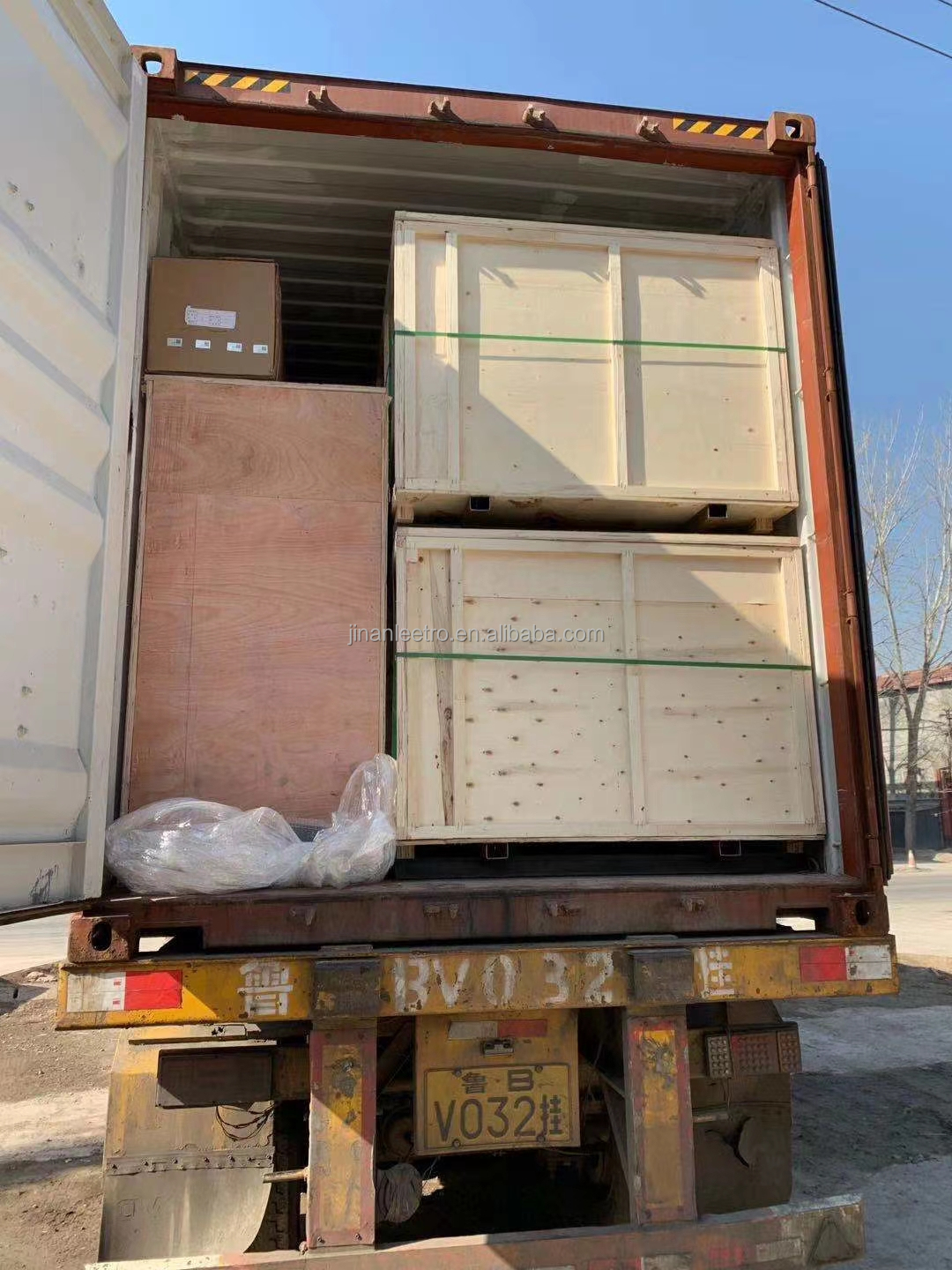

| Packing | Standard wooden case |
| Packing dimensions(mm) | 1900*1100*1100 |
| Weight (kg) | 300 |
| Packing Volume | 2.5 |
| Power supply | 220V\50Hz |
• Manual feeding table configuration.

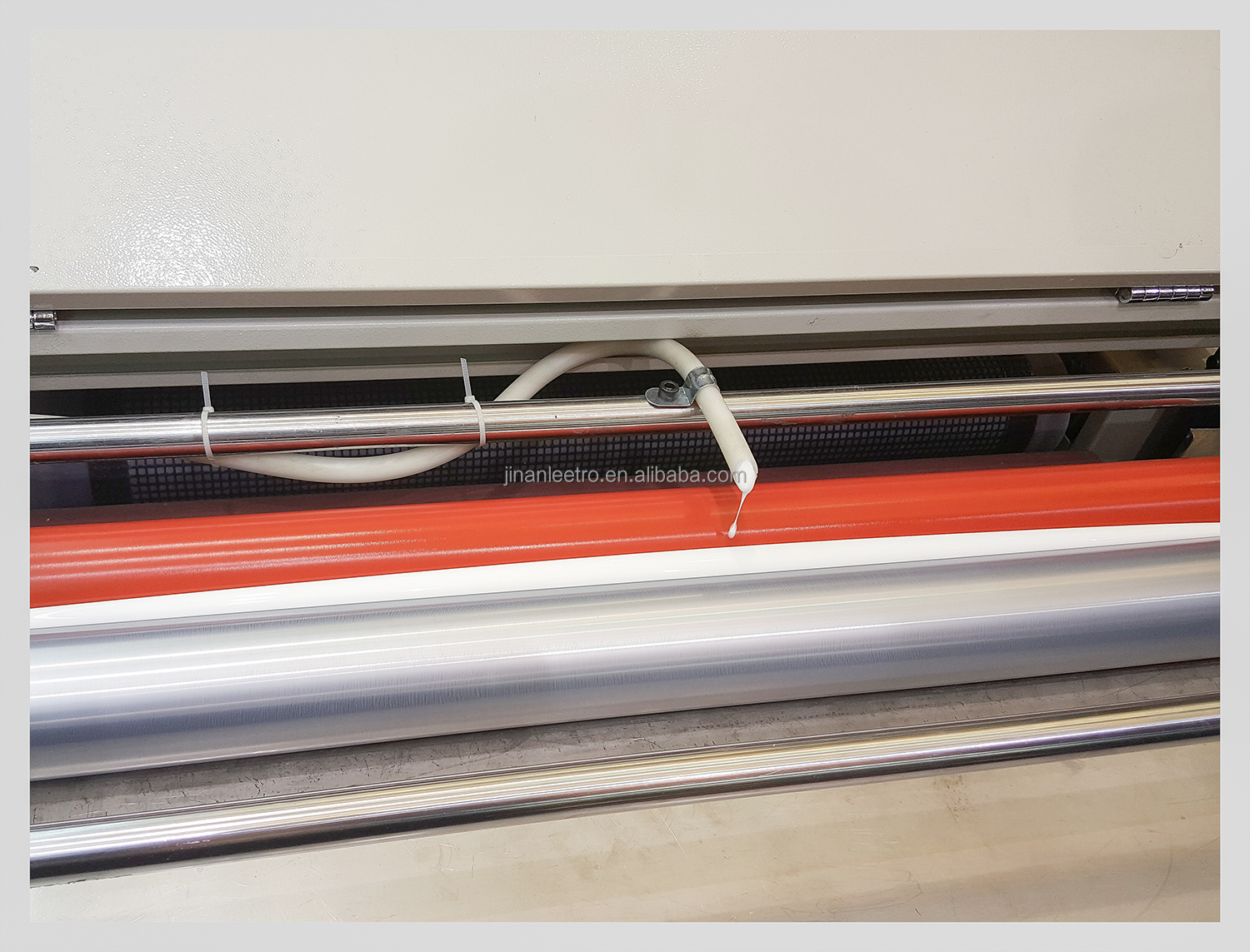

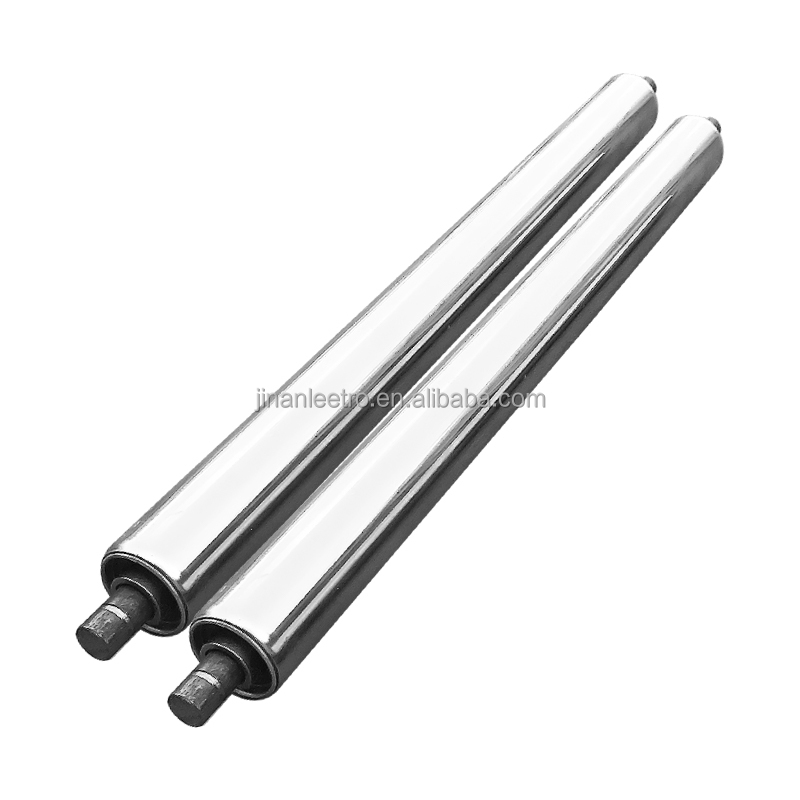

• Features a double-brusher roller designed to clean photo paper surface effectively before coating.
• High-sensitivity system guarantees a smooth, consistent coating on both thick and thin paper types.

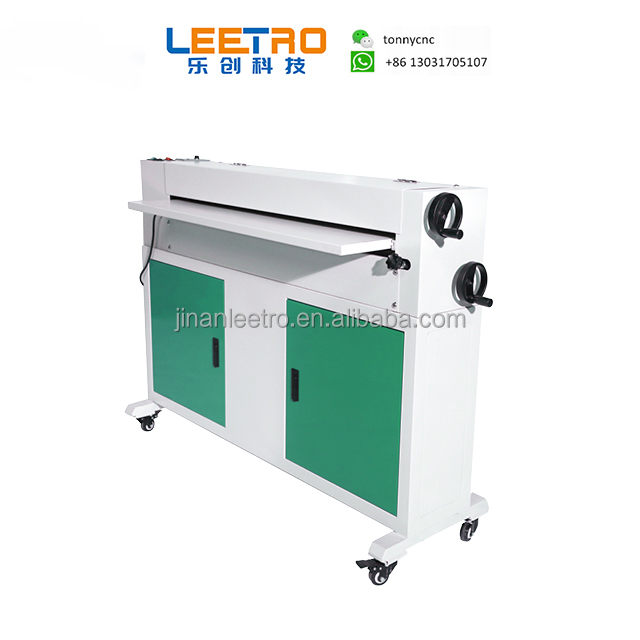

• Equipped with a micro adjustor to control oil usage and coating quality, easily adjustable according to project requirements.
• Paper winding protector: If paper sticks and wraps around the coating roller, the protector automatically stops operation and activates an audio buzzer.

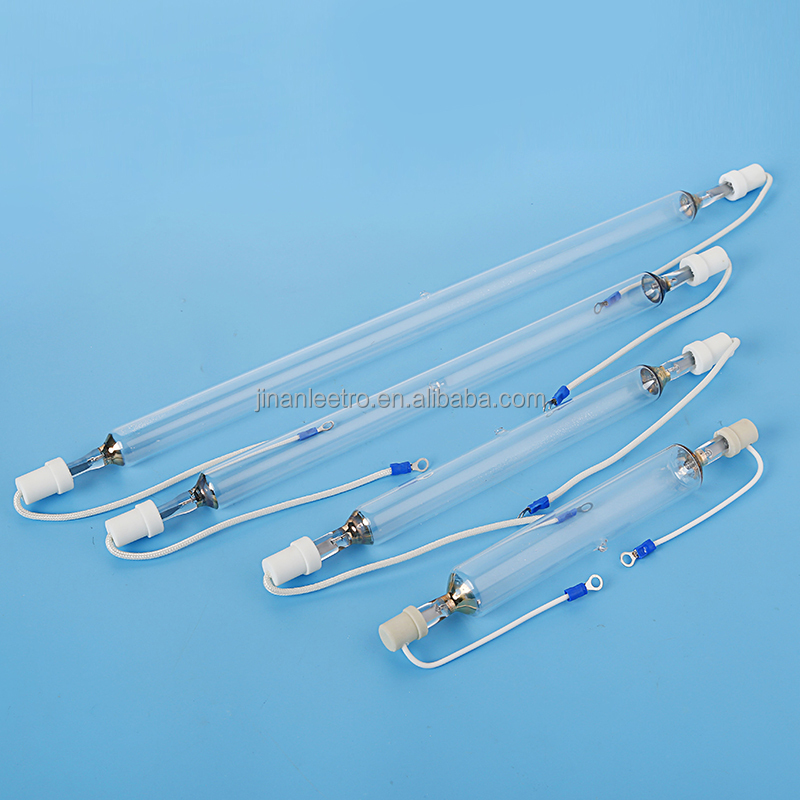

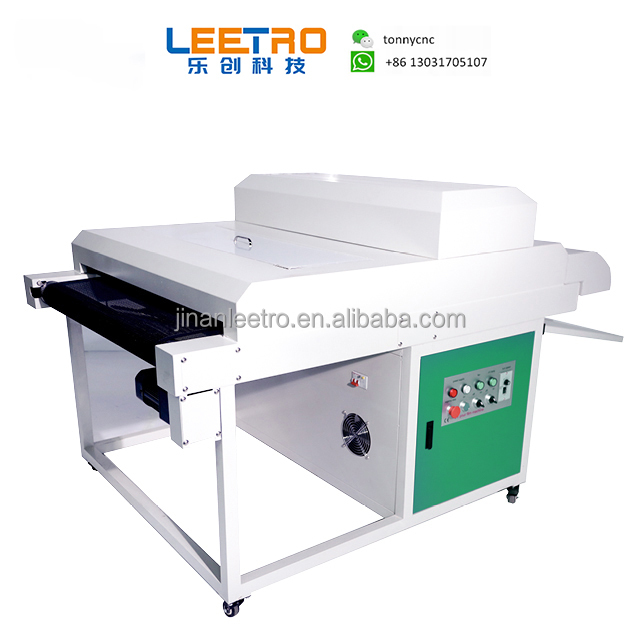

• UV radiation cures UV oil quickly, enhancing surface gloss and producing a wear-resistant finish.
• Built-in fast cooling system prevents paper curvature and heat distortion.
• Mesh Teflon belt conveyor is equipped with an air aspirator to guarantee steady paper transit.
• Adjustable height to suit different operating requirements and workflow preferences.
