LumiCure Light
1 / 5

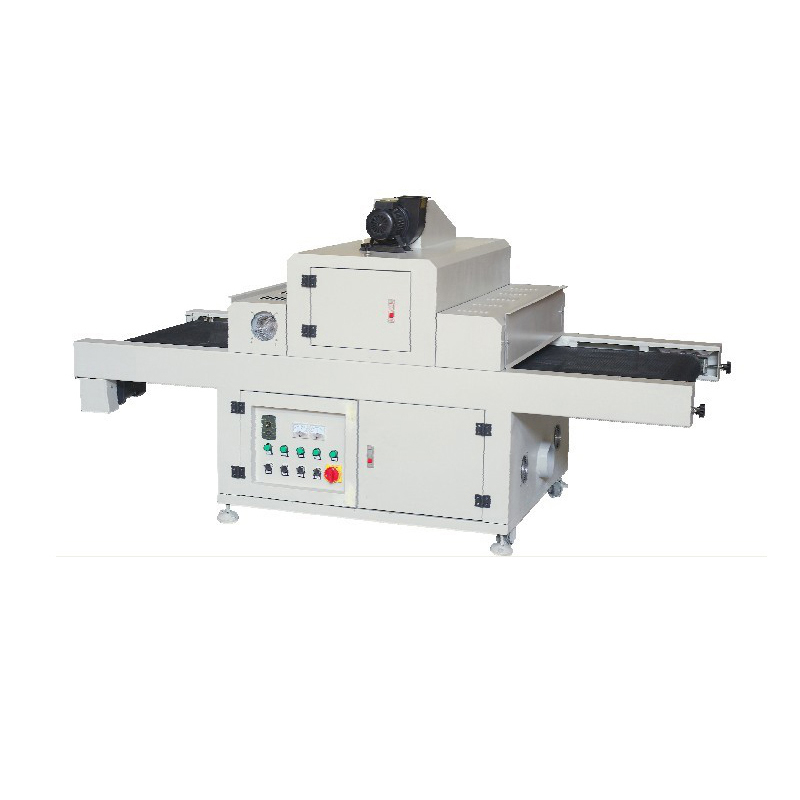

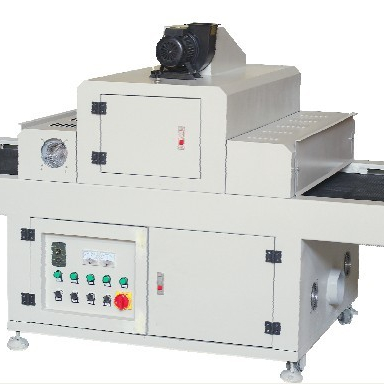

| Product name | UV curing machine |
| Power | 220V~380V 50HZ |
| Light wavelength | 395nm |
| Conveyor Height | 0-20 CM |
| Weight | 600 KG |
| Conveyor Length | 2.5M |
| Conveyor width | 70 CM |
| Lamp power | 5.6KW |
| Shining way | Vertical light emitting chip |
| Cooling system | Water cooling |
| Working temperature | 40°C below |

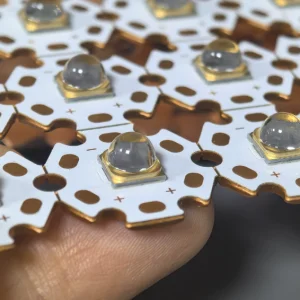

| Light source | 7070 LG LED |
| Product size | 1700*970*1050 mm |

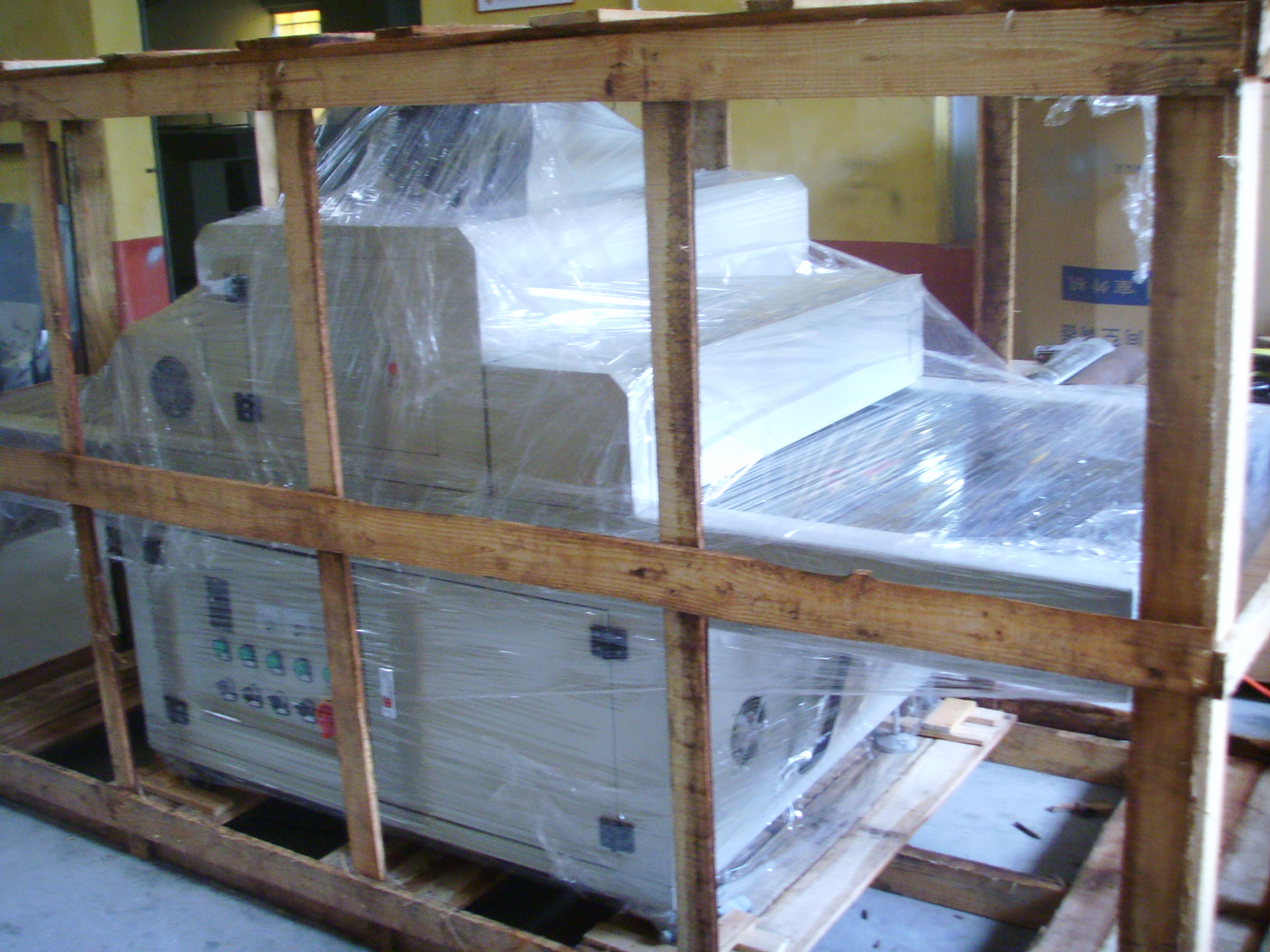

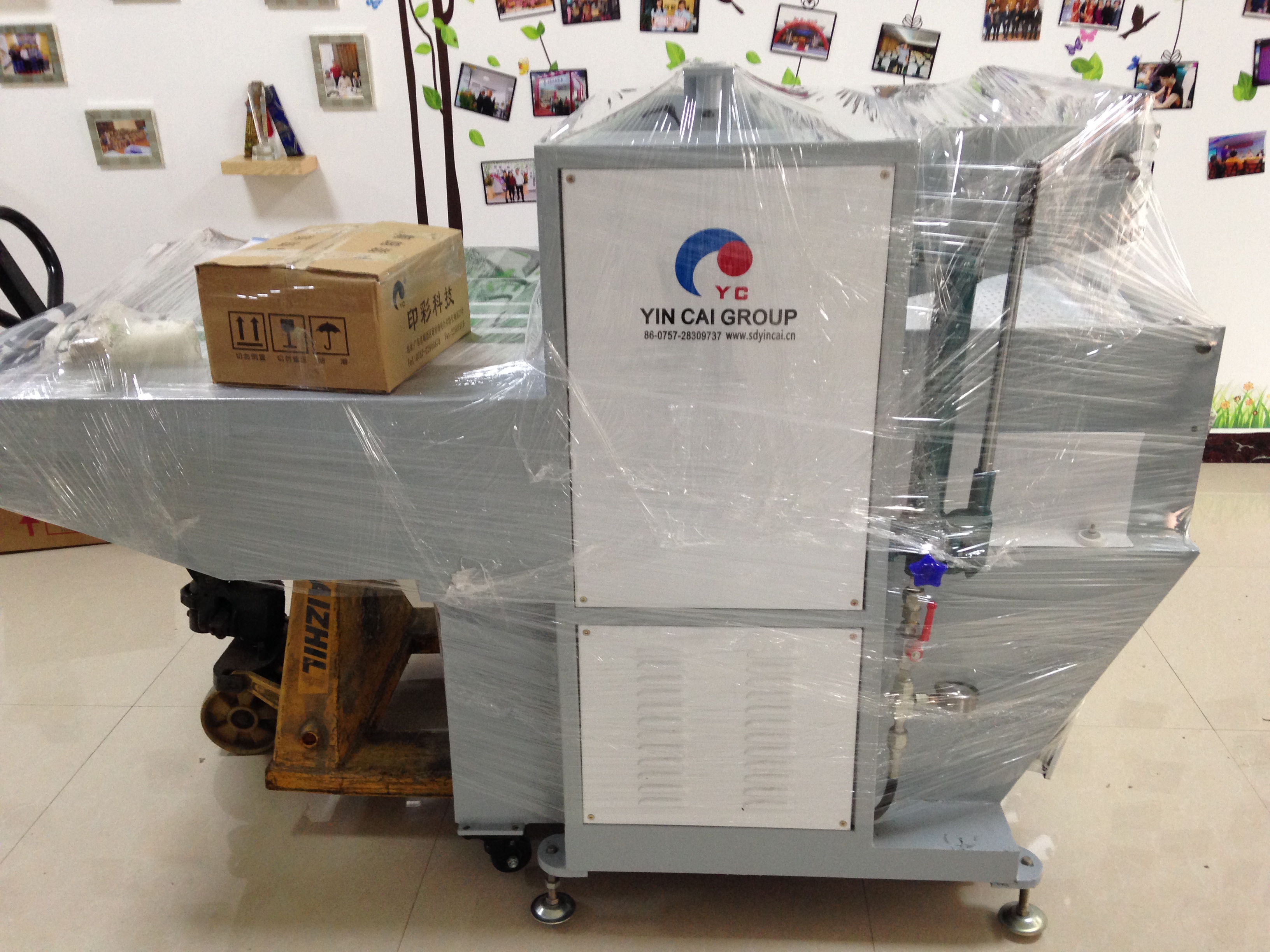

| Packing size | 2.5*1*1.3m |
Instant curing and drying ensures high production efficiency and time saving. The conveyor belt runs smoothly without deviation, and the conveying speed can be customized for specific adjustment.

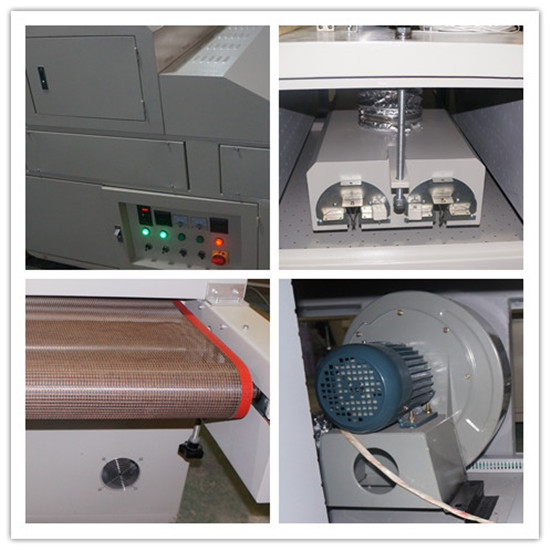

Utilizes an imported Teflon belt resistant to high temperatures, friction, and radiation. Designed to work seamlessly with other production lines for convenient and reliable operation.
Features independent UV system lamp control, aluminum-magnesium alloy lampshades, and a concentrating light design. Employs advanced air suction, air transport, and heat dissipation to prevent product deformation or high-temperature burns.

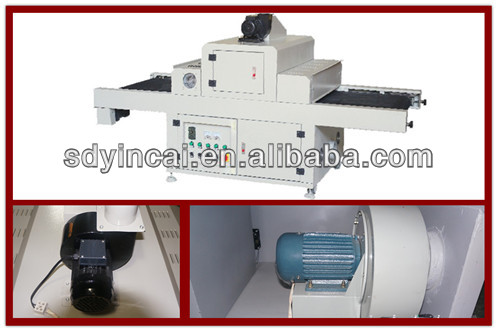

Generated heat is effectively discharged to the outside through a dedicated heat exhaust system, maintaining a comfortable and unaffected working environment inside the workshop.
Perfect for UV light curing of water slide decal paper, ordinary paper, various films, packaging cartons, fabrics, colored crystal glass, and many other diverse products.
Tailored manufacturing of UV curing machines is available with different specifications and performance standards to match the specific characteristics of your UV curing products.
