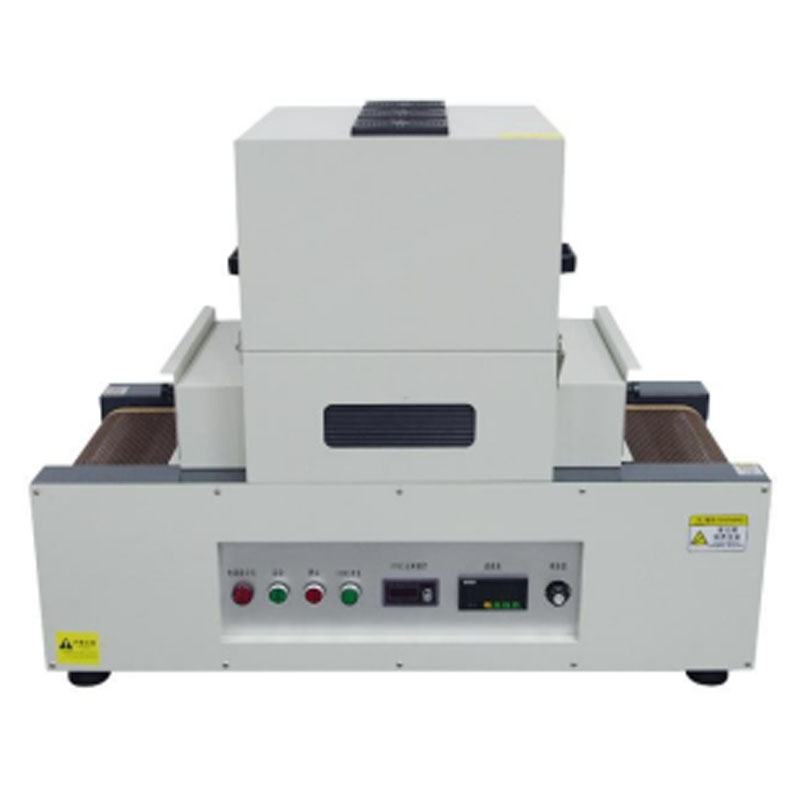

UV Curing Machine UV LED Curing Machine Ultraviolet Drying Curing Machine
UV Curing Machine UV LED Curing Machine Ultraviolet Drying Curing Machine
UV Curing Machine UV LED Curing Machine Ultraviolet Drying Curing Machine
UV Curing Machine UV LED Curing Machine Ultraviolet Drying Curing Machine
UV Curing Machine UV LED Curing Machine Ultraviolet Drying Curing Machine
1 / 5
UV Curing Machine UV LED Curing Machine Ultraviolet Drying Curing Machine
UV Curing Machine UV LED Curing Machine Ultraviolet Drying Curing Machine
UV Curing Machine UV LED Curing Machine Ultraviolet Drying Curing Machine
UV Curing Machine UV LED Curing Machine Ultraviolet Drying Curing Machine
UV Curing Machine UV LED Curing Machine Ultraviolet Drying Curing Machine

UV Curing Machine UV LED Curing Machine Ultraviolet Drying Curing Machine

Send Inquiry

Product Description

UV Curing Machine / UV LED Curing Machine / Ultraviolet Drying Curing Machine
Product Name UV LED Curing Machine
Product Model GA-1402-LED365 GA-1402-LED385 GA-1402-LED395 GA-1402-LED405
Machine Power 800W
Lamp Power 720W
Peak wavelength 365nm 385nm 395nm 405nm
Irradiation area 150*350mm
Lamp bead amount 360pcs
Irradiation distance 10-30mm adjustable
Control methods Button control or I/O Control (optional)
Power regulation 1-100% power adjustable
Machine size 1000*610*780mm
Input power AC 220V, 50/60HZ
Equipment Medical, electronic, liquid crystal, PCB, packaging and other UV glue curing
UV Curing Machine UV LED Curing Machine Ultraviolet Drying Curing Machine UV Curing Machine UV LED Curing Machine Ultraviolet Drying Curing Machine UV Curing Machine UV LED Curing Machine Ultraviolet Drying Curing Machine UV Curing Machine UV LED Curing Machine Ultraviolet Drying Curing Machine

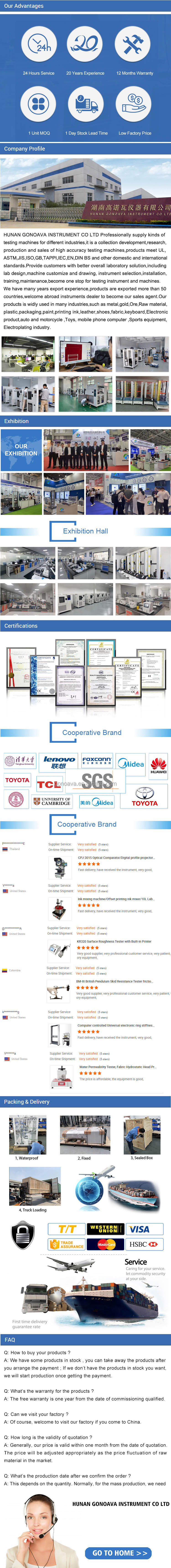

UV Curing Machine UV LED Curing Machine Ultraviolet Drying Curing Machine Detail Map
Frequently Asked Questions
What peak wavelengths are available for the UV LED Curing Machine?
The machine is available in four options of peak wavelengths to match various UV curing adhesives: 365nm, 385nm, 395nm, and 405nm.
Can the power of the UV lamp be adjusted?
Yes, the power regulation is fully adjustable from 1% to 100% power output, allowing precise control for sensitive components and various production demands.
What are the integration options for controlling the machine?
The machine offers customizable control interfaces. You can choose between direct manual button controls or automated external I/O control options.
What is the effective irradiation area and adjustable distance?
The equipment provides an active irradiation area of 150*350mm, and the physical irradiation height/distance is adjustable between 10mm and 30mm for optimal focus.
Which applications and industries is this curing machine suitable for?
It is engineered for professional UV glue and resin curing across diverse fields including medical device assembly, microelectronics, liquid crystal screens, PCB assembly, and advanced packaging.
