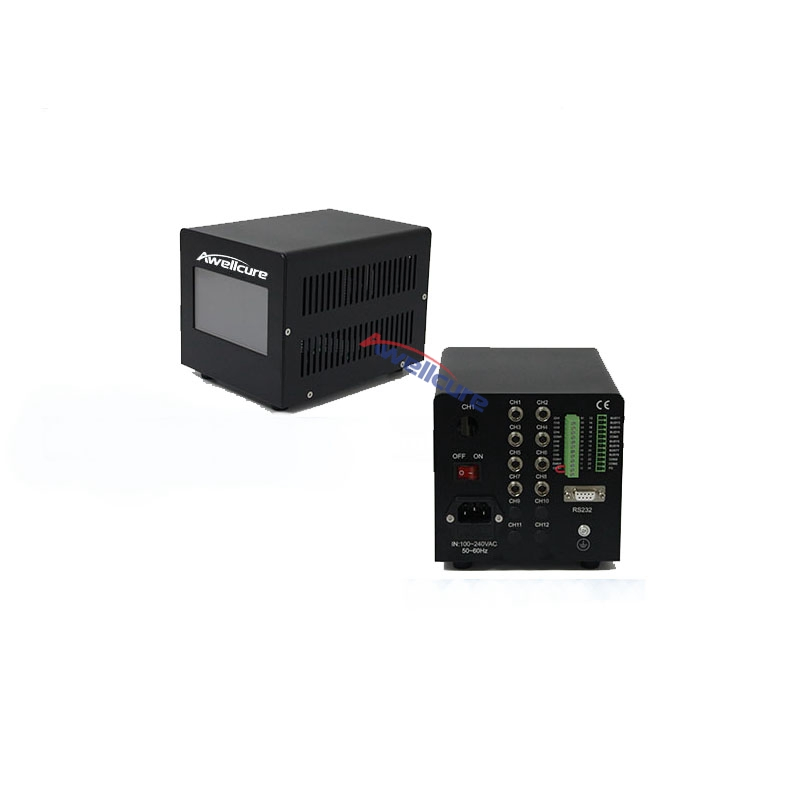

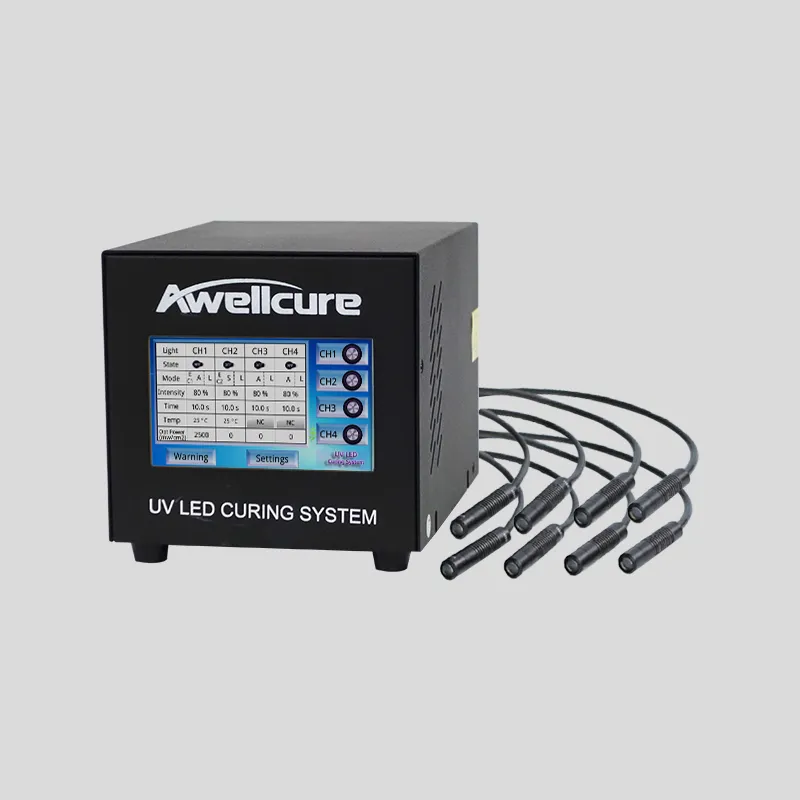

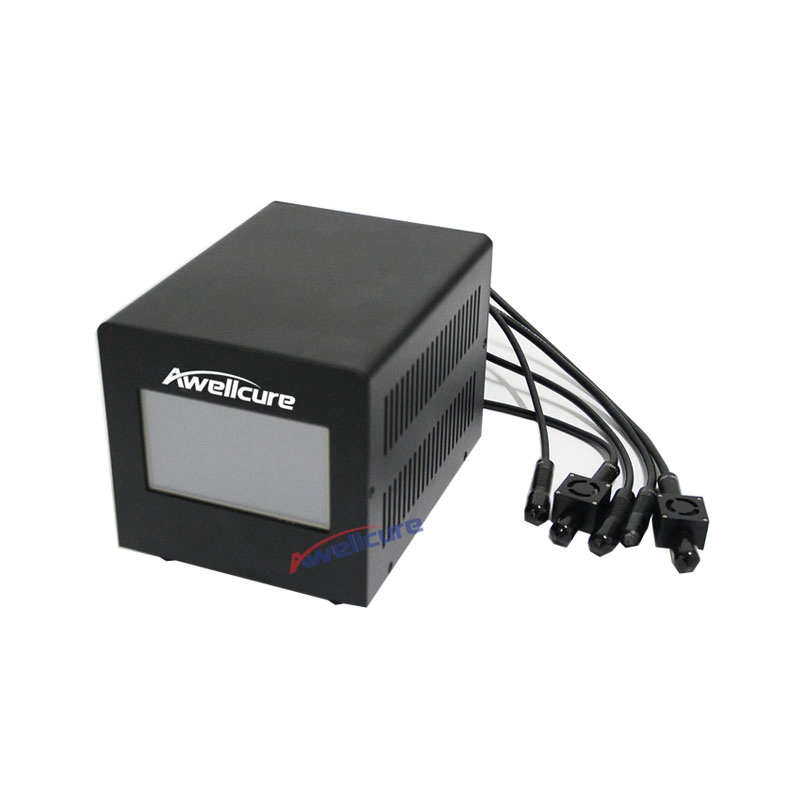

High Quality LED UV Spot Curing Light Irradiation Lamp System for Glue Drying
Our high-intensity UV LED Spot Curing System is engineered for durability, efficiency, and versatility in UV glue, UV ink, and UV coating projects. Designed with advanced technology and software programmable control, such as irradiation processes with different intensities and different times, the shortest production efficiency and machine utilization can be achieved, especially in fully automated production lines.
Applications
UV Adhesive: Optical Communications, Microelectronics, Medical Consumables, Camera modules, Touch Screen etc.
UV Coating: PCBA, precision machining, Chip packaging, Automotive Industry
UV Ink: UV printing, 3D printing
Key Configurations

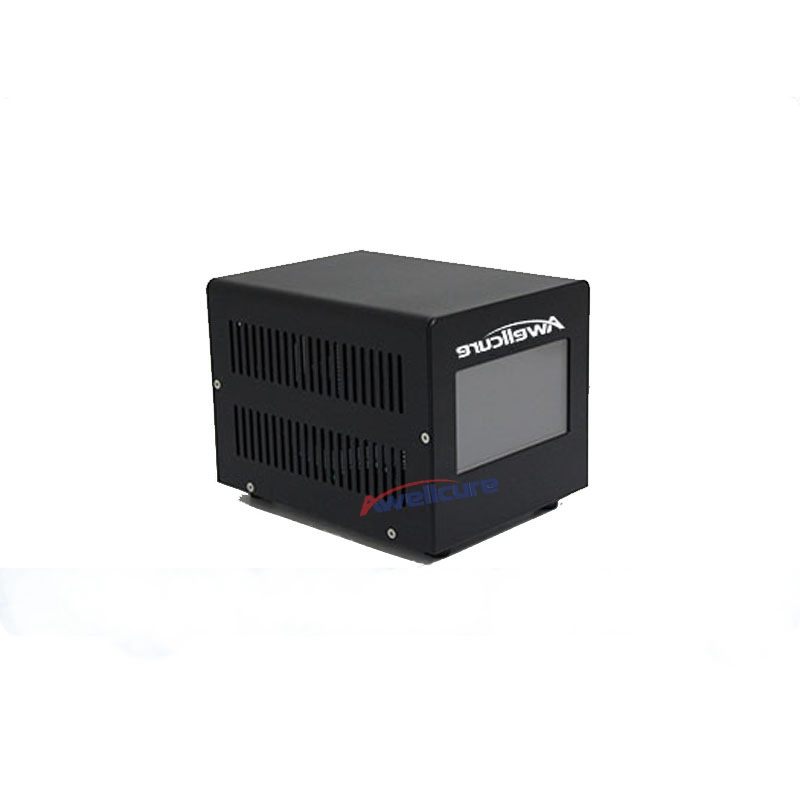

Controller:
Support multi language.
Available for 1-8 channels.
Small in size and easy to carry.
Multi LED heads can be independent controlled.
Simple installation and operation.
Record the working time of each LED head and remind the replacement.
Warning for the abnormal situation.

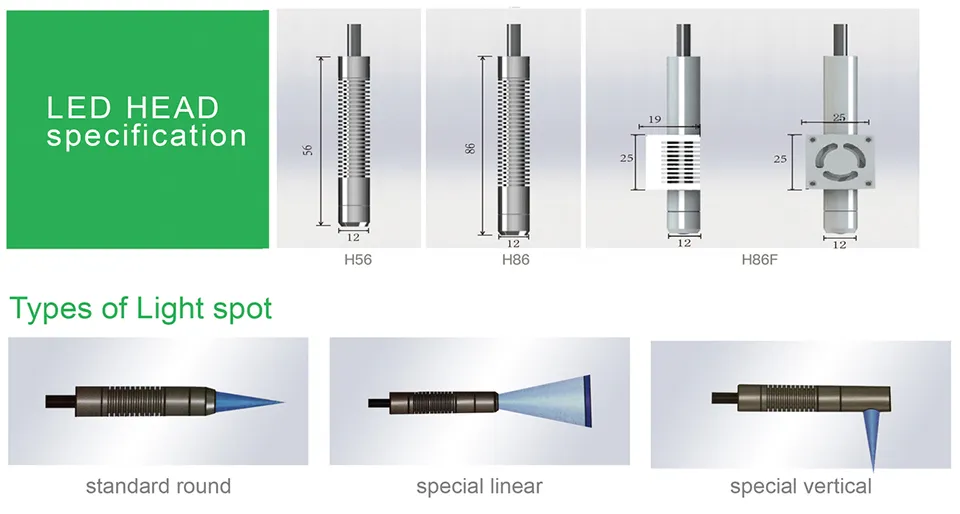

LED Head:

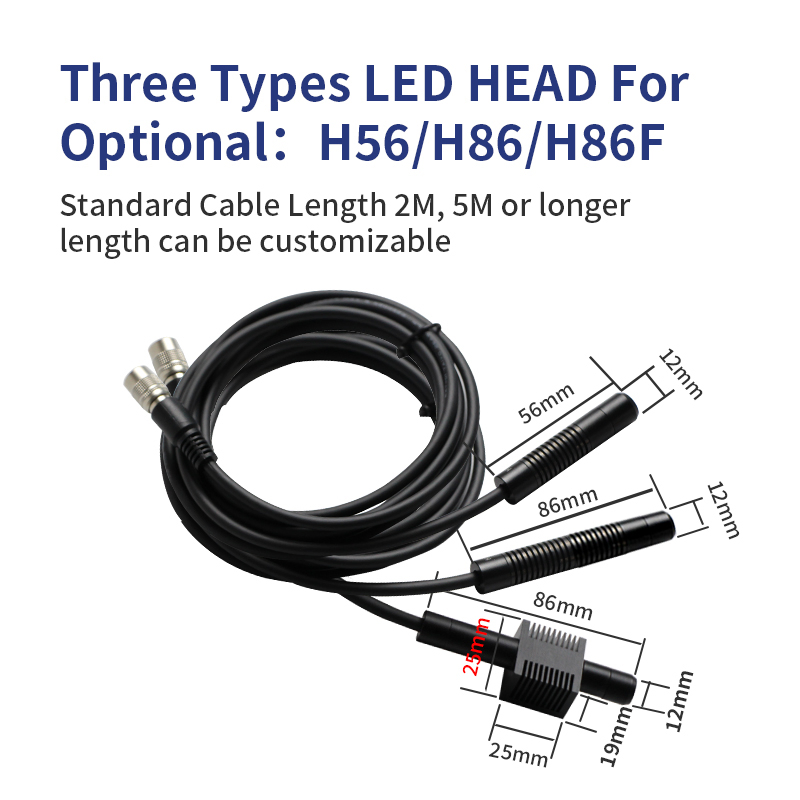

Three types H56, H86, H86F for optional.
The wavelength is 365/385/395/405/470nm+/-10nm.
Highest output optical power of 18W/cm ^ 2.
The core materials are well-known brands: NICHIA high-level LED + DowCorning + HOYA quartz lens.
Use Taiyo bending-resistant cable (bending resistant 1000w times within R30mm).
Standard cable length is 2m/3m/5m, other length could customize.
Working life >20000 hours, no need to frequently replace the lamp.

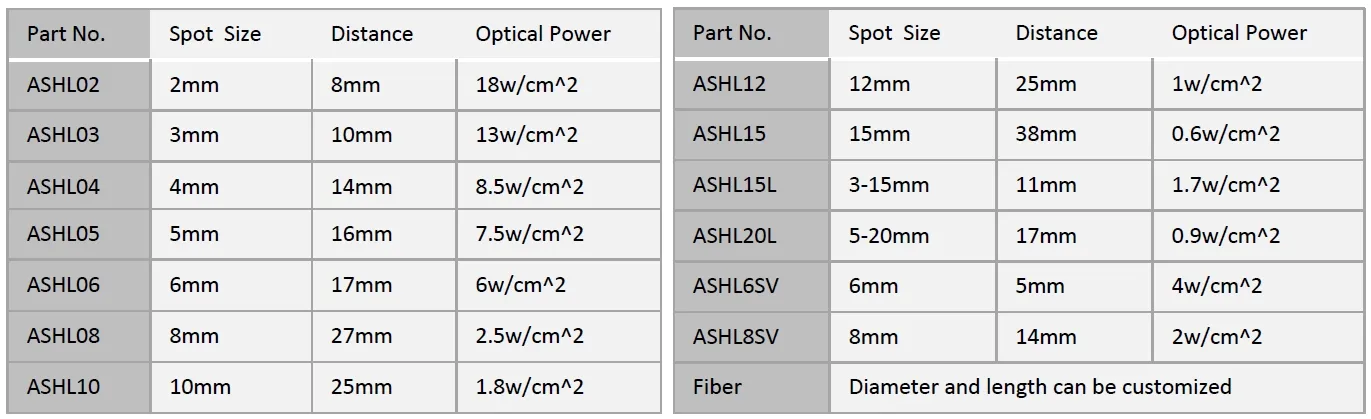

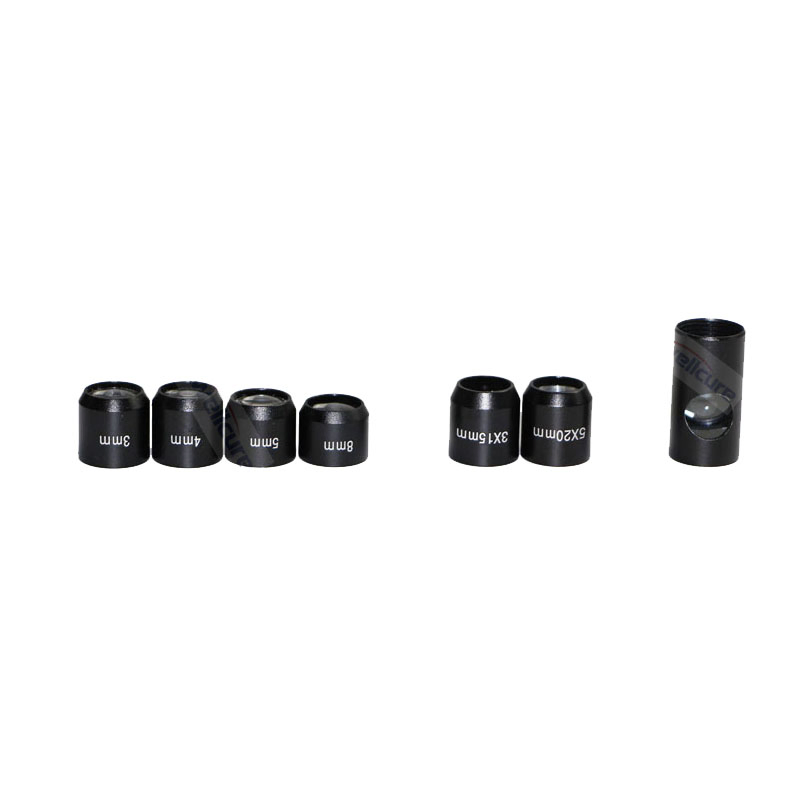

Lens: (Different lens can be chosen)
Standard Lens size: 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm, etc.
Line Lens size: 3x15mm, 5x20mm, etc.
Vertical Lens size: 6mm, 8mm, etc. ergonomic ROPS/FOPS-certified cabin with air conditioning
UV protective glass: Protecting eyes from UV-led irradiating light.
Foot Pedal: Connecting with the I/O Port, control the UV light on/off.

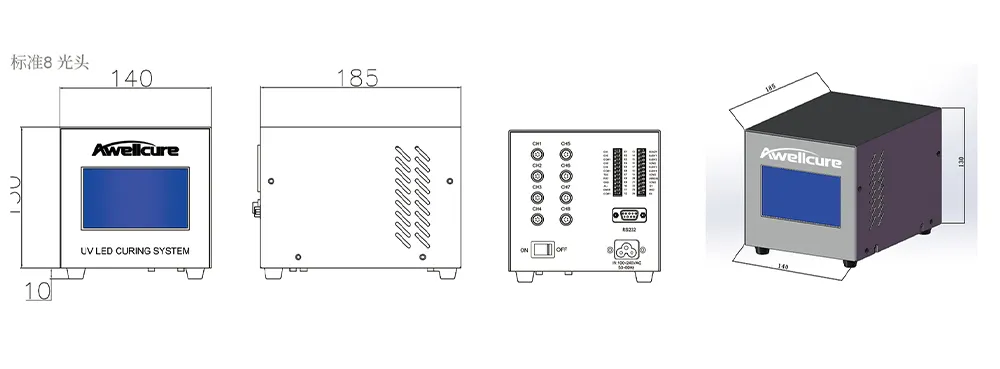

Right Elevation
Left Elevation
Front Elevation
Technical Specifications
(Custom configurations available upon request.)
Parameter
Details
Model
A2400-TP8
Wavelength
365nm, 385nm, 395nm, 405nm, 470nm
Irradiate lamp heads
1-8pcs
Maximum UV Intensity
18000mw/cm^2
Adjustable range of irradiation power
1%-100%
Control Method
RS232/PLC/Pedal/Touch Screen
LED Life
20000Hrs
LED Head Type
H56, H86, H86F
Optional Lens
Standard Lens: 2mm to 15mm; Line Lens: 3x15mm, 5x20mm; Vertical Lens: 6mm, 8mm etc.
Irradiated Mode
Manual: Always on after startup Automatic: Countdown timer (0.1S~999.9S) Step: Step irradiation (1-20 steps) Cycle step: Single/Unlimited
Cooling Method
Natural Cooling or Fan Cooling
Length of Power Cable
2m
Length of LED Head Cable
2m/5m (other length can be customized)
Outer Dimension(L*W*H)
185*40*130mm
185*40*130mm
Drawings & Dimensions
Detailed CAD drawings and dimensional diagrams are available upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
After Sales Service
Standard Warranty: 12 months.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
Company Profile
We are a leading manufacturer of UV LED Curing Systems with over 12 years of expertise. Certified with ISO 9001, CE, and RoHS, we export to 50+ countries, offering reliable UV curing machines backed by R&D innovation and strict quality control.
We have our own R&D center, sales center and production facility to ensure premium product delivery and customized development capabilities.
Main Products
UV-LED Spot curing system
UV-LED Line curing system
UV-LED Area curing system
UV-LED Oven curing
UV-LED Conveyor curing
UV-LED Measuring system
Main Application
Adhesives curing for industrial bonding and sealing (electronic, optical, automotive, metal, medical).
Drying of UV-LED inks, coatings and lacquers (offset, flexo, inkjet, label printing).
Why Choose Us?
OEM/ODM capabilities Competitive pricing & bulk discounts Fast shipping & customs clearance support Turnkey project solutions
Other Products Available
UV Radiometer UV LED Conveyor UV Curing Oven UV LED Line Curing System UV LED Area Light Source
Frequently Asked Questions
Why choose our UV LED curing system?
Our teams have over 12 years combined experience in the UV LED curing industry and can meet the highly specialized requirements of each client.
What's the application of the UV LED curing system?
It is mainly used for curing UV glue, UV ink, UV adhesive, UV paint, UV varnish, and other UV-sensitive materials.
What are the major advantages of a UV LED curing system compared with mercury lamps?
UV LED systems feature an exceptionally long operational life, significant energy savings, instant on/off response, and environmentally friendly operations without mercury.
What emitting window size do I need?
It depends entirely on the specific curing area required for your industrial application.
What power intensity do I need?
Power intensity requirements vary depending on your UV-sensitive chemistry materials, layer thickness, and expected production efficiency.
Can you customize the sizes of the emitting window and Peak Irradiance?
Yes, any dimensions of the emitting window and Peak Irradiance levels can be fully customized according to your unique production processes and needs.
