UV Glue UV Adhesive Bonding Lamp LED Handheld Spot Curing Penlight

Send Inquiry

Product Description

Our high-intensity UV LED Spot Curing System is engineered for durability, efficiency, and versatility in UV glue, UV ink, and UV coating etc. projects. Designed with advanced technology and software programmable control, such as irradiation processes with different intensities and different times, the shortest production efficiency and machine utilization can be achieved, especially in fully automated production lines.

Applications

1. UV Adhesive

Optical Communications, Microelectronics, Medical Consumables, Camera modules, Touch Screen etc.

2. UV Coating

PCBA, precision machining, Chip packaging, Automotive Industry

3. UV Ink

UV printing, 3D printing

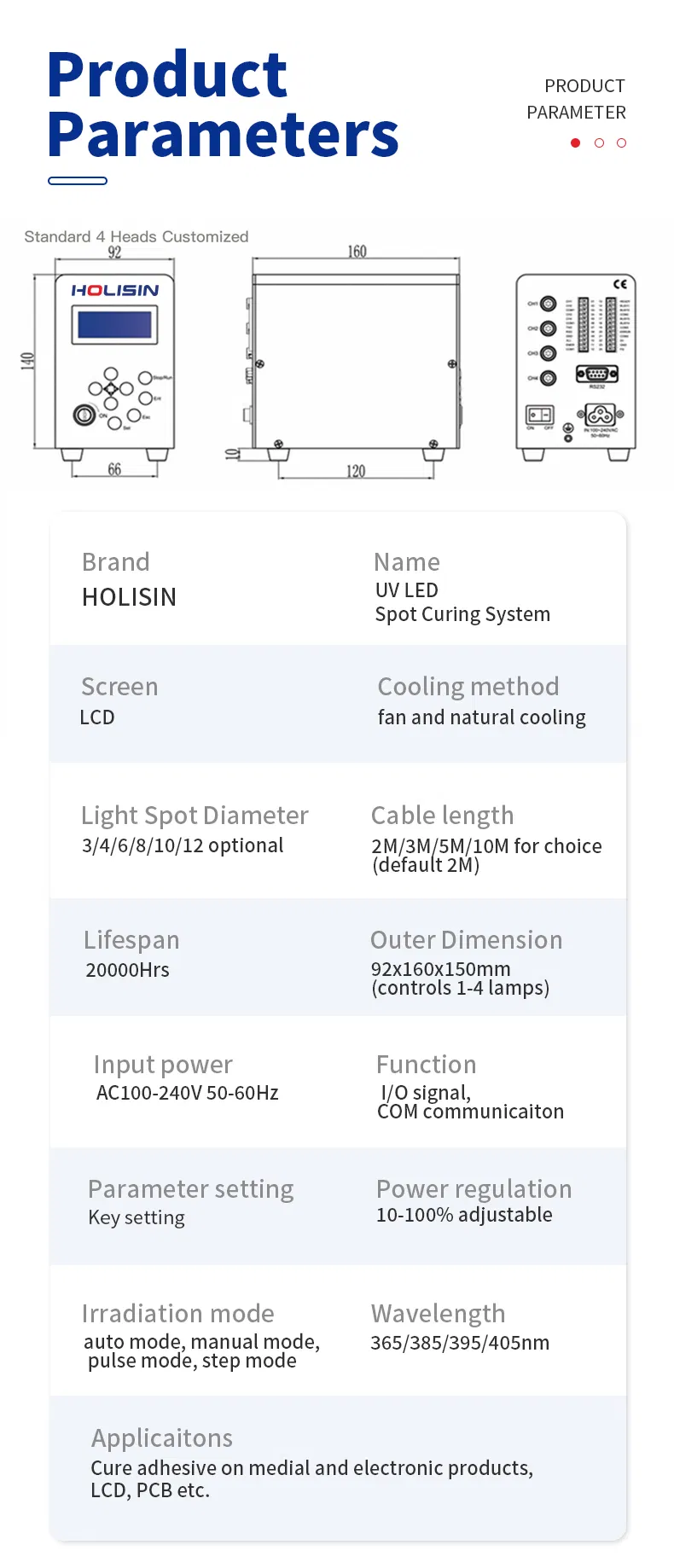

Key Configurations

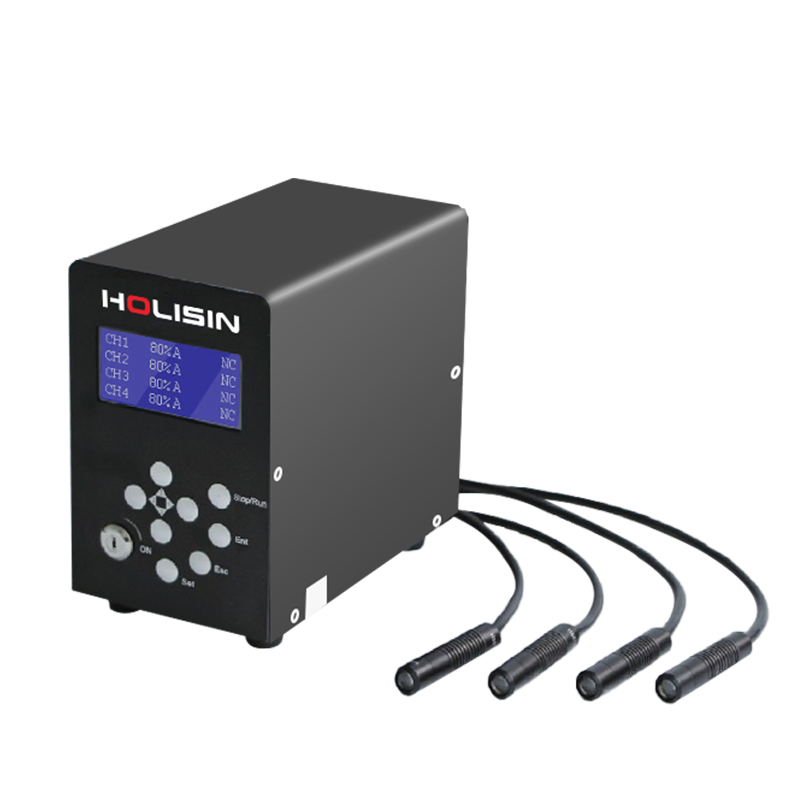

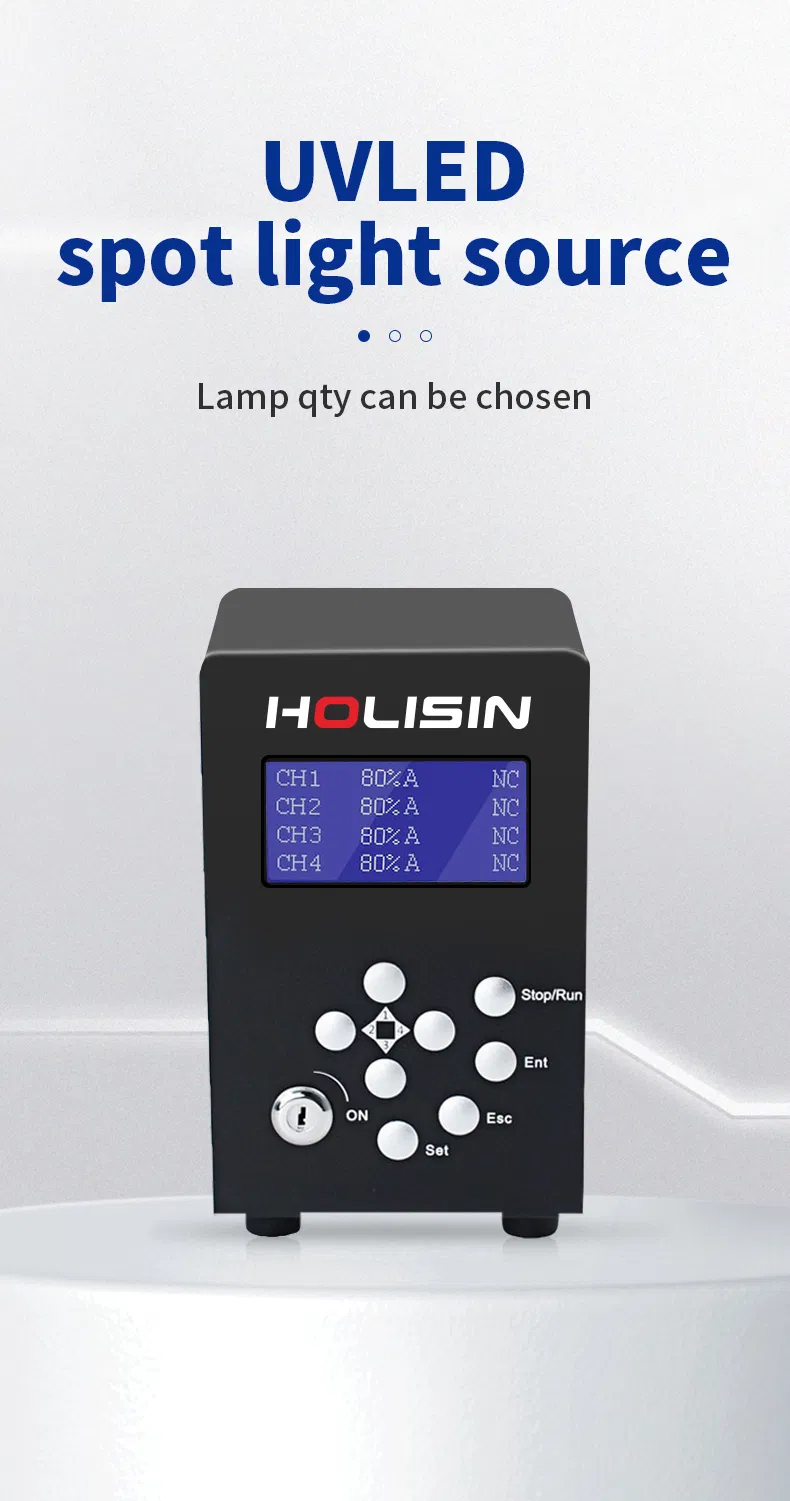

Controller

Support multi language.

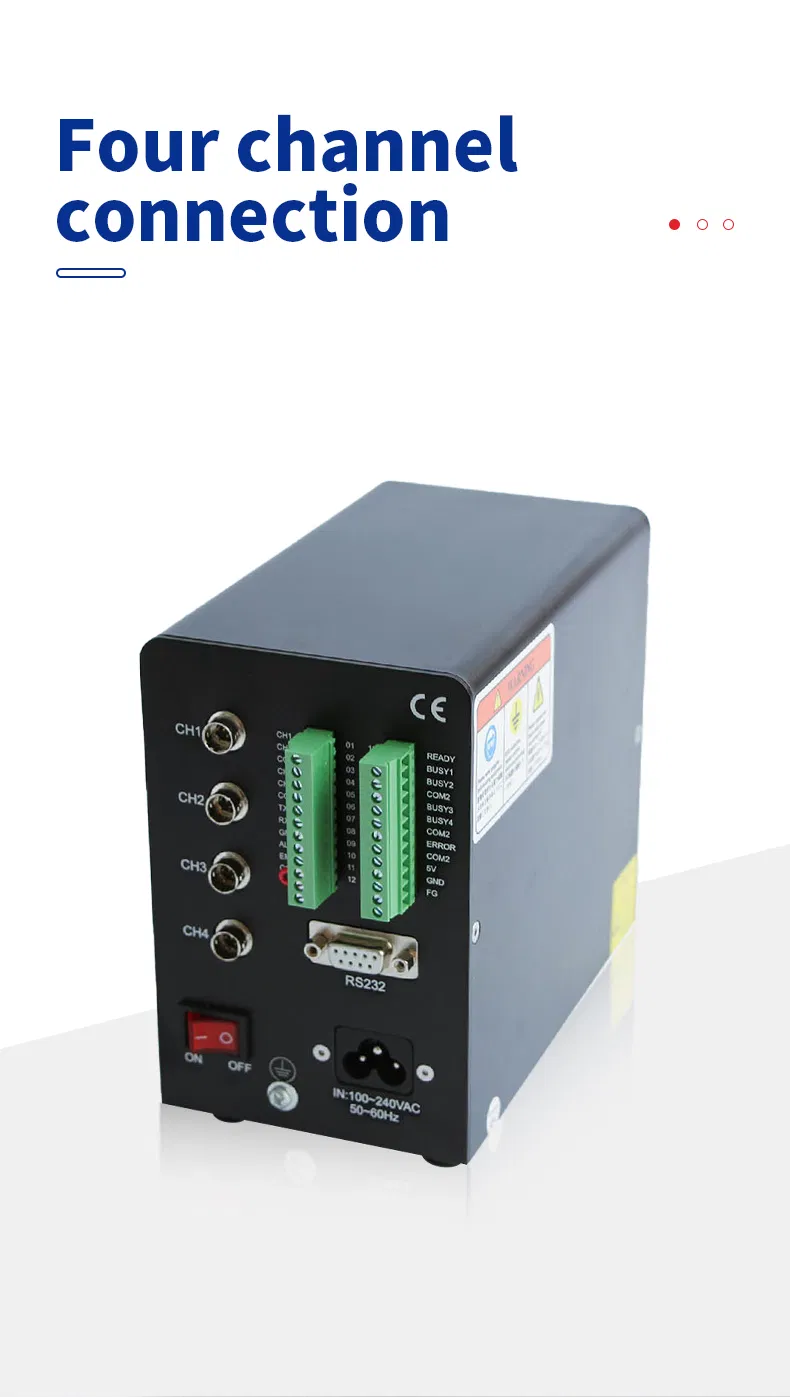

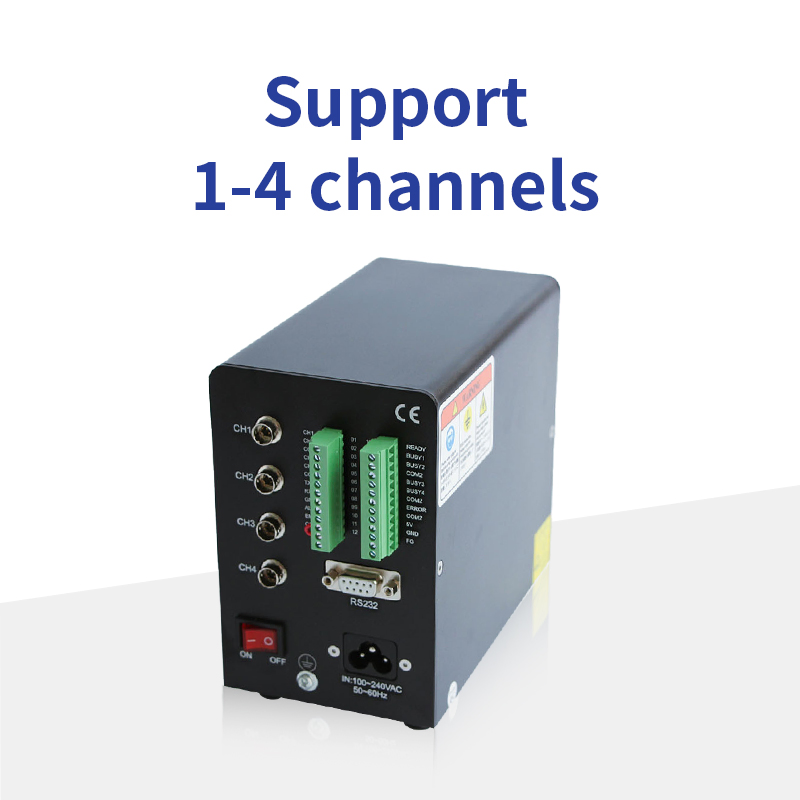

Available for 1-8 channels.
Small in size and easy to carry.
Multi LED heads can be independence controlled.
Simple installation and operation.
Record the working time of each LED head and remind the replacement.
Warning for the abnormal situation.

LED Head

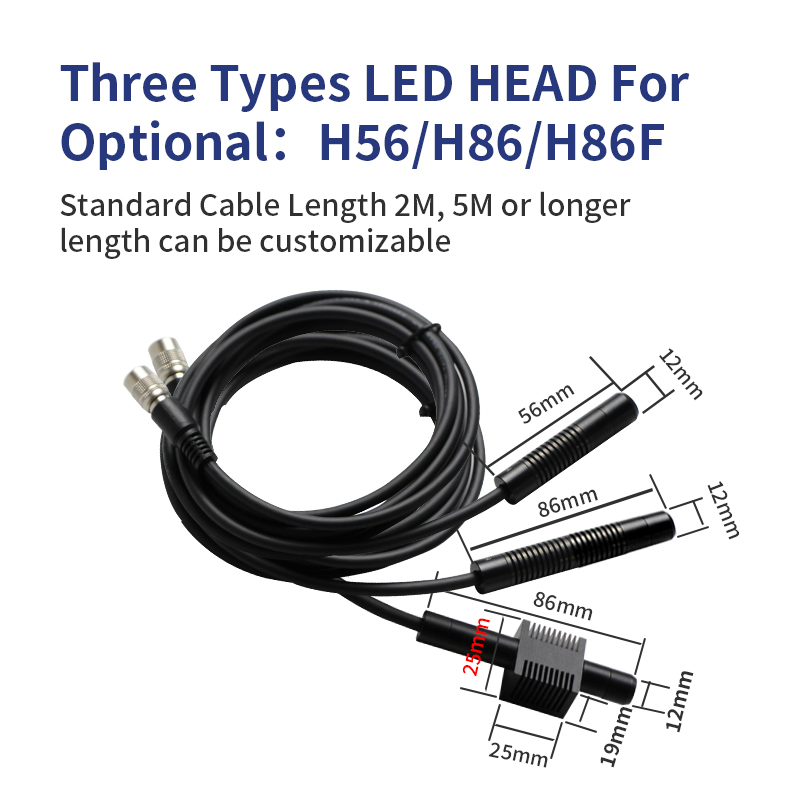

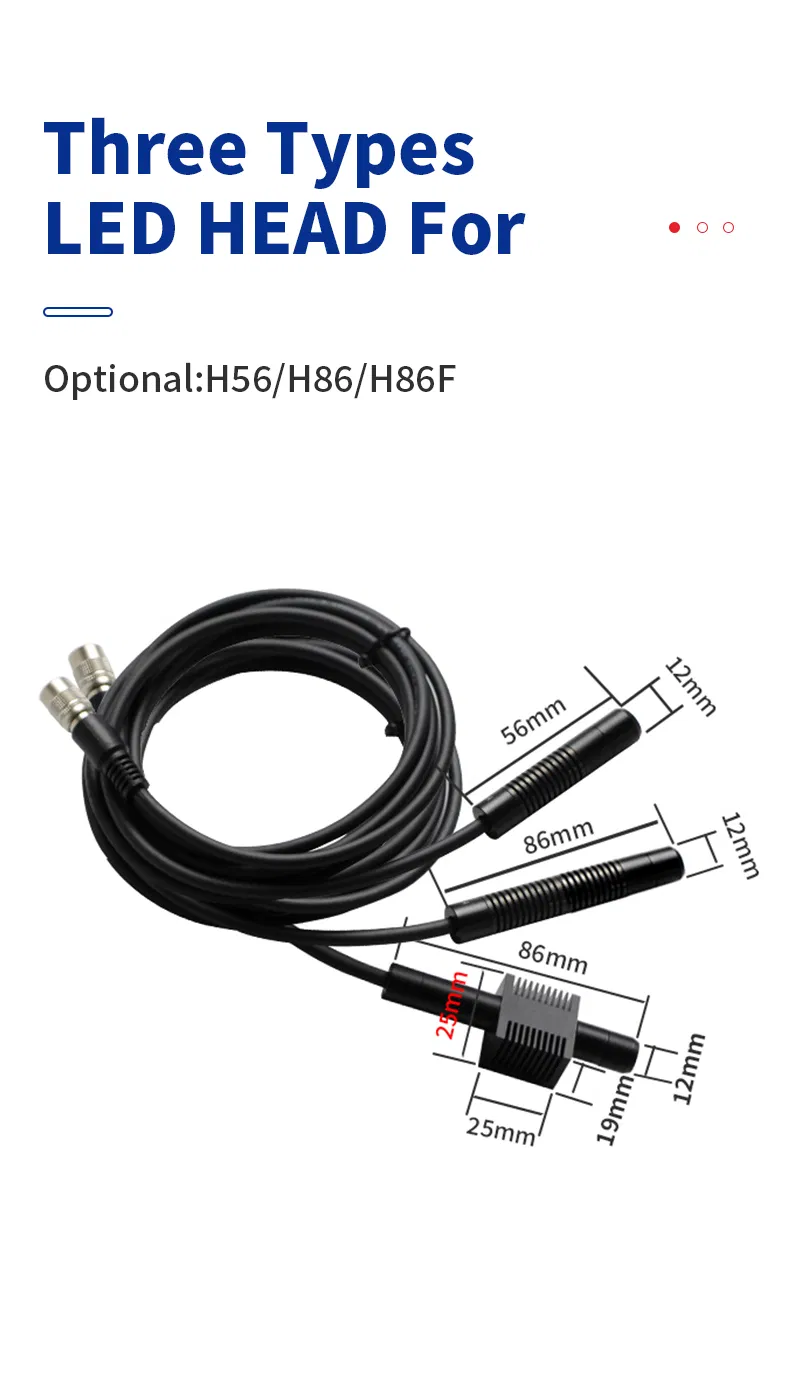

Three types H56, H86, H86F for optional.

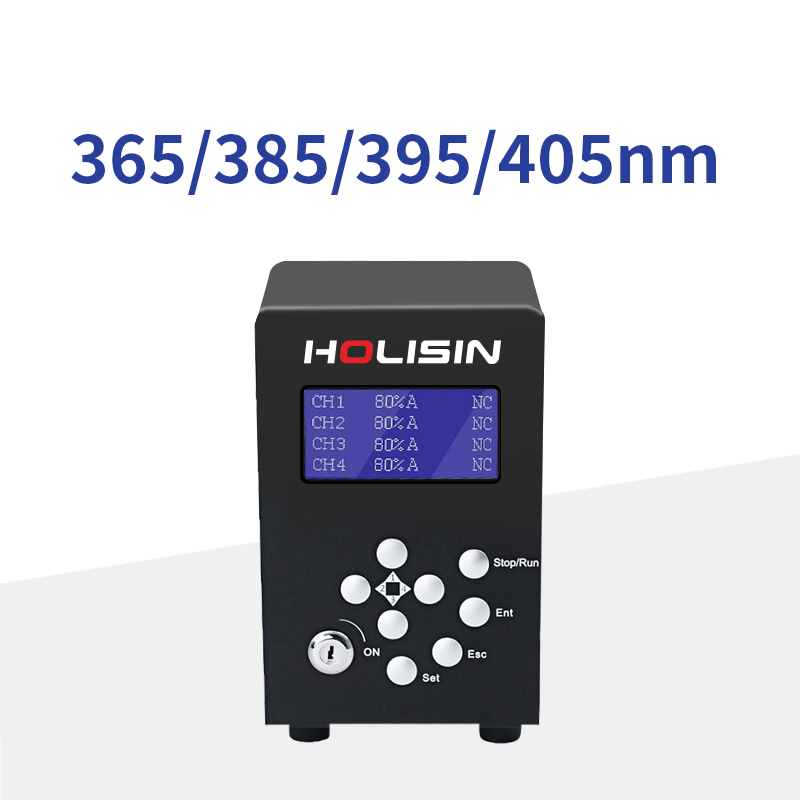

The wavelength is 365/385/395/405/470nm+/-10nm.
Highest output optical power of 18W/cm ^ 2.
The core materials are well-known brands: NICHIA high-level LED + DowCorning + HOYA quartz lens.
Use Taiyo bending-resistant cable (bending resistant 1000w times within R30mm).
Standard cable length is 2m/3m/5m, other length could customize.

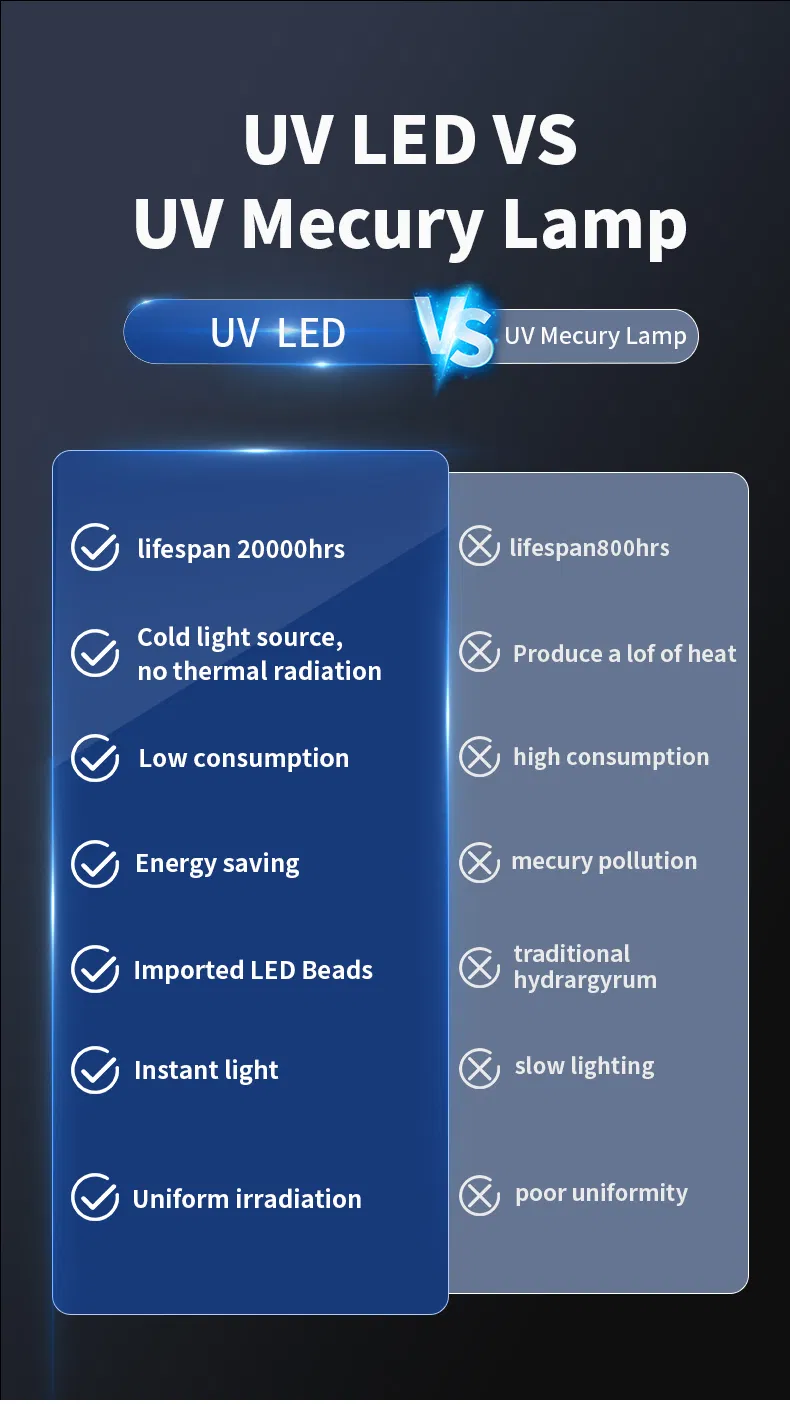

Working life >20000 hours, no need to frequently replace the lamp.

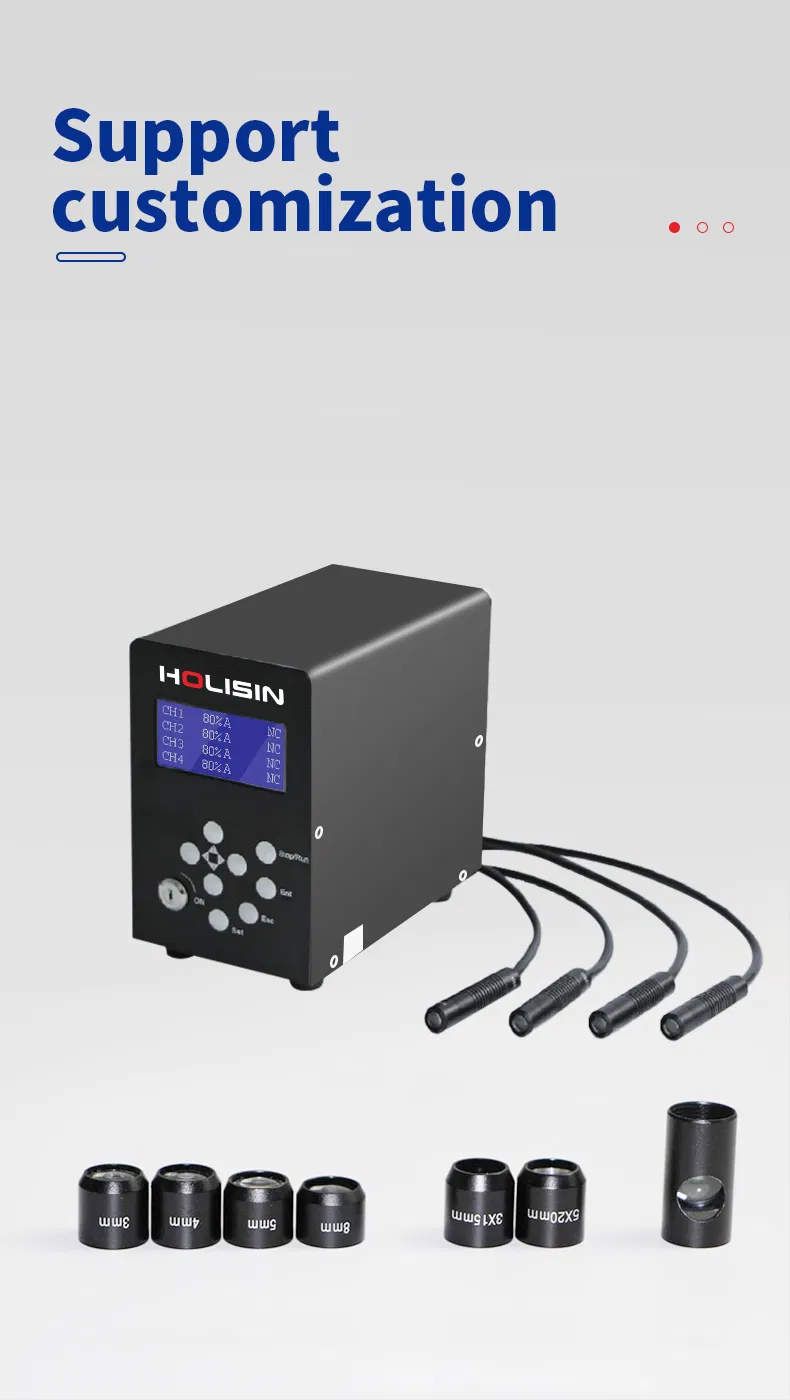

Lens

Different lens can be chosen.
Standard Lens size: 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm., etc.
Line Lens size: 3x15mm, 5x20mm., etc.
Vertical Lens size: 6mm, 8mm., etc.gonomic ROPS/FOPS-certified cabin with air conditioning

Other Accessories

UV protective glass: Protecting eyes from UV-led irradiating light.

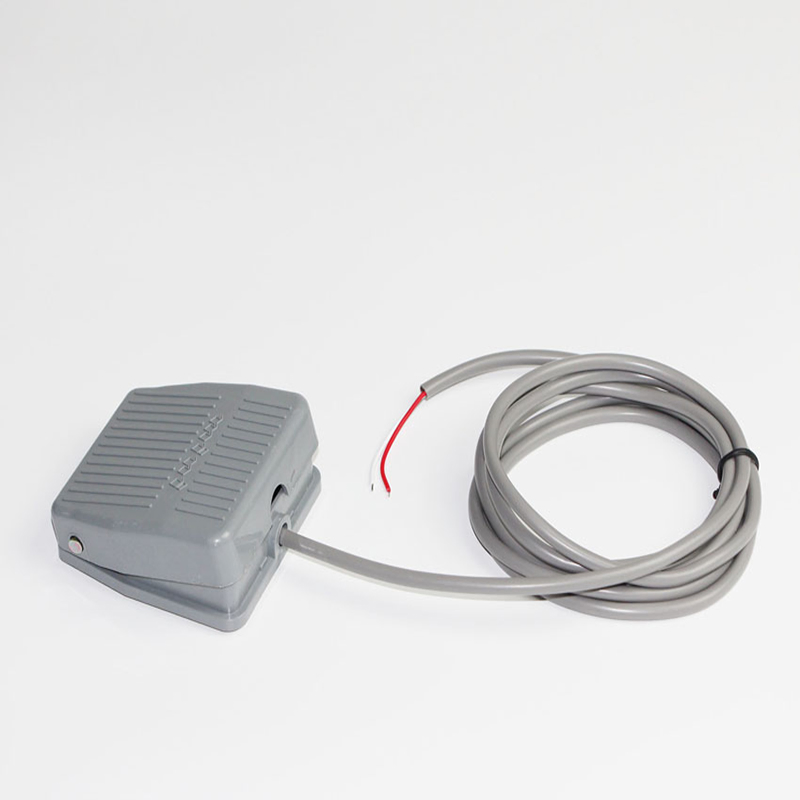

Foot Pedal: Connecting with the I/O Port, control the UV light on/off.

Detail Pictures

Frequently Asked Questions (FAQ)

Q1: What are the main applications for this UV LED Spot Curing System?

A1: It is highly suitable for curing UV adhesives in microelectronics, optical communications, medical consumables, touch screens, and camera modules. It is also used for UV coating on PCBA, chip packaging, automotive applications, and UV ink printing (including 3D printing).

Q2: What wavelengths are available for the LED heads?

A2: The system supports multiple wavelength options, including 365nm, 385nm, 395nm, 405nm, and 470nm, with a deviation range of +/-10nm.

Q3: How long is the working life of the UV LED head?

A3: The LED head features a long working lifespan of over 20,000 hours, which significantly reduces the need for frequent lamp replacements and lowers maintenance costs.

Q4: Can multiple LED heads be controlled independently?

A4: Yes, the controller supports 1-8 channels, allowing you to manage and control multiple LED heads independently depending on your production requirements.

Q5: What lens sizes and shapes can I choose?

A5: We offer different types of lenses, including standard circular sizes (ranging from 2mm to 15mm), line lenses (e.g., 3x15mm, 5x20mm), and vertical lenses (6mm, 8mm, etc.).

Q6: What safety features are included for eye protection?

A6: The system is configured with dedicated UV protective glass to prevent harmful UV-led irradiating light from affecting the operator's eyes.
