UV LED Lamp Dryer Curing Machine 365nm Spot Light Source UV Curing Machine Portable for UV Curing Drying
Our high-intensity UV LED Spot Curing System is engineered for durability, efficiency, and versatility in UV glue, UV ink, and UV coating projects. Designed with advanced technology and software programmable control, such as irradiation processes with different intensities and different times, the shortest production efficiency and machine utilization can be achieved, especially in fully automated production lines.
- UV Adhesive: Optical Communications, Microelectronics, Medical Consumables, Camera modules, Touch Screen etc.
- UV Coating: PCBA, precision machining, Chip packaging, Automotive Industry
- UV Ink: UV printing, 3D printing
Key Configurations
- Support multi language.
- Available for 1-8 channels.
- Small in size and easy to carry.
- Multi LED heads can be independent controlled.
- Simple installation and operation.
- Record the working time of each LED head and remind the replacement.
- Warning for the abnormal situation.

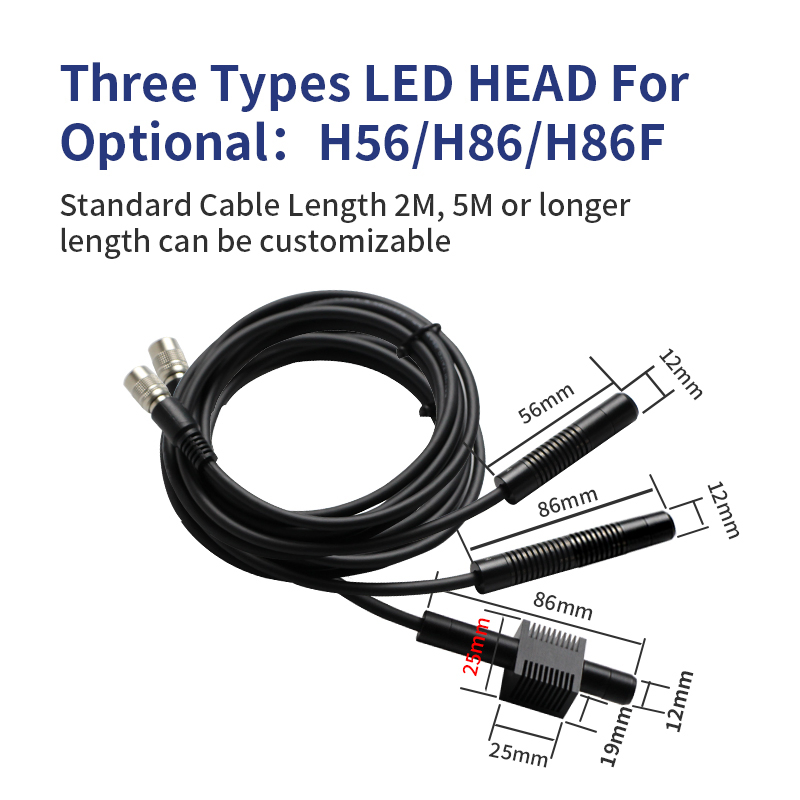

- Three types H56, H86, H86F for optional.
- Wavelength: 365/385/395/405/470nm+/-10nm.
- Highest output optical power of 18W/cm².
- Core materials: NICHIA high-level LED + DowCorning + HOYA quartz lens.
- Taiyo bending-resistant cable (resistant 1000w times within R30mm).
- Standard Lens sizes: 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm etc.
- Line Lens size: 3x15mm, 5x20mm etc. Vertical Lens: 6mm, 8mm etc.
- UV protective glass & Foot Pedal included.

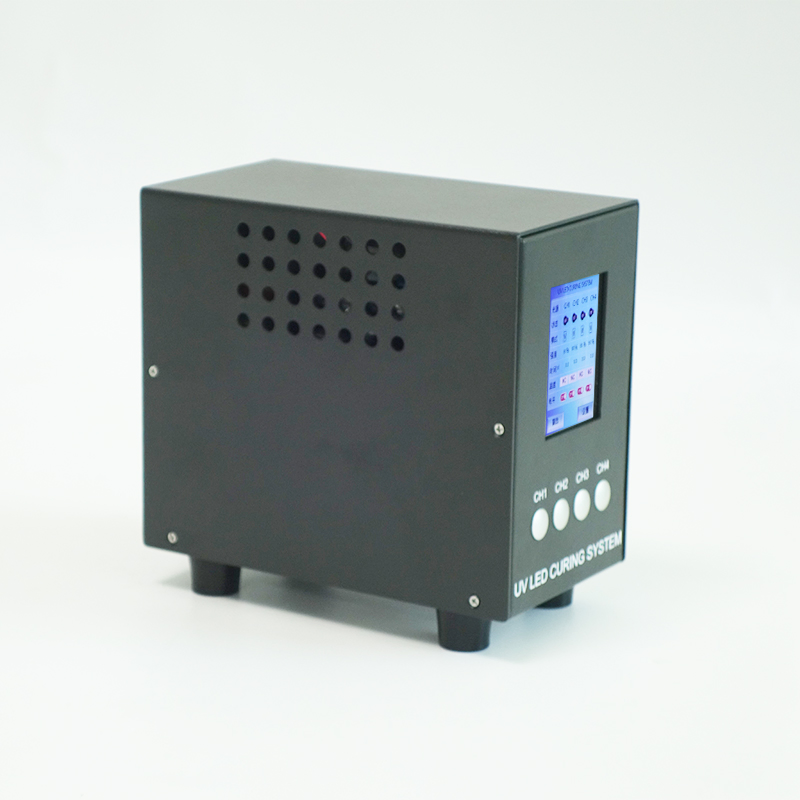

right elevation

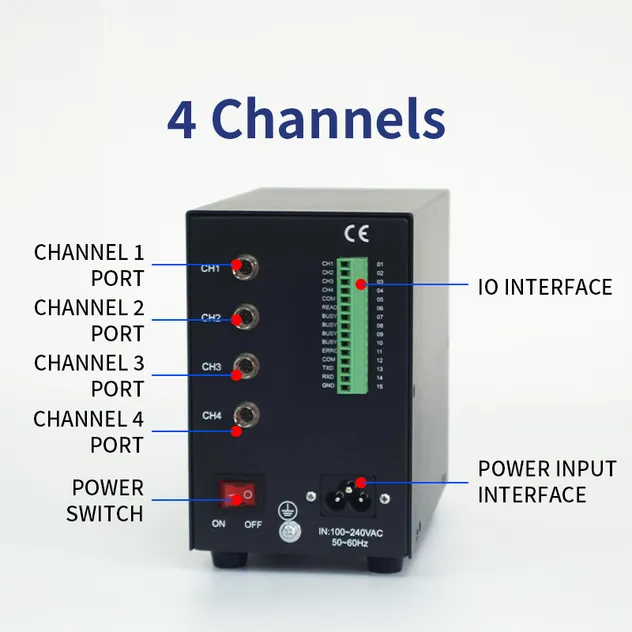

left elevation

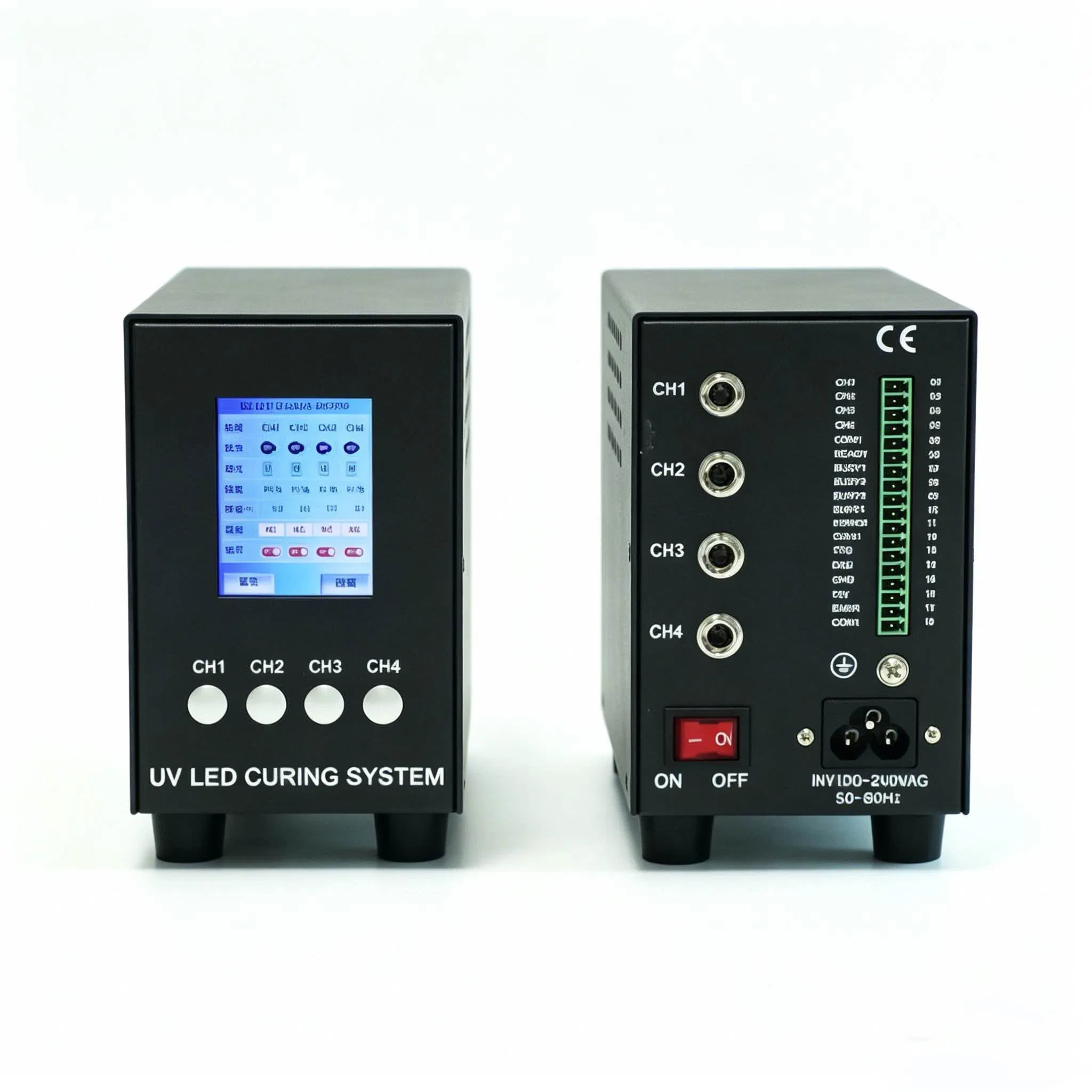

front elevation
Technical Specifications
(Custom configurations available upon request.)
| Specification |
Details |
| Model |
A1400-XTP-S |
| Wavelength |
365nm, 385nm, 395nm, 405nm, 470nm |
| Irradiate lamp heads |
1-4pcs |
| Maximum UV Intensity |
18000mw/cm² |
| Adjustable range of irradiation power |
1%-100% |
| Control Method |
RS232/PLC/Pedal/Touch Screen |
| LED Life |
20000Hrs |
| LED Head Type |
H56, H86, H86F |
| Optional Lens |
Standard: 2mm to 15mm; Line: 3x15mm, 5x20mm; Vertical: 6mm, 8mm |
| Irradiated Mode |
Manual, Automatic (0.1S~999.9S), Step (1-20 steps), Cycle step |
| Cooling Method |
Natural Cooling or Fan Cooling |
| Length of Power Cable |
2m |
| Length of LED Head Cable |
2m/5m (other length can be customized) |
| Outer Dimension (L*W*H) |
160*92*140mm |
|

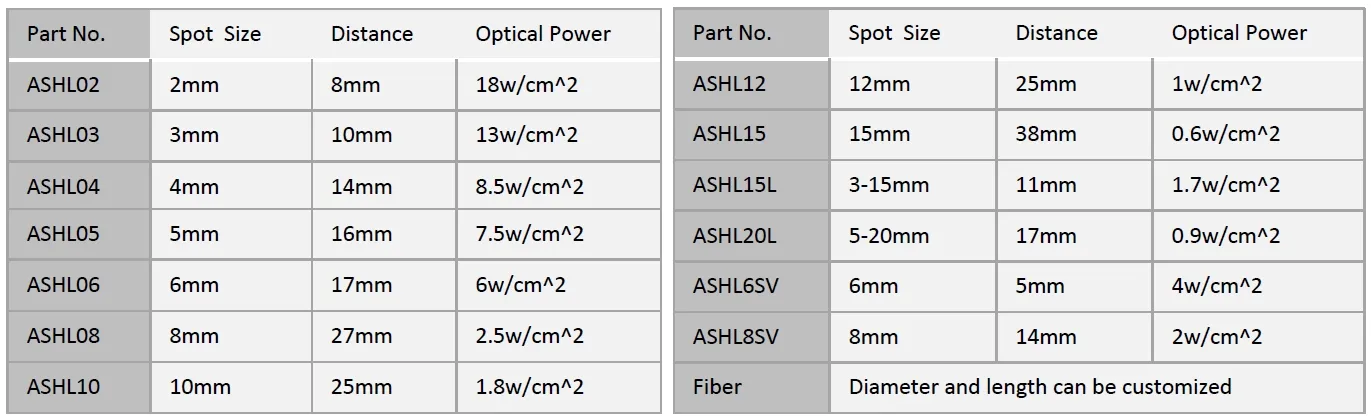

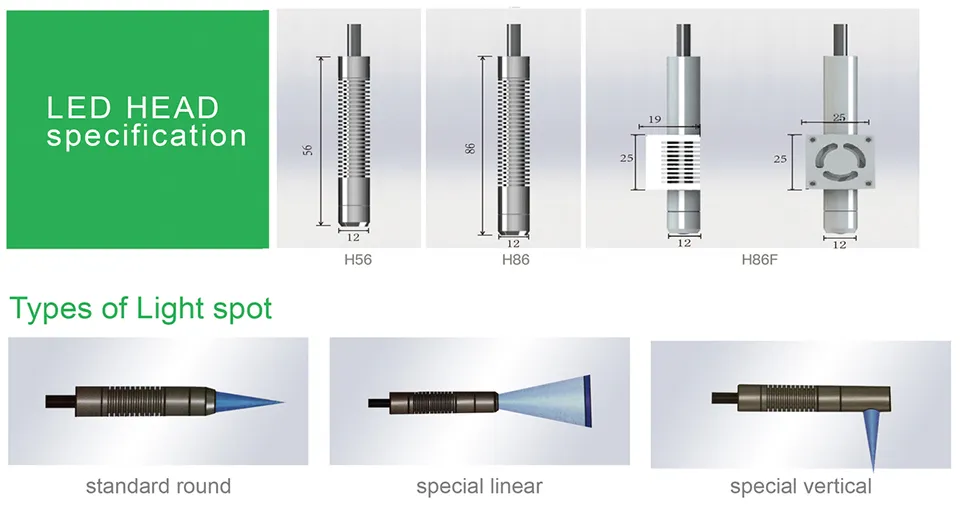

Optional LED HEAD
After Sales Service
Standard Warranty: 12 months.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
Company Profile

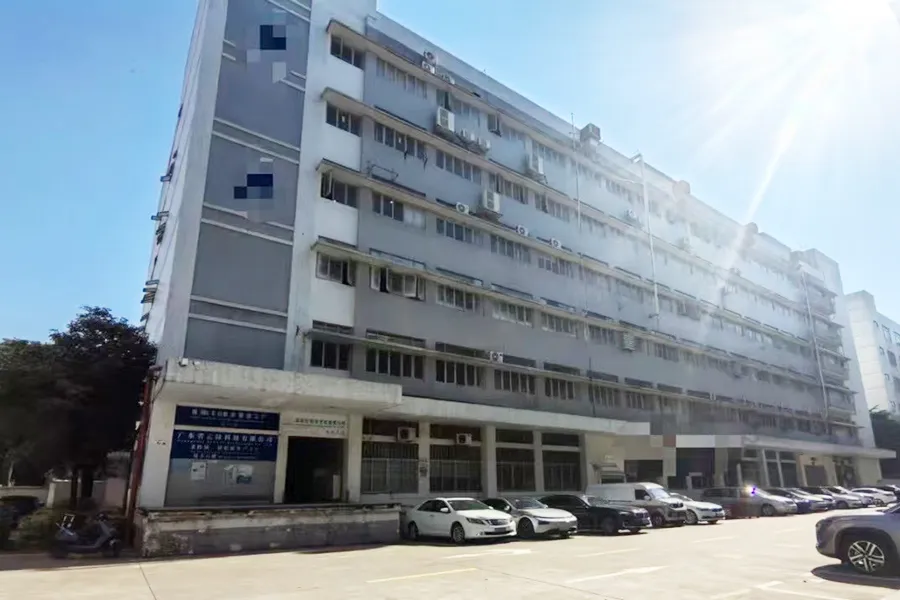

We are a leading manufacturer of UV LED Curing Systems with over 12 years of expertise. Certified with ISO 9001, CE, and RoHS, we export to 50+ countries, offering reliable UV curing machines backed by R&D innovation and strict quality control. The company has its own R&D center, sales center, and manufacturing facility.
Main Products:
- UV-LED Spot / Line / Area curing systems
- UV-LED Oven / Conveyor curing
- UV-LED Measuring systems
Main Applications:
- Adhesives curing for industrial bonding and sealing (electronic, optical, automotive, medical).
- Drying of UV-LED inks, coatings, and lacquers (offset, flexo, inkjet, label printing).
Why Choose Us?
- OEM/ODM capabilities
- Competitive pricing & bulk discounts
- Fast shipping & customs clearance support
- Turnkey project solutions

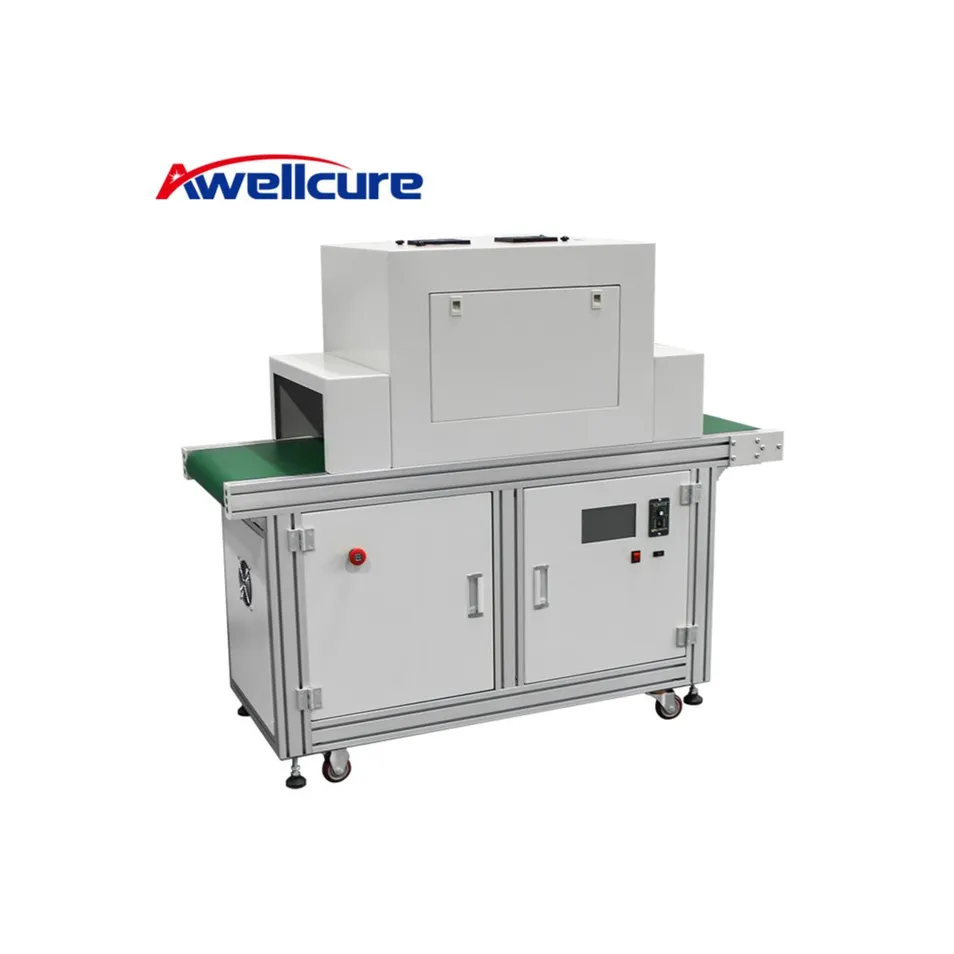

Other Products Available
- UV Radiometers
- UV LED Conveyors
- UV Curing Ovens
- UV LED Line Curing Systems
- UV LED Area Light Sources
Frequently Asked Questions
Q
What's the standard lead time for orders?
Standard models typically ship within 10–15 days, while customized units require 20–30 days.
Q
Do you provide after-sales service globally?
Yes, we provide 24/7 remote technical assistance, spare parts supply, and partner with service centers in key international regions.
Q
Can I request a customized curing lamp or lens size?
Absolutely. We support tailor-made lens attachments and output configurations to match your exact production needs.
Q
What documents do you provide for export shipping?
We provide a full export documentation package including Commercial Invoice, Packing List, Bill of Lading, and Certificate of Conformity (COC).
Q
How can I place an order for the UV Curing System?
Please submit an inquiry detailing your specifications. Our team will issue a formal quote, after which you can confirm the order with a Purchase Order (PO).
Q
What wavelengths are supported by the UV LED heads?
We offer multiple optional wavelengths including 365nm, 385nm, 395nm, 405nm, and 470nm (+/-10nm tolerance).
