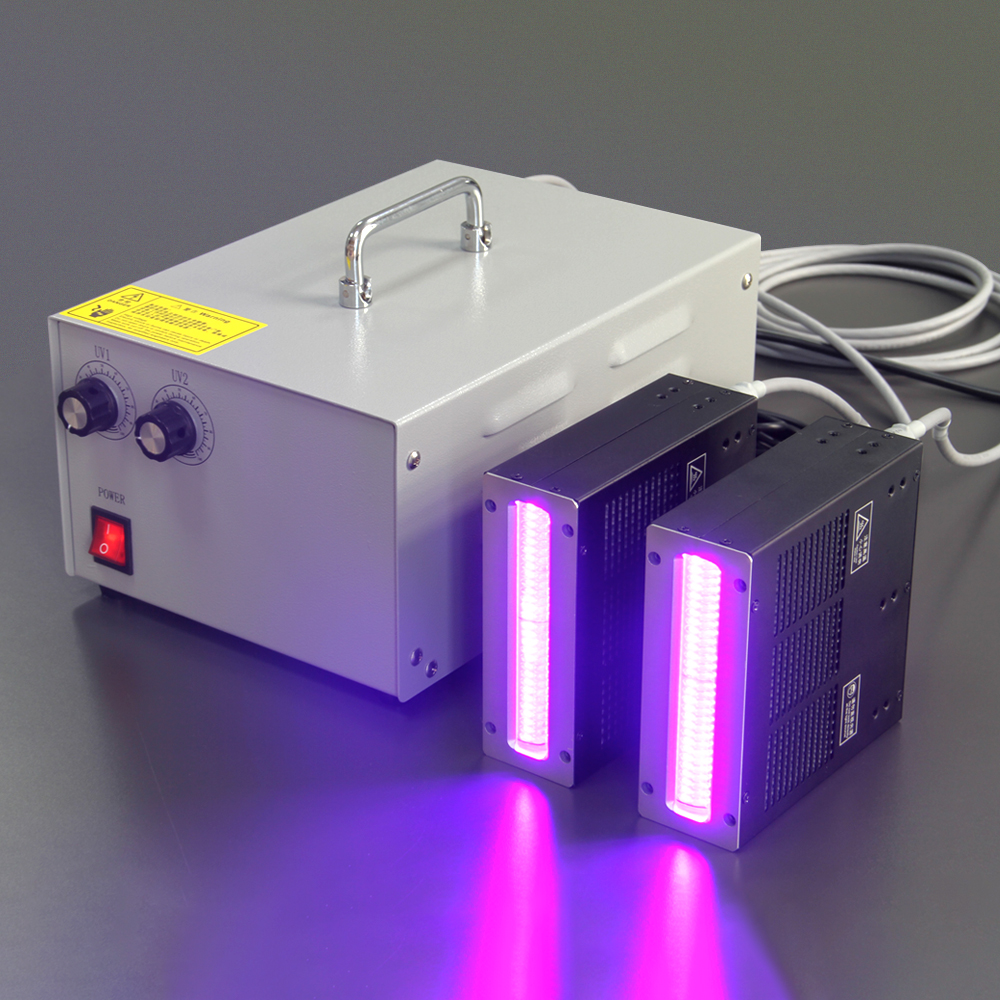

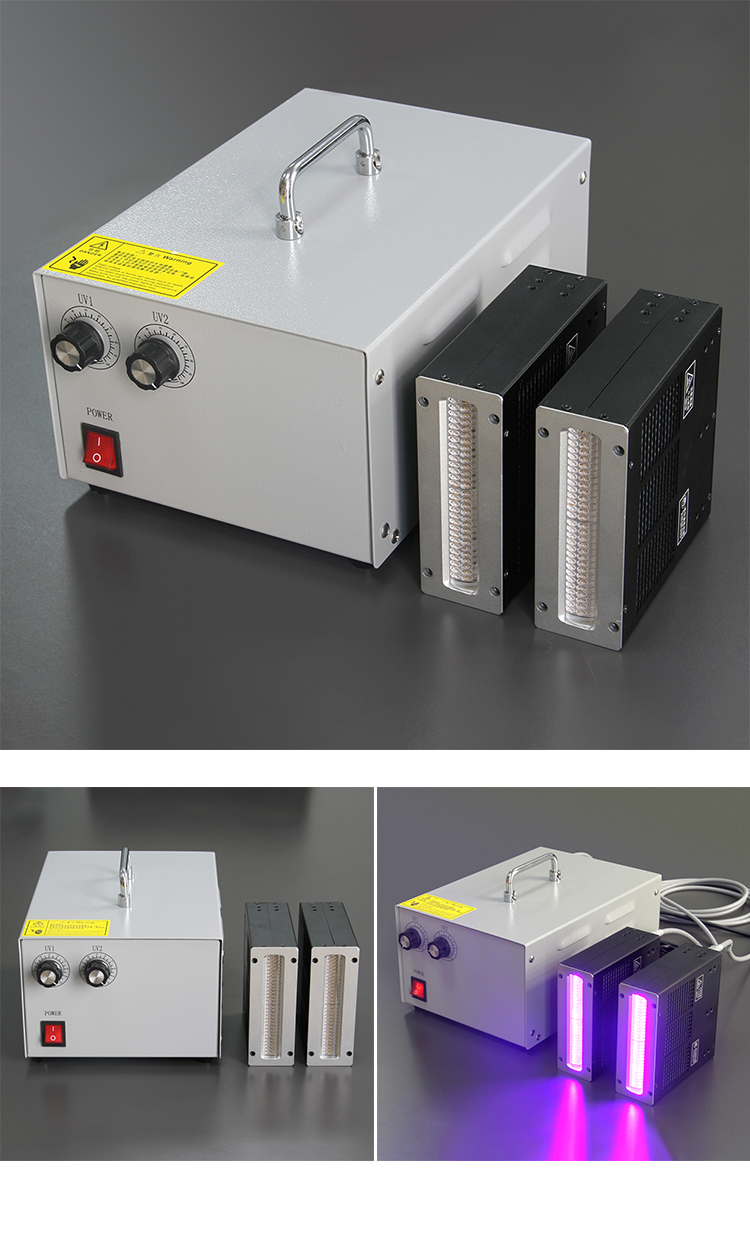

Custom 365nm 395nm High Power Air Cooling UV LED Curing Lamp System For Screen Printing Machine

Send Inquiry

Product Description

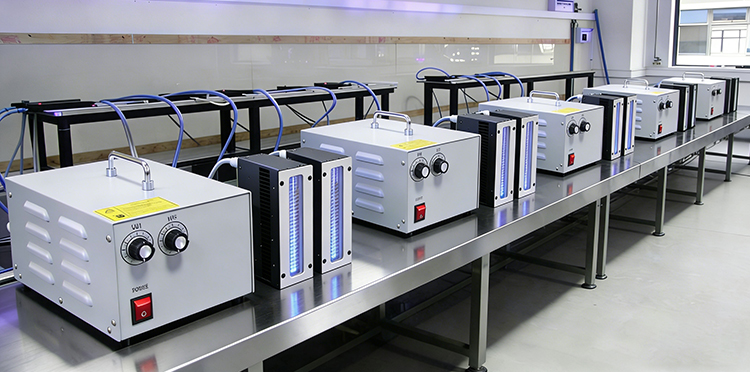

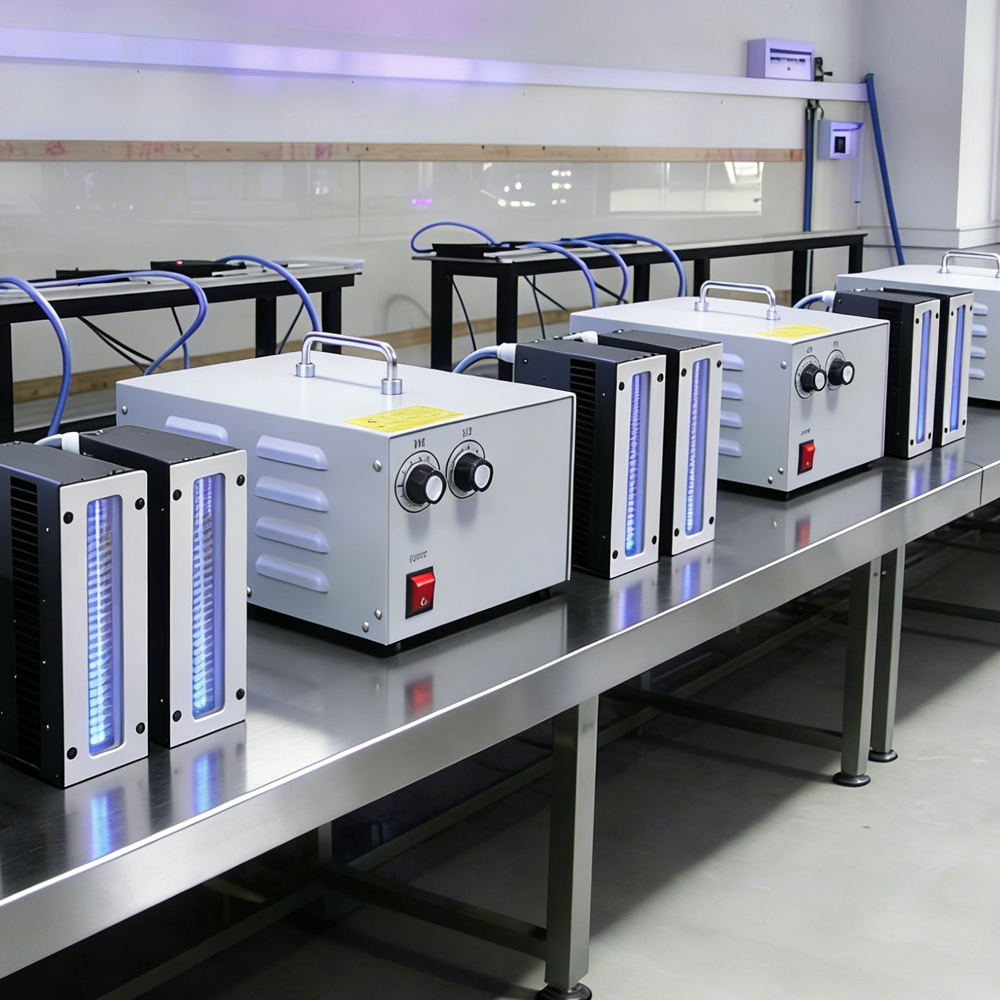

Custom 365nm 395nm High Power Air Cooling UV LED Curing Lamp System for Screen Printing Machine

Main Products

DM us to get a deal

Looking for a reliable UV LED Curing System for printing, bonding or coating?

100% Customizable Size | Wavelength | Power – Direct from Manufacturer

Click "Send inquiry" or "Chat now" – Get instant quote & free technical advice!

Product Description

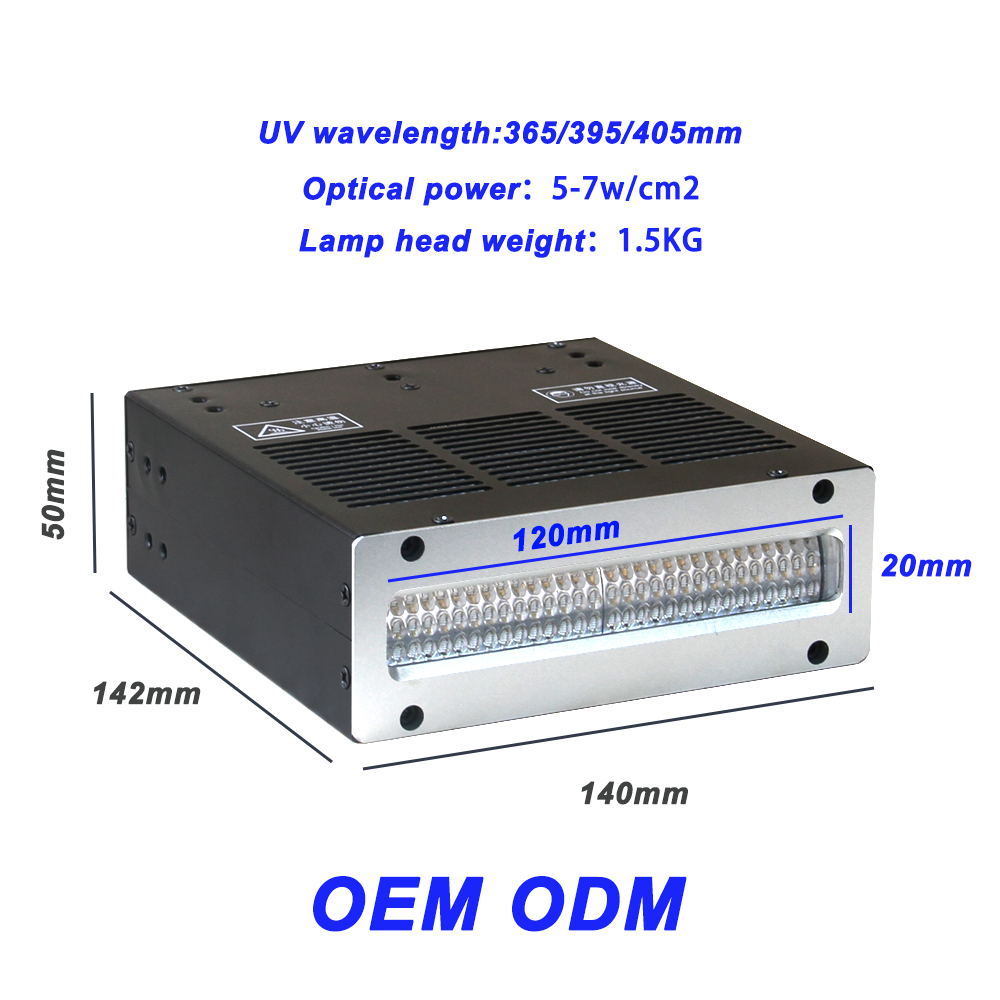

Product name	12020 UV LED Curing lamp
Model	JRM-Y12020A02
Irradiation head size	14050142mm
Irradiation window area	120*20mm
Input voltage	AC 220V
Wavelength	395nm
Total system power	440W
Optical power	5-7W/CM²
Lamp head weight	1.5KG
Irradiation head electrical power	222W

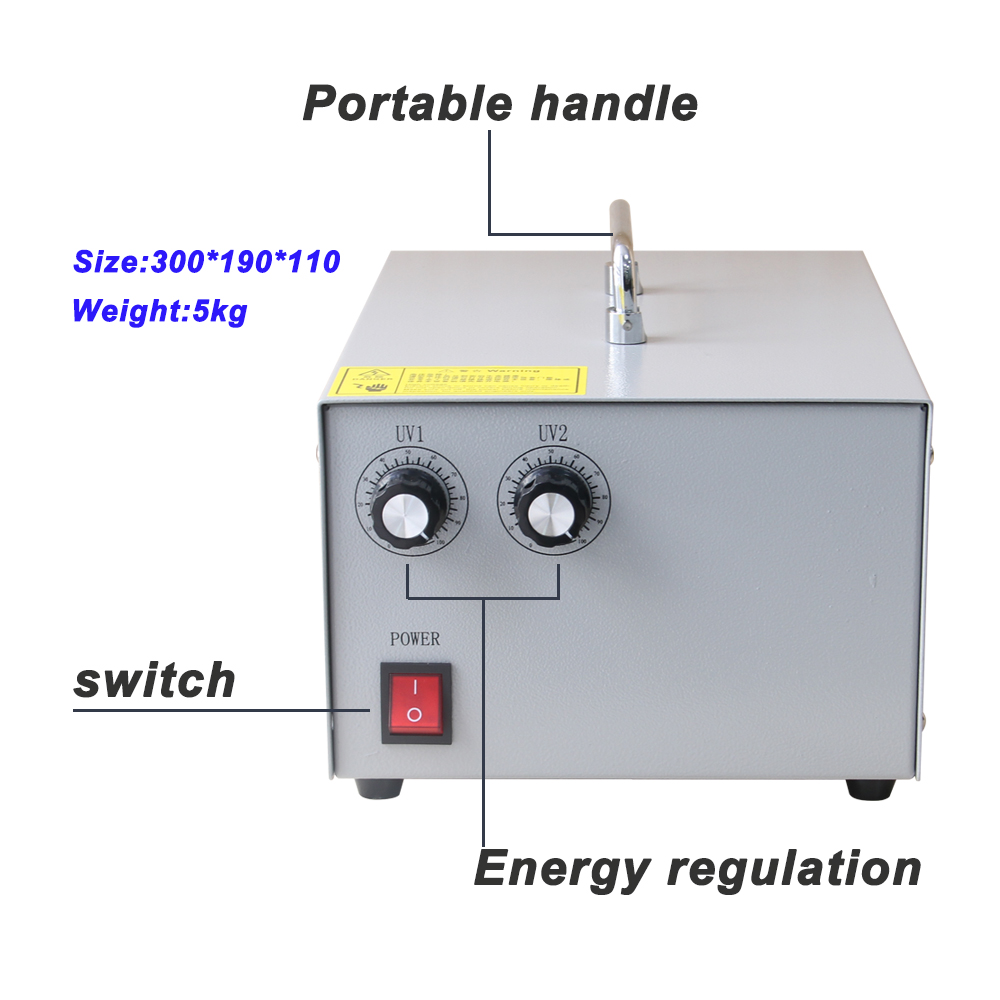

Power canister size	300mm190mm110mm
Startup control mode	24v signal control
Weight(Power supply and lamp)	10KG
Brightness adjustment method	potentiometer knob adjustment
The working height of the irradiation head	3-7mm
Application	Screen Printing Machine, UV flatbed printers, roll printers, label printers, UV glue, ink, resin curing

Looking for a reliable UV LED Curing System for printing, bonding or coating?

100% Customizable Size | Wavelength | Power – Direct from Manufacturer

Click "Send inquiry" or "Chat now" – Get instant quote & free technical advice!

Application

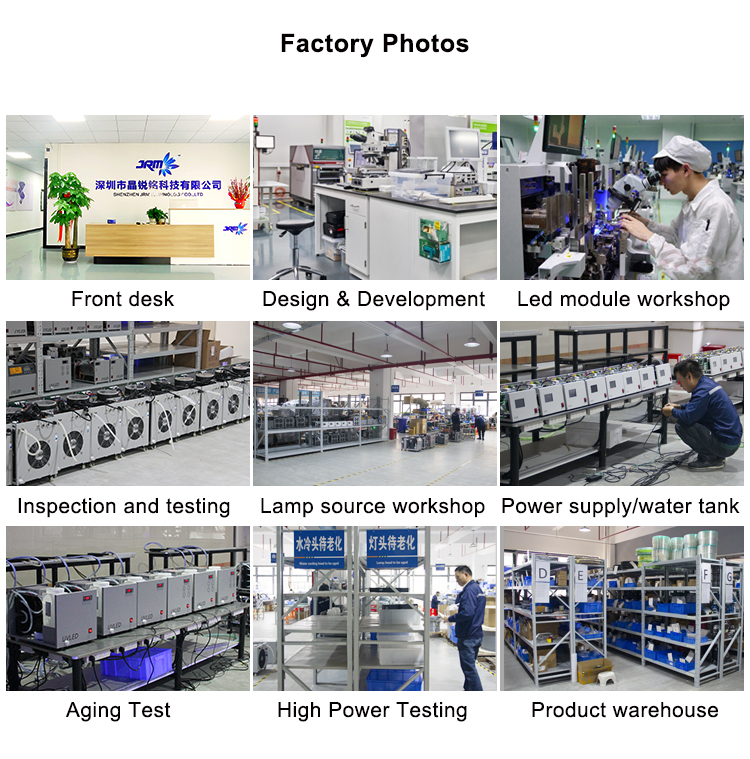

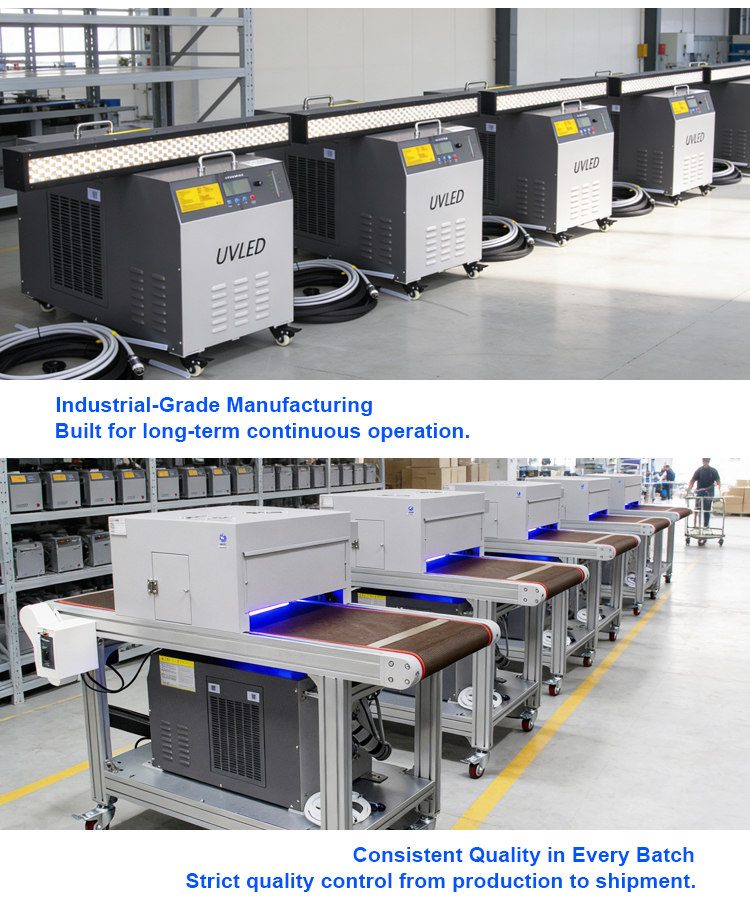

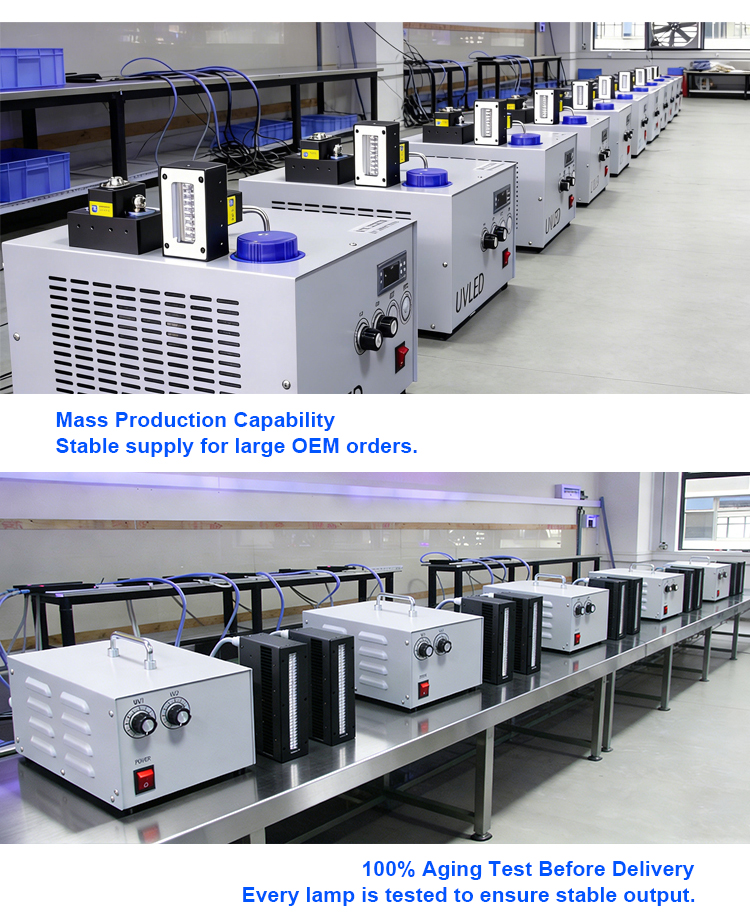

Production & Facility Gallery

Maybe you're wondering about these questions

Are you a factory?

Yes! We are a factory. We have been producing UV LED products for 15 years.

Can we customize the product?

Yes! We can produce the products according to your requirements.

Do you have any MOQ limit for led light order?

No! One is also acceptable.

How to choose the size of UV LED LAMP?

Please contact us and we will give you professional advice!

What is the brand of UV LED LAMP chip?

We use LG, Epileds, Seoul, Epistar.

How long is the life of UV LED LAMP?

LED chips have a life span of 20,000 hours, and even longer if care is taken during use.
