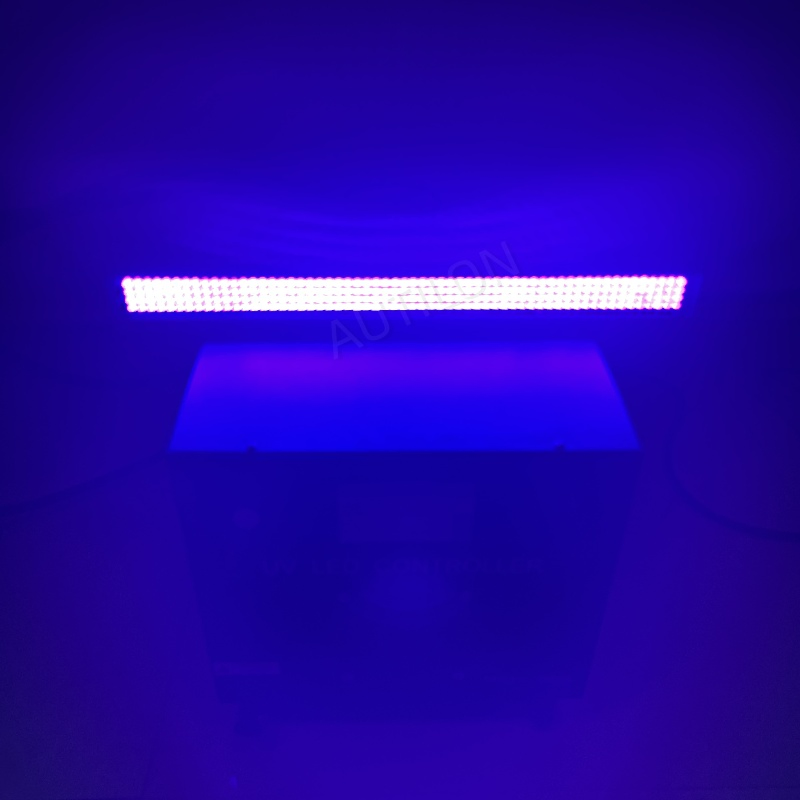

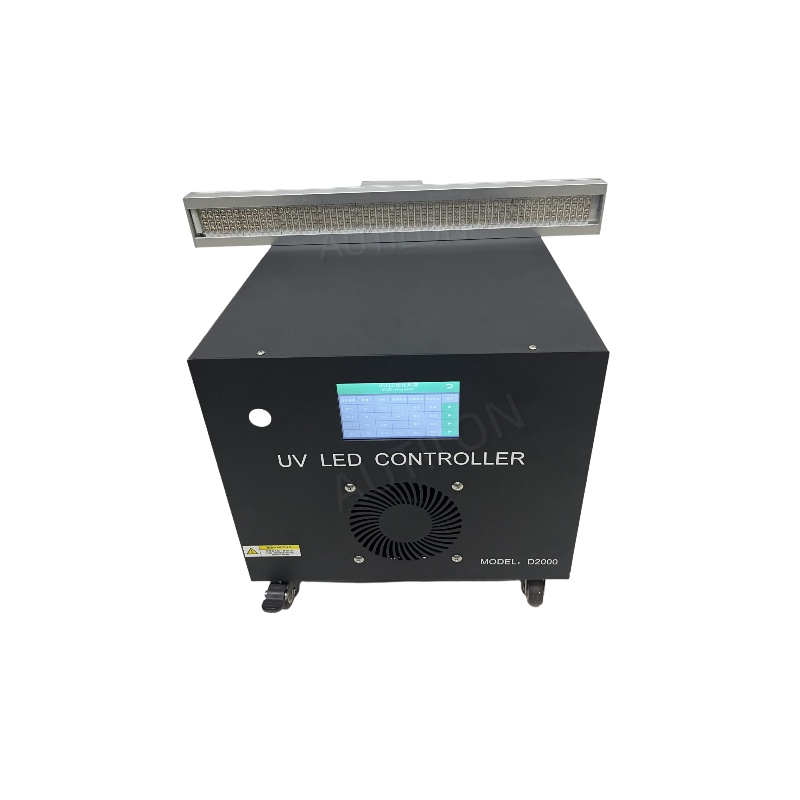

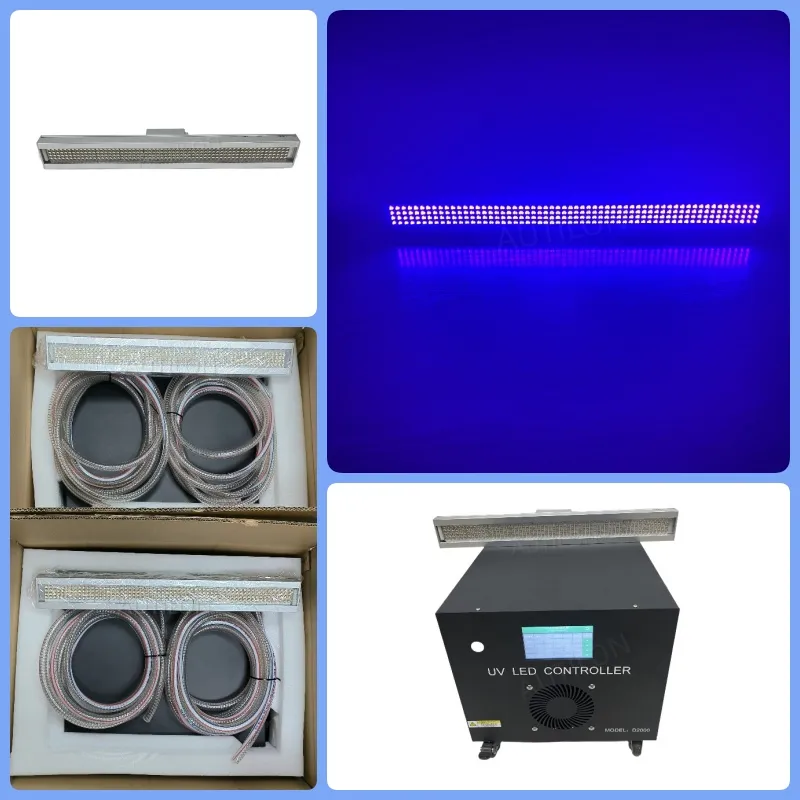

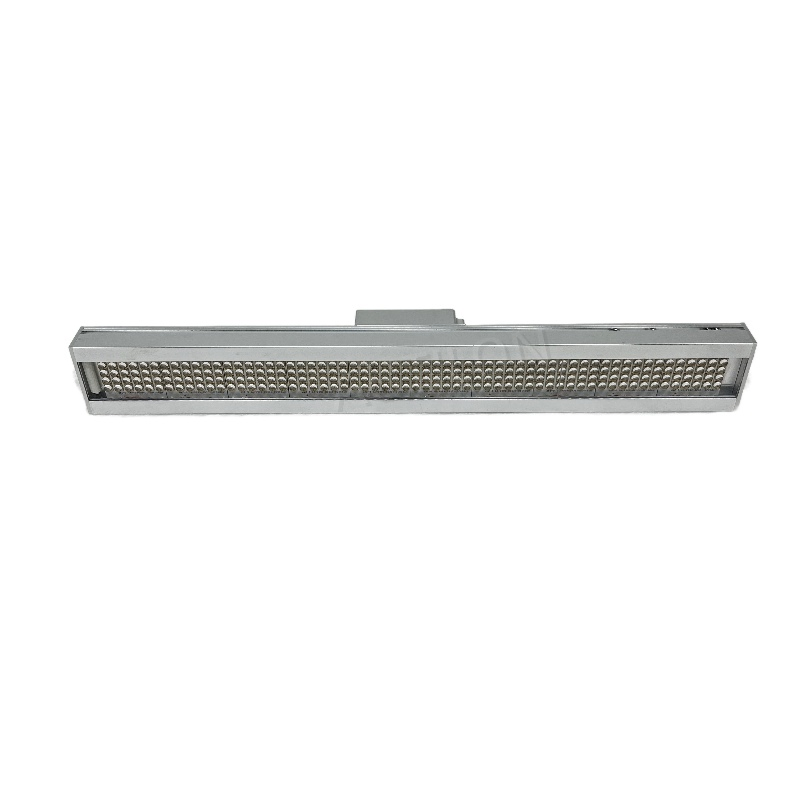

High Power 3kw Ultraviolet Light Curing Machine Water Cooled LED Curing UV Lamp For Offset Printer Conveyor Post-Press Equipment
Product Parameters

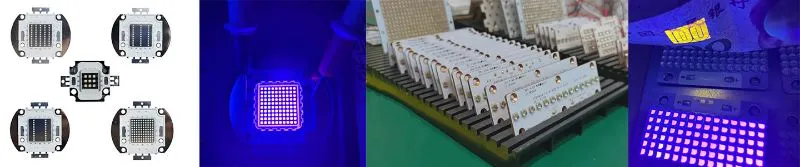

| Chip |
LG/ SEOUL/EPILEDS/SAN AN |
Operating ambient temp. |
0ºC-35ºC |
| Life time |
Above 20,000hrs (depends on environment, working time, heat dissipation) |
Environment humidity |
30%-85%RH |
| Cooling method |
Water cooled |
Material |
Aluminum alloy |
| Irradiation distance |
10-20mm |
Irradiation method |
Manual/Automatic/Pedal |
| Item |
Emitting Window Size |
UV Intensity (365nm) |
UV Intensity (385/395/405nm) |
Power Dissipation |
Product Dimension |
Controller & Cooling |
| Water cooled system |
530*20mm |
11000 mW/cm² |
20000-25000 mW/cm² |
3200W |
L526*W65*H56mm |

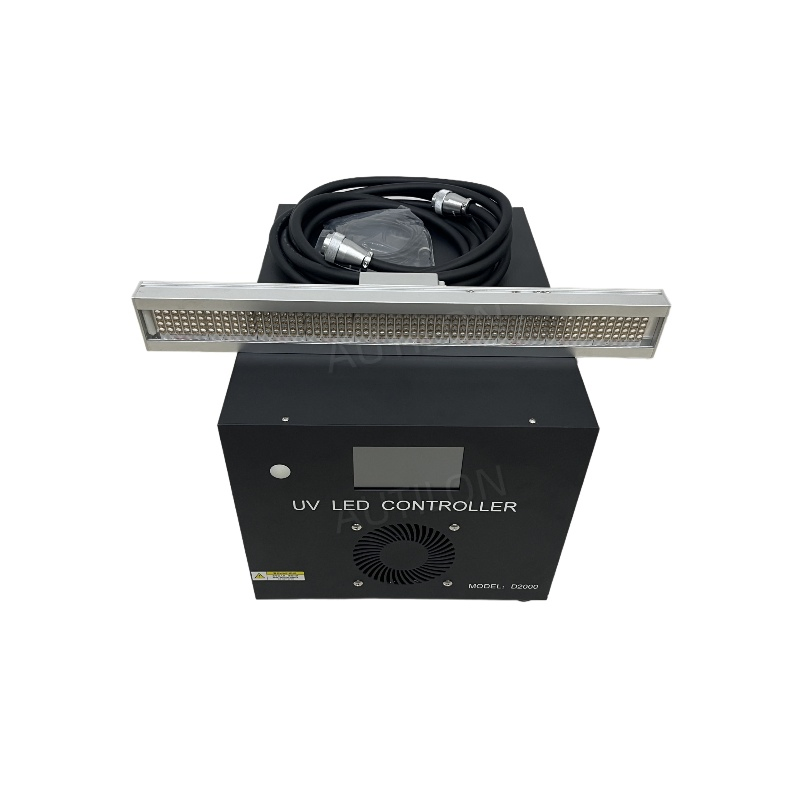

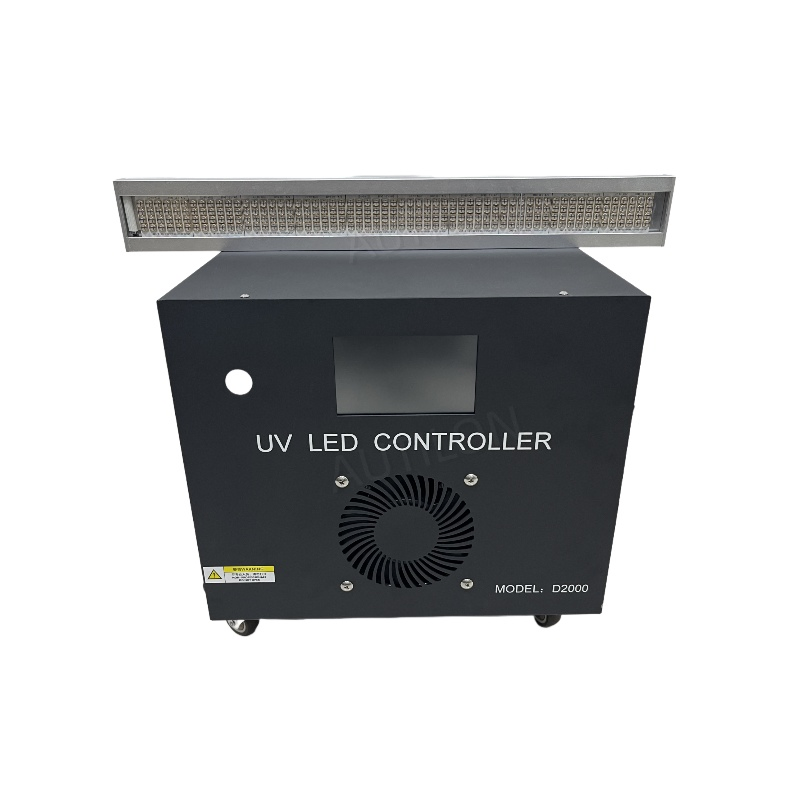

With Separated Power supply controller |
| Customized |
Lamp length can be customized. Each additional 50mm = 320W |

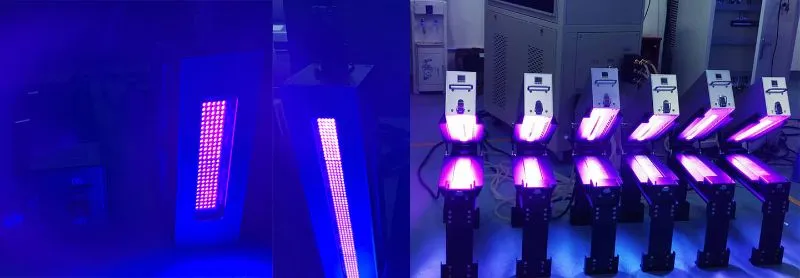

Product Aging Test
Product Application
- UV glue curing
- Painting industry
- Wood curing
- UV printing field etc.
Product Advantages (Compared with UV Mercury Lamp)
- Cold Light Source: UV LED is a cold light source with no thermal radiation, ensuring the surface temperature of the illuminated item remains low.
- High Efficiency: Delivers highly concentrated ultraviolet energy for optimized curing.
- Super Long Lifespan: The service life of UV LED is more than 20 times that of traditional mercury lamps, and is unaffected by the frequency of power cycles.
- Instant On/Off: Fast reaction time with no preheating required, increasing overall productivity.
- High Security & Eco-Friendly: No UVC rays, no ozone release, and not easily broken. No exhaust pipes required, promoting a cleaner working environment.
- High Stability: Highly reliable performance for continuous industrial processes.
- Low Energy Consumption: Achieves significant power savings compared to conventional lamps.
Packaging & Shipping
Frequently Asked Questions (FAQ)
Q1: Do you have your own factory?
A1: Yes, we have our own factory and we are professional in UV LED fields with over 8 years of experience.
Q2: Do you support OEM and ODM services?
A2: Yes, we support OEM/ODM services and product customization to suit your specific requirements.
Q3: What are your main products?
A3: Our core products include UV LED light sources, UV LED curing systems, and UV LED COB Arrays.
Q4: Do you have a MOQ limit for sample orders?
A4: No, a Minimum Order Quantity (MOQ) of 1 unit is acceptable for testing and evaluation.
Q5: What are your standard payment terms?
A5: We accept T/T, PayPal, Western Union, and other standard payment methods.
Q6: How long does it take for my order to be shipped?
A6: Shipping usually takes 7-15 working days, depending on the ordered quantity and customization requirements.
