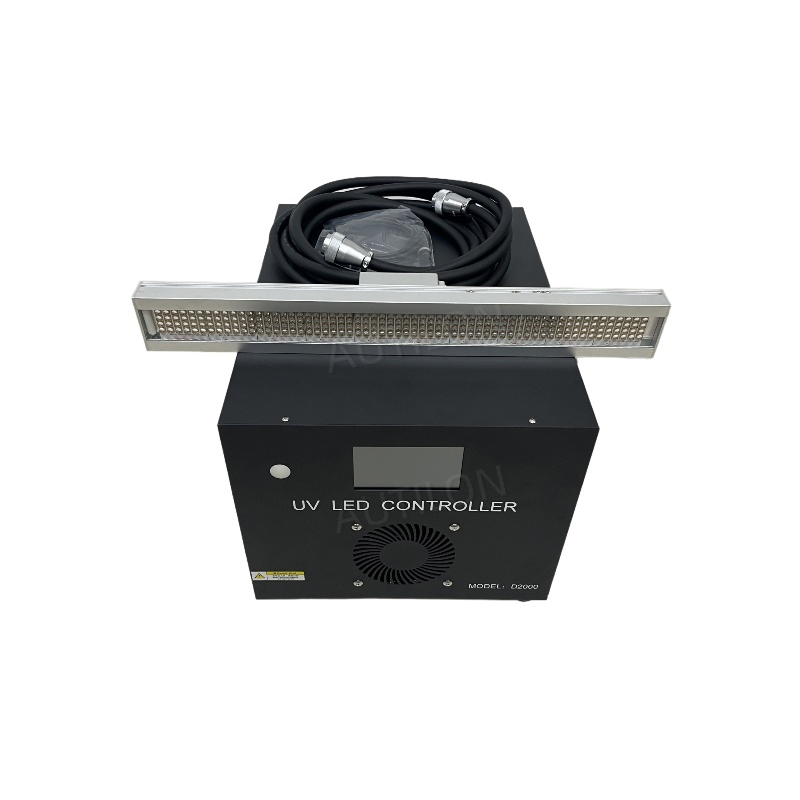

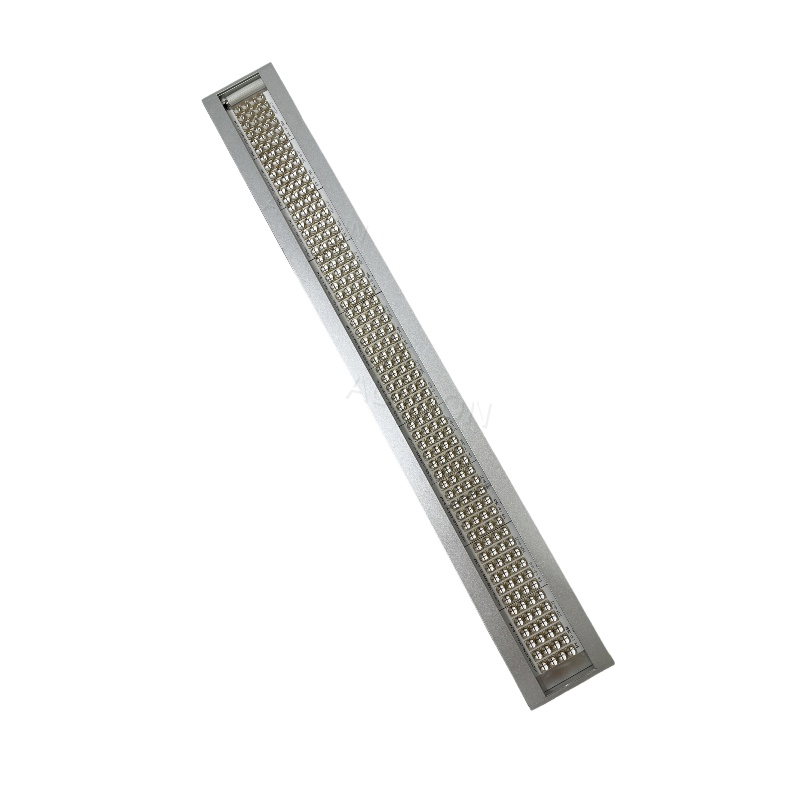

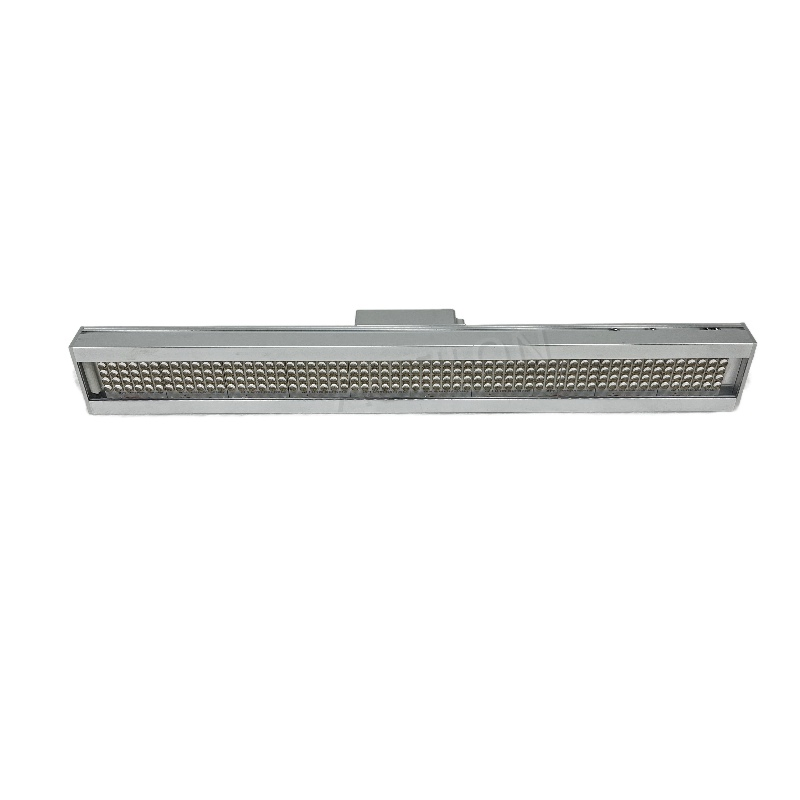

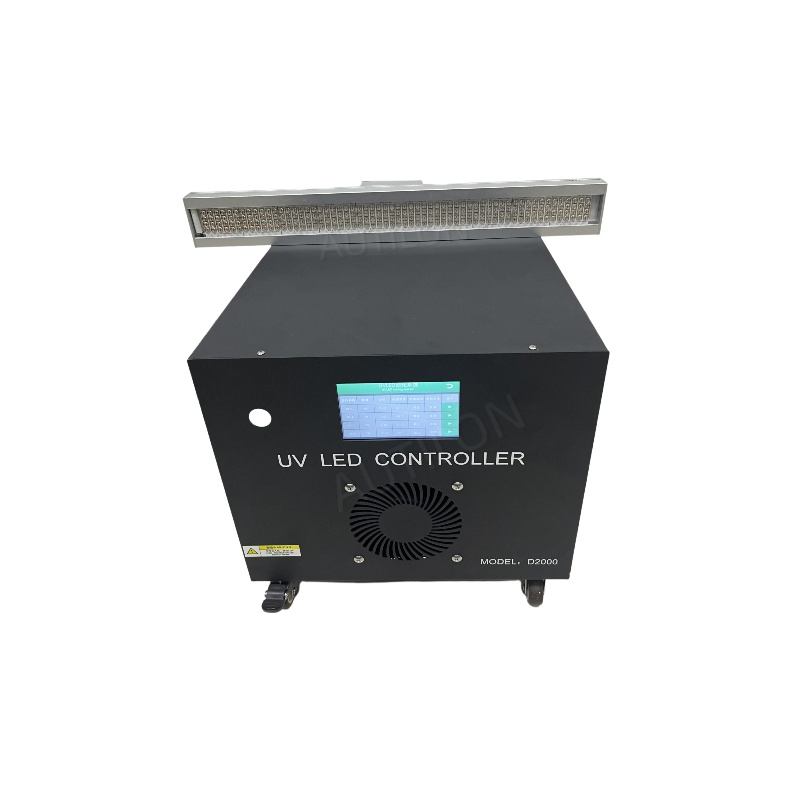

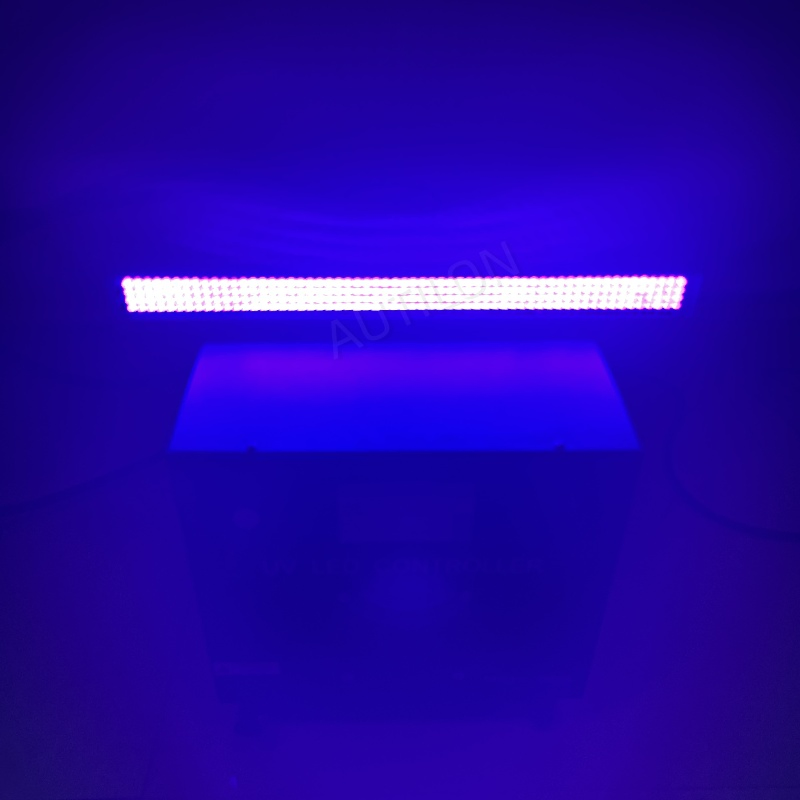

Water Cooled 3000W 3200W UV LED Curing Lamp for Sheet-Fed Offset Press Printed 395nm UV Lamp Dryer

Still deciding? Get samples of $ !
Order Sample

Product Description

Overview
Basic Info.
Model NO.
ATL-UVGT50030W
LED Angle
60degree
Wavelength
385/395/405nm
Power Intensity
20-25W/Cm2
Certification
CE
Custom Logo
Available
Function
PLC
Transport Package
Carton
Specification
500*30mm
Origin
China
HS Code
9405410000
Packaging & Delivery
Package Size
62.00cm * 50.00cm * 46.00cm
Package Gross Weight
42.000kg
Product Description

Water Cooled 3000W 3200W UV LED Curing Lamp for Sheet-fed Offset Press Printed 395nm UV Lamp Dryer

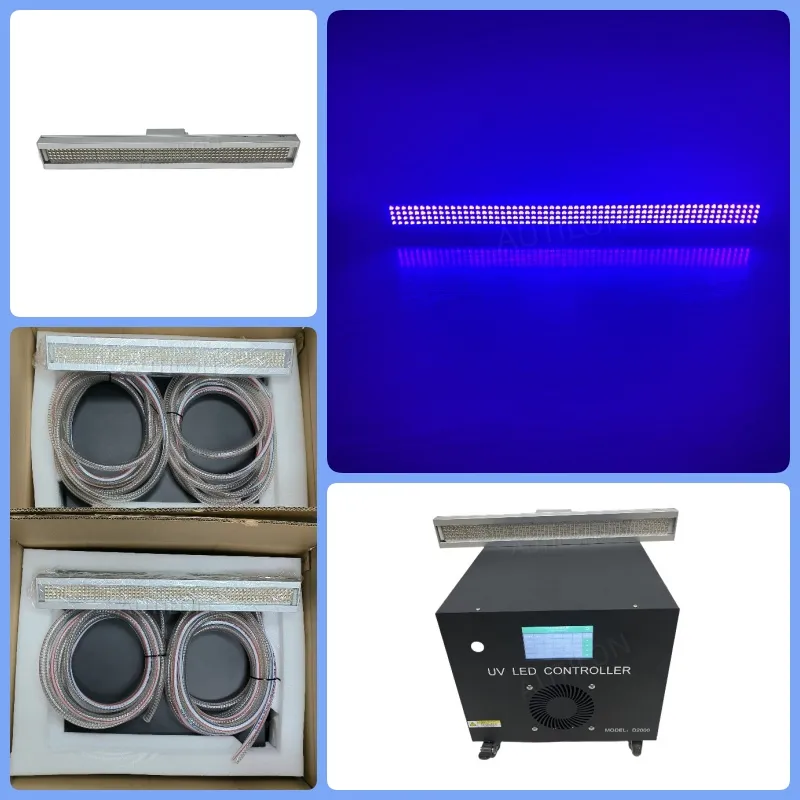

Water Cooled 3000W 3200W UV LED Curing Lamp
Product Parameters
Chip LG/ SEOUL/EPILEDS/SAN AN Operating ambient temperature 0ºC-35ºC
Life time Above 20,000hrs depends on operation environment working time, heat dissipation etc. Environment humidity 30%-85%RH
Cooling method Water cooled Material Aluminum alloy
Irradiation distance 10-20mm Irradiation method by Manual/Automatic/Pedal
Item Emitting window size UV intensity (mW/CM2) Power dissipation Product dimension Power supply controller and Water cooling system
365nm 385/395/405nm
Water cooled system 530*30mm 11000 20000-25000 3200W L526*W65*H56mm With Separated Power supply controller
Customized Lamp length can be customized. Each additional 50mm = 320W
Product Aging Test
UV LED Curing Lamp Aging Test 1

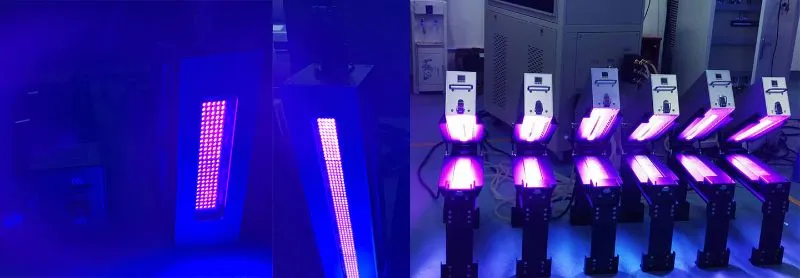

UV LED Curing Lamp Aging Test 2

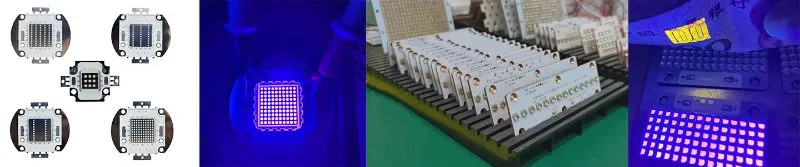

UV LED Curing Lamp Aging Test 3
Product Application
Applications Field:
  • UV glue curing
  • Painting industry
  • Wood curing
  • UV printing field etc.
UV LED Curing Lamp Application
Company Profile

We are an integrated factory specializing in product manufacturing, sales, and service. With deep expertise and intensive study in the communication, optoelectronics, medical, electronics, printing, painting, inkjet, and other industries, our professional qualifications are widely recognized.

Our main product lineup includes: UVLED point light source, UVLED line light source, UVLED surface area light source, UVLED oven, UVLED portable light source, UVLED tunnel light source, UV testing instruments, UV optical lenses, and other related products. These systems are successfully implemented across communications, medical applications, printing, painting, and inkjet operations.

We are committed to developing high-value products, adhering to a customer-focused, honest management development policy, and look forward to building mutual benefit and brilliant progress with partners worldwide.

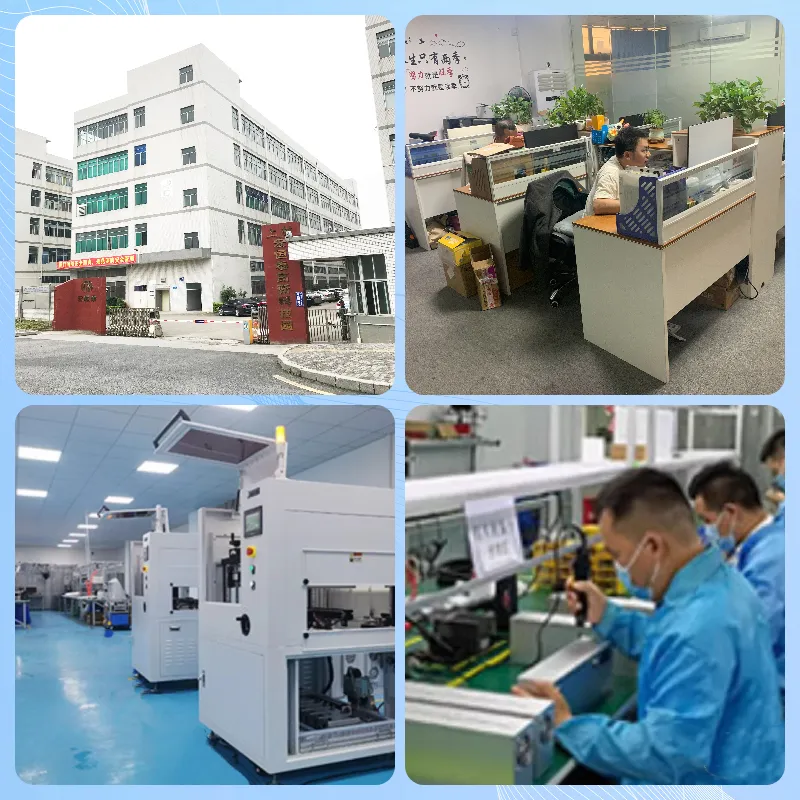

Factory Overview 1
Factory Overview 2
Product Advantage
Advantages of UV LED compared with UV mercury lamp:
  • Cold Light Source: No thermal radiation, keeping the surface temperature of the illuminated item low.
  • High Efficiency: Delivers superior energy concentration for rapid curing.
  • Super Long Life: Service life is more than 20 times that of traditional mercury lamps and is unaffected by the number of power switches.
  • Fast Reaction Time: No preheating needed, instant power-on/off increases overall productivity.
  • High Security: Free of UVC rays, generates no ozone, resistant to breakage, and requires no exhaust pipes.
  • High Stability: Steady UV output performance over extended usage.
  • Low Energy Consumption: Highly efficient energy conversion saves operational costs.
Packaging & Shipping
Packaging and Shipping Details
FAQ
Q1: Do you have your own factory?
Yes, we have our own manufacturing factory and we are professional in the UV LED field with over 8 years of experience.
Q2: Do you support OEM and ODM services?
Yes, we fully support OEM and ODM services to deliver customized products according to your specifications.
Q3: What are your main products?
Our main solutions include UV LED light sources, UV LED curing light systems, and UV LED COB Arrays.
Q4: Do you have any MOQ limit for sample orders?
No, we have no MOQ limit. An order quantity of 1 unit for testing is acceptable.
Q5: What are your standard payment terms?
We accept payment terms via T/T, PayPal, Western Union, and others.
Q6: How long does it take for my order to be shipped?
It usually takes between 7 to 15 working days, heavily depending on the final order quantity.
