Offset Printing UV LED Curing Lamp Head 1000W Water-Cooled UV LED Systems UV Printer LED Light Source

Still deciding? Get samples of $ !
Order Sample

Product Description

Overview
Product Description
Product Parameters
Product Aging Test
Product Application
Company Profile
Product Advantage
Packaging & Shipping
FAQ
Overview
Basic Info.
Model NO. ATL-UVGT30020W
LED Angle 60degree
Wavelength 385/395/405nm
Power Intensity 20-25W/Cm2
Certification CE
Transport Package Carton
Specification 300*20mm
Origin China
HS Code 9405410000
Packaging & Delivery
Package Size 57.00cm * 40.00cm * 38.00cm
Package Gross Weight 17.500kg
Product Description

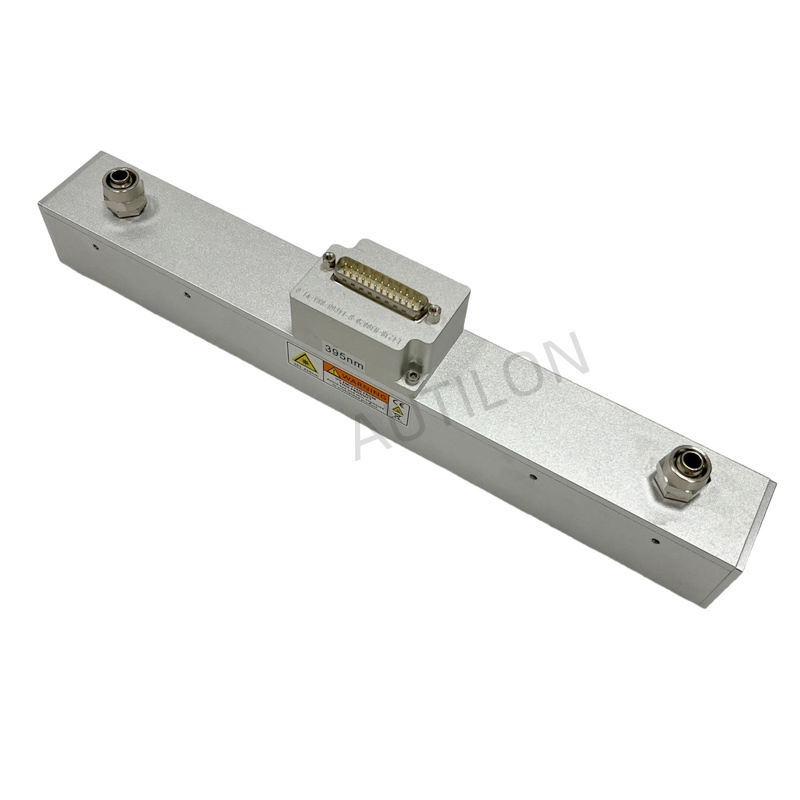

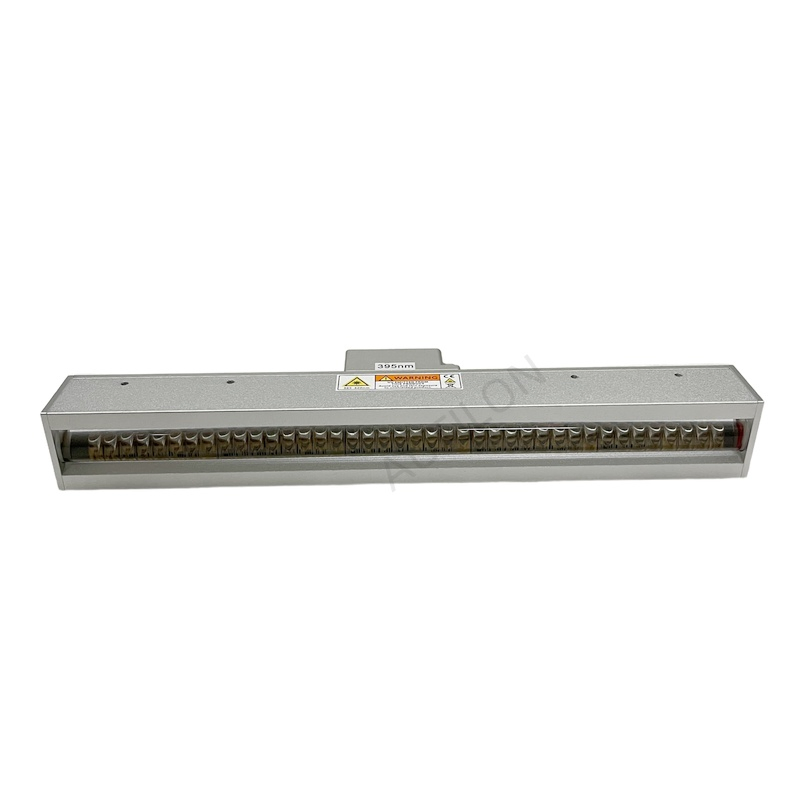

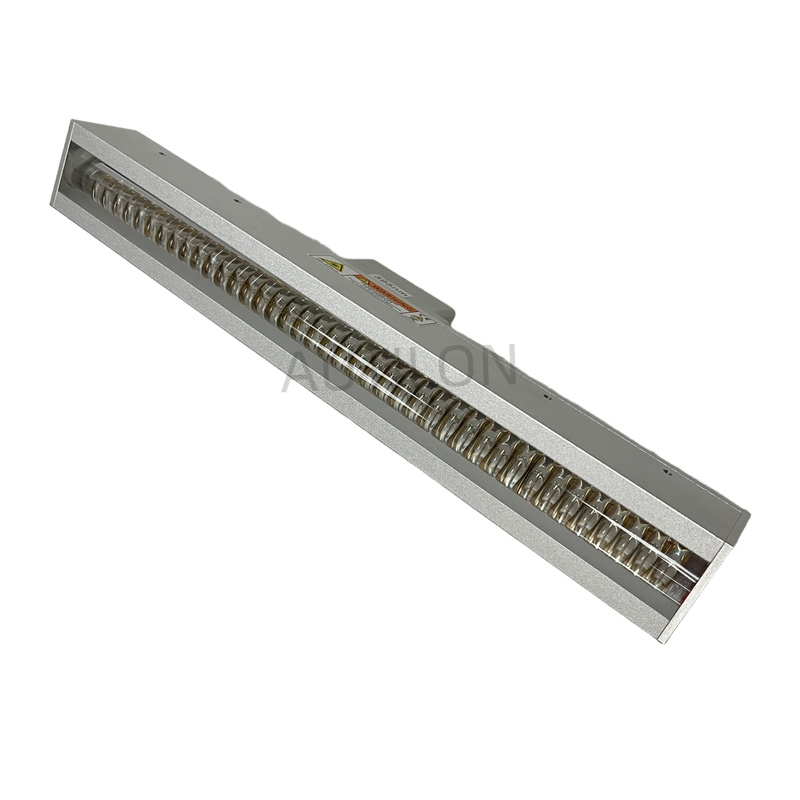

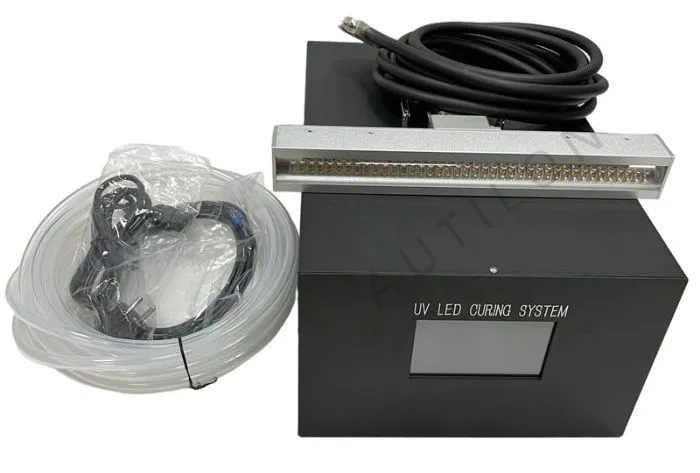

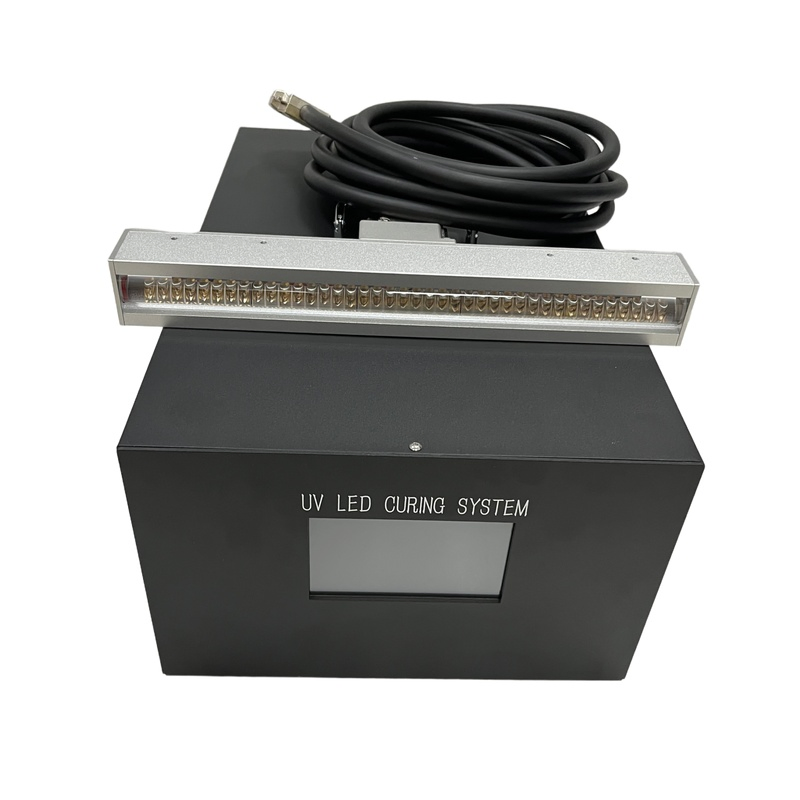

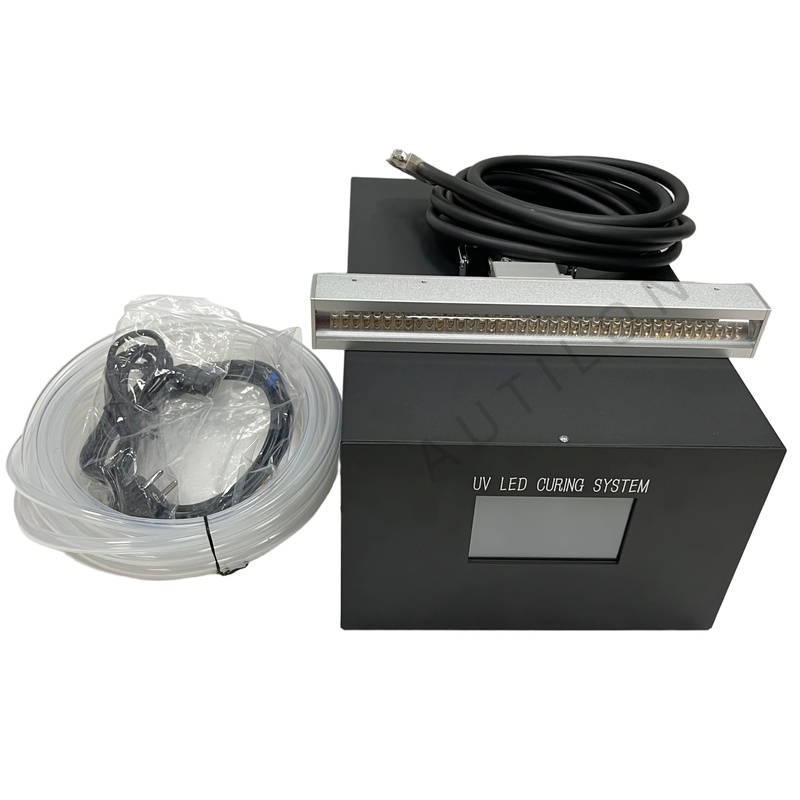

Offset Printing UV LED Curing Lamp Head 1000W Water-cooled Uv LED Systems UV Printer LED Light Source
Offset Printing UV LED Curing Lamp Head 1000W Water-Cooled UV LED Systems UV Printer LED Light Source
Offset Printing UV LED Curing Lamp Head 1000W Water-Cooled UV LED Systems UV Printer LED Light Source
Offset Printing UV LED Curing Lamp Head 1000W Water-Cooled UV LED Systems UV Printer LED Light Source
Offset Printing UV LED Curing Lamp Head 1000W Water-Cooled UV LED Systems UV Printer LED Light Source
Product Parameters
Chip LG/ SEOUL/EPILEDS/SAN AN Operating ambient temperature 0ºC-35ºC
Life time Above 20,000hrs depends on operation environment working time, heat dissipation etc. Environment humidity 30%-85%RH
Cooling method Water cooled Material Aluminum alloy
Irradiation distance 10-20mm Irradiation method by Manual/Automatic/Pedal
Item Emitting window size UV intensity (mW/CM2) Power dissipation Product dimension Power supply controller and Water cooling system
365nm 385/395/405nm
Water cooled system 200*20mm 6000-8000 18000-25000 600W L245*W70*H90mm power controller water cooled integration
300*20mm 900W L345*W70*H90mm controller D1200-cm and water cooled system 0.5p
400*20mm 1200W L445*W70*H90mm controller D2000-cm and water cooled system 0.5p
500*20mm 1500W L545*W70*H90mm controller D2000-cm and water cooled system 0.8p
600*20mm 2400W L645*W70*H90mm controller D2000-cm and water cooled system 1.5p
Customized lamp length can be customized. each additional 50mm=150W

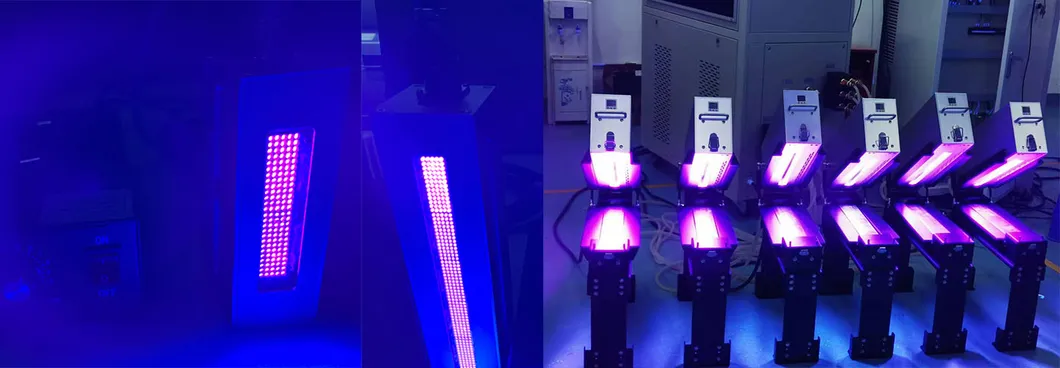

Product Aging Test
Offset Printing UV LED Curing Lamp Head 1000W Water-Cooled UV LED Systems UV Printer LED Light Source
Offset Printing UV LED Curing Lamp Head 1000W Water-Cooled UV LED Systems UV Printer LED Light Source

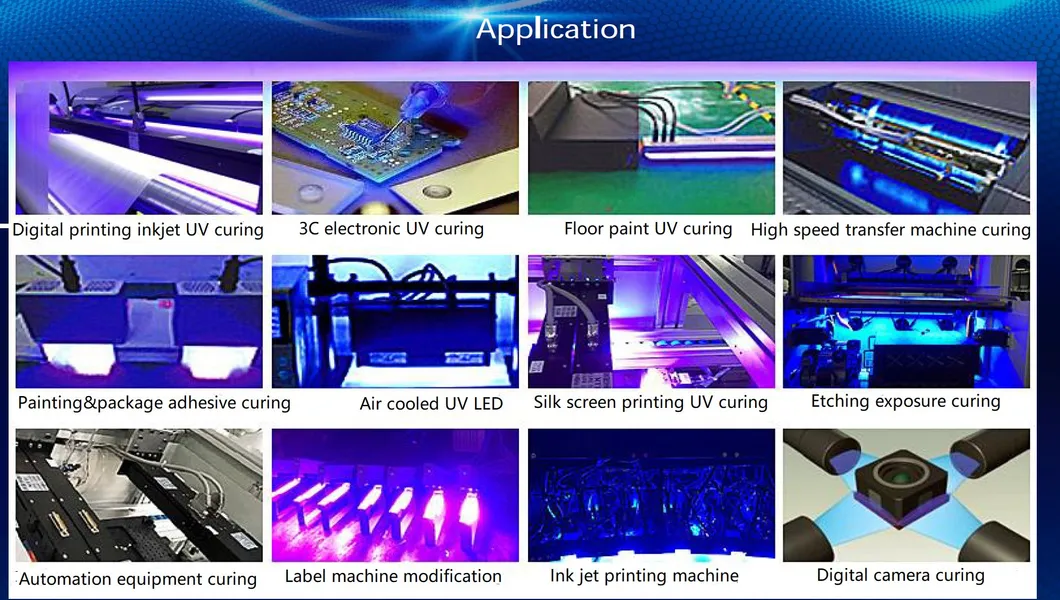

Product Application
Application:
  • UV glue curing;
  • Painting industry;
  • Wood curing;
  • UV printing field etc.
Offset Printing UV LED Curing Lamp Head 1000W Water-Cooled UV LED Systems UV Printer LED Light Source

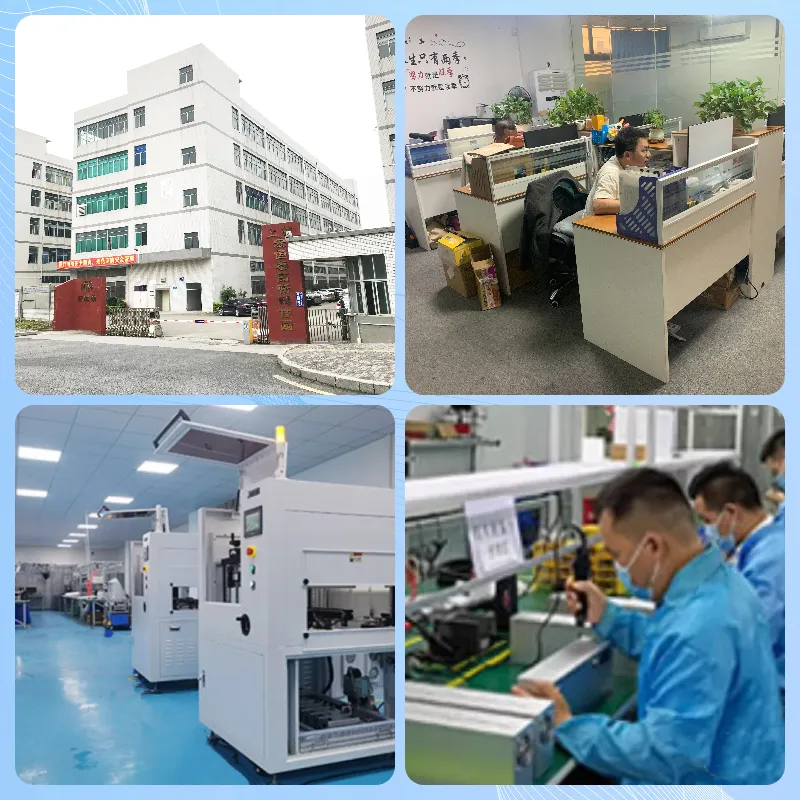

Company Profile
We are an integrated factory integrating product manufacturing, sales and service. The company in the communication, optoelectronics, medical, electronics, printing, painting, inkjet and other industries intensive cultivation, depth study, professional has been widely recognized by the industry.
Our main products are: UVLED point light source, UVLED line light source, UVLED surface area light source, UVLED oven, UVLED portable light source, UVLED tunnel light source, UV testing instruments, UV optical lenses and other related products.
The company's products have been successfully used in communication, optoelectronics, medical, electronics, printing, painting, inkjet and other industries.
The company is committed to creating valuable products, always adhere to the "people-oriented, integrity management" development policy and "honest and trustworthy, mutual benefit" business philosophy, is willing to work with new and old friends from all walks of life, hand in hand to create brilliant.
Offset Printing UV LED Curing Lamp Head 1000W Water-Cooled UV LED Systems UV Printer LED Light Source
Offset Printing UV LED Curing Lamp Head 1000W Water-Cooled UV LED Systems UV Printer LED Light Source
Product Advantage
Advantages of UV LED compared with UV mercury lamp:
  • UV LED is cold light source, no thermal radiation, the surface temperature of the illuminated item is low.
  • High efficiency.
  • Super long life. The service life of UV LED is more than 20 times that of traditional mercury lamp, and the service life is not affected by the number of switches.
  • The reaction time is fast. UV LED do not need to be preheated and can be printed immediately after turning on, increasing productivity.
  • High security. UV LED has no UVC rays, no ozone release and are not easy to break, and do not need to be equipped with exhaust pipes, which is conducive to environmental protection.
  • High stability.
  • Low energy consumption.
Packaging & Shipping
Offset Printing UV LED Curing Lamp Head 1000W Water-Cooled UV LED Systems UV Printer LED Light Source
FAQ
Do you have your own factory?
Yes, we have our own factory and we are professional in UV LED fields over 8 years experience.
Do you support OEM, ODM service?
Yes, we support OEM / ODM service and customized product.
What is your main products?
UV LED light source, UV LED curing light, UV LED COB Array, etc.
Do you have any MOQ limit for the sample order?
No, MOQ 1 is acceptable.
What is your normal payment terms?
T/T, PayPal, Western Union etc.
How long does it take for my order to be shipped?
It usually takes 7-15 working days, depending on the quantity.
