MF-UV20 Energy Saving 405nm LED UV Dryer Continuous Conveyor Tunnel Oven for Plastic Bottle & Container Surface UV Coating Cure
UV Curing Machine features
- The frame structure uses a 50*50mm square tubing support, equipped with adjustable feet and swivel casters at the bottom. The side panels are made of 1.2mm sheet metal with a computer-grade white electrostatic powder coating.
- The conveyor mechanism uses dedicated aluminum alloy guide rails and a full stainless steel chain, with a PLC touchscreen for adjusting the track width. The conveyor belt power system uses a frequency converter to control the speed.
- The furnace body is designed for easy opening and maintenance.
- The UV curing system uses UV lamps as the curing source.
- The control system hardware adopts standard safe installation methods. The electrical control system includes overload protection, over-temperature protection, and fault feedback display, among other electrical safety protection designs.
- The conveyor mechanism is an upper-level conveyor. The furnace body is equipped with a flip-up mechanism for easy daily maintenance and upkeep. The conveying of boards is smooth, noiseless, and without board jamming or collision.
- The control system adopts a PLC controller + touch screen + sensors. The wiring layout is reasonable, the wiring is neat, and the wiring is installed using cable trays. The overall layout and wiring must be safe and aesthetically pleasing.
- The control system can temporarily disable the fixed functions under external control, leaving only the conveyor mechanism's conveying function enabled.
UV Curing Machine Specifications
| Type |
Spec |
Model spec. |
Type |
Spec |
Model spec. |
| Light source parameters |
UV Lamp Lifespan |
Light decay begins after 800 hours |
Factory Requirements |
Parameter Type |
MF-UV20 |
| Light Source Type |
Mercury lamp |
Dimensions |
L1500mm*W1200mm*H1700 |
| UV Zone Length |
1000mm |
Power Supply |
AC380V |
| UV Lamp Power*Qty |
3KW*2 |
Total Power |
7.5KW |
| UV Lamp Power Density |
75W/cm² |
Equipment Weight |
520KG |
| UV Light Intensity |
80-200mw/cm² |
Exhaust Volume Requirement |
15m³/min |
| Irradiation Direction |
Downlight type |
Conveying System |
Transport Speed |
0.5-5m/min continuously adjustable |
| UV Band and Peak Wavelength |
280nm-420nm (main peak UVA 365nm) |
Conveyor Rail Width |
50-450mm adjustable |
| Minimum UV Energy Value (at a speed of 5m/min) |
150mj/cm² |
Adjustment Method |
Manual lead screw adjustment |
| Effective Irradiation Width |
450mm |
Motion System |
Transportation Method |
Geared motor drive |

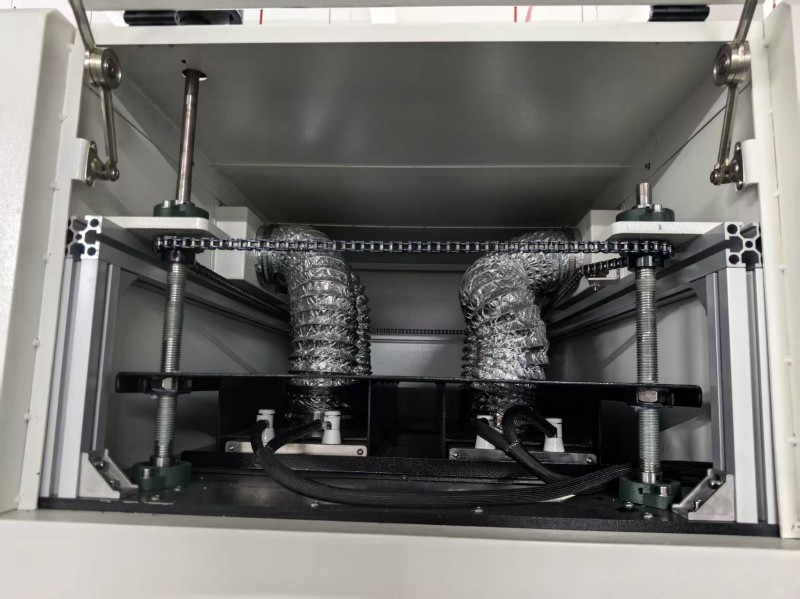

| UV Lamp Height Adjustment |
90-120mm adjustable |
Conveyor Rail |
Dedicated aluminum alloy + stainless steel chain |
| UV Lamp Power Adjustment |
Full beam |
Control Method |
Control Method |
Standard configuration: button type / PLC + touch screen (optional) |
| UV Indoor Dynamic Temperature |
≤100°C (at idle speed of 2m/min) |
Other |
PCB Board Component Height |
Maximum vertical sizing: 100mm |
| UV Energy Deviation (in the Conveying Width Direction) |
Within 20% |
Conveyed to Ground Height |
920±20mm |
| Cooling Method |
Forced air cooling |
Conveyor Direction |
L-R |
| Cabinet Surface Temperature |
≤40°C |
|
|
|
| Project |
Technical Parameter Optional Configuration |
| Extended Functionality Selection |
1. Lower Layer Backhaul (Segmented) |

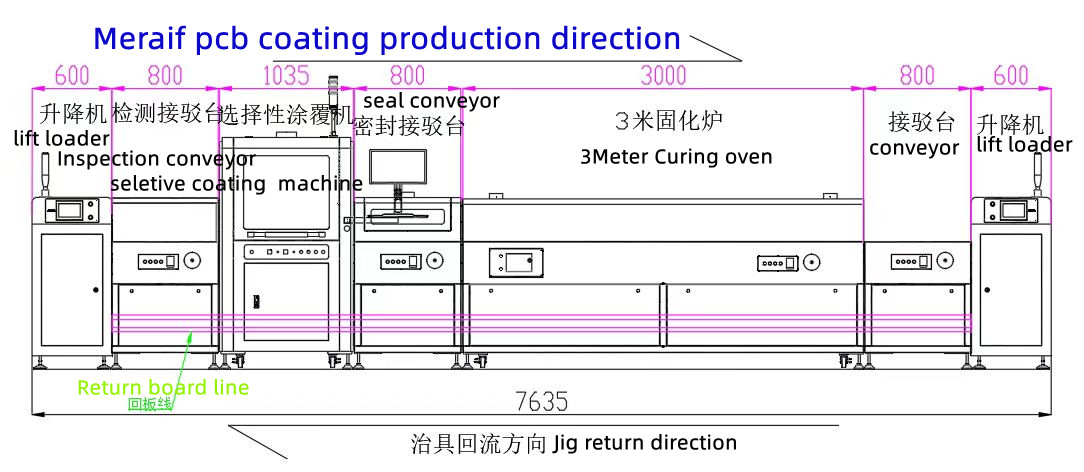

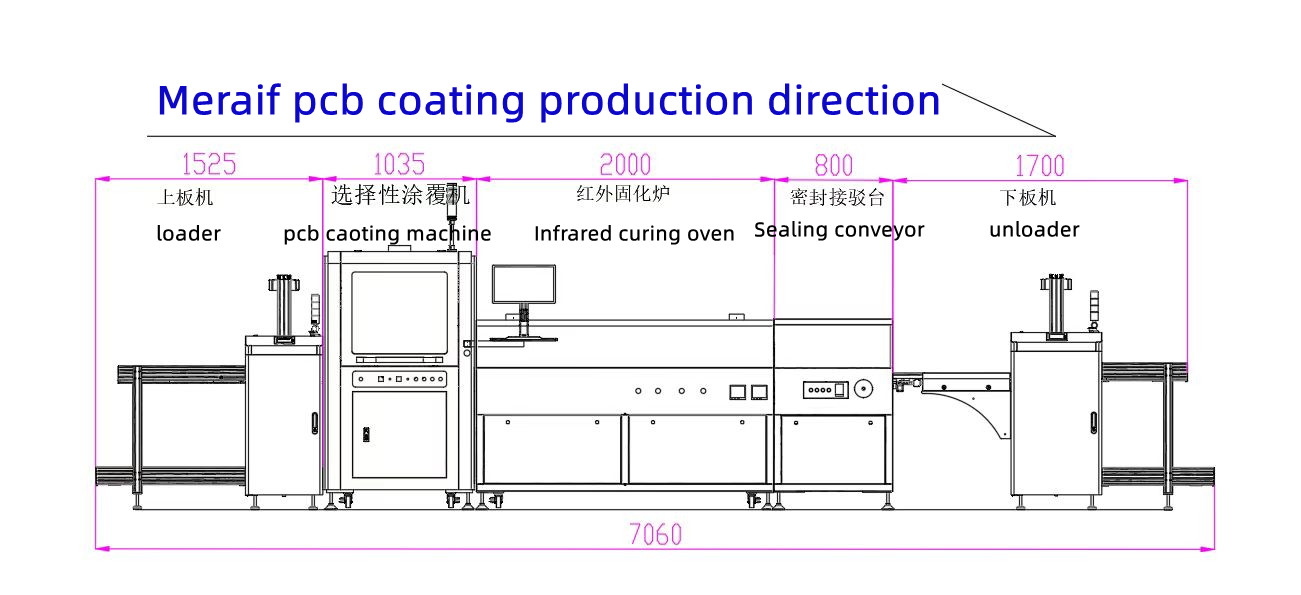

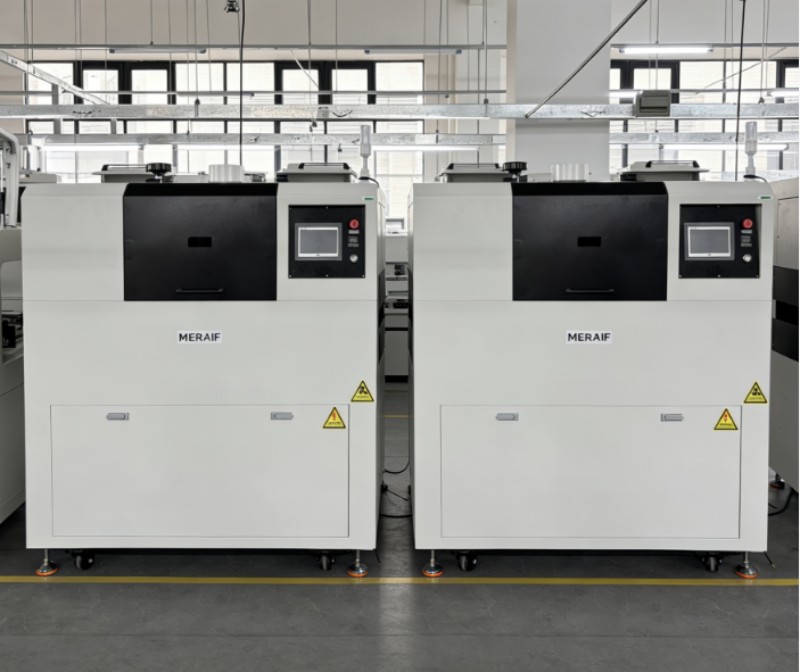

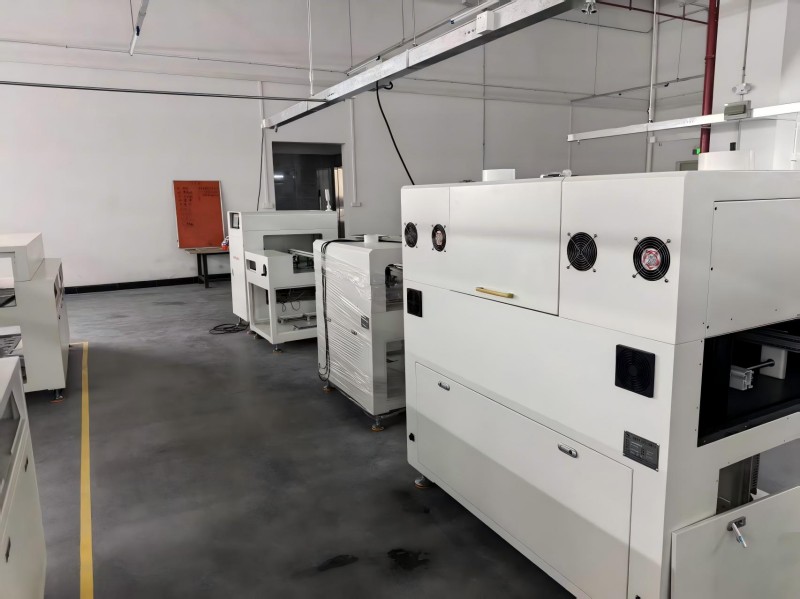

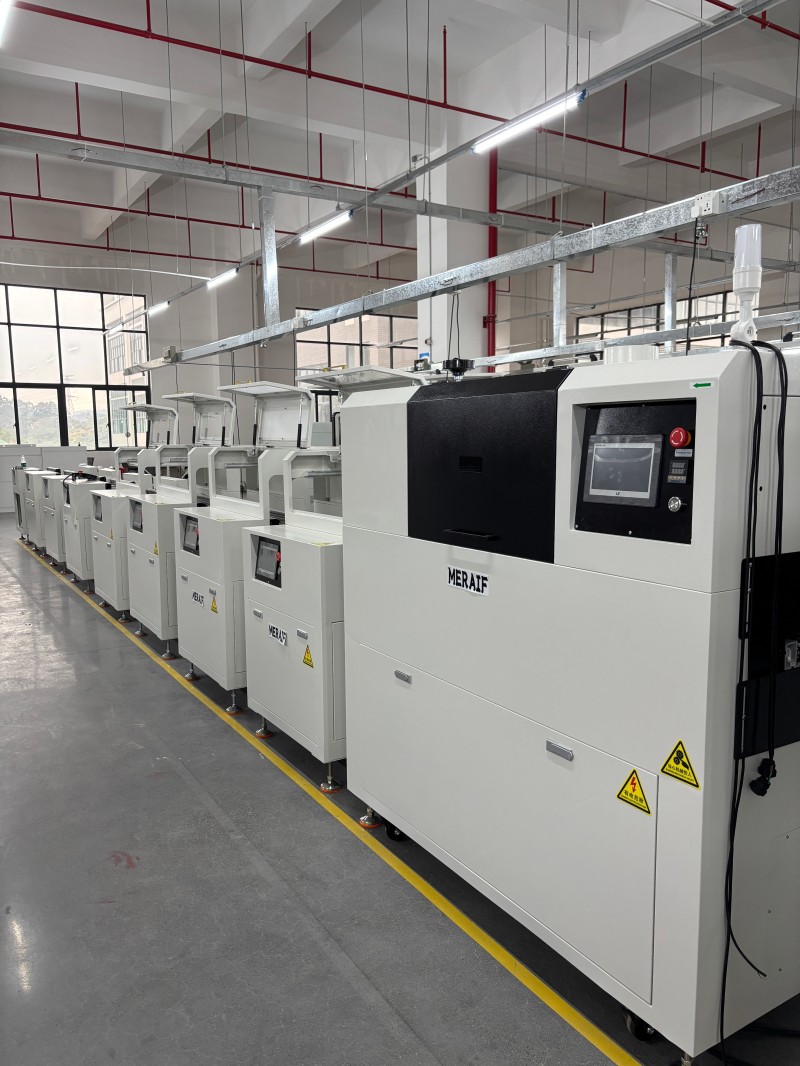

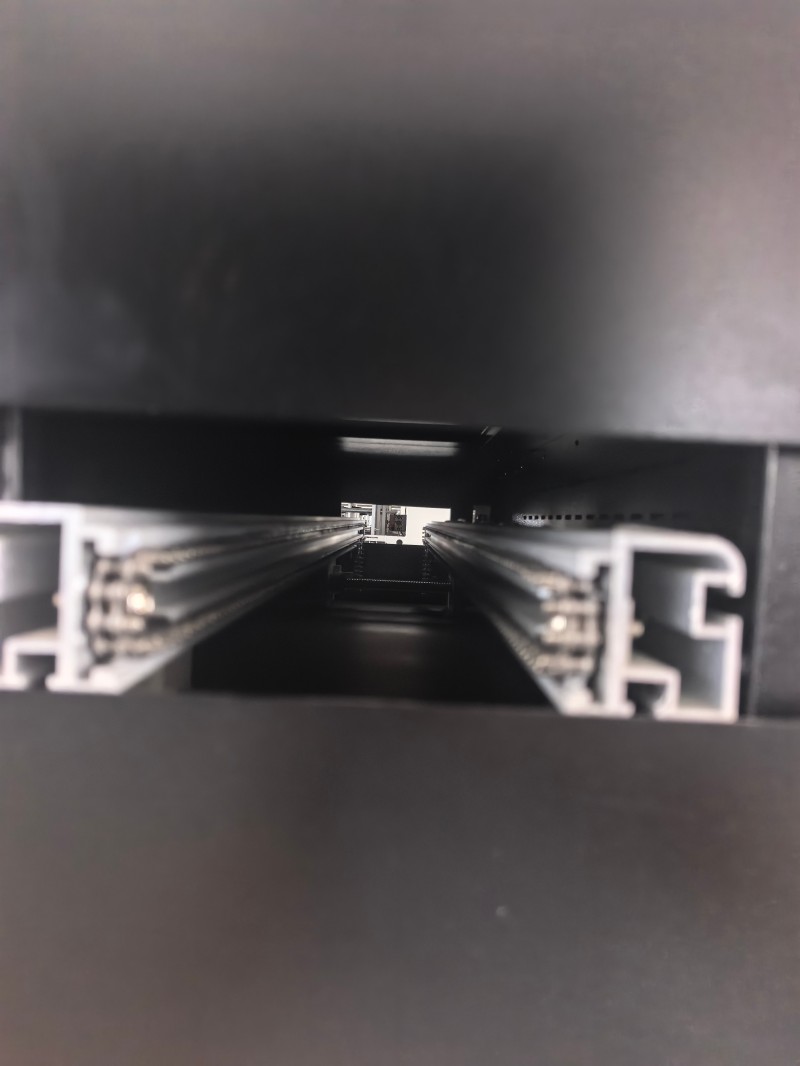

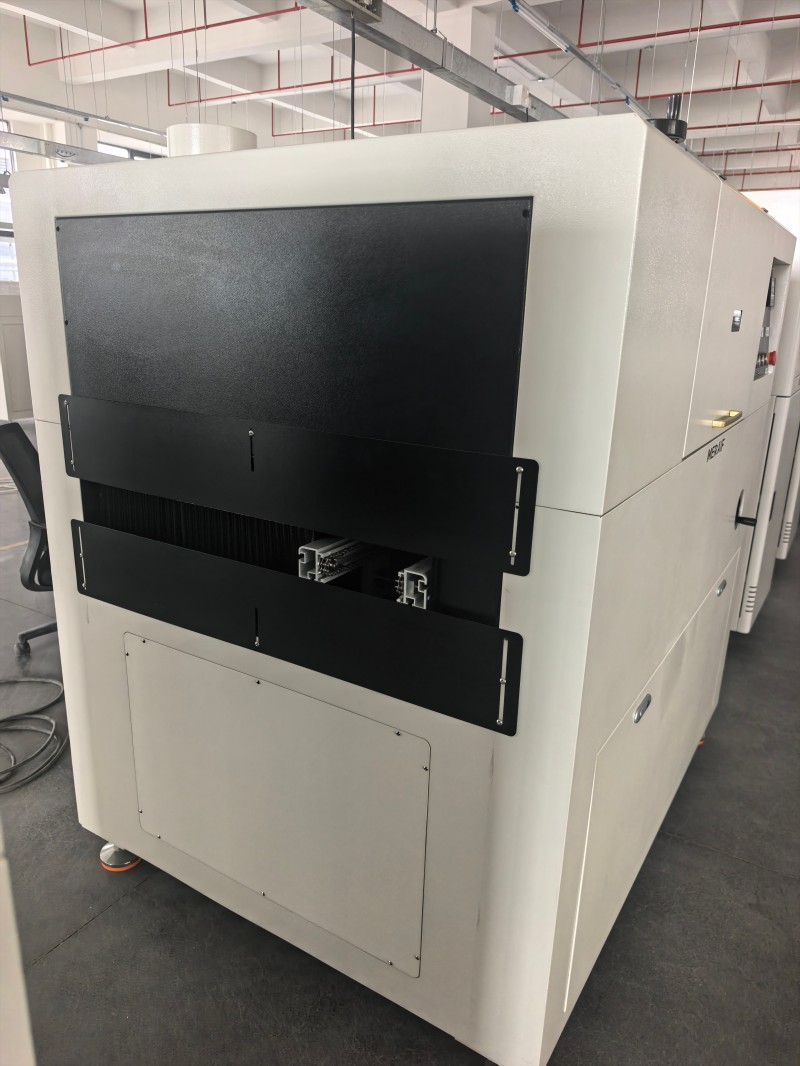

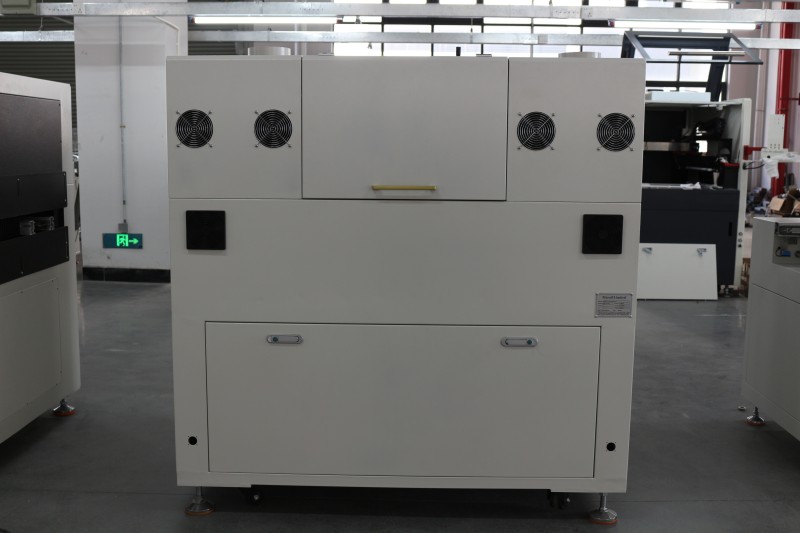

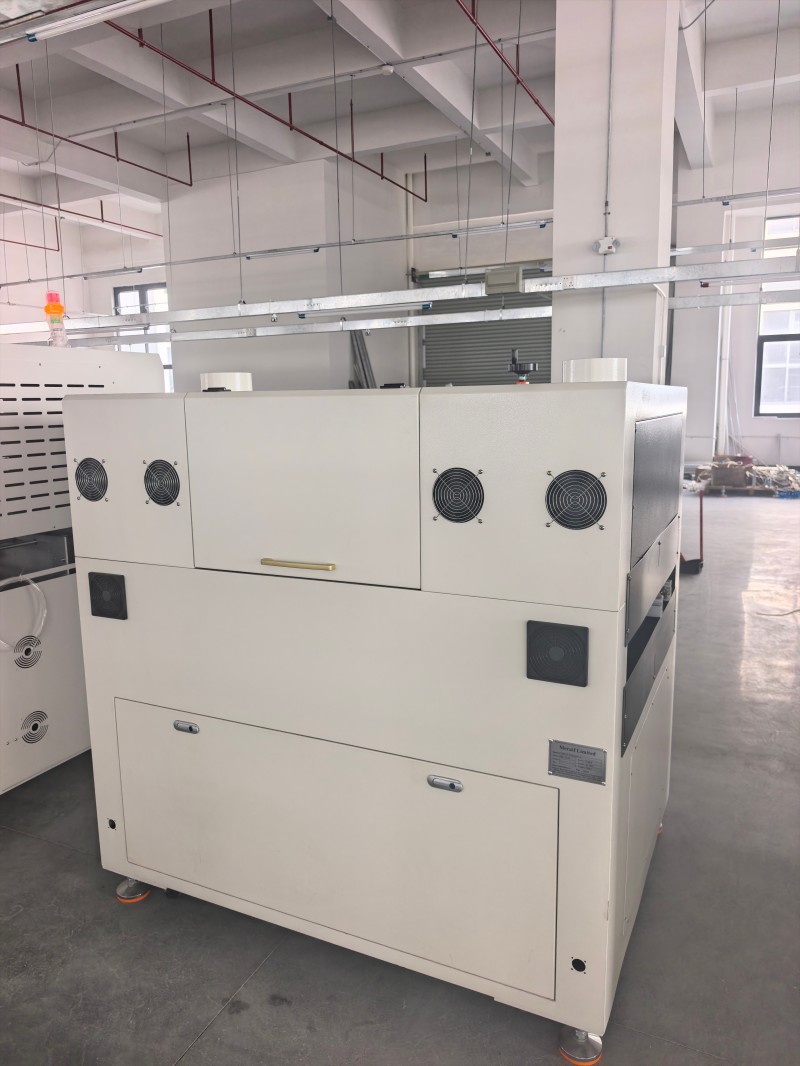

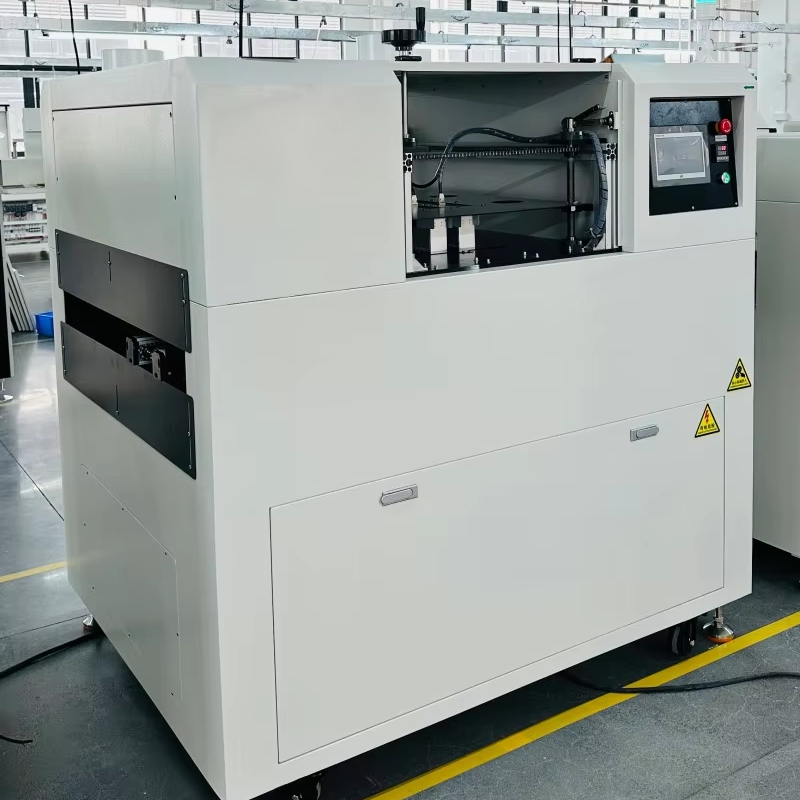

UV Curing Machine Picture Show

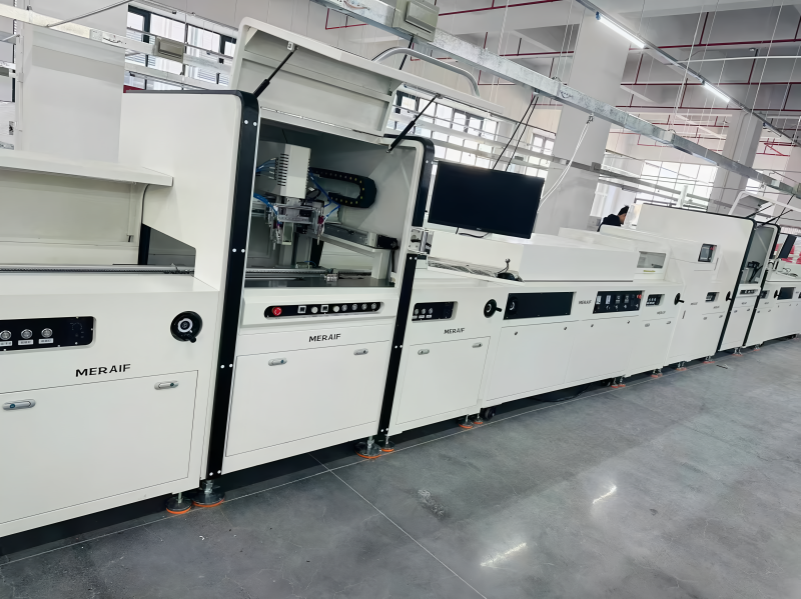

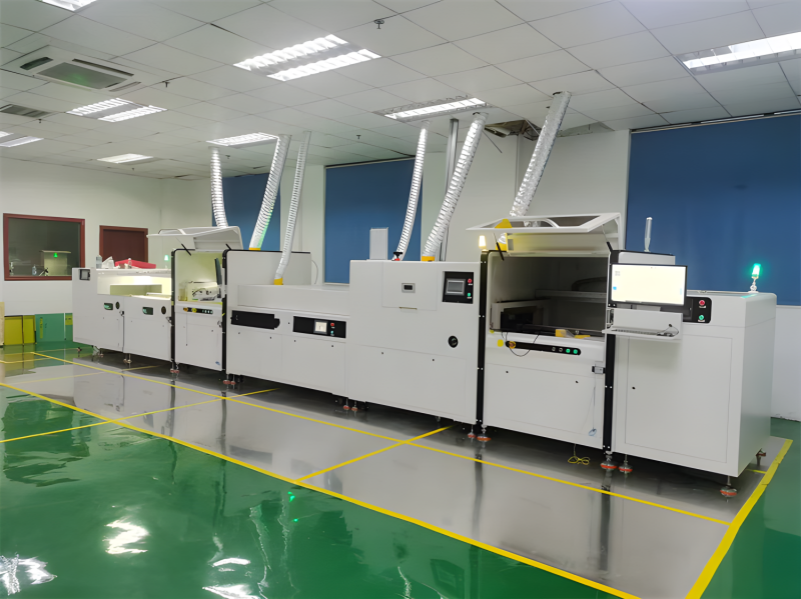

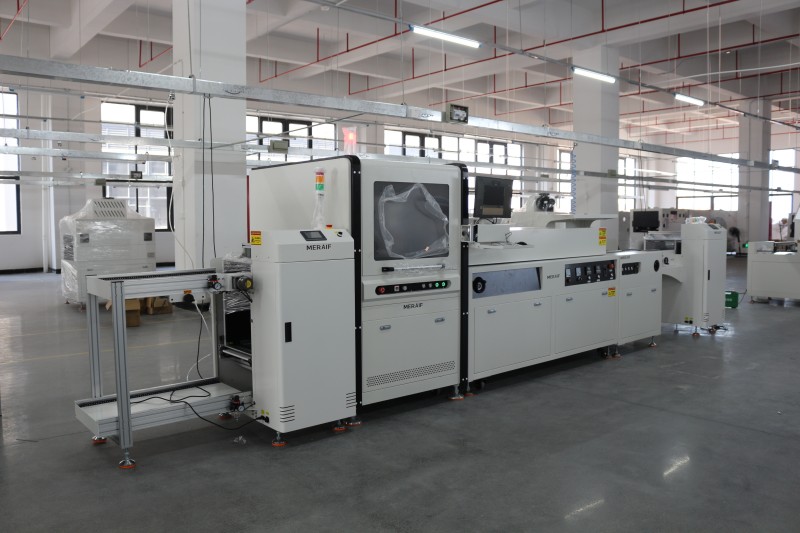

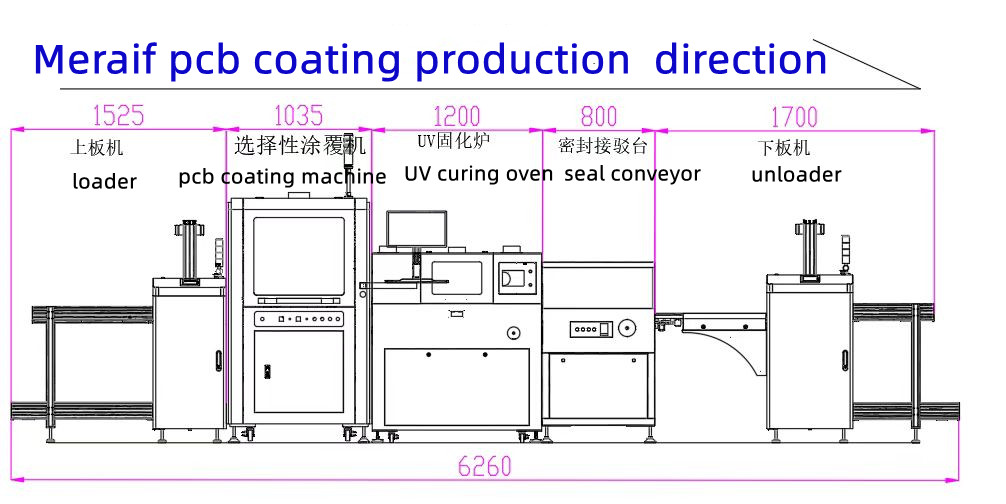

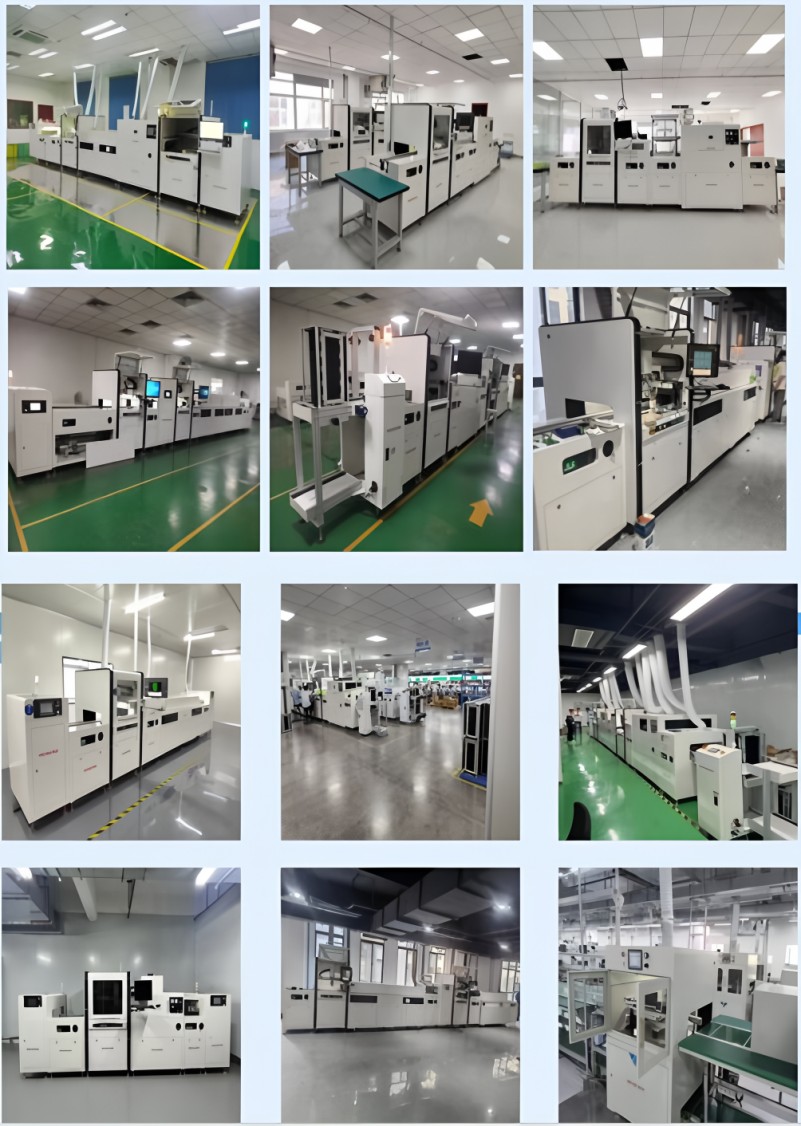

SMT Machine Line Exhibition

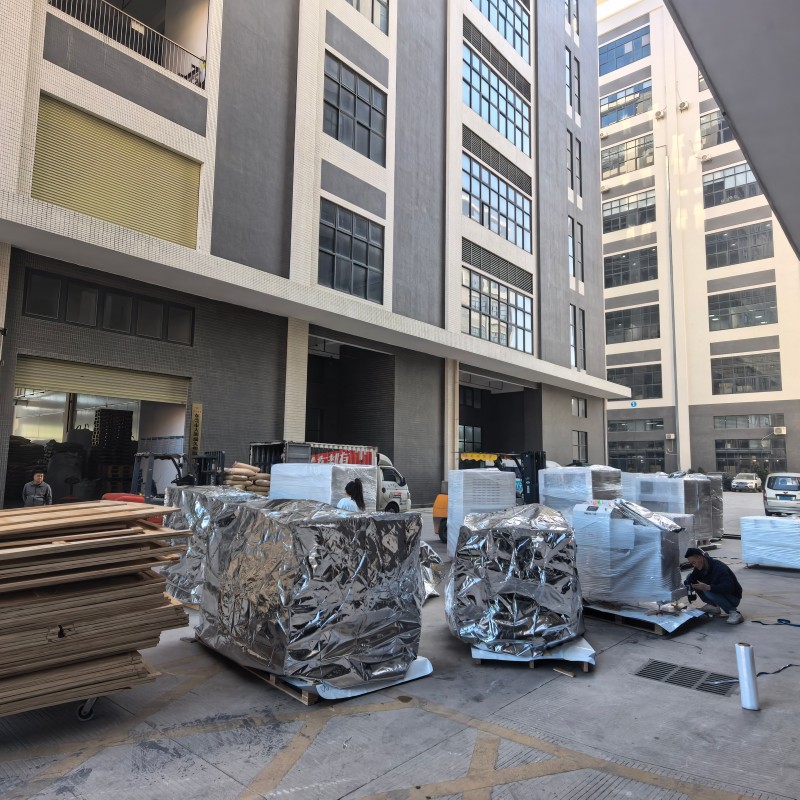

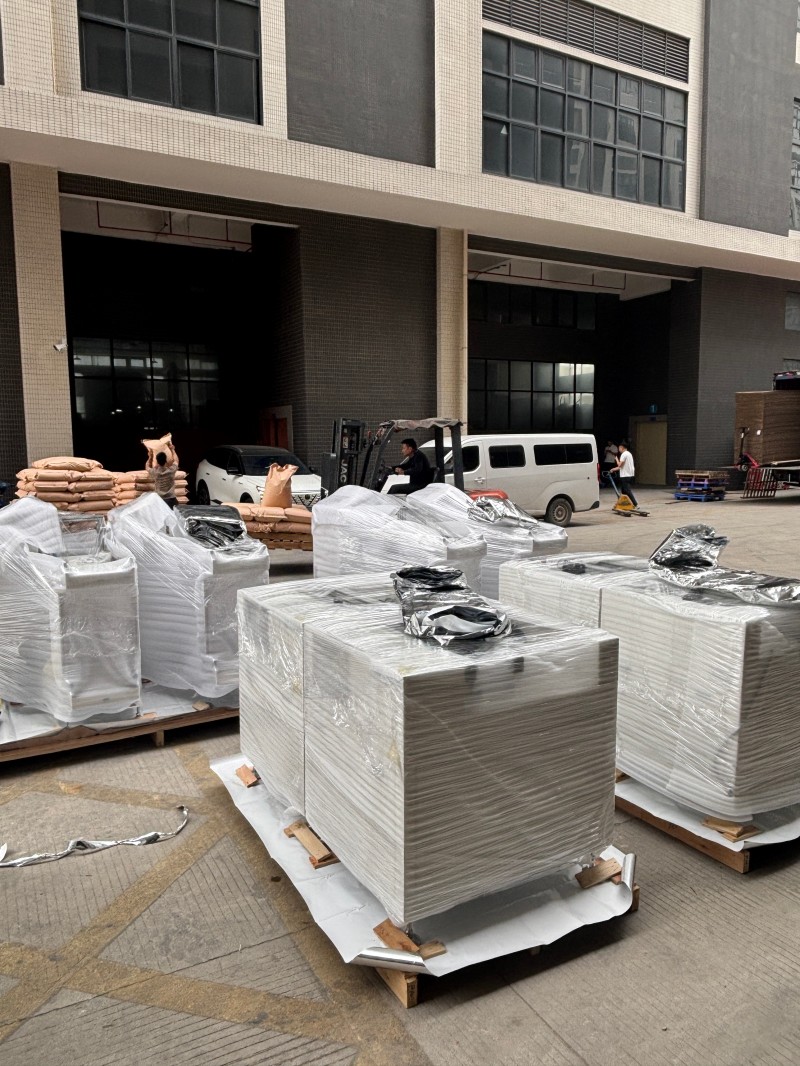

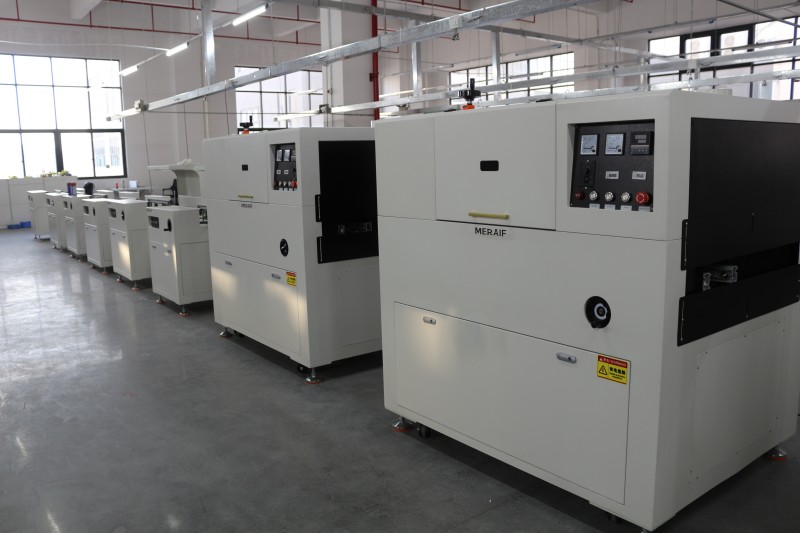

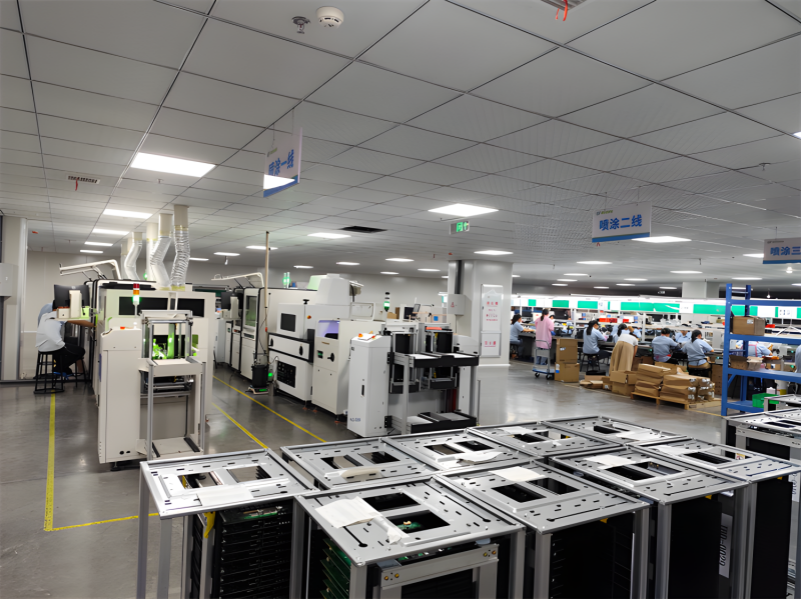

SMT Factory Show
Frequently Asked Questions (FAQ)
What are the electrical power requirements for the MF-UV20?
The machine operates on a power supply of AC380V, with a total power consumption of 7.5KW.
What is the lifespan of the UV curing lamp?
The MF-UV20 utilizes a mercury lamp, and light decay typically begins after approximately 800 hours of use.
How adjustable is the conveying speed and width?
The transport speed is continuously adjustable between 0.5 and 5 m/min. The conveyor rail width can be manually adjusted from 50 to 450 mm using a lead screw.
What is the maximum component height the machine can handle?
The machine supports a maximum vertical sizing of 100mm for PCB board components.
How is the system cooled, and what is the dynamic operating temperature?
The machine uses forced air cooling. The dynamic temperature inside the UV chamber stays ≤100°C (at an idle speed of 2m/min), keeping the outer cabinet surface temperature ≤40°C.
What safety and protection features are integrated into the control system?
The electrical control system includes overload protection, over-temperature protection, and real-time fault feedback display to ensure safe operations.
