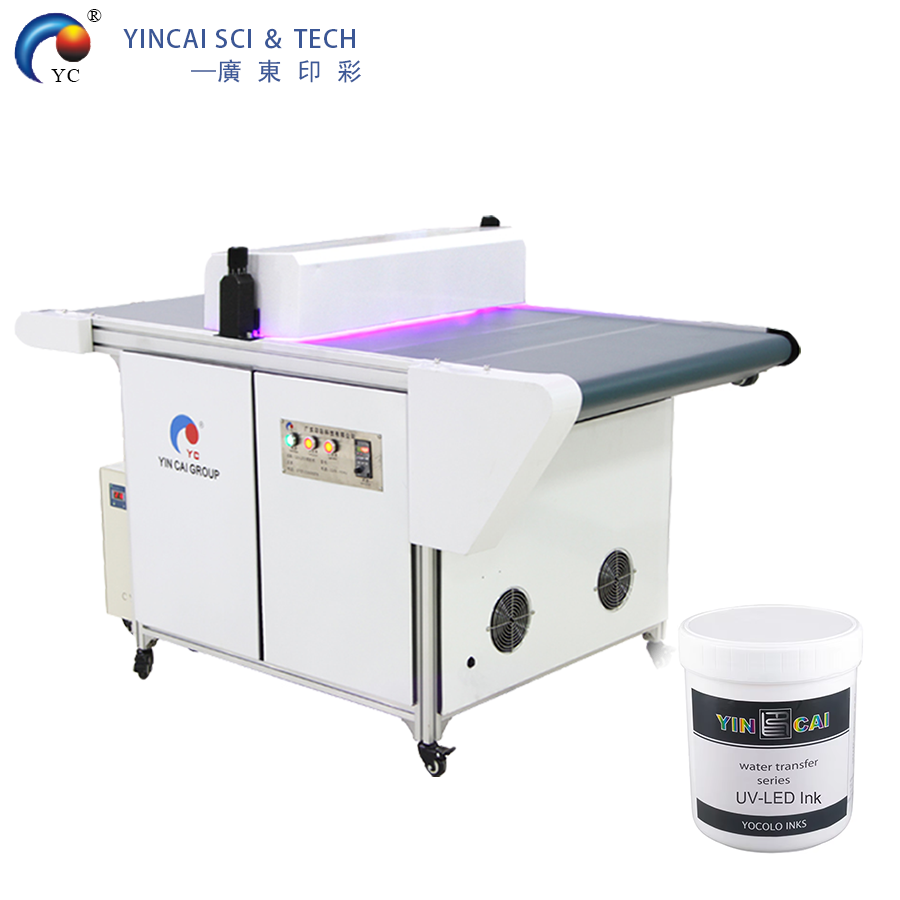

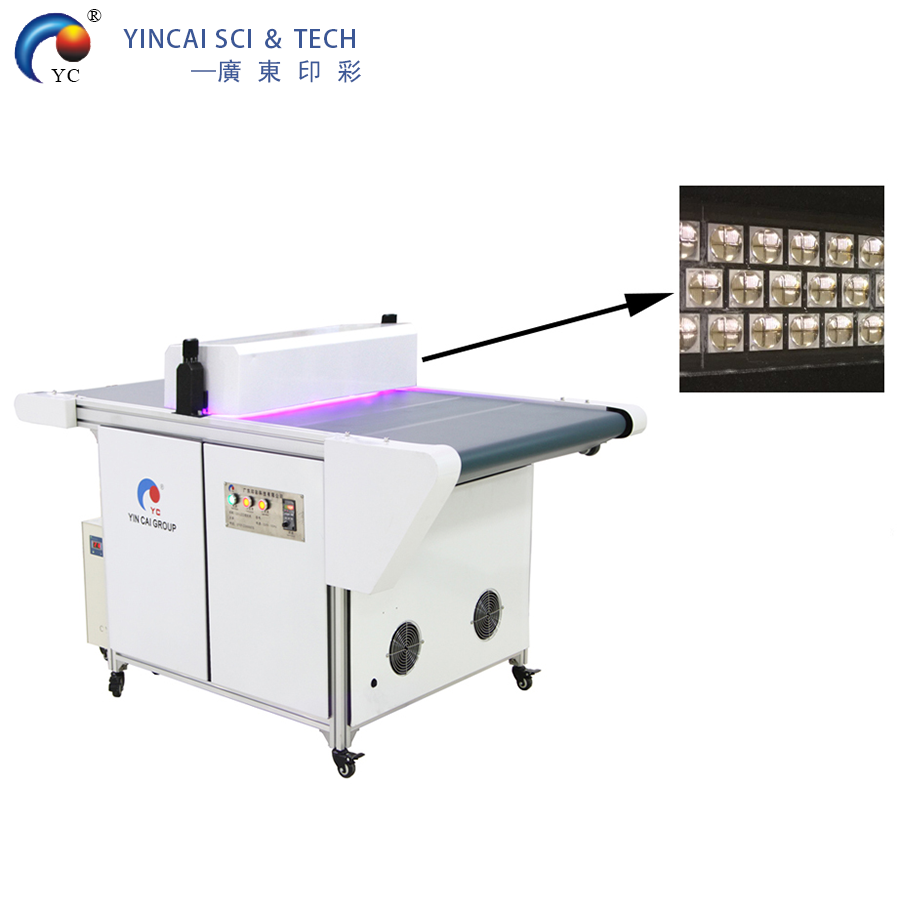

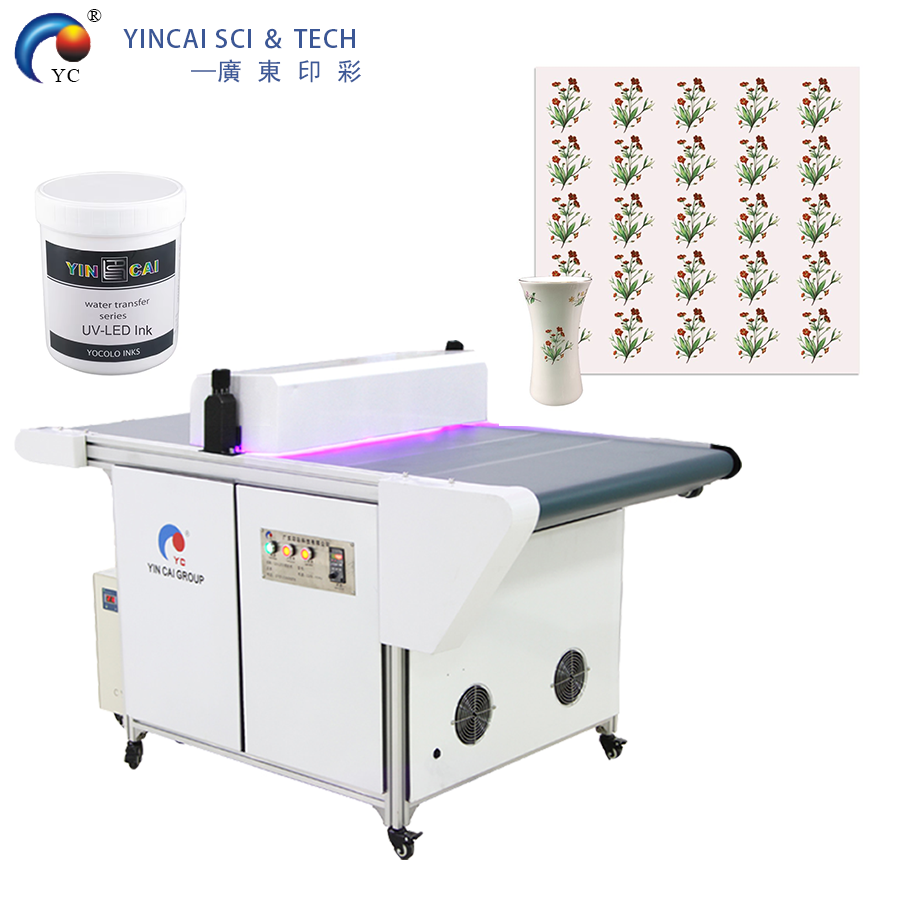

395nm LED UV Curing Machine for Screen Printing LED Ink Post-press Equipment Conveyor Dryer

Product Description

Parameters

Model	YCCM600	YCCM800	YCCM1200
Total length	2500mm	3000mm	3000mm
Belt width	700mm	800mm	800mm
Feeding width	700mm	800mm	800mm
Unloading width	700mm	800mm	800mm
Product height	0-200mm	0-200mm	0-200mm
Belt speed	0-40m/minute (control)	0-40m/minute (control)	0-40m/minute (control)
Lamp power	3/5.6/8/12KW	3/5.6/8/12KW	3/5.6/8/12KW
Input voltage	380V 50Hz	380V 50Hz	380V 50Hz
Package	Wooden case
Warranty	one year’s warranty + lifelong maintenance
MOQ	1 set
Payment Terms	T/T + L/C + Paypal + Western Union (negotiable)
Delivery Time	15-20 days

Features

• It can stimulate the instantaneous high voltage to light a UV peak to the UV 360nm. The irradiation caused the ink layer curing of acrylic resin crosslinking.

• It can be used for drying UV printing technology, ink performance test in UV ink manufacturing plant.

• Work on the table, suitable for small products curing, suitable for testing and proofing.

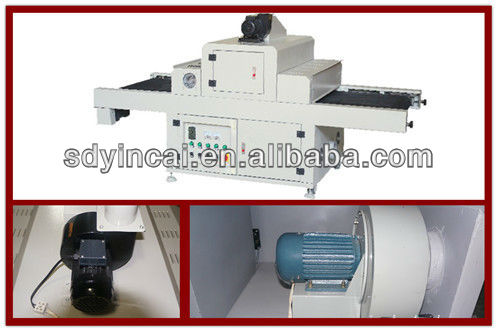

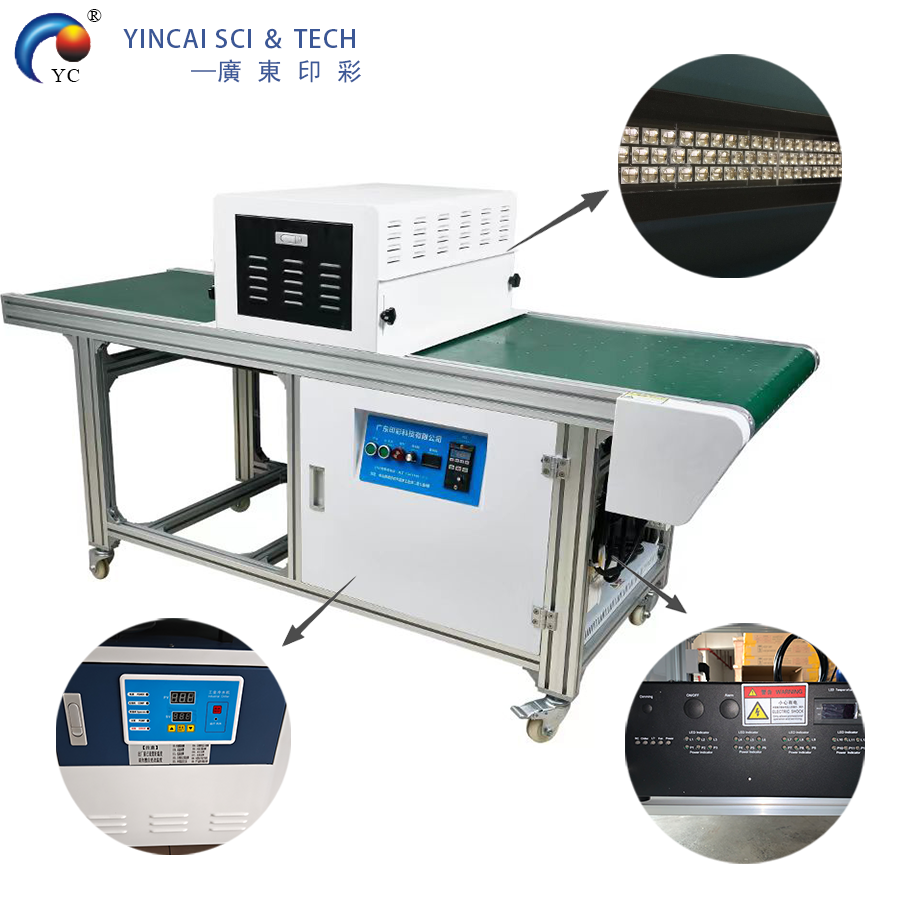

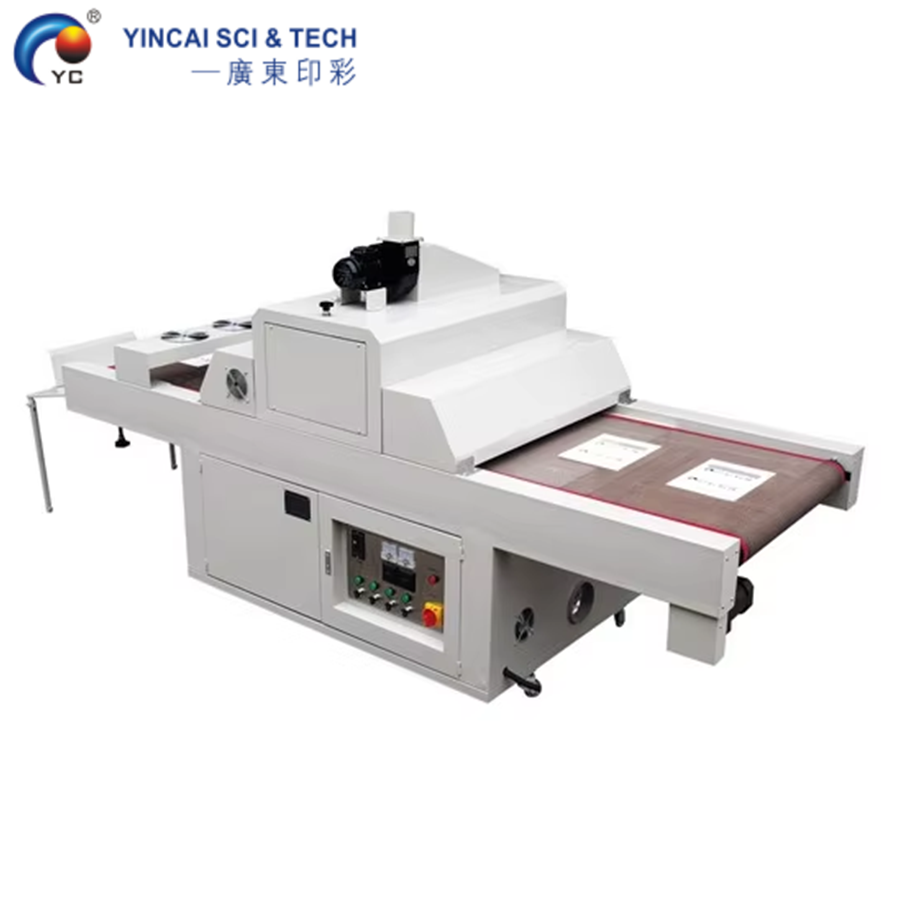

Introduction of UV Curing Machine

Conveyor belt width is 0.8M, total length is 2.5M, height is 1.4M, weight is about 200KG.
Power is 380V, power: two sets of UV lamp, one set is 5.6KW or multi group to custom-made.
This machine is a ultra low temperature UV curing machine, designed for the paper industry. The surface temperature is maintained at about 40 degrees when the paper conveys over the UV machine, to maximize the protection of the paper deformation.
This machine adopts special structure, high power air transport system. No sliding and falling phenomenon during the UV curing process of the papers. Each group of lamp tube can be operated independently, and the speed of the conveyor belt can be adjusted freely.

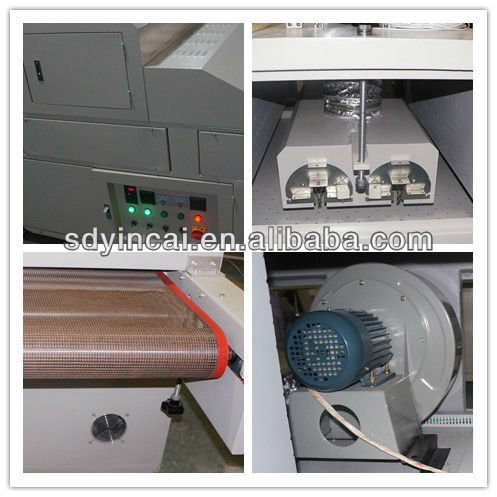

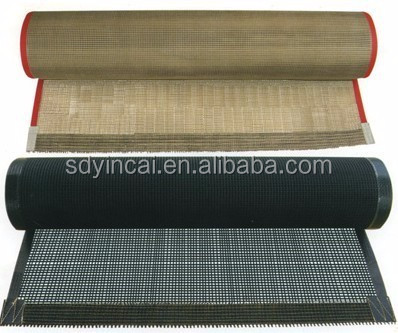

Teflon Belt

High and low temperature (-70℃ to 260℃) resistance, weather resistance, aging resistance, long service life.
Resistant to a variety of strong acid and alkali corrosion, chemical resistance, non-toxic.
The size is stable, the extension coefficient is less than 5%, the strength is high, and has good mechanical properties.
Fire retardant, with air permeability, reduce heat loss, improve the efficiency of drying.

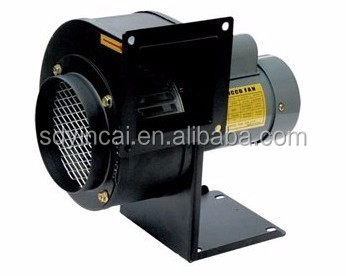

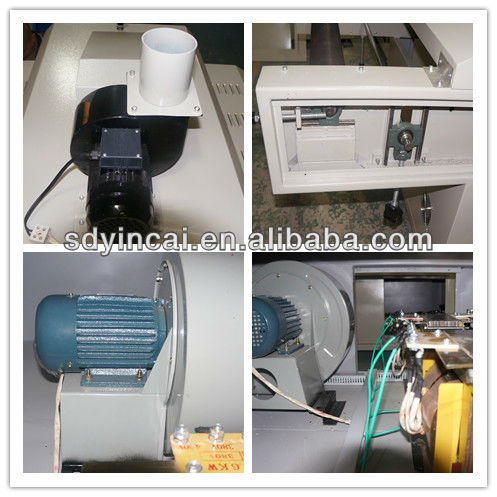

Centrifugal Fan

It is a constant pressure variable flow device, convenient maintenance, some models can be equipped with cleaning door, maintenance without disassemble, save time.
Good ventilation effect, especially suitable for use in air or exhaust pipe.
Usually used in the pipeline transportation of air, non corrosive, flammable and explosive gases can be used.
Run without friction, the noise is very low and not easy to stick the dust, maintenance is very convenient.
The surface is spray treatment, oxidation is strong, not easy to be corroded.

Packaging & Shipping

395nm LED UV Curing Machine Packaging and Shipping details

Our Guarantee & Service

Engineer is online for 12-hours, Technical support is available in time.
With one year's warranty, and lifelong maintenance (except the wearing parts).
Please rest assured that operation video CD and user-friendly English manual will be offered along with machine.

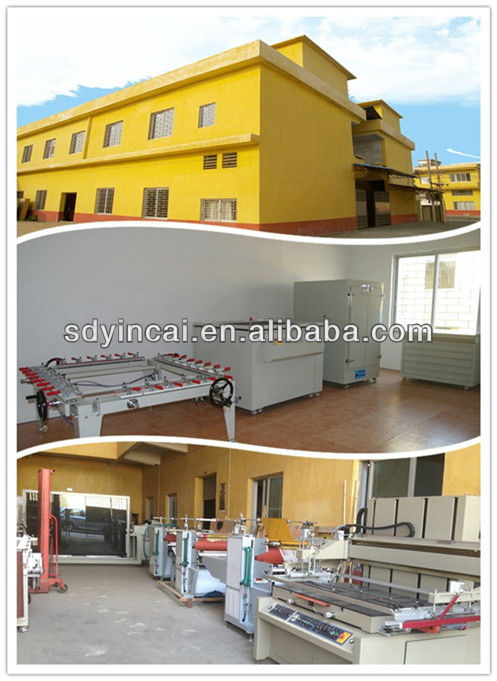

Company Information

Frequently Asked Questions

What types of materials can this UV curing machine cure?

This UV curing machine is ideal for curing acrylic resin crosslinking, drying UV printing inks, and testing ink performance. It is particularly designed for materials like paper, films, and screen-printed products.

How does the ultra-low temperature design protect delicate materials?

The machine features a special structure and a high-power air transport system that maintains the surface temperature at about 40 degrees Celsius as paper passes through, preventing heat deformation.

Can the conveyor belt speed be adjusted for different production needs?

Yes, the conveyor belt speed can be adjusted freely from 0 to 40 meters per minute to meet varying requirements for production or testing.

What are the characteristics of the Teflon belt used in this machine?

The Teflon conveyor belt offers high and low temperature resistance (-70℃ to 260℃), strong chemical resistance, low extension coefficient (<5%), and fire retardancy to optimize drying efficiency and lifespan.

What warranty and after-sales support do you provide?

We offer a one-year warranty (excluding wearing parts) and lifelong maintenance. Along with the machine, we provide operation video CDs and English user manuals, supplemented by 12-hour online technical support from our engineers.
