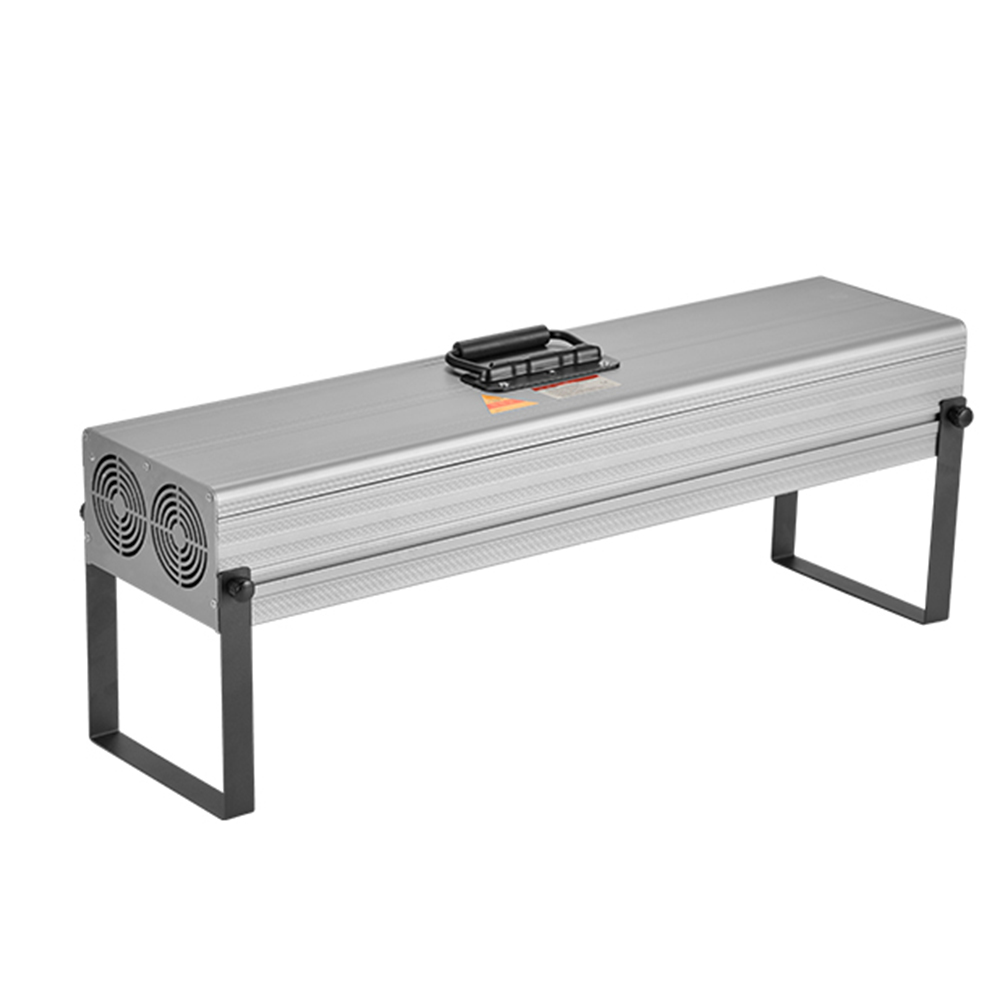

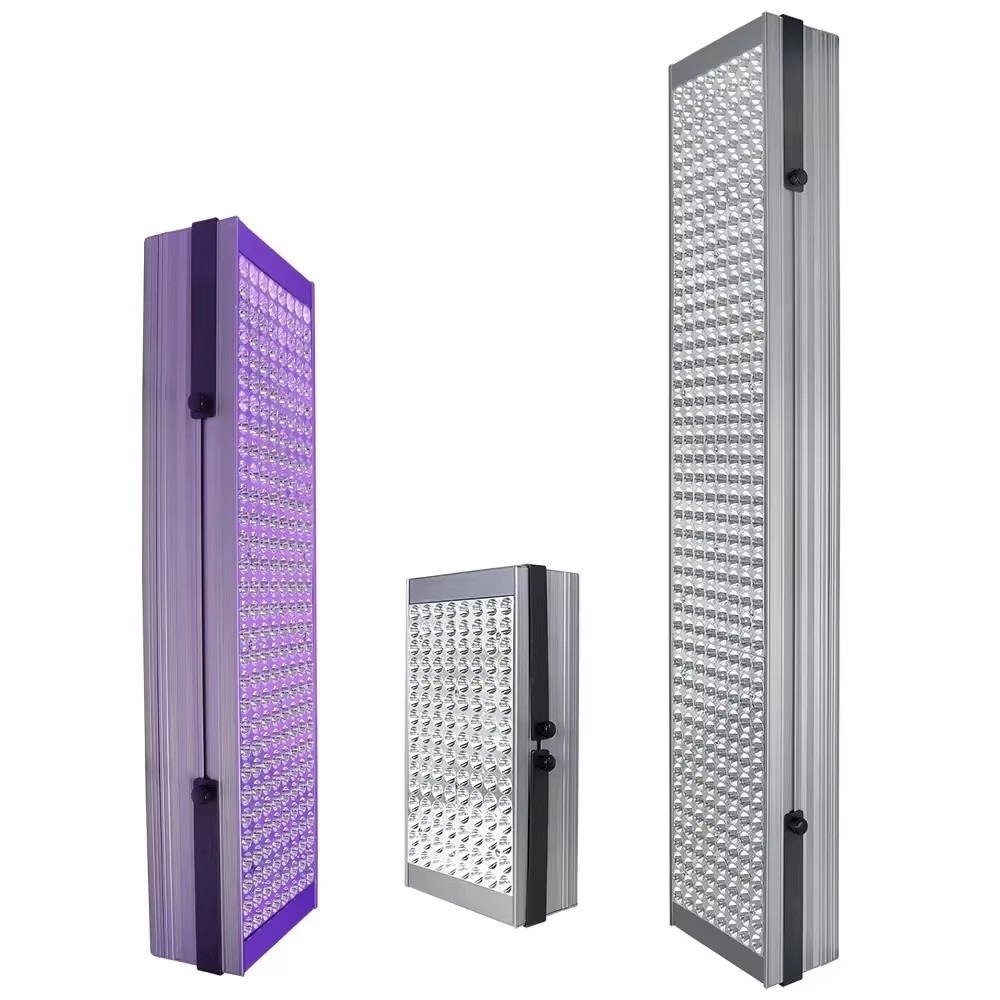

Portable LED 395nm UV Curing Lamp AC 220V Medical Grade Inkjet Flatbed Printer for OCA Adhesive Resin Green Oil Solder

Product Description

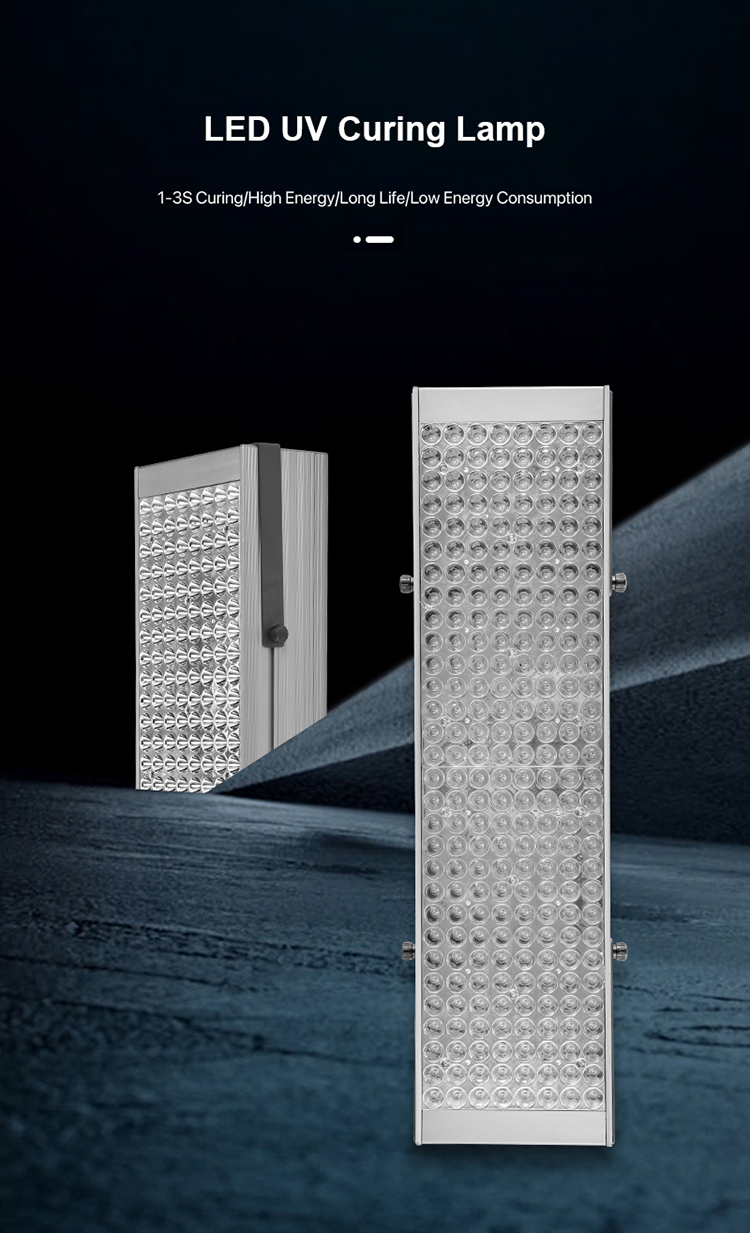

LED UV Curing Lamp Overview
Products Description

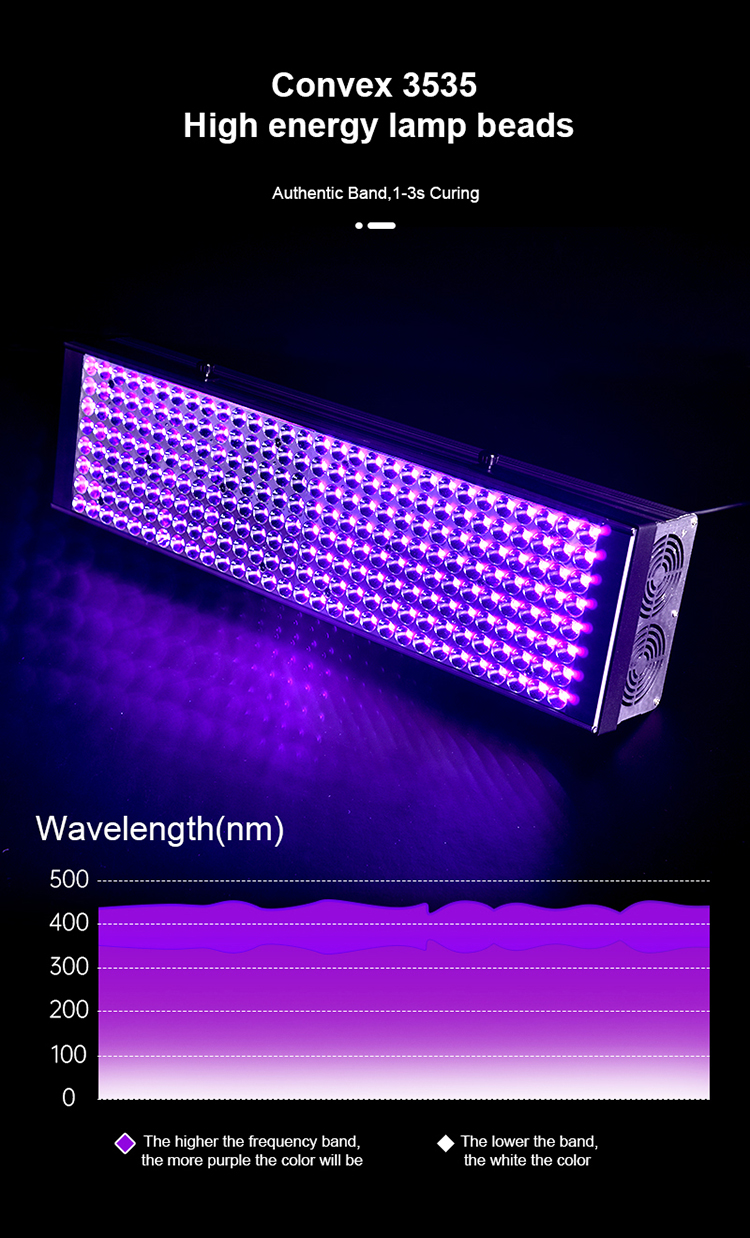

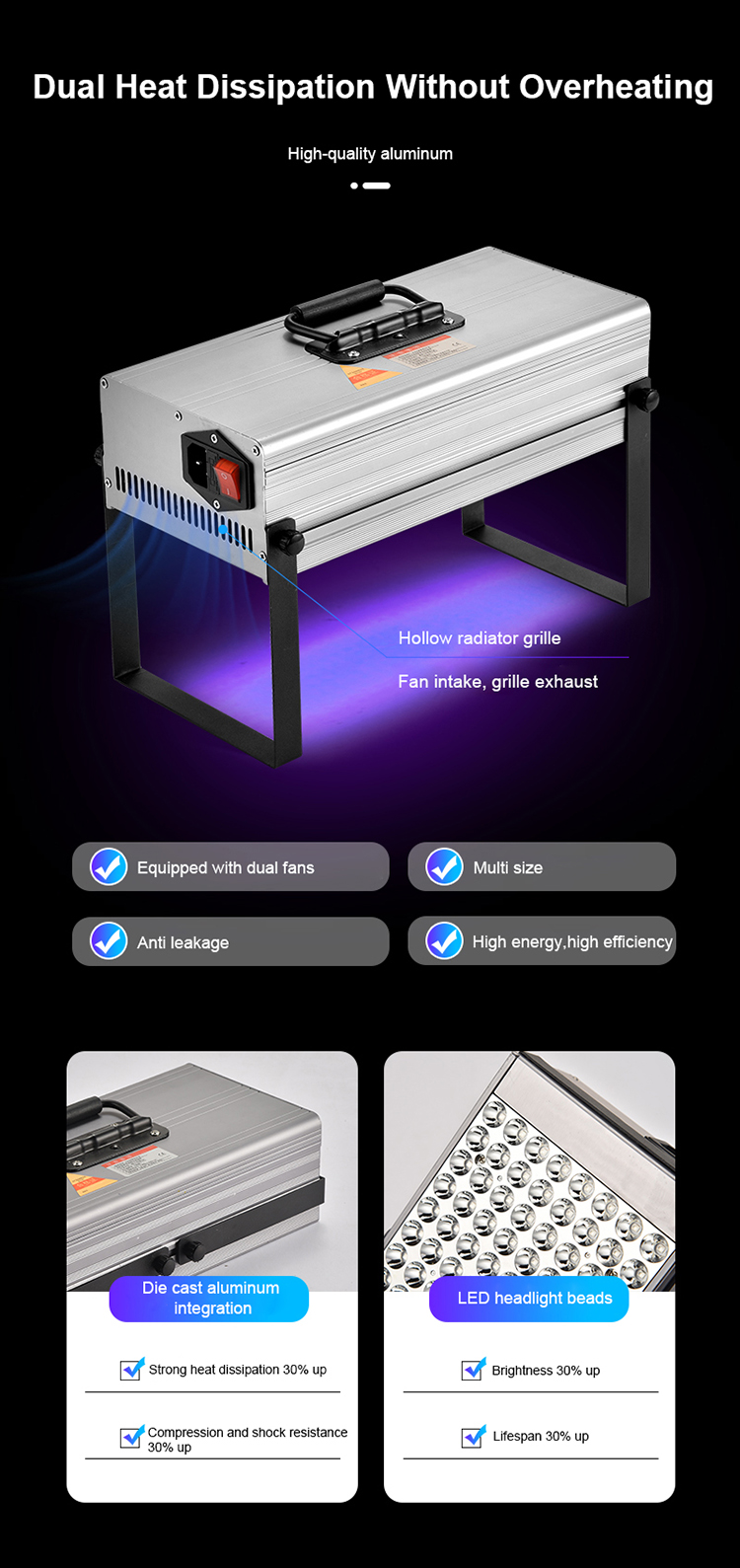

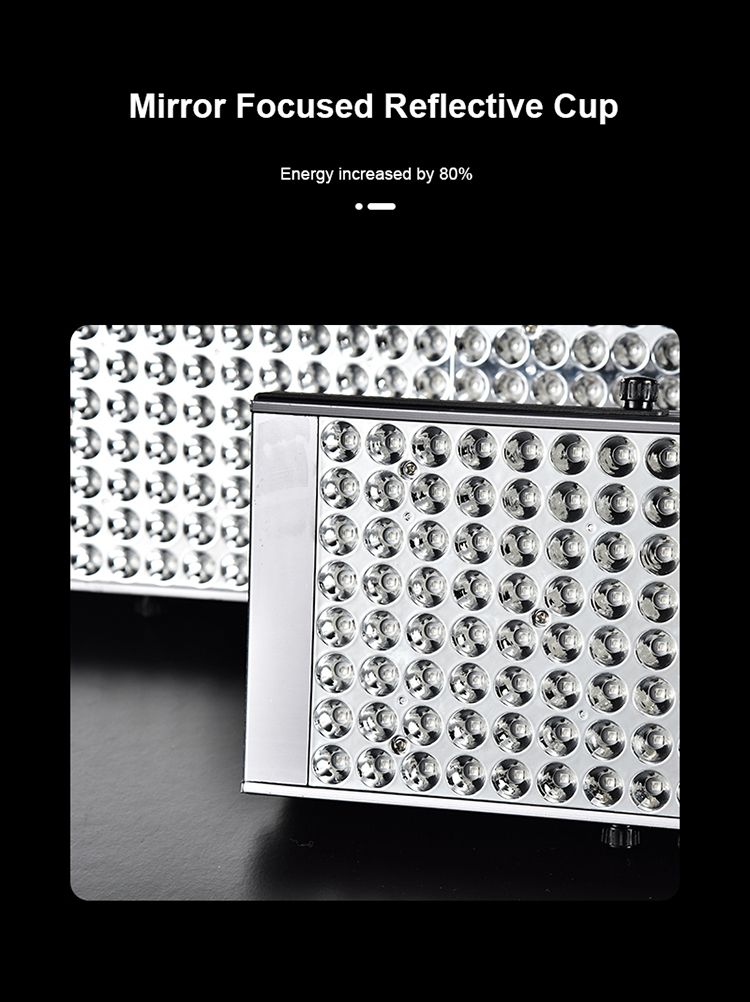

UV Curing Detail Image 1 UV Curing Detail Image 2 UV Curing Detail Image 3 UV Curing Detail Image 4 UV Curing Detail Image 5 UV Curing Detail Image 6 UV Curing Detail Image 7 UV Curing Detail Image 8 UV Curing Detail Image 9
Technical Specifications

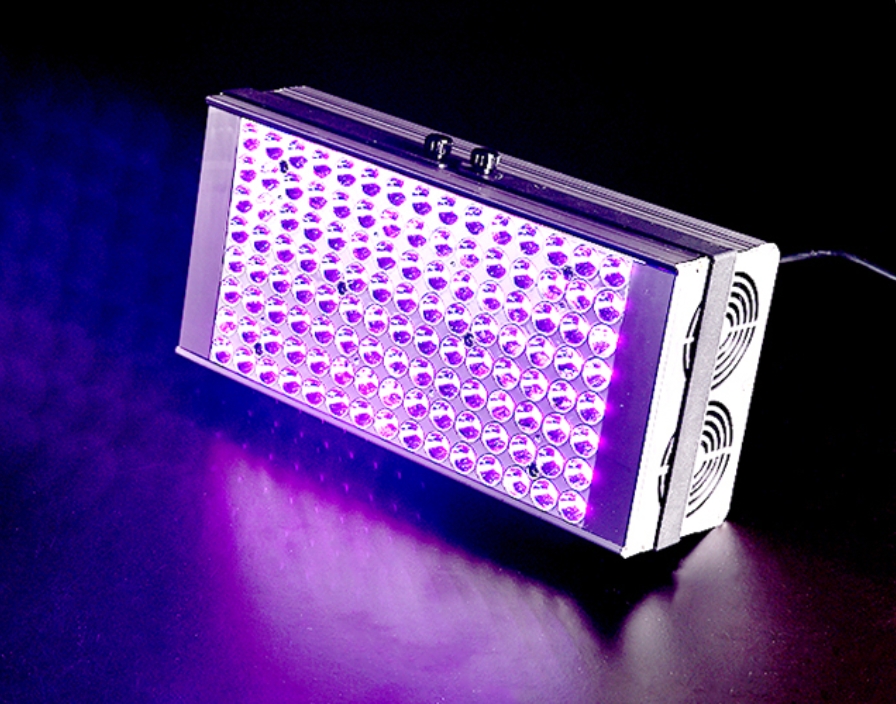

LED UV Curing Lamp UV-60W
Product Name LED UV Curing Lamp
Product Model UV-60W
Rated Power 60W/120W
Input Voltage AC100-265V
Irradiation Height 10-50mm
Light Source Convex Head 3535-120Pcs
Wavelength UV395nm/UV365nm
Adjustable Height 50-110mm
Warranty 3 year
Weight 3kg
Product Size 308×148×86mm
Package Size 410×208×155mm

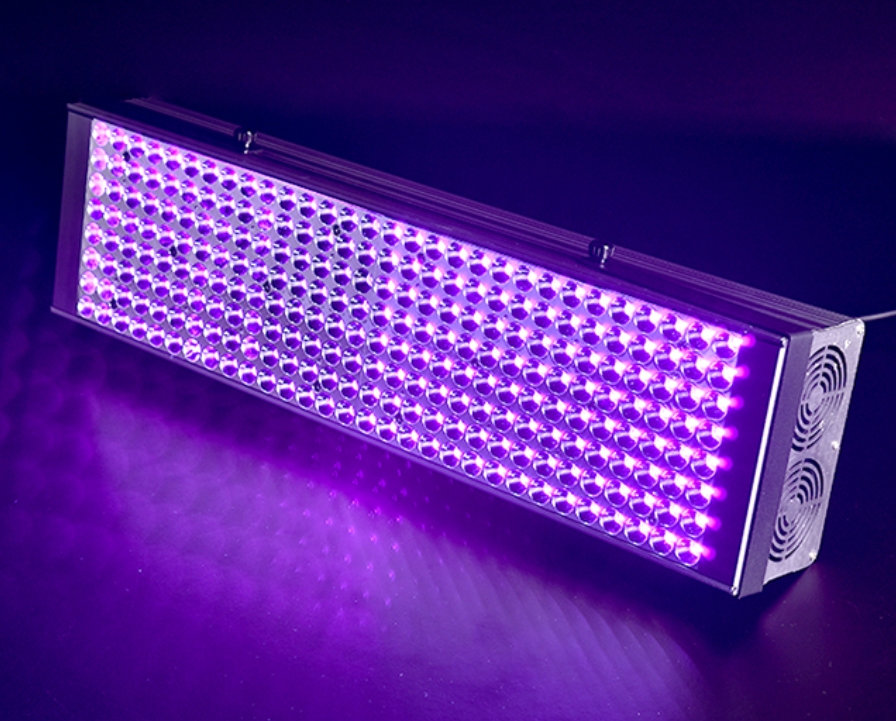

LED UV Curing Lamp UV-200W
Product Name LED UV Curing Lamp
Product Model UV-200W
Rated Power 20W
Input Voltage AC100-265V
Irradiation Height 10-50mm
Light Source Convex Head 3535-240Pcs
Wavelength UV395nm/UV365nm
Adjustable Height 50-110mm
Warranty 3 year
Weight 4.9kg
Product Size 560×148×86mm
Package Size 680×208×155mm

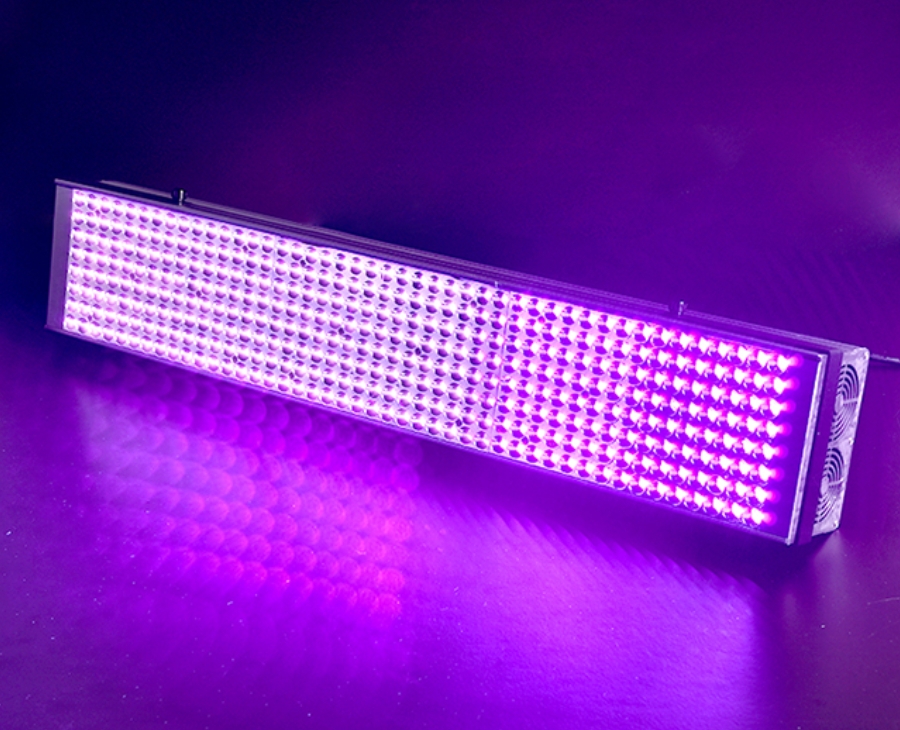

LED UV Curing Lamp UV-300W
Product Name LED UV Curing Lamp
Product Model UV-300W
Rated Power 300W
Input Voltage AC100-265V
Irradiation Height 10-50mm
Light Source Convex Head 3535-360Pcs
Wavelength UV395nm/UV365nm
Adjustable Height 50-110mm
Warranty 3 year
Weight 6.2kg
Product Size 815×148×86mm
Package Size 920×208×155mm

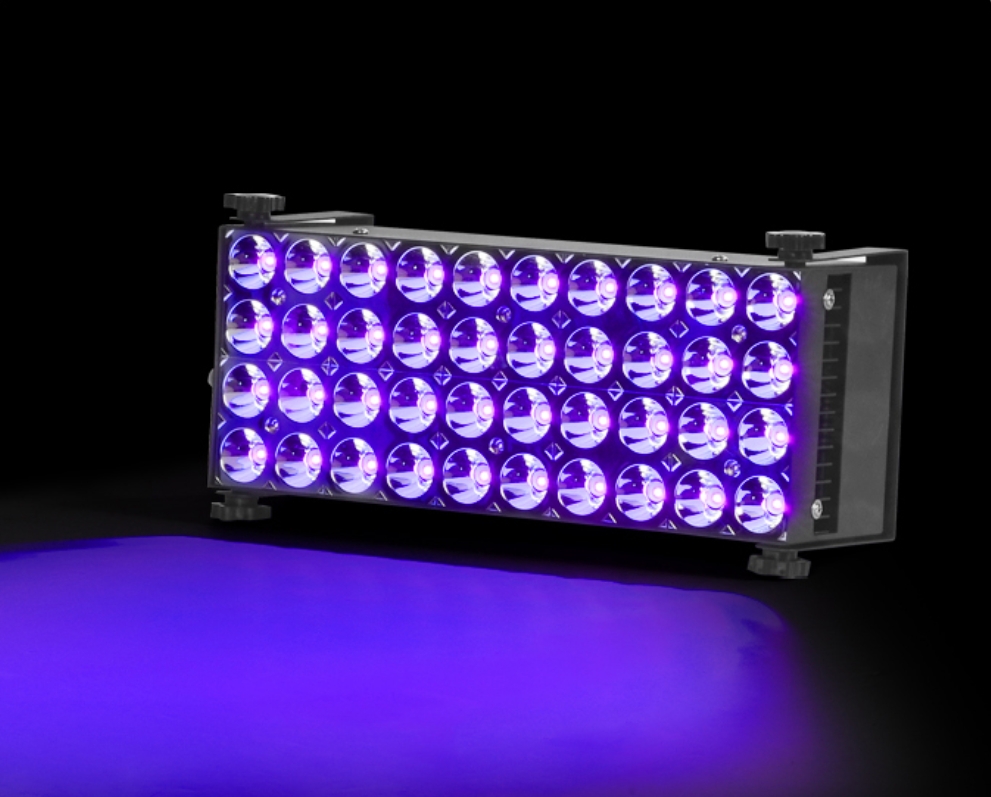

LED UV Curing Lamp HE-UV-100W
Product Name LED UV Curing Lamp
Product Model HE-UV-100W
Rated Power 100W
Input Voltage AC100-265V
Irradiation Height 10-50mm
Light Source Convex Head 3535-40Pcs
Wavelength UV405nm/UV395nm/UV365nm
Effectiveness > 680MW
Energy > 1200MJ/CM²
Bracket Height 50MM
Warranty 3 year
Weight 1.88kg
Product Size 260×145×80mm
Package Size 355×180×143mm

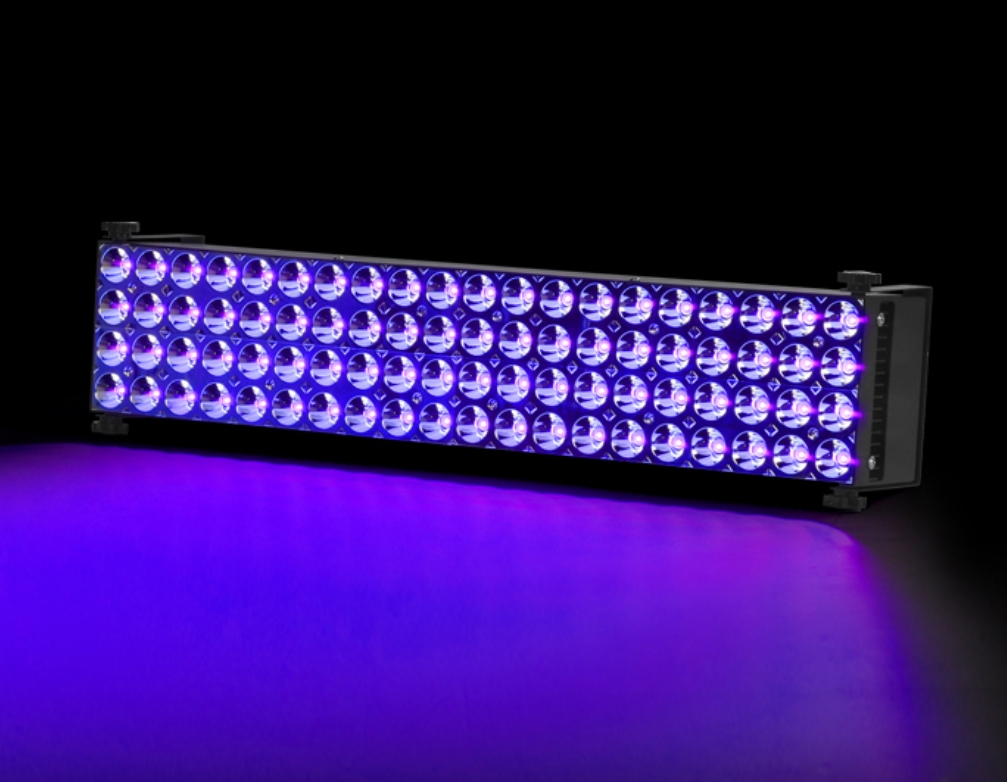

LED UV Curing Lamp HE-UV-200W
Product Name LED UV Curing Lamp
Product Model HE-UV-200W
Rated Power 200W
Input Voltage AC100-265V
Irradiation Height 10-50mm
Light Source Convex Head 3535-80Pcs
Wavelength UV405nm/UV395nm/UV365nm
Effectiveness > 1100MW
Energy > 2700MJ/CM²
Bracket Height 50MM
Warranty 3 year
Weight 3.22kg
Product Size 520×145×80mm
Package Size 610×180×143mm

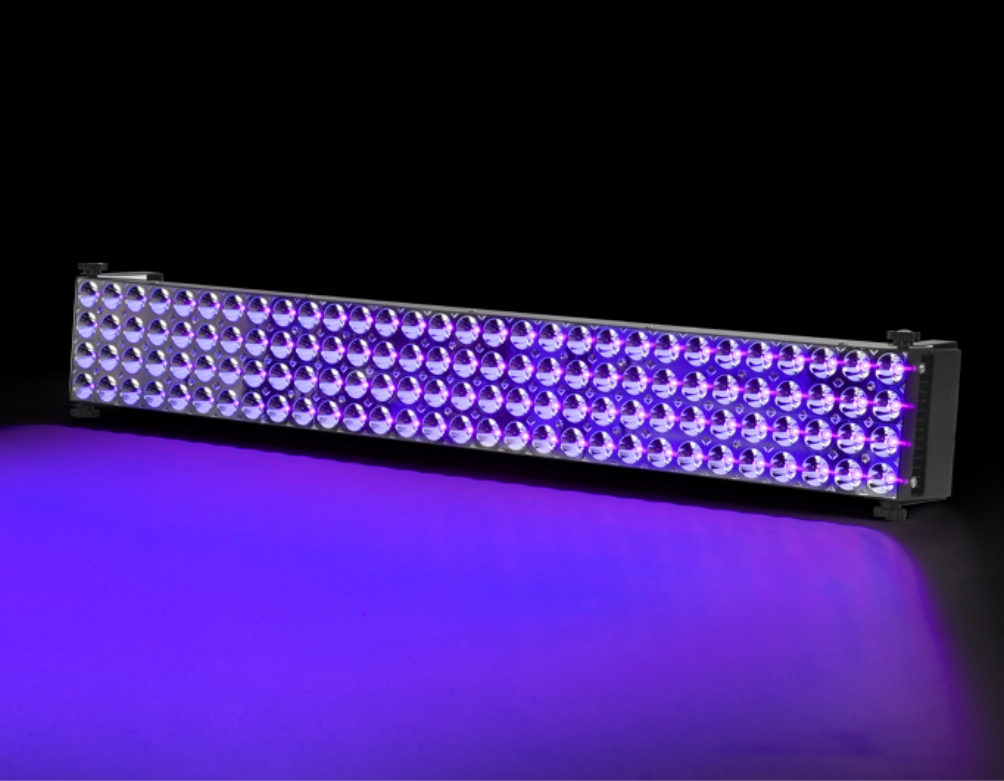

LED UV Curing Lamp HE-UV-300W
Product Name LED UV Curing Lamp
Product Model HE-UV-300W
Rated Power 300W
Input Voltage AC100-265V
Irradiation Height 10-50mm
Light Source Convex Head 3535-120Pcs
Wavelength UV405nm/UV395nm/UV365nm
Effectiveness > 1200MW
Energy > 3000MJ/CM²
Bracket Height 50MM
Warranty 3 year
Weight 4.59kg
Product Size 770×145×80mm
Package Size 862×180×143mm
Application Scenarios
Application Scenario 1 Application Scenario 2 Application Scenario 3 Application Scenario 4

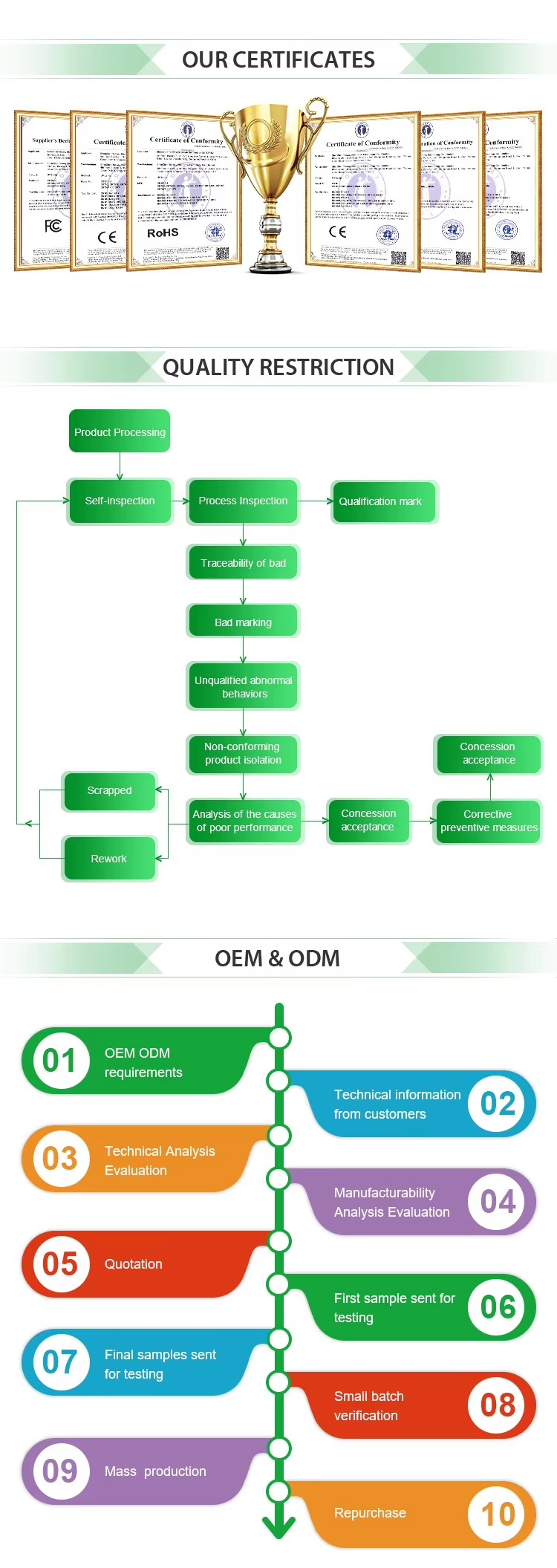

Quality Standard & Certifications
Frequently Asked Questions
Q: What wavelengths are available for these LED UV curing lamps?
We offer multiple wavelength options based on the specific model, including UV395nm, UV365nm, and UV405nm, which can be selected to match your curing glue or resin requirements.
Q: Is the height adjustable for the UV curing system?
Yes, our curing systems feature an adjustable bracket height from 50mm to 110mm, and recommend an irradiation distance of 10-50mm to ensure high intensity during curing.
Q: Can the systems operate under different input voltages globally?
Yes, all of our LED UV curing models support a wide input voltage range from AC100V to AC265V, making them ready for international power grids.
Q: What type of light source is used in the systems?
The lamps utilize high-intensity Convex Head 3535 LED chips, ranging from 40 to 360 units depending on the model power, designed to optimize energy output.
Q: What is the warranty period for the products?
All models in this series come with a 3-year warranty, guaranteeing stable long-term performance and prompt technical support.
