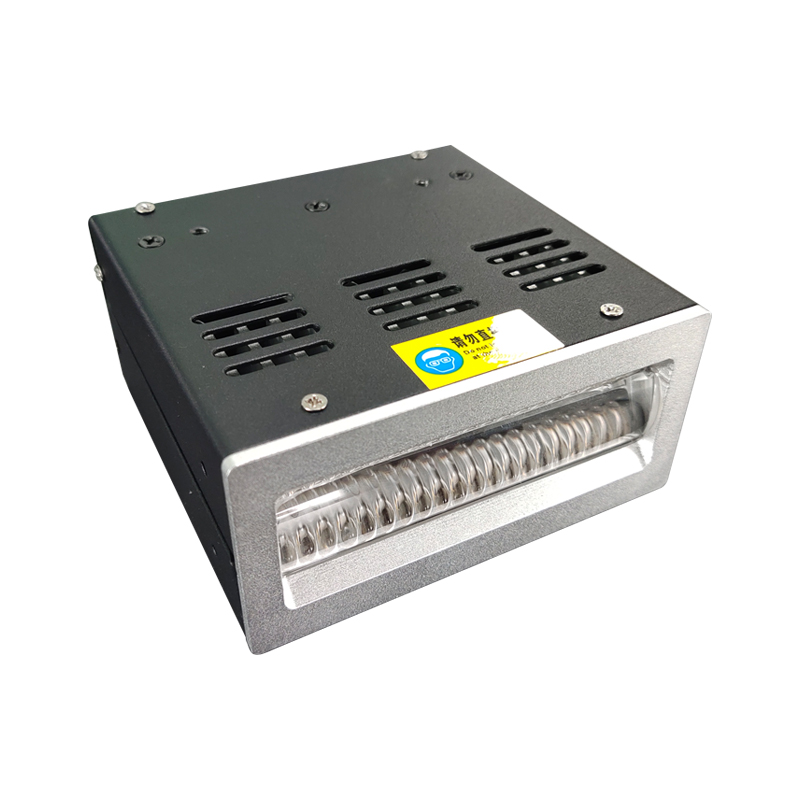

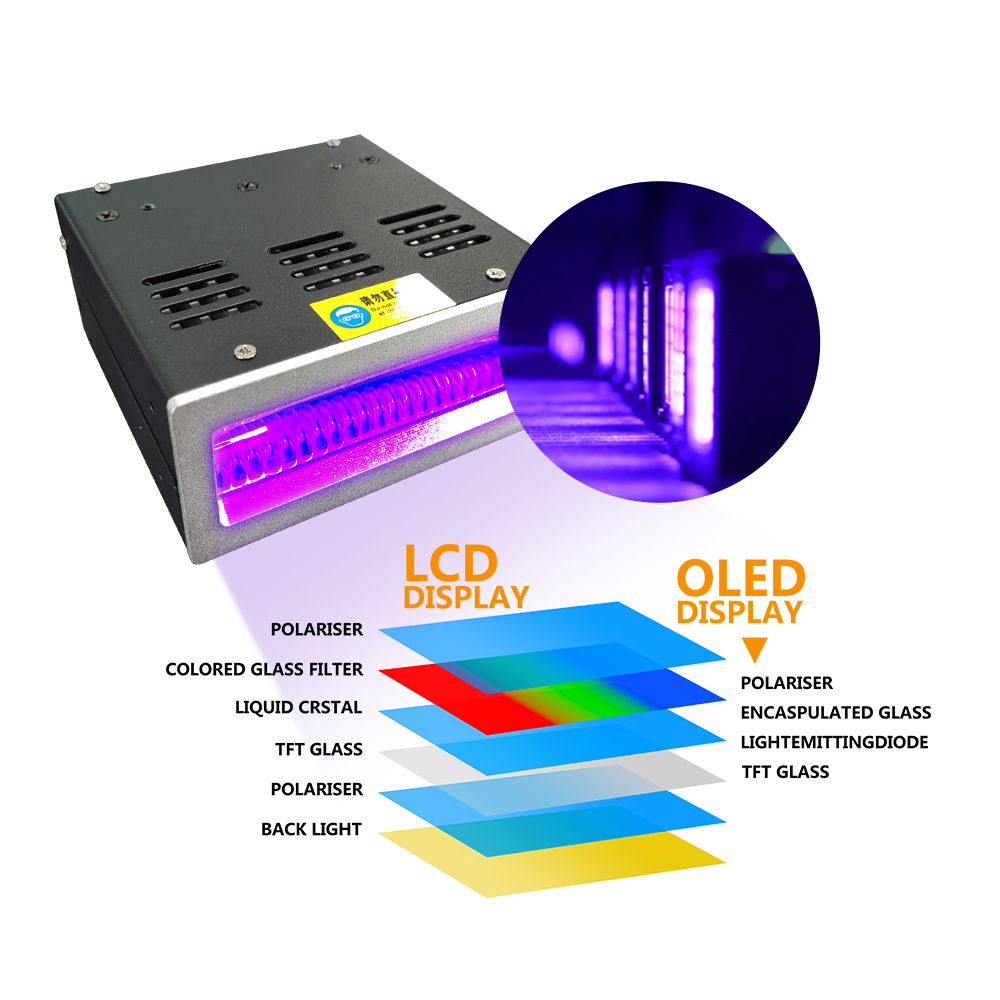

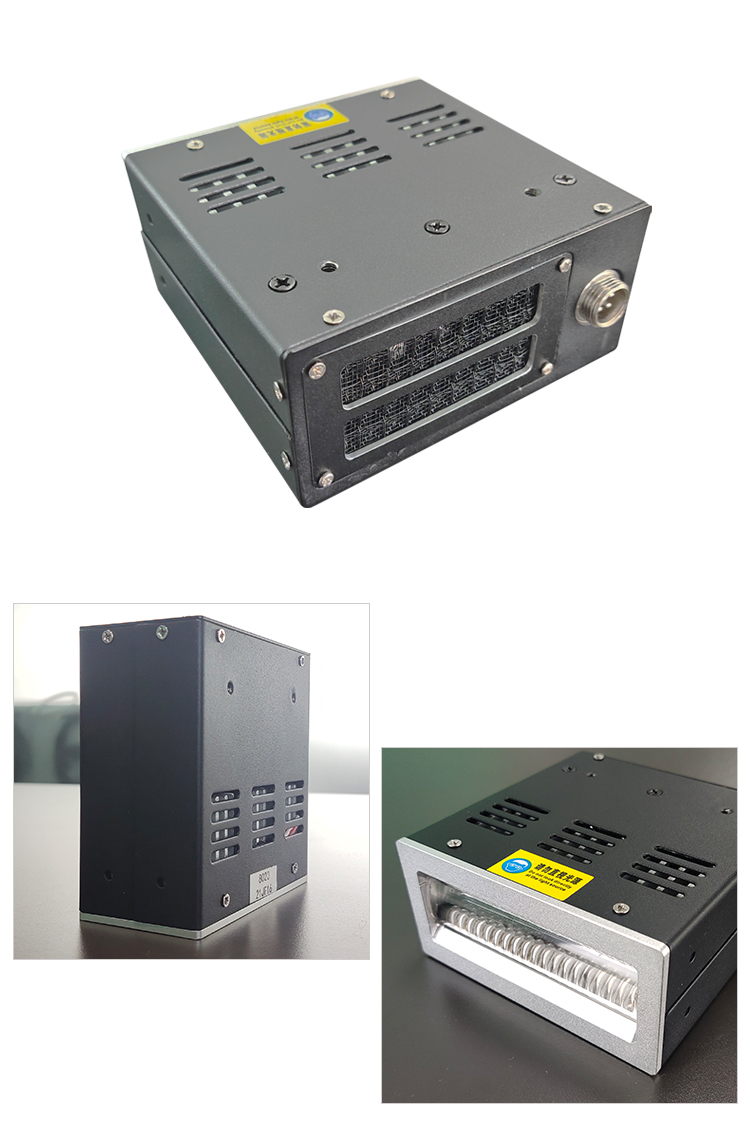

OEM High Power 365nm 385nm 395nm Uv LED Lamp Curing System for Flat Panel Printer Uv Glue Coating Ink Varnish Curing
| Product name | 8020EUVLED Curing lamp |
| Model | JRM-F8020A01 |

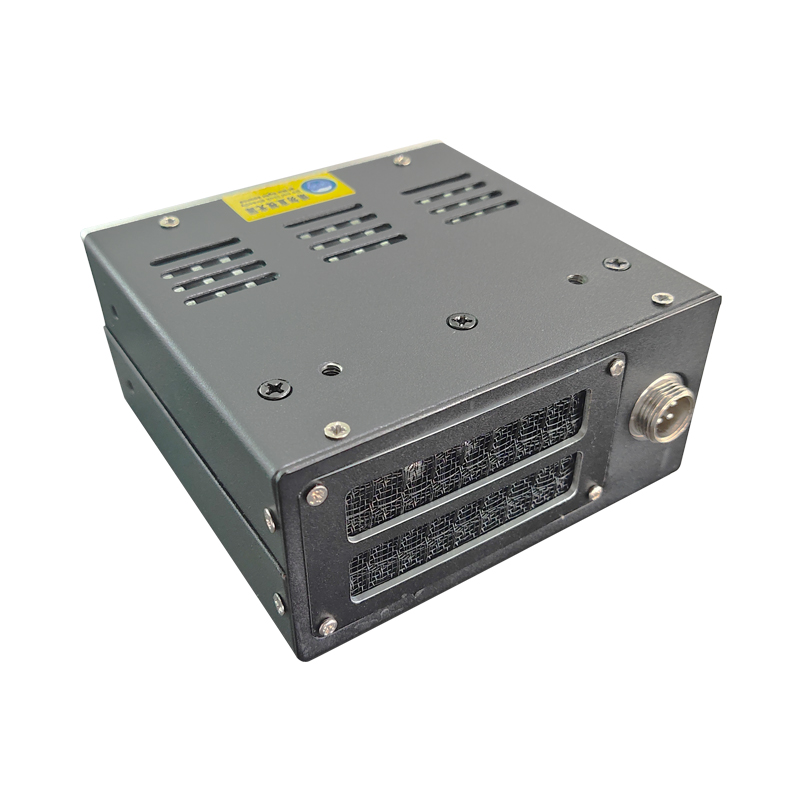

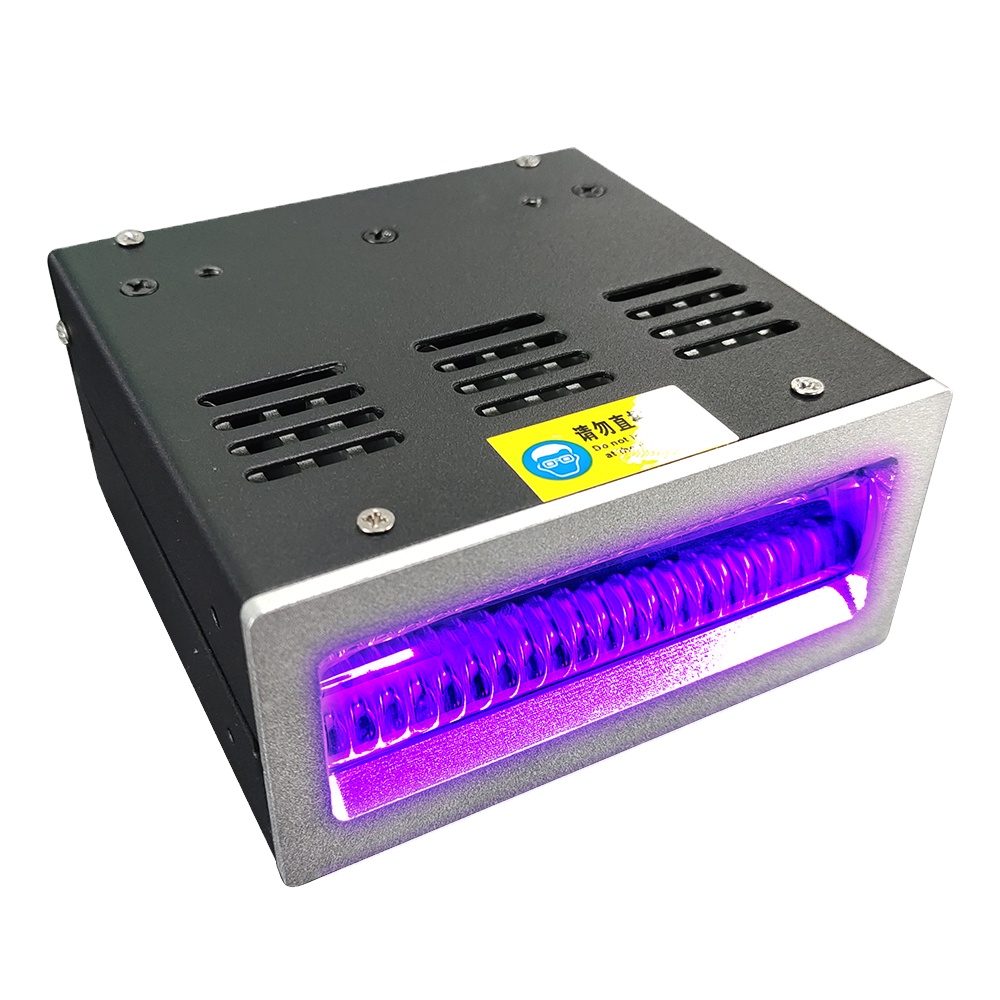

| Irradiation head size | 95*45*93.5mm (Customizable) |
| Irradiation window area | 80*20mm (Customizable) |
| Input voltage | AC 220V |
| Wavelength | 395nm (Customizable) |
| Total system power | 300W |
| Optical power | 6-7W/CM² (Customizable) |
| Lamp head weight | 0.5KG |
| Irradiation head electrical power | 200W |
| Power canister size | 300mm*190mm*110mm |
| Startup control mode | 10-30v DC signal control |
| Weight(Power supply and lamp) | 6.5KG |

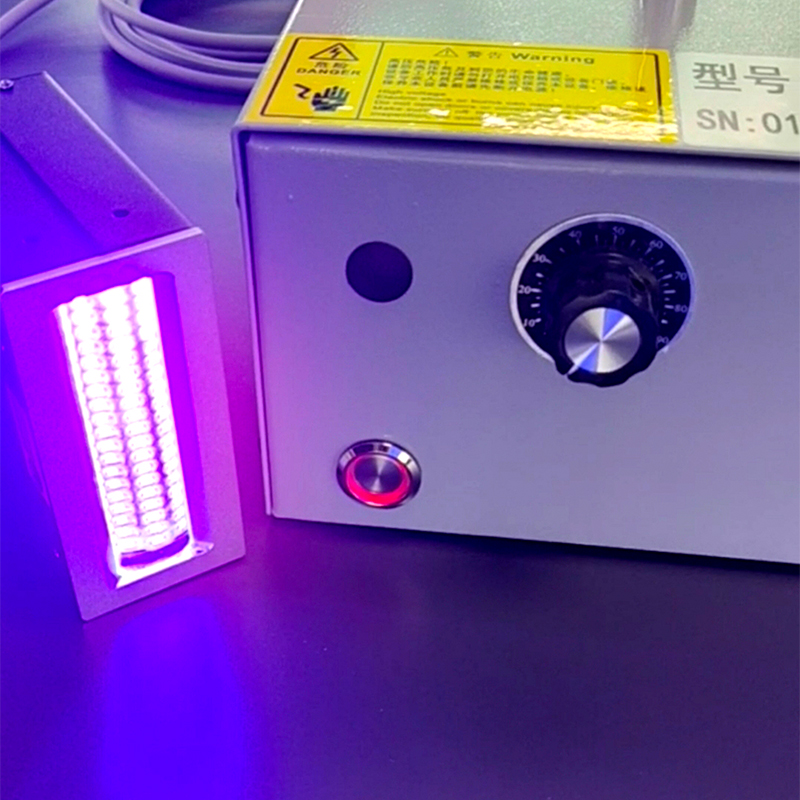

| Brightness adjustment method | Potentiometer knob adjustment |
| The working height of the irradiation head | 3-7mm |
Widely Used In:
With LED chip packaging optical design, light source manufacturing, system integration and control of comprehensive R&D and sales service capabilities. At present, it has formed industrial application product line with intelligent UVLED curing system, UVLED light source and UVLED curing equipment. Passed international ROHS, CE, UL, FCC and other certifications.
| Product Type | LED UV Curing System |
What wavelengths are available for the UV LED curing lamp system?
The standard wavelength is 395nm, but the system is also available in 365nm and 385nm. Other wavelengths can be fully customized based on your specific curing requirements.
Can the irradiation window area and head size be customized?
Yes. The standard irradiation head size is 95*45*93.5mm and the standard window area is 80*20mm, but both dimensions can be customized to match your machinery.
What is the optical power of the curing system and how is it adjusted?
The standard optical power is 6-7W/CM² (customizable). It supports brightness adjustment through a potentiometer knob on the control panel.
What certifications do your UV LED systems carry?
Our curing systems have successfully passed major international standards and carry ROHS, CE, UL, and FCC certifications.

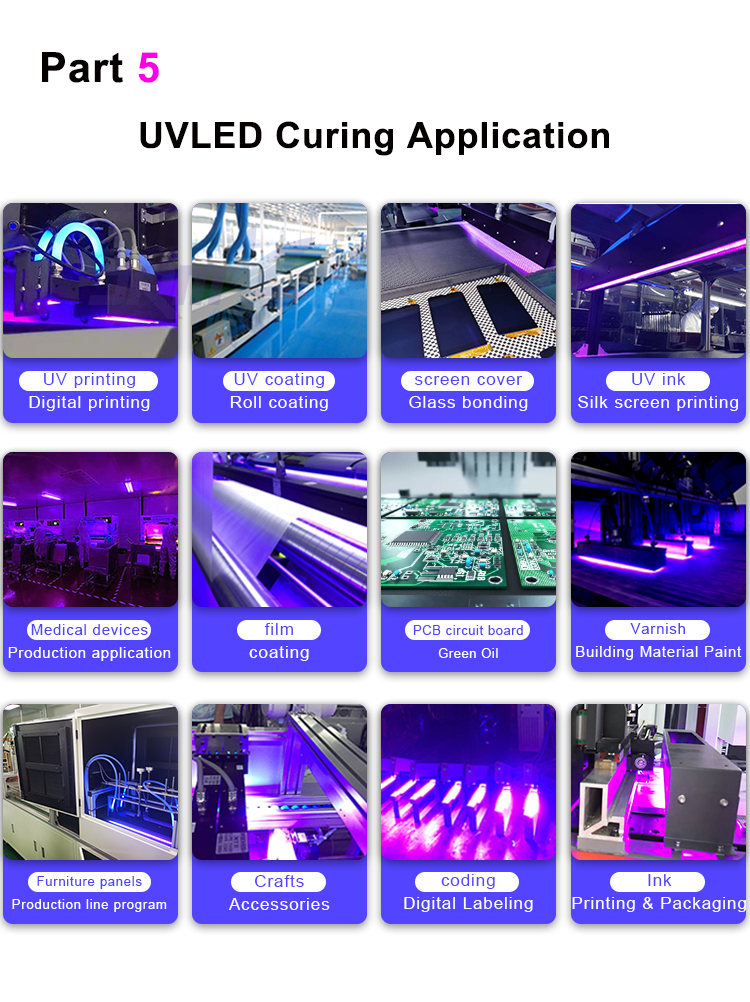

What are the primary applications of this curing system?
This system is widely used for digital printing, spray painting, screen printing, UV adhesive curing, dispensing, PCB/LCD protection, wire interface protection, home building materials surface treatment, coating, packaging, and more.
How is the startup of the irradiation head controlled?
The system is activated and controlled via a 10-30V DC signal control mode, making it easy to integrate into automated machinery lines.
