| No. | Item | Specification |
|---|---|---|
| 1 | The external dimension of the Rack | The dimension: L2900mm x D1100mm x H850mm (1 set) |
| 2 | The rack | The rack is made of welding 50# square box section. The bottom of rack has the truckle and foot cup. The height is adjustable. The rack is sealed by the plate, The structure is compact and generous. |
| 3 | The Conveyor Chain | The conveyor chain use special chain of automatic line. The pitch is 50.8mm, the total length is 6.4m. Each two pitch distance use one special fixture for the product. |
| 4 | The Motor | The motor use Taiwan imported 0.5HP gear reducer motor to transmission. The speed of chain is adjusted by adopting 1HP ZONCN frequency transformer. The chain speed is adjustable within 0.1m/min - 5m/min. The frequency control of the motor speed is energy saving. |
| 5 | The Friction Rotation Devise | It has two sets of special friction system. The motor adopts 200W electronic speed regulating motor. It can positive and negative rotation. |
| 6 | The Electronic Control | The electronic control is mainly use China famous brand CHINT brand. The indicator light, the switch, relay and contacts are equipped with the overload protection. The parts of Electronic Control is placed in the below of racks. |
| 7 | The surface treatment | Computer white electrostatic powder coating |
| 8 | Paint and Oil Feeding System |
1. The automatic spray-gun use Japan ANEST IWATA WA-101 automatic spray gun. The caliber is 1.0mm. The qty of the guns is six. A set of adjustable support brackets is equipped. 2. Two sets of trisection diaphragm pumps are equipped. 3. It is equipped with relative oil pipe, Air pipe, pressure regulating valve, oil-water separator and a set of electric magnetic Valve. |
The Mini automatic spraying machine or Mini automatic spraying painting Line is widely used in the field of plastic, metal, stainless, glass, wood etc. It is ideal for round, cylindrical, conical shapes or other irregular, small type shapes' surface spraying, such as cellphone shells, glass cups, lamp shells, helmets, bottles, holders, cosmetics lids, and similar projects.

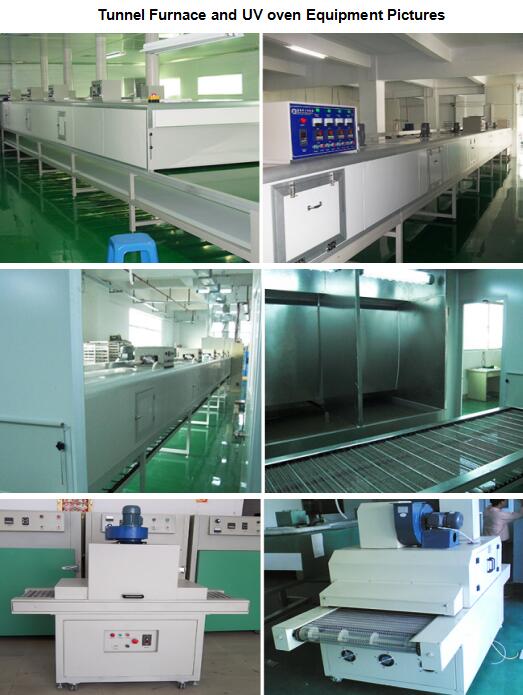

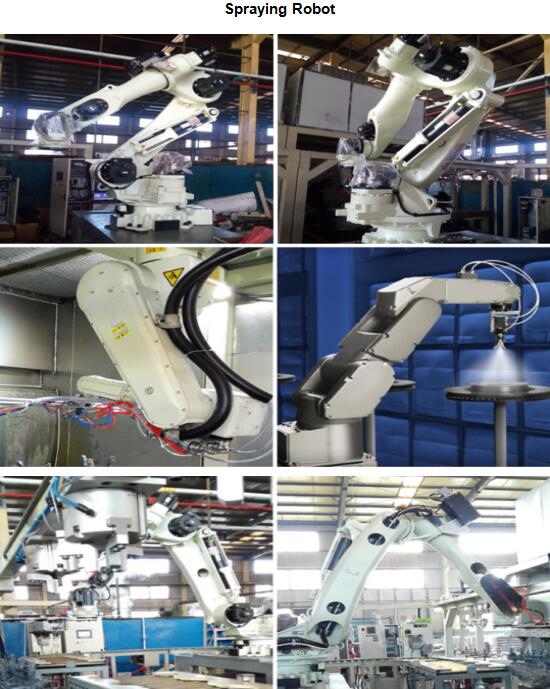

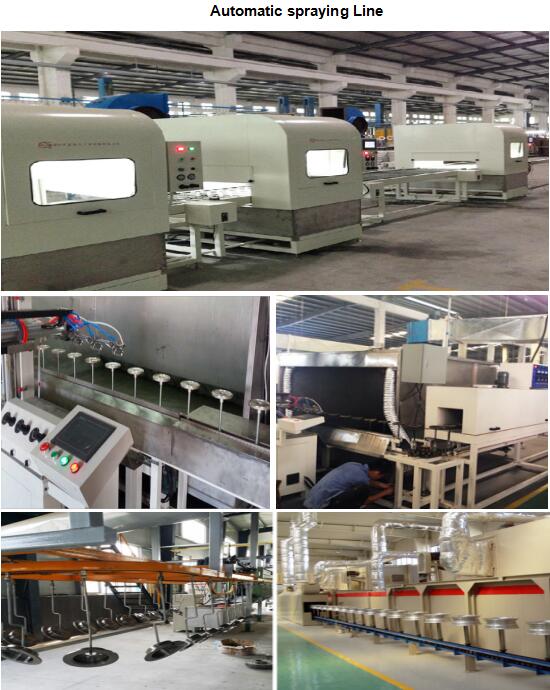

The main product range includes industrial surface automatic painting, automatic drying, as well as automatic spraying entire plant planning, designing, and manufacturing, along with industrial robots, robots, automation equipment, and other non-standard test equipment.
It will be packed by vacuum membrane first, then fixed with a square box section, and finally, the equipment will be sealed with a wooden frame.

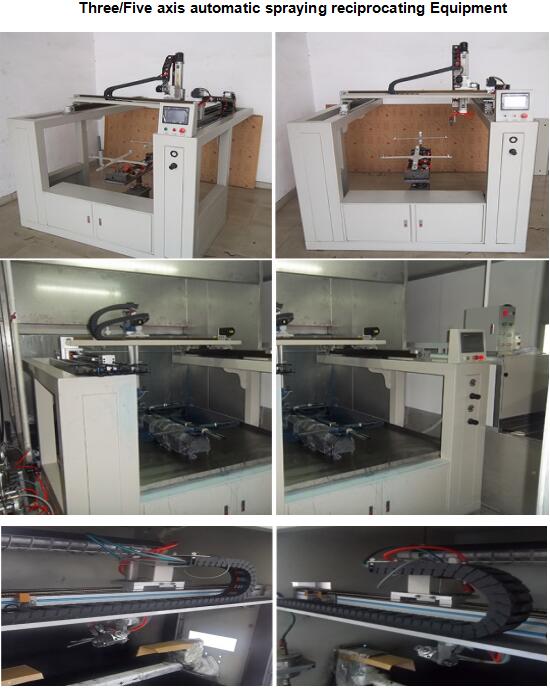

Answer: Sure. Every machine is tested before delivery to ensure there are no issues. For small and standard equipment (such as five-axis spraying machines, mini lines, or ovens), we send detailed user manuals and video tutorials. You can also send workers to our factory to learn. For large spraying lines, we will dispatch experts to your factory for installation, commissioning, and operations training.
Answer: Most machines are fully customized. If you have specification drawings or requirements, please share them with us for a direct quote. If you are new to this field, please provide details such as your workpiece dimensions, weight, monthly output target, heating requirements, spraying process details, workshop space dimensions, and power parameters so we can design a suitable layout and quote.
Answer: We offer a 1-year warranty for every machine. In addition, we provide fault handling services, lifetime technical support, periodic follow-up communications to check on machine conditions, and optimization support for future expansions on your existing machines.
Answer: Yes, the conveyor belt speed is adjustable. It uses a gear reducer motor paired with a frequency transformer (frequency control) that is highly energy-saving. The speed can be adjusted within a range of 0.1 meters per minute up to 5 meters per minute.

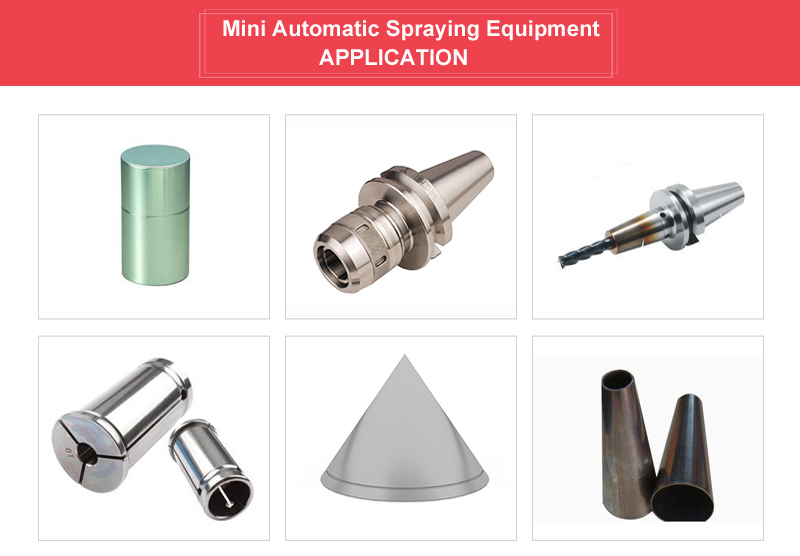

Answer: The system is widely utilized for plastic, metal, stainless steel, glass, wood, and other substrates. It is particularly designed for round, cylindrical, conical, or irregular small-type shapes such as mobile phone shells, cups, helmets, bottles, cosmetics lids, and lamp shells.

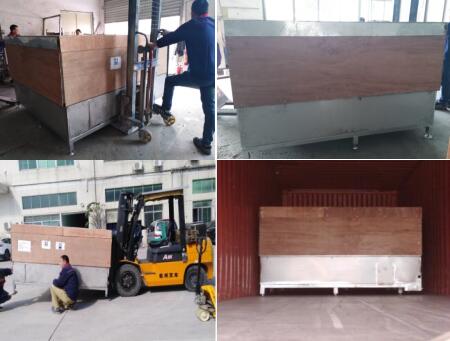

Answer: We use a robust packaging process to protect your investment. The equipment is first wrapped securely in a vacuum membrane, then fixed inside a square steel box section frame, and finally fully sealed within a solid wooden crate to prevent damage during transit.
