UV LED Sterilization & Curing Box Furnace 220v 380v LED UV Lamp for Adhesive Inks Varnish Coatings Curing Oven
UV LED Sterilization & Curing Box Furnace 220v 380v LED UV Lamp for Adhesive Inks Varnish Coatings Curing Oven
UV LED Sterilization & Curing Box Furnace 220v 380v LED UV Lamp for Adhesive Inks Varnish Coatings Curing Oven
UV LED Sterilization & Curing Box Furnace 220v 380v LED UV Lamp for Adhesive Inks Varnish Coatings Curing Oven
UV LED Sterilization & Curing Box Furnace 220v 380v LED UV Lamp for Adhesive Inks Varnish Coatings Curing Oven
1 / 5
UV LED Sterilization & Curing Box Furnace 220v 380v LED UV Lamp for Adhesive Inks Varnish Coatings Curing Oven
UV LED Sterilization & Curing Box Furnace 220v 380v LED UV Lamp for Adhesive Inks Varnish Coatings Curing Oven
UV LED Sterilization & Curing Box Furnace 220v 380v LED UV Lamp for Adhesive Inks Varnish Coatings Curing Oven
UV LED Sterilization & Curing Box Furnace 220v 380v LED UV Lamp for Adhesive Inks Varnish Coatings Curing Oven
UV LED Sterilization & Curing Box Furnace 220v 380v LED UV Lamp for Adhesive Inks Varnish Coatings Curing Oven

UV LED Sterilization & Curing Box Furnace 220v 380v LED UV Lamp for Adhesive Inks Varnish Coatings Curing Oven

Send Inquiry

Product Description

LED UV Curing Machine
Product Description
Detail Image 1 Detail Image 2 Detail Image 3

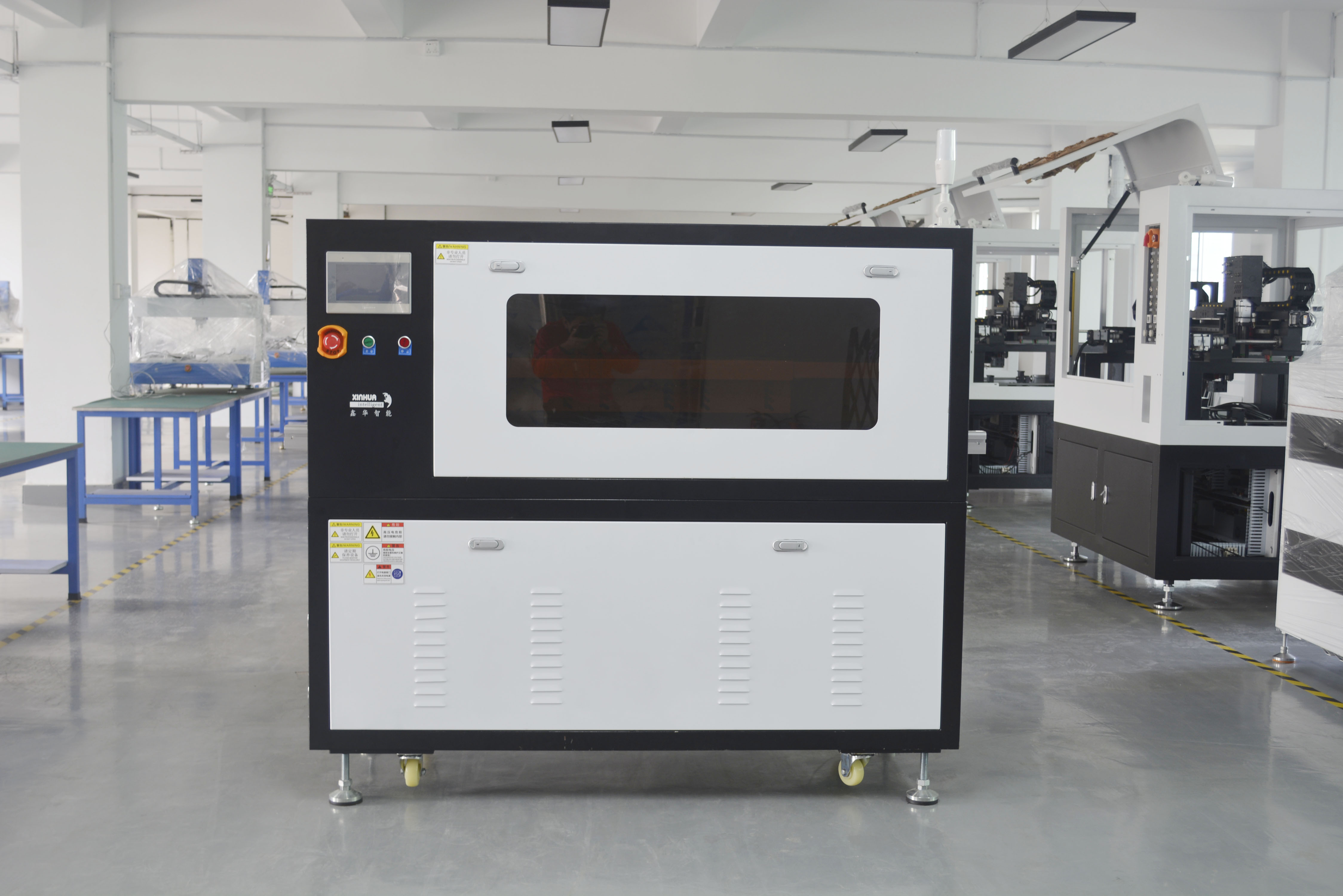

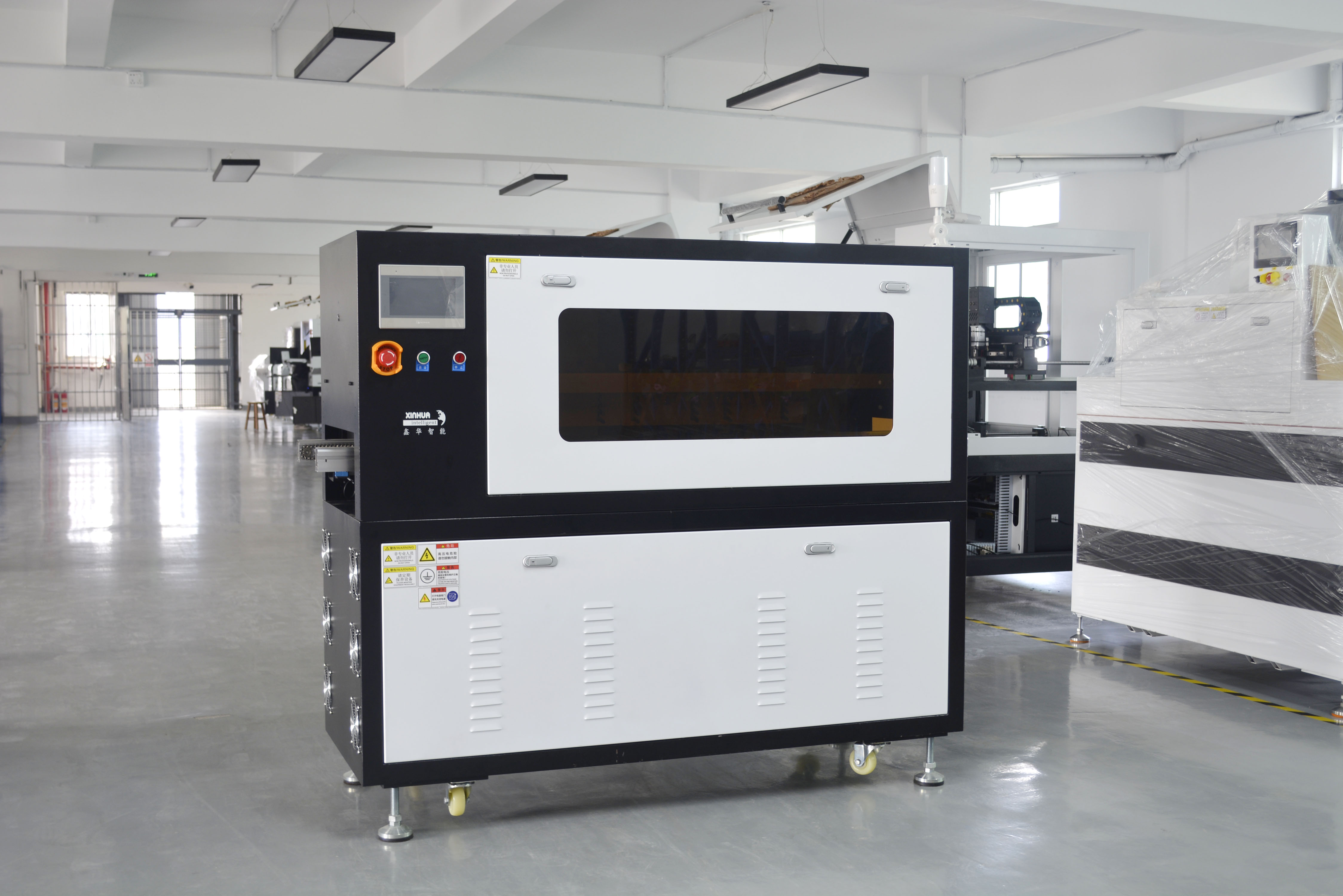

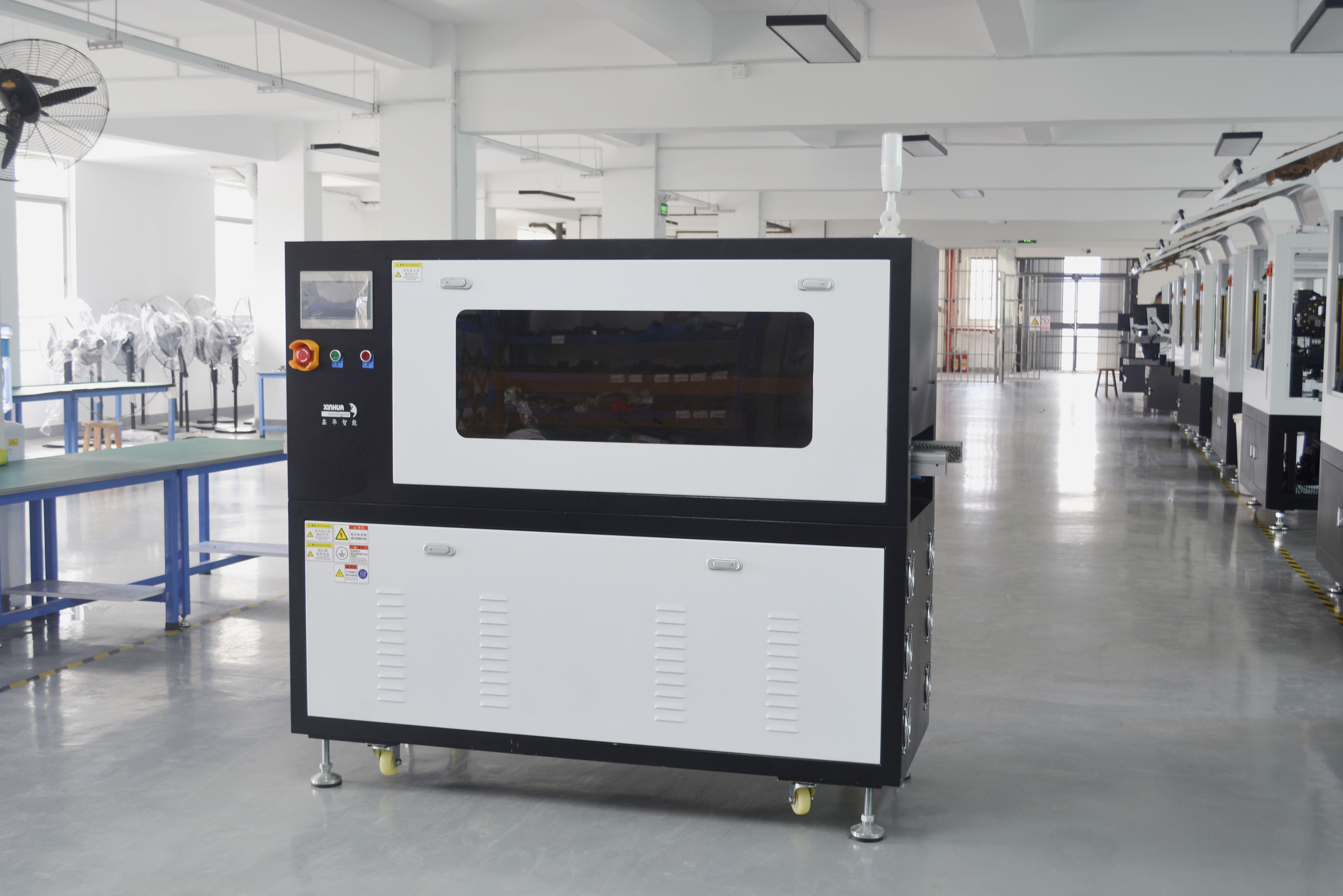

Detail Image 4 Detail Image 5 Detail Image 6
Detail Image 7
Detail Image 8
Specification
Product Name Hot Sale LED UV Curing Machine In The Assembly Line of New Energy Production
Track travel (mm) 350mm
Track length (mm) 1600mm
Irradiation area 350*400MM
Recommended exposure distance 10~50MM
Maximum load 5kg
Number of tracks Monorail / double rail / triple rail
Transfer operation mode Flow operation
Control system PLC control
Operation mode interface
Single lamp bead damage alarm provided
Energy real-time detection provided
Conveyor material sheet metal
Dissipation mode Water cooling / air cooling
Exhaust mode The exhaust pipe is connected to the workshop blower interface
Device power consumption 8KW
Input power AC220V 50/60HZ
Overall dimension W600*L1600*H1400mm
Weight Around 500 kgs
Company Profile
Company Image 1 Company Image 2 Company Image 3
Company Image 4 Company Image 5
Packing & Delivery
Packing Image
Packed in wooden case for export, filled with cushion cotton for protection.
FAQ
Q Are you manufacturer?
Yes, our factory can offer OEM and ODM services.
Q How is the after sales service?
We provide 1 year guaranty and technical support lifetime. Spare parts replacement as well as the whole equipment provided enjoy one year warranty. (Consumables are not in this item)
Q What's your MOQ?
We have no MOQ for this item, we can customized for one piece order according to your requirement.
Q What's your payment terms?
By T/T, 50% deposit in advance, balance 50% before shipment.
Q How long is your production lead time?
For standard machines, we can delivery within 7-15 days. If it is customized by customer (OEM), the lead time is 35-65 days.
Q Is it difficult to install the machine?
Not difficult. The main machine has installed well before shipping. We will prepare debugging and operating video in advance and show to customer. For the further problems come out, we can provide video instruction as well.
